Низкая цена показалась вам слишком высокой скорости PS-80 автоматическое оборудование для производства питьевой

Низкая цена показалась вам слишком высокой скорости PS-80 автоматическое оборудование для производства питьевой

Категория: оборудование для производства соломы >>>
Поставщик: Ruian,Mingyuan,Machinery,Co.,Ltd.

Цена:13 000,00 $ - 20 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	15470.39 $*	16244.85 $*
Aug-20-2025	15340.92 $*	16107.16 $*
Jul-20-2025	12870.49 $*	13514.52 $*
Jun-20-2025	15080.35 $*	15834.0 $*
May-20-2025	13130.60 $*	13787.57 $*
Apr-20-2025	14820.94 $*	15561.49 $*
Mar-20-2025	14690.51 $*	15425.28 $*
Feb-20-2025	14560.82 $*	15288.83 $*
Jan-20-2025	14430.25 $*	15152.1 $*

Характеристики

Product Description

MY-7 (2)

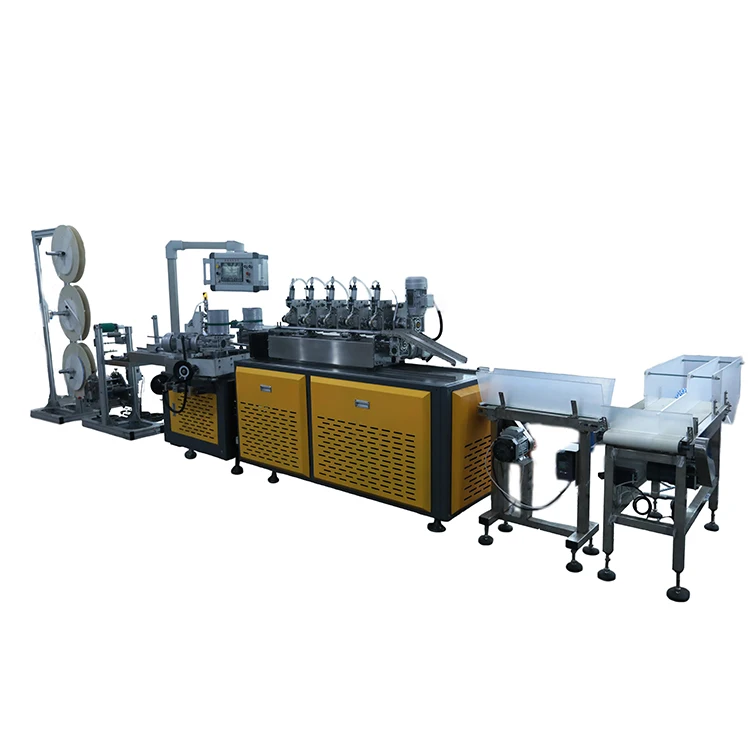

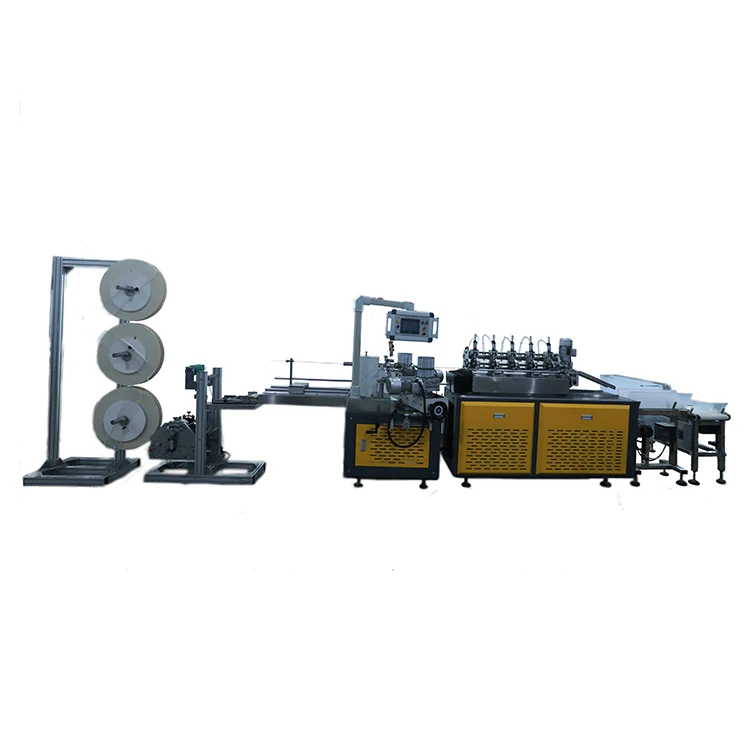

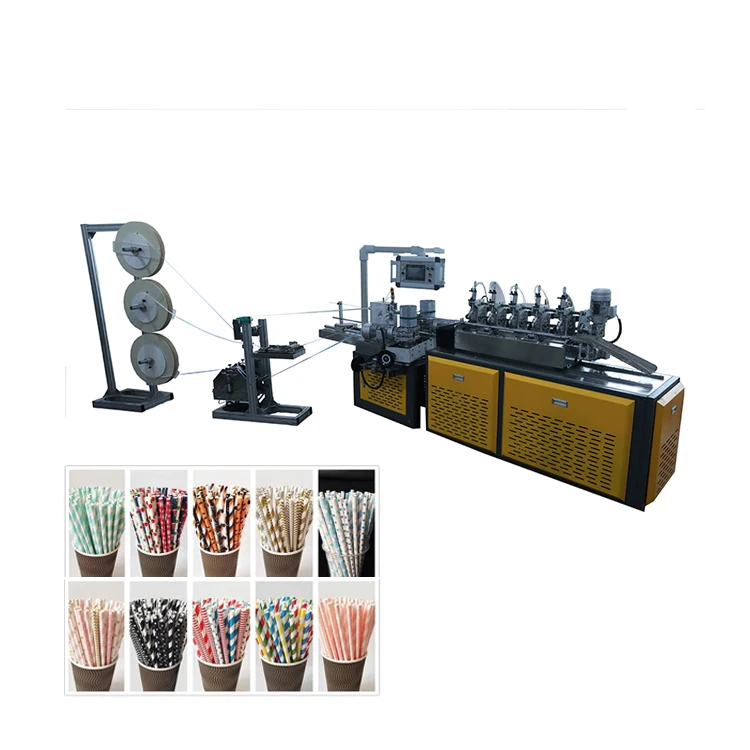

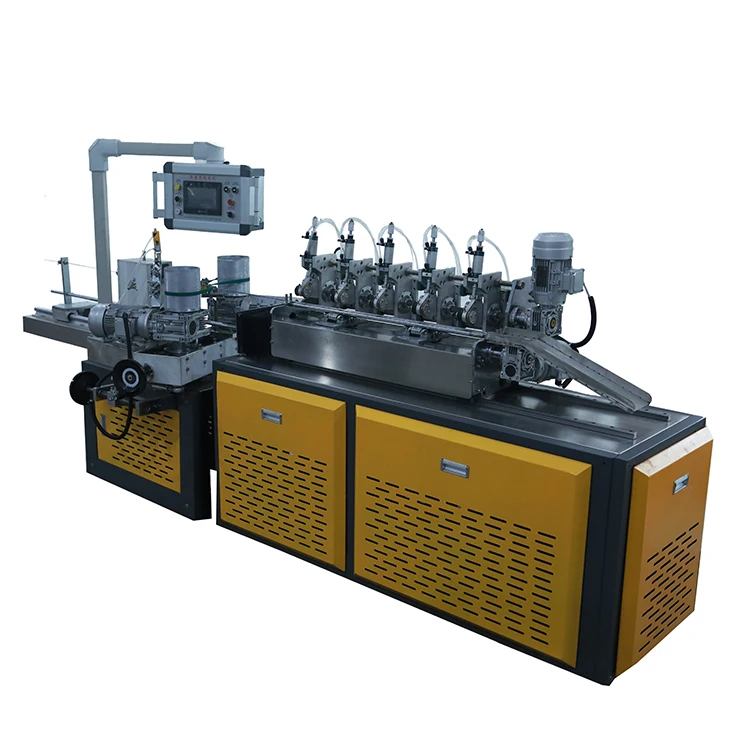

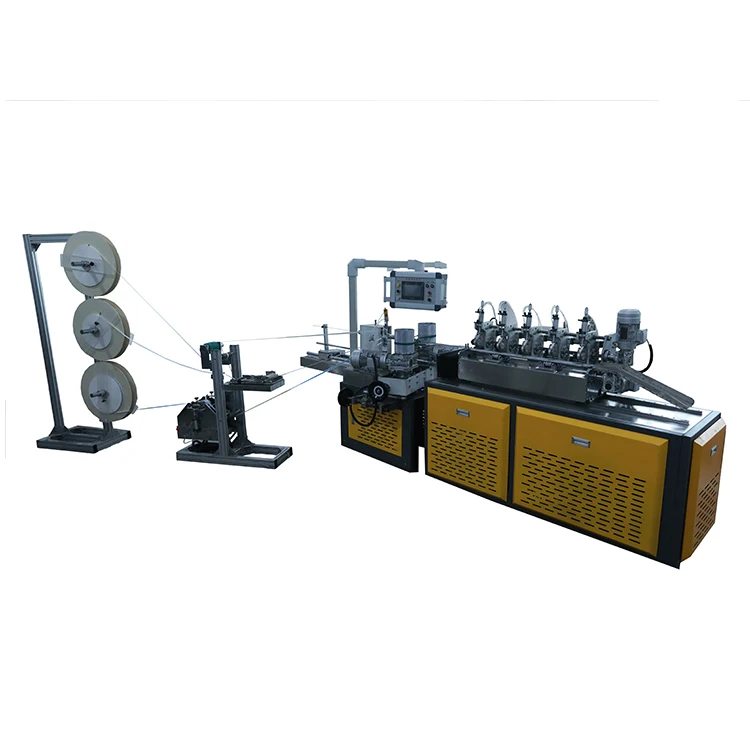

The PS-80 high speed paper straw machine integrates raw material feeding ,gluing, winding and cutting at one time. This Machine is suitable for producing different sizes of paper straws and very small paper tubes.

Feature :

1. It is adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.

2. T Bar Paper Roll Bracket , paper rolls are easily placed into bracket

3.Stainless steel gluing box, with polyurethane scraper and high carbon steel plastic knife, durable in use can choose Single or double glue coating unit

4. Spiral winding unit , specialized operation system , Belt tension device (hand-wheel driven)

5.Round knifes cutting section is adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency and stable

Technical Parameter		Control System
Paper Layer	3 layer (in side two layer the paper use 120gsm paper, outside layer paper use 60gsm)	Motor	3.0KW
Inner Diameter	4-12mm	PLC	Panasonic Made By Japan
Wall Thickness	0.5-1mm	Operating Panel	Weinview Made by Taiwan
Winding Speed	40-55 meters/min	Inverter	3.7kw
Winding Nose	Two noses single belt	Execute Components	CHNT
Speed Control	By Inverter	Pneumatic Components	AirTAC Made by Taiwan
Cutting System	Numerical Multi-blades (standard 5 pcs)	Electric Components	Schneider Made by France
Synchronism tracking cutting system	Servo motor synchronism tracking	Bearing	Haerbin
		Servo Motor	Panasonic 1.5kw Made by Japan
Gluing Way	Single/Double sides	Screw Rod	ABBA from Taiwan
Operator	1-2 person	Slider	ABBA from Taiwan

Working Air Pressure	0.6Mpa	Configuration
Power Supply 380V or 220V /3Phase or 1 Phase /50Hz		Paper Reel Stand		3 Layers Cross Type
		Gluing Unit		3 Layers Spraying Type
Measurement & Weight		Belt		2 Pieces
Measurement	560016001750mm	Mandrel Shaft		2 Pieces
Operation space	About 7000*5000mm	Extra blades		5 Pieces
Weight	1000kgs	Useful Tool		1 Set
Packing Size (Total 6 Packages)	Main Machine: 190013001900MM, 20008001600MM, Paper Roll Bracket: 22001150600MM, Glue Unit: 10005001100MM Collection System: 8004001050MM, 18006001050MM
