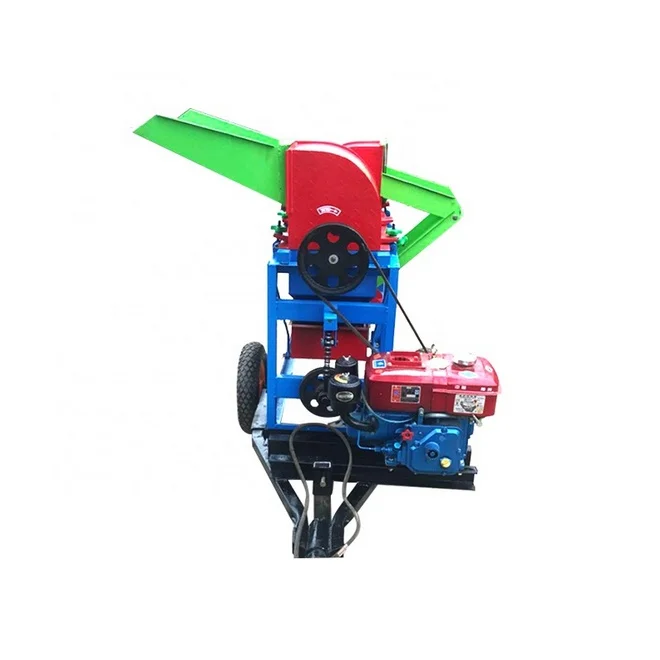

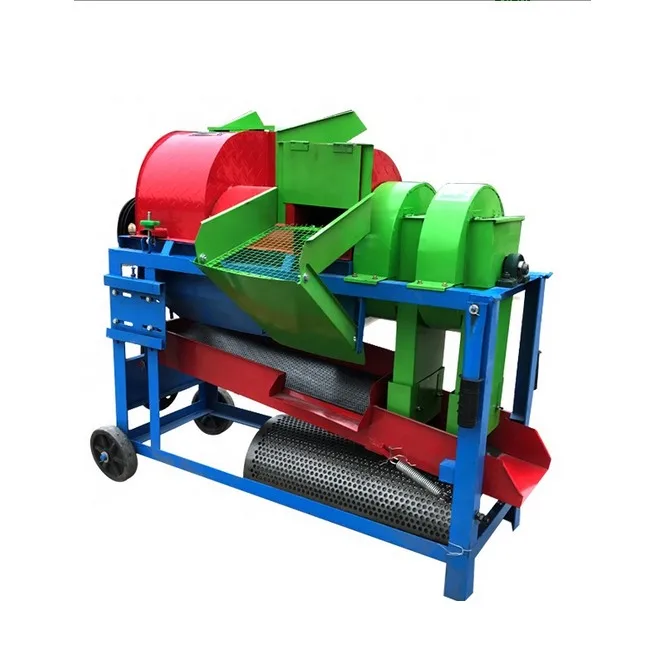

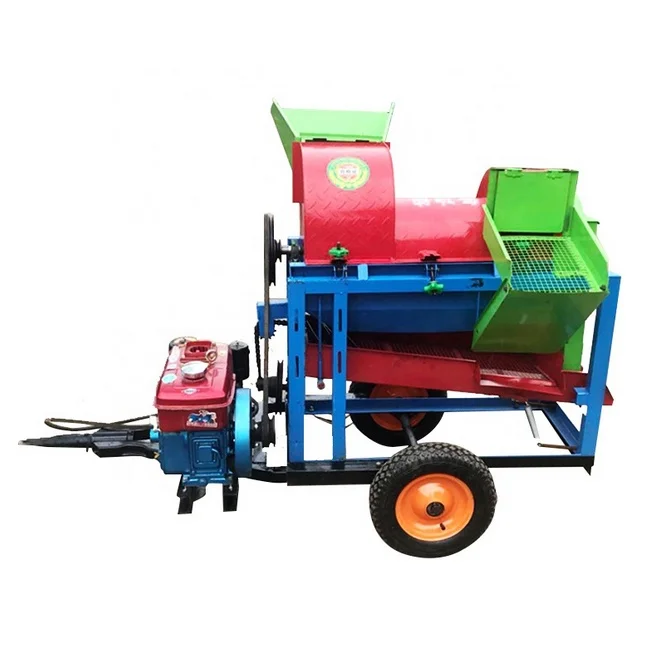

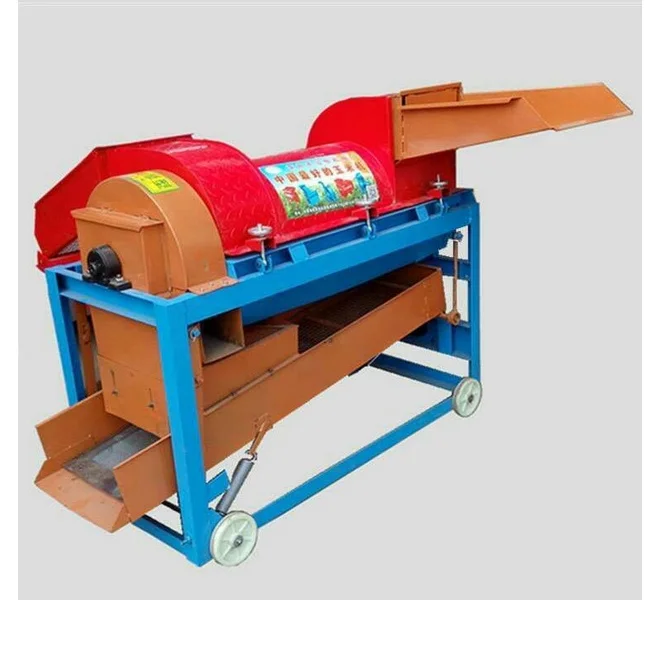

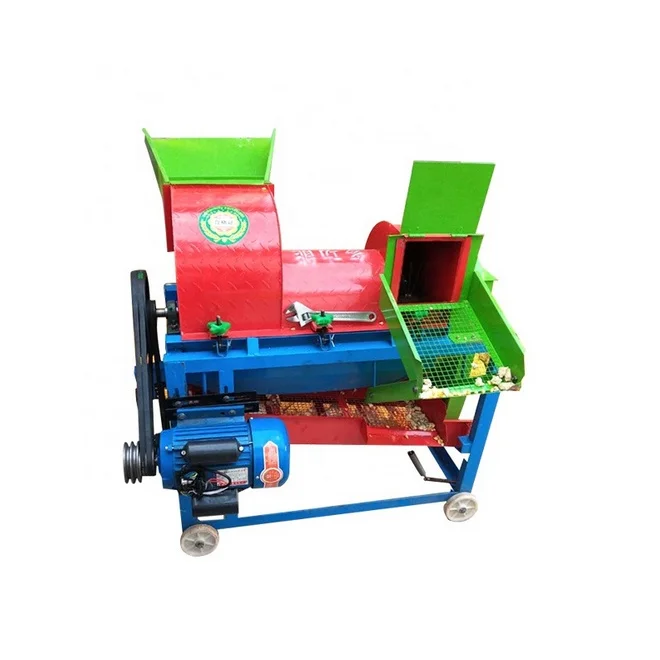

Wheat Threshing Machine Vertical Farm Corn Maize Thresher Grain Sheller Machine

Introduction of grain sheller:

1.The grain sheller machine with peeler combines husking and shelling. It can both peel off the corn husk, and shell the seeds, without breaking the corn cob and corn seeds. The rotor rotates with high speed and hits with drum cylinder, thus peeling and shelling with large capacity. They can peel off the corn husk and seeds at more than 98%, saving labor, enhance the working efficiency.

2.The grain sheller machine with peeler is high quality, easy to operate and maintance , very popular for home use.

Working principle of grain sheller:

This machine consists of a single-phase four motor power input spindle assembly through a gear transmission, driving the tore skin Room, the relative rotation of two pairs of steel to tear the skin chamber tear roller adjust the rocker arm bearing adjustment screw by a spring pressure, the two pairs of tear roller close contact, cluster into the tearing room, steel and tear on the roller tearing claw nail shell bract, the relative rotation of two pairs of roller bract rolling the housing, cover and the cover above to get the rubber adjustment board in the rotation to suppress ear, rely on two rollers rotating force and the pressure of the spring opened bract, so with the cluster separation, to tear the skin.

Parameter

Model	MT-860
Power	3kw motor , gasoline engine , diesel engine
Capacity	1000kg/h
Weight	90kg
Size	1150*850*1200mm
MOQ	5 pcs

Application and general adjustment of grain sheller

1.Tear the level of the net rate by adjusting the nut the bottom of the rocker arm bearing, roller tightly pressed together by a spring pressure, tear the net rate is low, tighten the adjusting nut, increase the spring pressure or adjust the box of rubber adjustment board, there are four adjusting nut on board available for adjustment.

2.During the tearing skin, you should try to avoid the vertical feeding, should be timely clear up the bract and cluster from inside and outside of the machine, otherwise, easily cause bract winding the shaft and blocking the outlet.

Advantages of grain sheller:

1.Of two functions-- peeling and threshing corn maize, saving labor and money than the single function machine

2. Full automatic, compact designed and it is very easy to operate.

3. Able to separate the corn from the corn body without breaking the corn cob. Capable to clearly separate the corn from the corn body and threshing-winnowing the corn at one time

4. Mainly applies to shell and thresh the fresh sweet corn and waxy corn quickly.

5. Also suitable for threshing the grain form all kinds of fresh, sweet and sticky corn, applicable for the freezing and defreezing corn, too.
