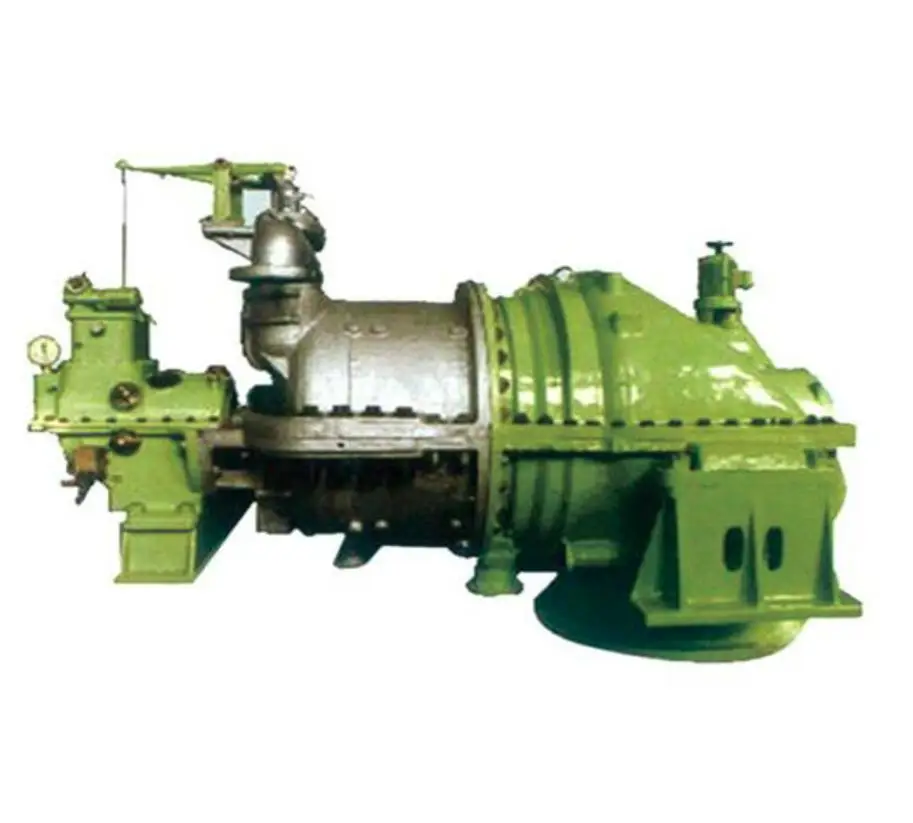

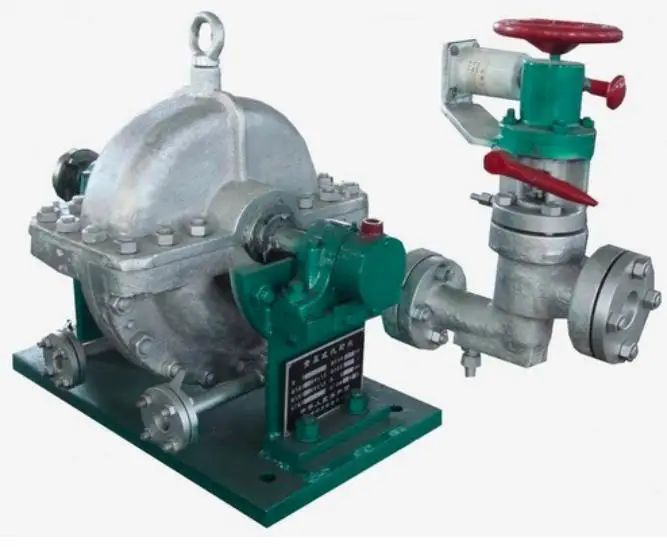

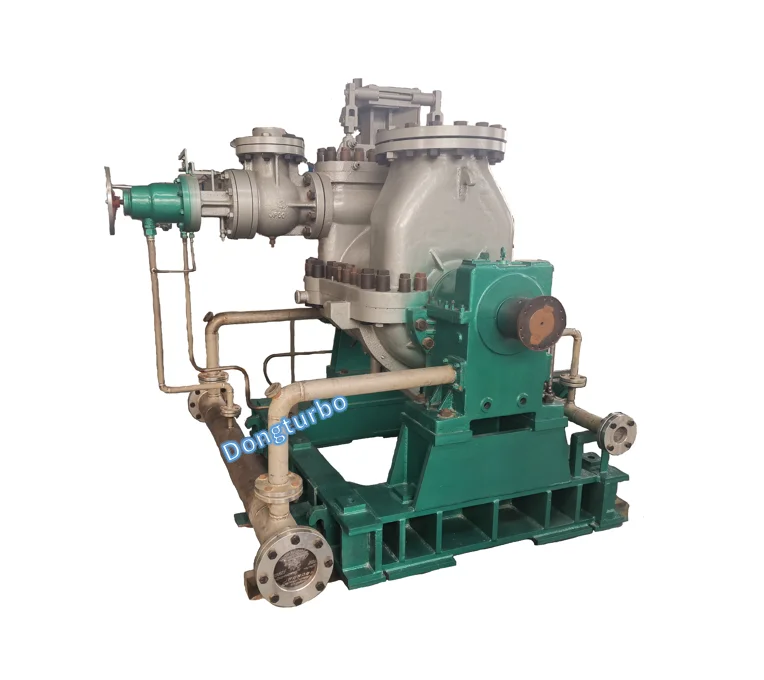

Small Condensing Steam Turbine 276KW



Dongturbo Electric Company Ltd. is a professional manufacturer of small and medium-sized back pressure steam turbines and condensing steam turbines.  The industrial steam turbines produced by the company can be classified into two types: industrial-driven steam turbines and industrial power-generating steam turbines. In the petroleum, chemical, electric power, metallurgy, building materials, textile and other industrial sectors and enterprises self-supplied power stations, regional cogeneration, waste heat power generation, garbage power stations, olefin-vapor combined cycle.



Parameters for 276KW condensing steam turbine with generator



No.	Item	Data	Remarks
1	Steam Turbine Type	B0.26-2.4/0.15
2	Rated Output	260 KW
3	Steam Turbine Rated Speed	3000r/min
4	Inlet steam pressure	23-24Kg/cm2	Absolute pressure
5	Outlet steam pressure	1.5 Kg/cm2	Absolute pressure
6	Inlet Steam Temperature	350±10℃
7	Direction of rotation	Counter clock wise from pump side
8	Rated Flow	<4 t/h
9	Arrangement Model	Single layer
10	Steam Turbine Noise	≤85 bd


Our advantages:


 1.  With a steam turbine manufacture experience of more than 20 years.



 2.  We offer turnkey service,  including project design, production,construction, installation, and adjustment.



 3. Low steam consumption rate, high efficiency to help customer save cost.



 4. Strong overload capacity, easy to operate, safety guaranteed



 5. We offer customed products.



Application



1) Cogeneration: high thermal efficiency, widely used in brewing, sugar refining, pharmaceutical, textile, printing and dyeing, chemical fertilizer, chemical, regional heating and other industries.



2) Waste heat and energy utilization: steel blast furnace gas, metallurgy sintering waste heat, waste heat at the cement kiln head and inlet, glass kiln waste heat, chemical kiln waste heat, coking waste heat, gas turbine waste heat and other waste heat and waste energy.



3) Biomass power generation: wood chip, straw, leaves, husks, furfural residue, bagasse, palm shell and ordinary trash, etc. can be used for power generation.



4) Other fields: low concentration mine gas, coal slime, saturated steam, etc.



5) Industrial drives:  energy-saving substitute for electric motor. Widely applied in the petrochemical industry, directly driven air blowers, compressors, and other highly energy-intensive equipment.
