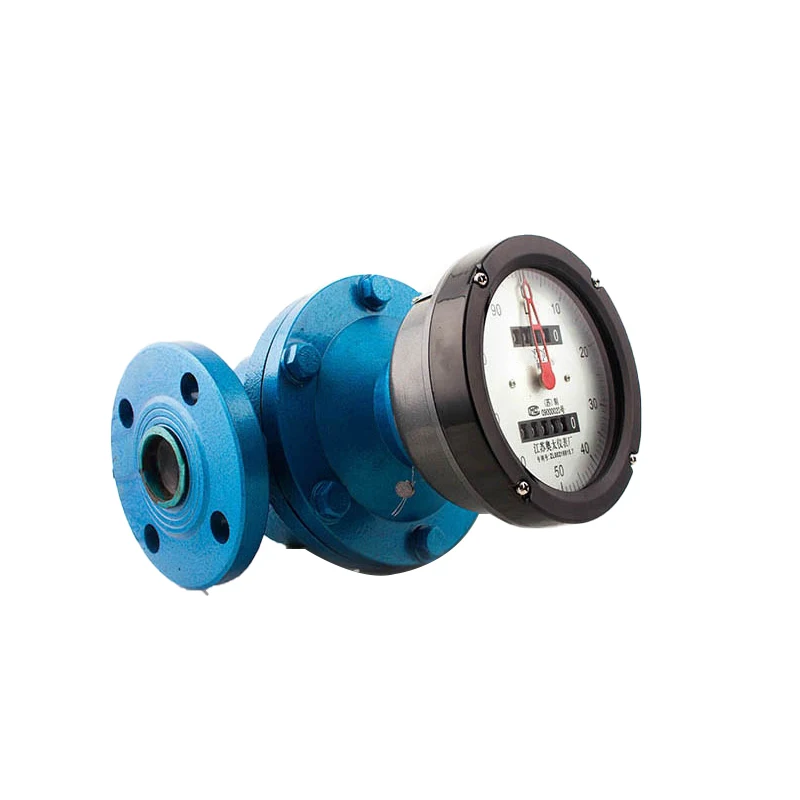

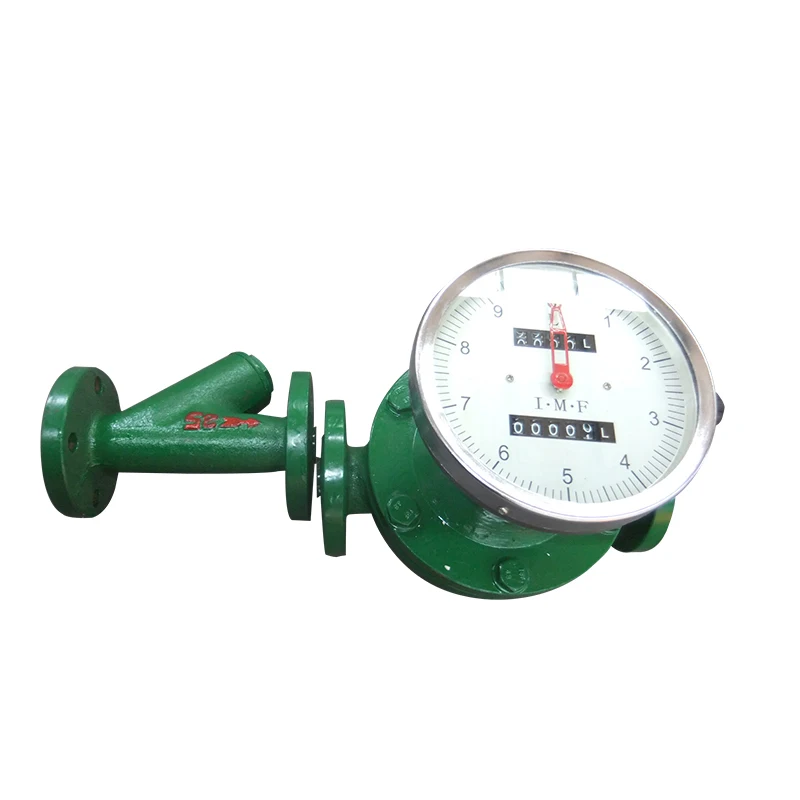

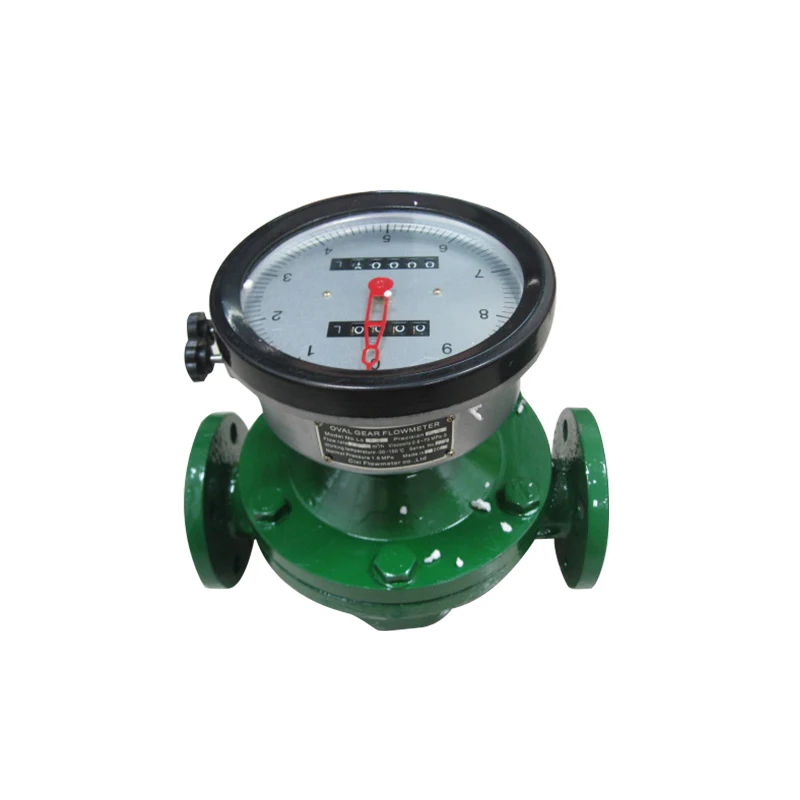

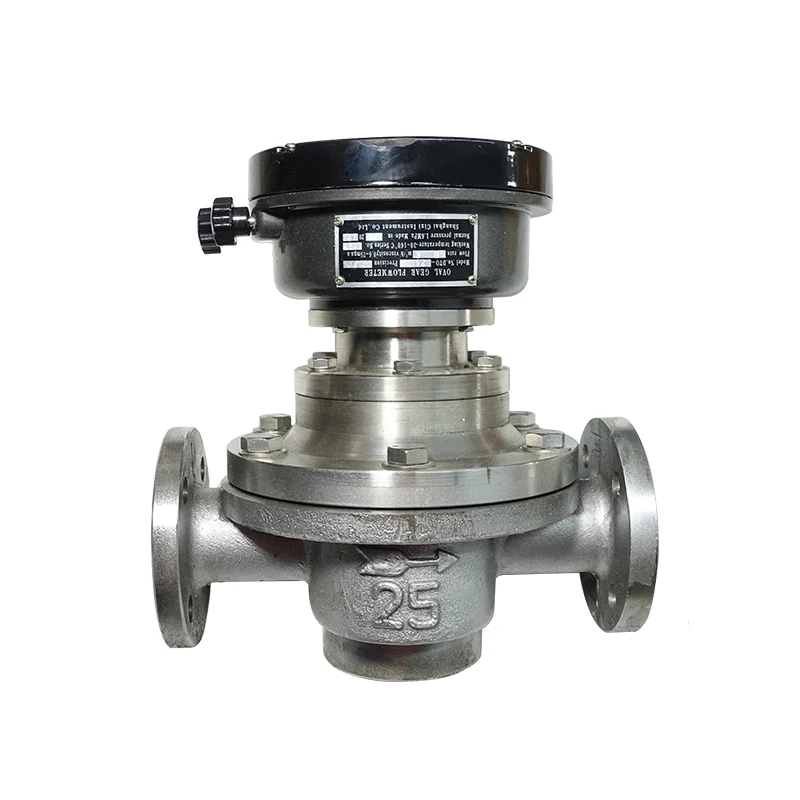

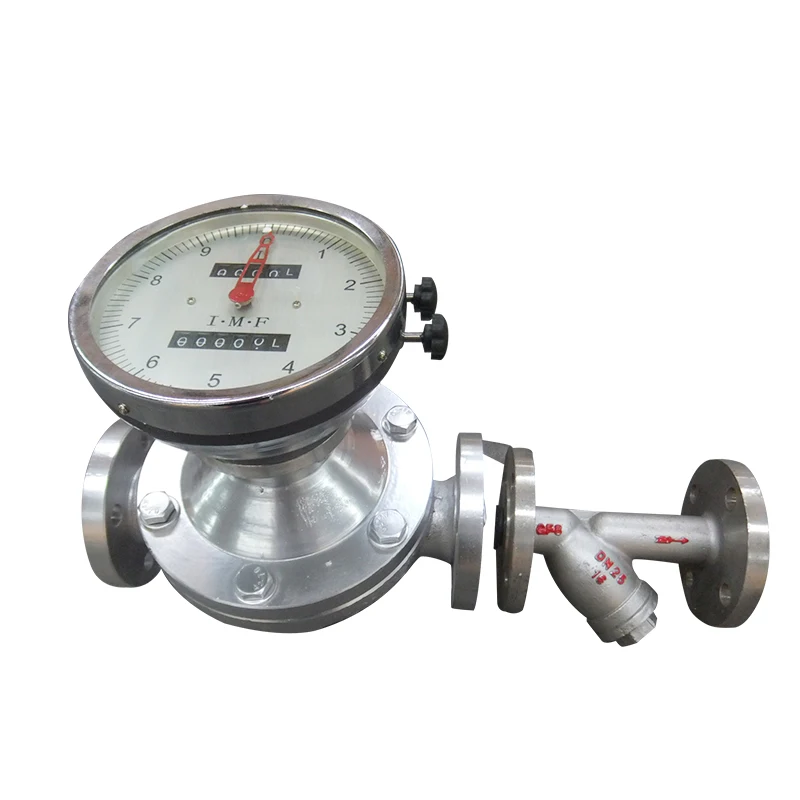

 DN10-DN150 Cast Steel Pulse Output Oval Gear Type Positive Displacement Diesel Fuel Flowmeter Palm Oil Flow Meter Gasoline

A.[Features of Diesel Fuel Flow meter]



Widely range of liquid viscosity

the viscosity of medium is 0.6Mpa.s~250Mpa.s



Various of Display and Output

The transformer oil flow meter with digital display and mechanical display ;pulse or 4~20mA Output;



Various applications

the transformer oil flow meter suitabke for various applications such as chemical industry ,oil,medicine and electricity,etc.



High accuracy

Beacuse of the principle of Diesel Fuel Flow meter,the accuracy is 0.5%.



B.[Parameters]

Production Name	Diesel Fuel Flow meter
Medium	Oil
Accuracy	0.5%
Material	cast steel
Gear material	aluminium alloy
Medium temperature	-20~100C
Output	pulse
Power	24V or 12V
Display	mechannical display
Work pressure	5.0Mpa
( including filter)







C.[Installation]

• The flow direction should be same as the sign on the body,the location must be convenient for you reading;
• The Diesel Fuel Flow meter should be installed at normal temperature location where without harmful gas to avoid damaging the flow meter;
• Pls keep the pipeline is clear before installa the flow meter and installa the filter to avoid the Impurities got into pipe;
• The flow adjusted value should be installed at downsteam,First,you should open the adjusted value and second to open the shut-off value;
• Pls ensure the liquid without any gas;
• If the mediun's viscosity is high,sometime ,you should heating to reduce the viscosity;
• It can be installed horizontally or vertically. When installing, the elliptical gear rotation axis of the Flowmeter should be parallel to the ground

D.[Company info]

• Our Company is Top 10 Manufacture on Alibaba;
• We have about 30 years of experience in Manufacture;
• Our products have been exported to more 100 coutries and area;
• ISO,SGS,CE and more ceterficates for you reference;
• Patent technology and more than 3 years working life
