Высокотехнологичный Цветной Допплер CE USB линейный зонд ультразвуковой 14
- Категория: Ultrasonic, Optical, Electronic Equipment >>>
- Поставщик: Shanghai,Sunbright,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 1785.17 $* | 1874.30 $* |
| Aug-19-2025 | 1770.73 $* | 1859.34 $* |
| Jul-19-2025 | 1485.29 $* | 1559.53 $* |
| Jun-19-2025 | 1740.16 $* | 1827.82 $* |
| May-19-2025 | 1515.13 $* | 1591.41 $* |
| Apr-19-2025 | 1710.40 $* | 1796.66 $* |
| Mar-19-2025 | 1695.73 $* | 1780.8 $* |
| Feb-19-2025 | 1680.37 $* | 1764.3 $* |
| Jan-19-2025 | 1665.65 $* | 1748.78 $* |
Характеристики
Product Description

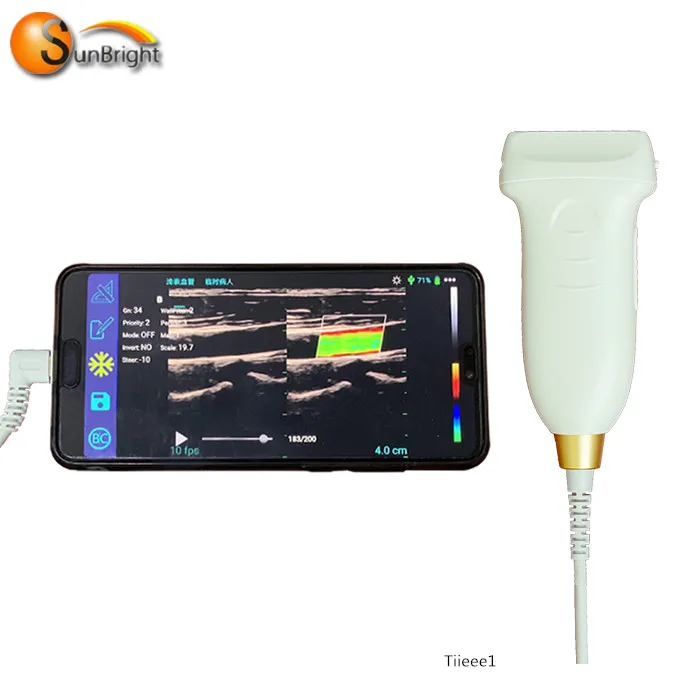

High Technology CE color Doppler USB linear probe ultrasound probe 14 MHz
System Description:
Sun-D2 is an ergonomically designed portable and ease-of-use pocket ultrasound system for multi-specialty uses, such as adults, pregnant women, pediatric patients and neonates. It is intended for use in Abdomen / Obstetrics / Gynecology / Urology / Small Parts / Vascular / Pediatrics / Musculoskeletal.
Electrical Power
Voltage | 5V | ||||
Max Power | 0.25 W | ||||
Physical Specifications
Packing size | 210mm×130mm×50mm | ||||
Packing weight | ~400g | ||||
Cine/Image Memory
Cine Memory | 200 frame | ||||
Capture area | Image only / full screen | ||||
DICOM Connectivity
DICOM3.0 Storage
Image Storage
Storage Format: JPEG, MP4
Technology
Full field synthetic aperture imaging Tech | ||||||
Multi-beam formation Tech | ||||||
Speckle Reduction Tech | ||||||
Phase-inverse Harmonic Imaging Tech | ||||||
Duplex Synchronous Display | ||||||
Directional Power Doppler | ||||||
Imaging Parameters Preset | ||||||
General Performance
Digital Beamformer Channels | 64 channels | ||||
Beam-former Frequency Range | 1~18 MHz | ||||
Imaging Performance
Startup Time (Max) | Avg. < 10 seconds | ||||
Preset Switching Time | Avg. < 1 second | ||||
Storage Time (Image to Disk) | Avg. < 1 second | ||||
Transducers
Probe | Convex Array Probe | Linear Array Probe | ||
Frequency | Central 3.5 MHz (2.0MHZ to 5.0MHZ) | Central 7.5 MHz (5.0MHZ to 10.0MHZ) | ||
Pitch | 0.78mm | 0. 5mm | ||
Radius | 60mm | N/A | ||
Elements | 80 | 80 | ||
User Interface
Full touch-screen-based operating principles | ||||||
IMAGING MODES
B, M, 2B, B/C, B/D, B/C/D, CF+B, PW
B-Mode
Maps | 8 | ||||
Gain | 0~100 | ||||
TGC | 6 Sliders | ||||
Dynamic Range | 45~80dB | ||||
Depth | Max. 24cm | ||||
Chroma | 0~7 | ||||
Grayscale Levels | 256 | ||||
Frame Rate | Max.15 Hz | ||||
Persistence/ Frame Average | 1~4 | ||||
Top/Bottom/Left/Right Reverse | Yes | ||||
Speckle Reduction | Yes | ||||
Harmonic imaging | Yes (linear probe) | ||||
Color Mode
Gain | 0~100 | ||||
Color Maps | 1~12 | ||||
Doppler Steer Angles | 7 Steps | ||||
Wall Filter | 1~4 | ||||
Persistence/Frame Average | 1~5 | ||||
PW Mode
Gain | -20~20 | ||||
D Linear Velocity | L/M/H | ||||
Doppler Steer Angles | 5 Steps | ||||
Wall Filtering | 1~3 | ||||
Correction Angle | 80°/-80° | ||||
Max PRF | 10kHz | ||||
Baseline Adjustment | -3~3 | ||||
MEASUREMENTS SPECIFICATIONS
Analysis Packages
Basic, Obstetrics, Urology
Basic Measurement
B-mode | Distance, Perimeter and Area (ellipse or track-based method), Volume | ||||
M-mode | Heart Rate, Time, Distance, Speed | ||||
PW-mode | Heart Rate, Velocity, S/D, PI, RI | ||||
