Маленькая Паровая турбина заднего давления 476KW модель B0.48-1.4/0


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 0.56 $* 0.56 $*
Aug-18-2025 0.88 $* 0.0 $*
Jul-18-2025 0.30 $* 0.51 $*
Jun-18-2025 0.79 $* 0.97 $*
May-18-2025 0.64 $* 0.76 $*
Apr-18-2025 0.50 $* 0.95 $*
Mar-18-2025 0.13 $* 0.80 $*
Feb-18-2025 0.51 $* 0.86 $*
Jan-18-2025 0.59 $* 0.2 $*

Характеристики

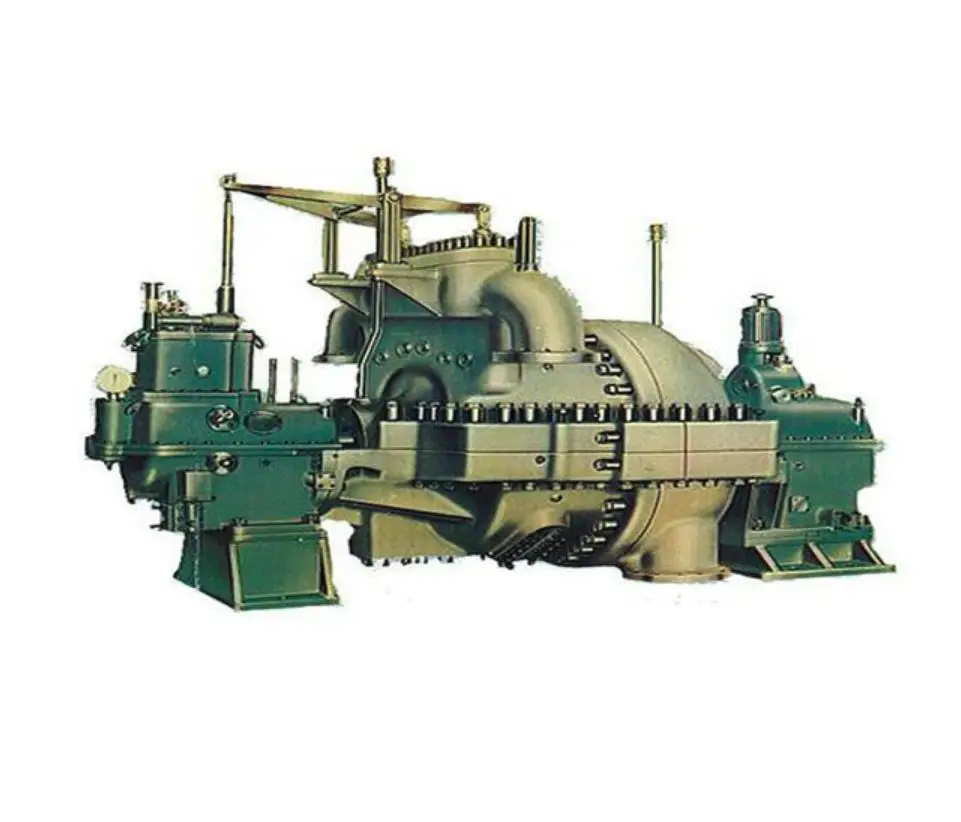

Small Back Pressure Steam Turbine 476KW





Dongturbo Electric Company Ltd. is a professional manufacturer of small and medium-sized back pressure steam turbines and condensing steam turbines.  The industrial steam turbines produced by the company can be classified into two types: industrial-driven steam turbines and industrial power-generating steam turbines. In the petroleum, chemical, electric power, metallurgy, building materials, textile and other industrial sectors and enterprises self-supplied power stations, regional cogeneration, waste heat power generation, garbage power stations, olefin-vapor combined cycle.





Parameters for 476KW condensing steam turbine with generator































































































































































No.



Item



Data



Remarks



1



Steam Turbine Type



B0.48-1.4/0.65







2



Rated Output



476 KW







3



Steam Turbine Rated Speed



3000r/min







4



Generator Speed



3000r/min







5



Inlet Pressure



1.4MPa



Absolute pressure



6



Inlet Temperature



205℃







7



Rated Flow



20t/h







8



Steam Rate



42kg/kw.h







9



Heat Rate



4208.58/kw.h







10



Back Pressure



0.65MPa







11



Exhaust Temperature



162℃







12



Arrangement Model



Single layer







13



Connection for steam turbine and generator



Direct Connection







14



Steam Turbine Noise



  ≤85 bd







15



Steam turbine axis vibration guaranteed value


Operation Direction



<0.03mm


Steering of driven machine: Looking from the turbine to the generator end as a clockwise (counterclockwise).










16



Generator Type



TFQW-335-2







17



Voltage



400V







18



Generator Output



480KW







19



Frequency



50Hz







20



Insulation grade level



H







21



Environmental Temperature



40℃







22



Cooling Way



Wind Cooling







23



Power Rate



0.8







24



Connection Mode



Three phase four wire system














Our advantages:




 1.  With a steam turbine manufacture experience of more than 20 years.





 2.  We offer turnkey service,  including project design, production,construction, installation, and adjustment.





 3. Low steam consumption rate, high efficiency to help customer save cost.





 4. Strong overload capacity, easy to operate, safety guaranteed





 5. We offer customed products.





Application





1) Cogeneration: high thermal efficiency, widely used in brewing, sugar refining, pharmaceutical, textile, printing and dyeing, chemical fertilizer, chemical, regional heating and other industries.





2) Waste heat and energy utilization: steel blast furnace gas, metallurgy sintering waste heat, waste heat at the cement kiln head and inlet, glass kiln waste heat, chemical kiln waste heat, coking waste heat, gas turbine waste heat and other waste heat and waste energy.





3) Biomass power generation: wood chip, straw, leaves, husks, furfural residue, bagasse, palm shell and ordinary trash, etc. can be used for power generation.





4) Other fields: low concentration mine gas, coal slime, saturated steam, etc.





5) Industrial drives:  energy-saving substitute for electric motor. Widely applied in the petrochemical industry, directly driven air blowers, compressors, and other highly energy-intensive equipment.
