Характеристики


JD-100 Concrete Mixer

Factory Price Self Loading Concrete Mixer Portable Concrete Mixer for Sale

Product Description

Concrete Mixer Features:

1. JD-100 Concrete Mixer is a new-designed batching, mixing, conveying equipment for wet concrete shotcrete machine.

2. JD-100 Concrete Mixer is compact structure, light weight, flexible movement, easy maintenance and cleaning.

3. It has high production efficiency, well material mixing uniformity, stable working performance.

4. It has continuous feeding and continuous mixing, which reduces the production cost and improves the production efficiency.

Concrete Mixer Application:

1. JD-100 Concrete Mixer can be used to mix concrete, cement, mortar and other materials.

2. It is widely used in the concrete/shotcrete construction of tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.

3. It is equipped with the wet/dry concrete shotcrete machine or shotcrete/concrete pump for mixing, and independently for concrete mixing and conveying.

Concrete MixerTechnical Parameters:

Item

Unit

Parameters

Max. capacity

m3/h

5~6

Feeding height

mm

1200

Max. aggregate size

mm

≤15

Motor

Feeding system

kW

4

Mixing system

kW

4

Screw feeding speed

r/min

48

Mixing drum speed

r/min

10

Wheel gauge

mm

600

Working cycle period

/

Continuous

Dimension

mm

3300x900x2000

Total weight

kg

1100

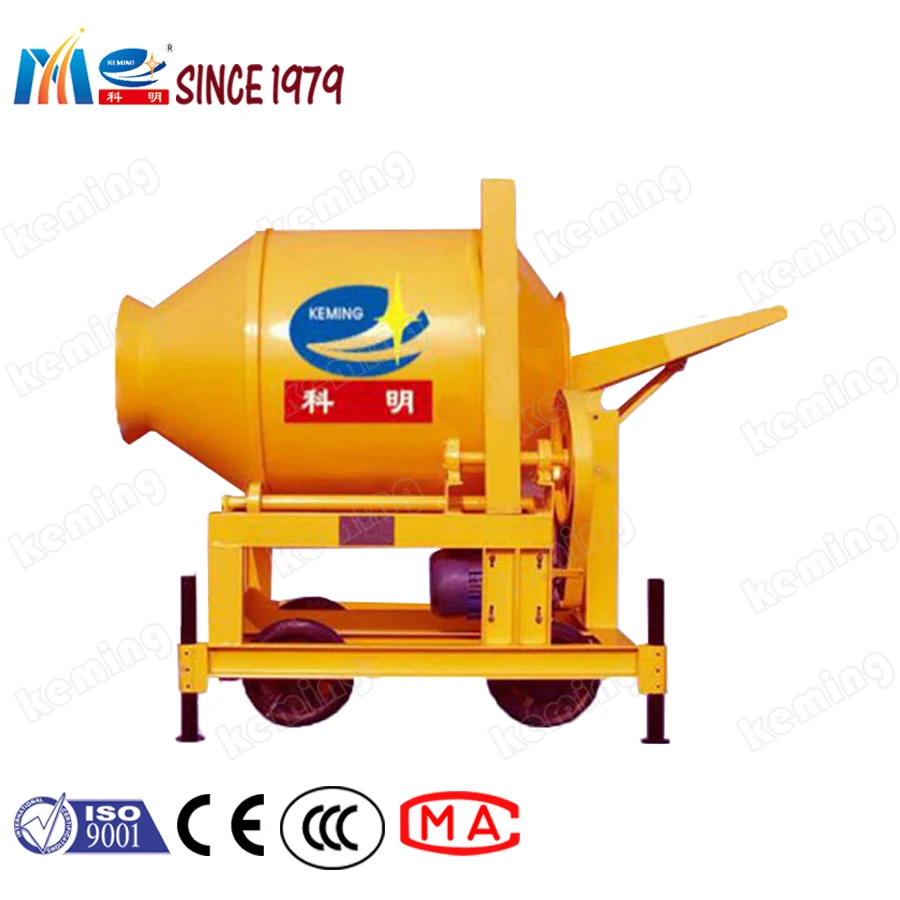

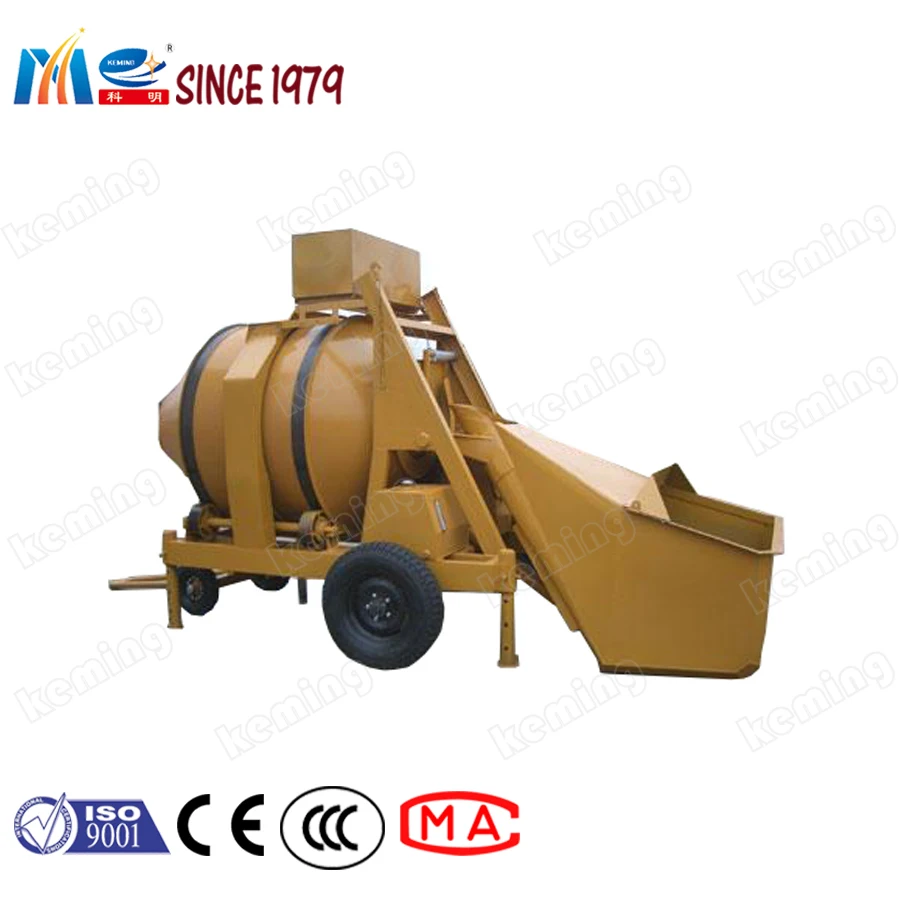

Concrete Mixer Pictures:

JD-100A concrete mixer 2JD concrete mixer 1

Company Information

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd. Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

Achievements:

Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.

In 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”. In 2018, our company was awarded ISO9001 Quality Management System Certification, OHSAS 18001 Occupational Health and Safety Management System Certification, ISO14001 Environmental Management System Certification and CE Certification.

Business Scope:

As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

Application:

Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.

Main Products:

wet/dry shotcrete machine, plastering machineconcrete/shotcrete pump, grouting pump, cement pump, mortar pump, slurry pump, hose pump, cement/concrete mixer, concrete foaming machine etc.

Certifications

CE-CCC1

FAQ



1. Q: Which model should we choose?

A: To recommend the most suitable model, please tell us:

- Material: cement, cement&sand, concrete or other materials

- Capacity (-m3/h) :

- Max aggregate size (-mm) :



2. Q: What is the vulnerable part? How many spares should we prepare?

A: After long-time running, some parts may get worn. We will offer some spares for free.

Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.



3. Q: Can we have customized model?

A: Yes. Customized production and OEM production are available according to your actual requirements.



4. Q: Do i need technical skills to operate this machine?

A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.



5. Q: What should we do if there are some problems with the machine?

A: The Operate Instruction will help with routine maintenance and common problems.

Also, you can contact us for technical instruction by email, instant messenger or live video etc.



6. Q: What is the lead time

A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.



7. Q: How about the package

A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.



8. Q: How to place an order?

A: Both online order and offline order are acceptable.

It is suggested to place online order with a Trade Assurance to get full protection for first order.



9. Q :How to pay for this order?

A: Generally, TT, 30% deposit 70% before shipment;

   L/C at sight (high bank charge, not suggest, but acceptable);

   100% TT in advance (especially for small amount and spare parts etc.)

Related Products

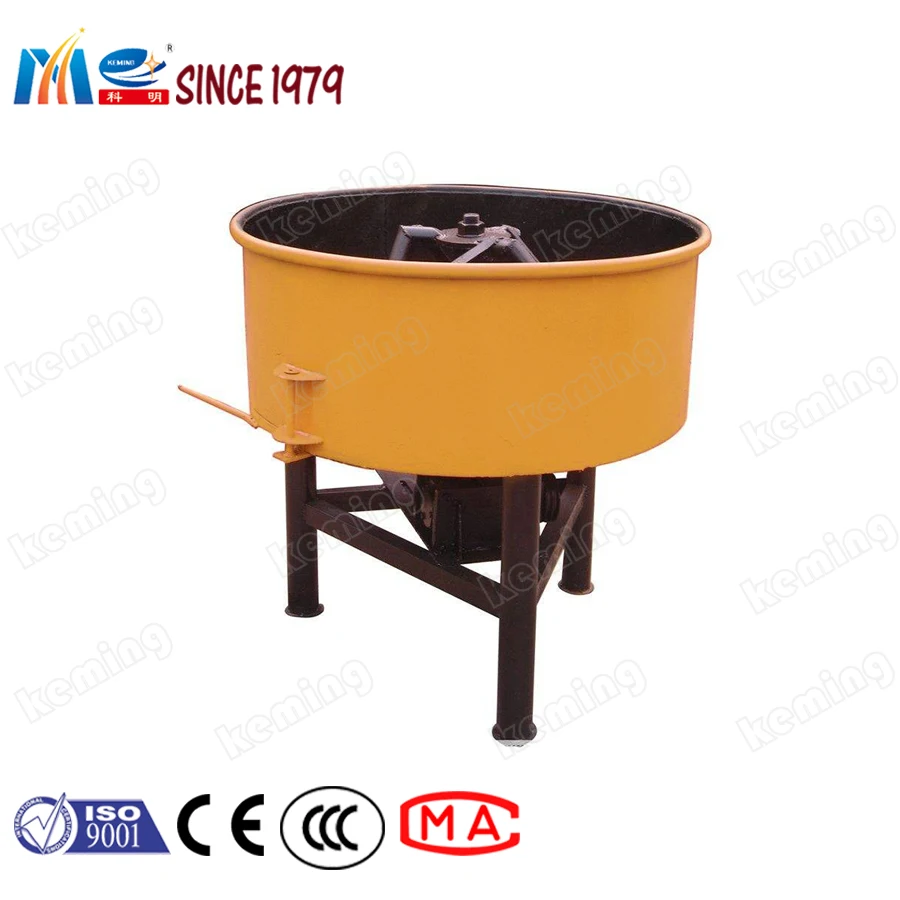

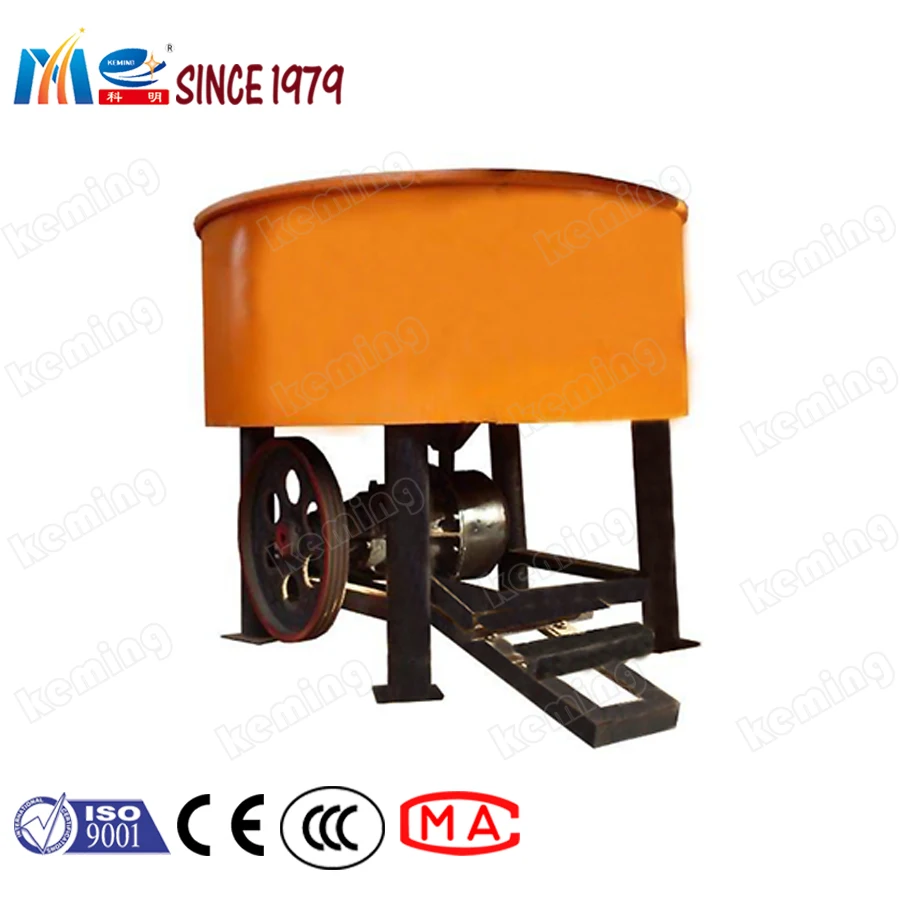

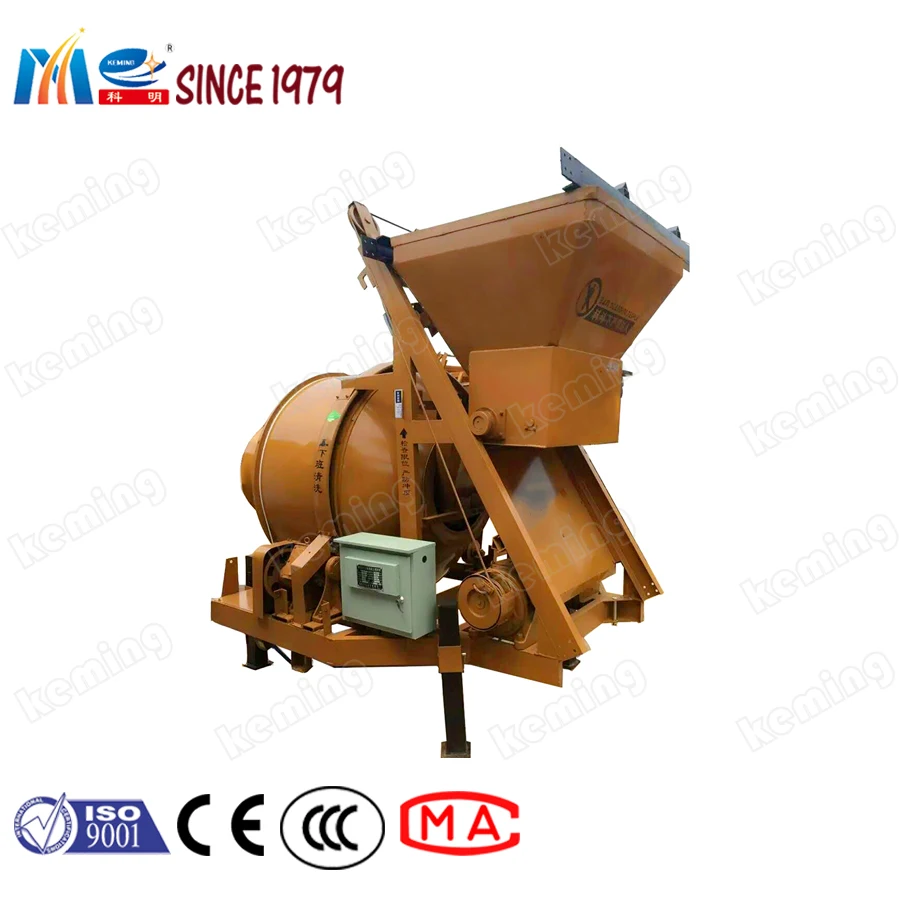

JZC concrete mixer 2JZC concrete mixer 3

JZM Concrete mixer

*Turn-over loading hopper

JZM Concrete mixer

*Climbing loading hopper

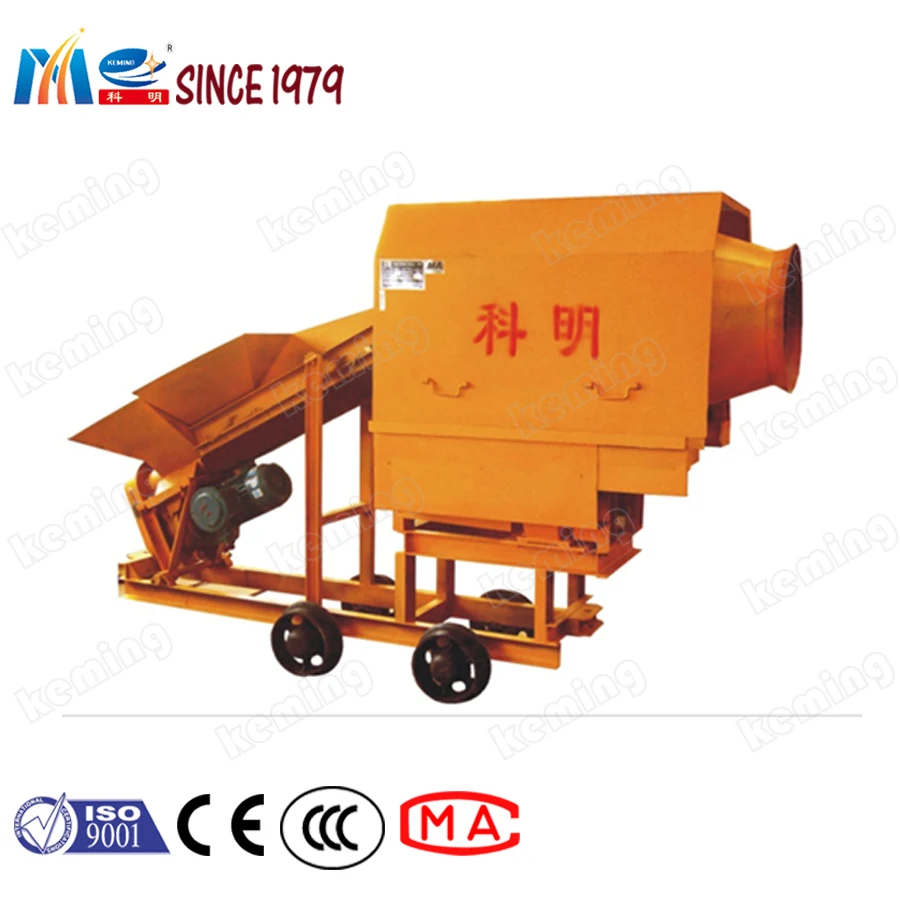

JD-100A concrete mixer 2JD concrete mixer 1
