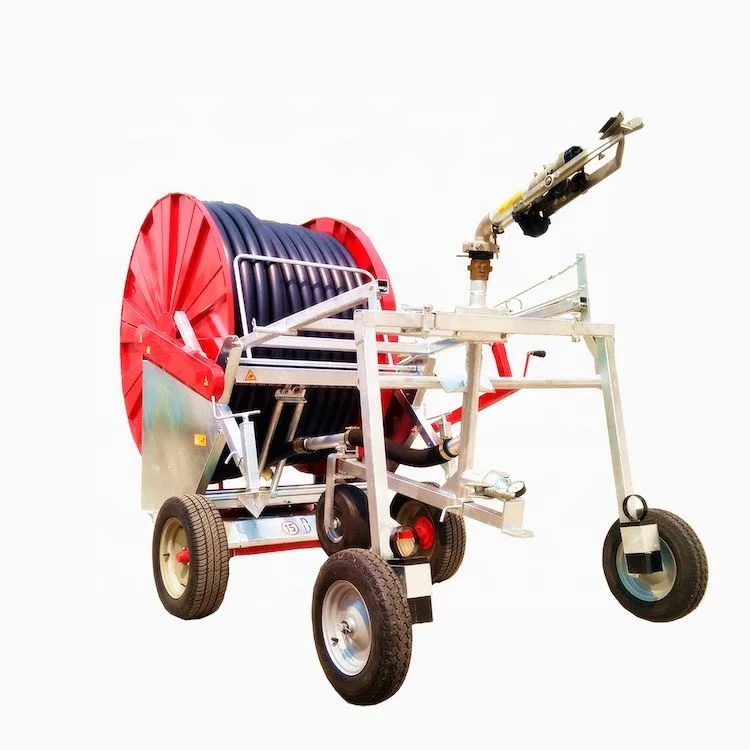

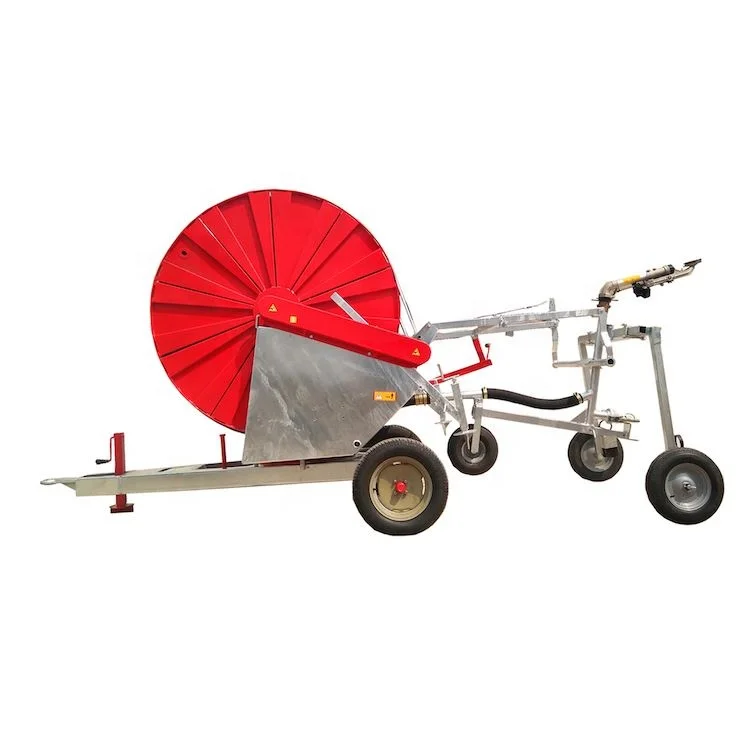

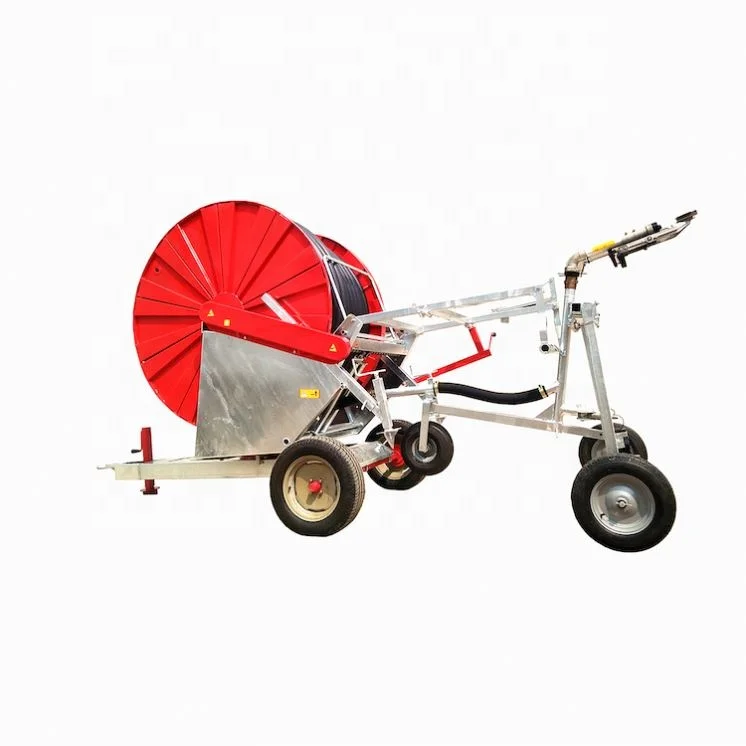

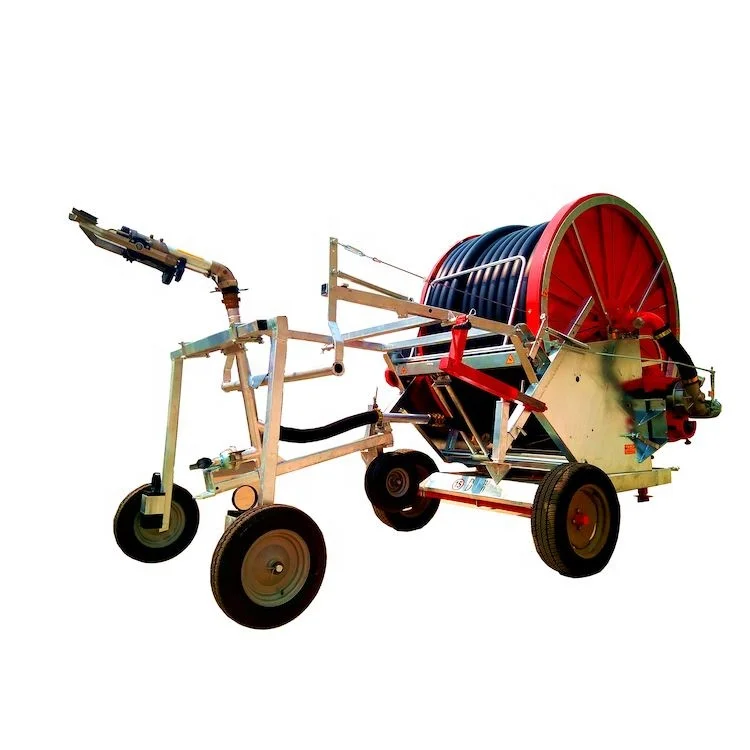

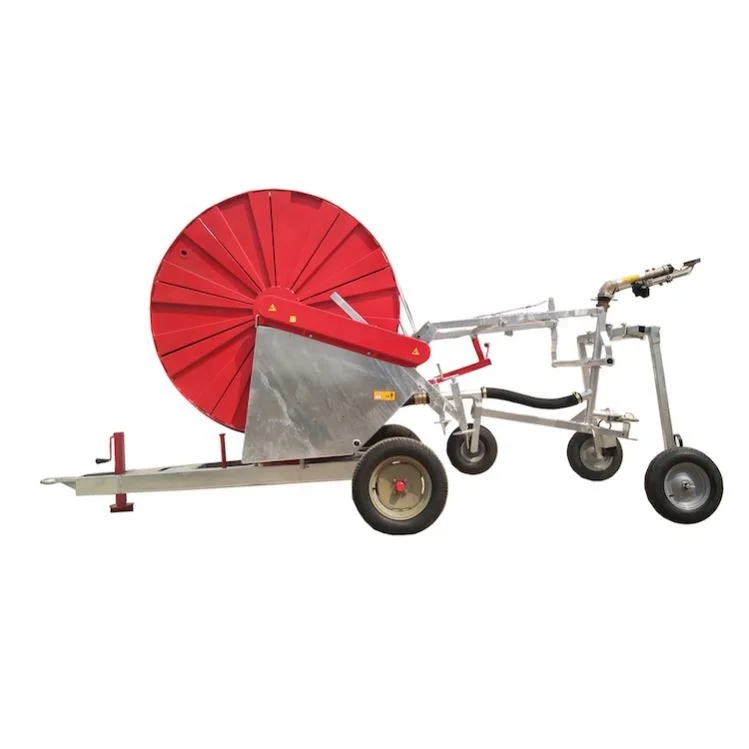

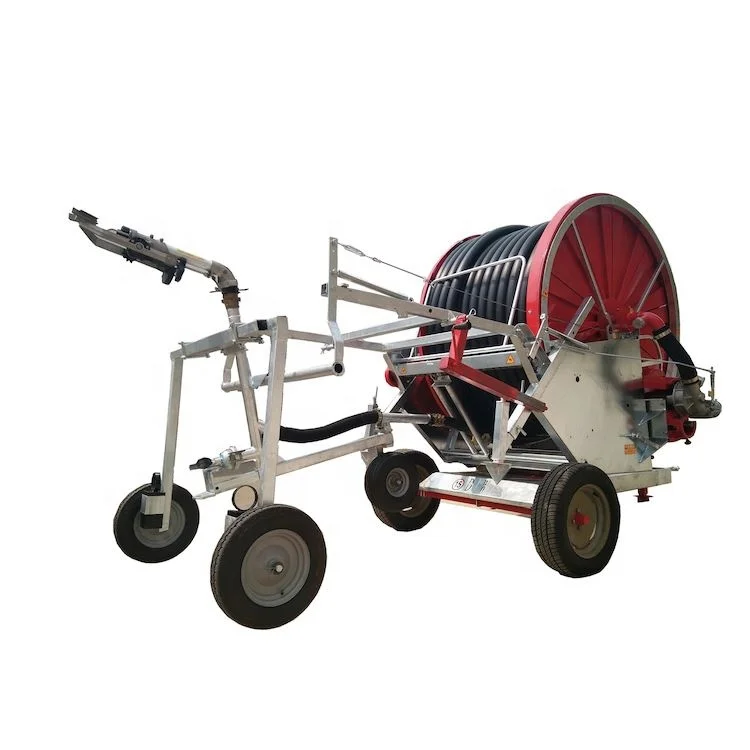

Hose Reel Traveller Irrigation

570GX

Advantages of the technology

• Flow-distributor turbine with built-in by-pass
• 4-speed gearbox with shafts completely in the oil bath
• PTO for fast hose rewinding
• Braking system to unwind the hose with fully automatic operation
• Automatic speed compensator according to the hose winding diameter
• Anti-slackening hose safety device
• Safety device to stop the machine if the hose winds unevenly
• Electronic hose rewinding speed measuring device
• Digital clock
• Worm screw hose turning system with micrometric regulation and double guide
• Reel support on ball bearings and lipped retention ring with stainless steel use
• Frame swiveling on a ball-bearing central plate through 360°
• Trolley lifting at the end of sprinkling by means of the manual crank (or manual hydraulic pump)
• Flexible rubber hose to supply the machine, complete with connections
• Adjustable trolley track and wheel height
• SIME sprinkler with slow return and set of nozzles
• Pressure-gauge in glycerine bath on the machine
• The ball joint on sprinkler trolley
• Sprinkler trolley ballasts
• Hot-dip galvanized structure (painted reel)

  Hose Reel Traveller Irrigator Operation

  Step 1: Connect the inlet pipe

  Step 2: Open the anti-inversion handle

  Step 3: Put down the front support

  Step 4: Shakedown the sprinkler bracket

  Step 5: Tractor pull out sprinkler trucks

  Step 6: After the sprinkler is in place, reset the anti-reversal handle

  Step 7: Start the pump

  Step 8: Sprinkler irrigation

  Hose reel traveler irrigation is well used in farmland

  for saving water, saving energy, saving labor and increase yields

  Step 9: Shift gears

  Step 10: Sprinkler car recycling

  The brake system can stop automatically after the sprinkler truck has pressed the bracket.

 My company's leading products: HW, HBC series mixed flow pump, BP, ZB, TC, NS, ZW series self-priming pump, CB series centrifugal pump, NB, NBZ series sand pump, IS, ISG, ISW series industrial pump, YW, TP , WQ series sewage pump, SZG1-18 water ring vacuum pump, AFB single-stage single-suction cantilever type anti-corrosion pump, PX series nozzle, TS series plastic-coated hose, and its supporting sprinkler unit, pipeline water supply irrigation unit and XQB series pneumatic water supply complete sets of equipment, can also undertake various types of fountains, sprinkler irrigation, micro-irrigation, garden irrigation, and various urban and rural water supply and drainage projects design, installation and maintenance.

Q1: Are you a factory or trading company?
A: We are a factory specialized on garden watering equipment.

Q2: Can I have some hose reel irrigation system samples?
A: For certainly, please contact us for detail, and we will prepare them in 3days.

Q3: How can I know the package details about weight/size/surface?
A: After confirming the quantity and length, we will calculate the whole details for you asap.

Q4: When can I know the price?
A: If all the information confirmed, we will send you the quotation in 1 hour.
