Водонепроницаемый IP67 по индивидуальному заказу металлический антивандальный кнопочной панели системы контроля для использования
- Категория: Keypads & Keyboards >>>
- Поставщик: Yuyao,Jiexin,Electronics,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 21.84 $* | 22.77 $* |
| Aug-17-2025 | 21.44 $* | 22.40 $* |
| Jul-17-2025 | 18.0 $* | 19.13 $* |
| Jun-17-2025 | 21.53 $* | 22.15 $* |
| May-17-2025 | 18.79 $* | 19.94 $* |
| Apr-17-2025 | 21.28 $* | 22.64 $* |
| Mar-17-2025 | 20.92 $* | 21.8 $* |
| Feb-17-2025 | 20.70 $* | 21.4 $* |
| Jan-17-2025 | 20.3 $* | 21.46 $* |
Характеристики
Welcome to purchase the

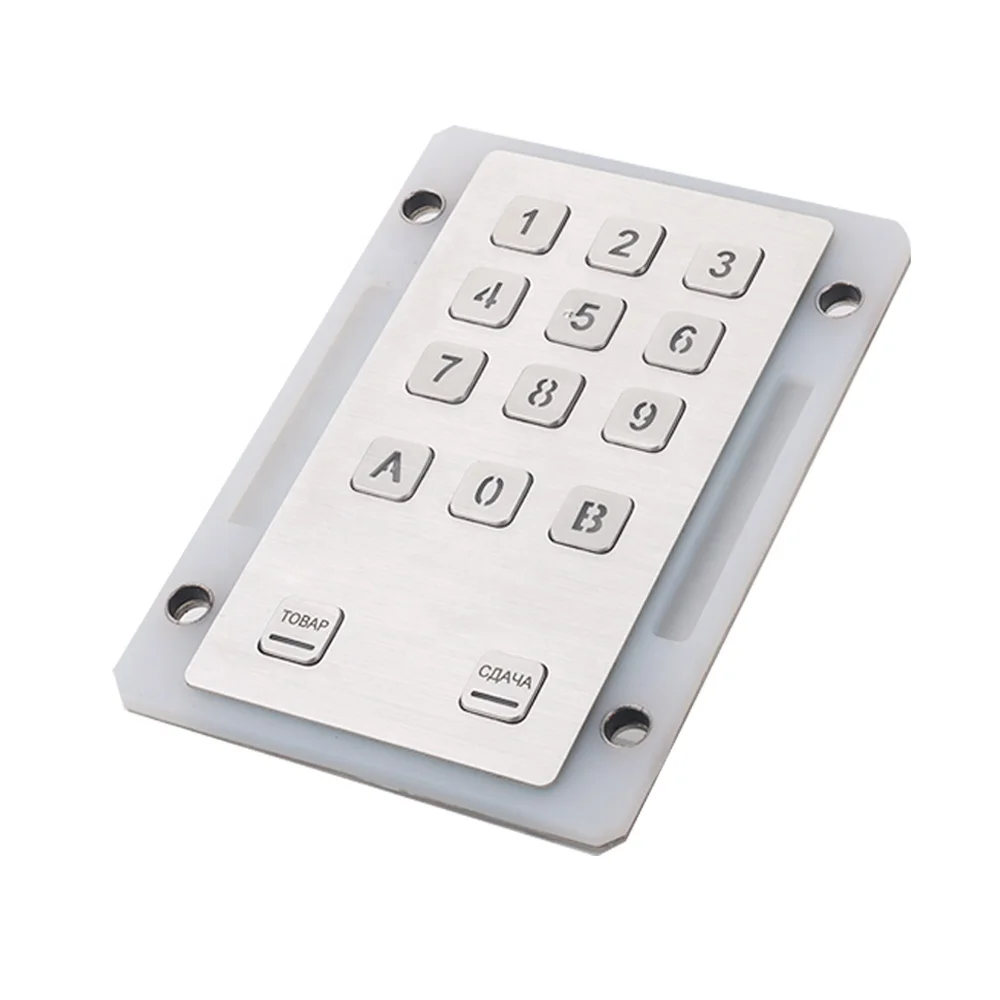

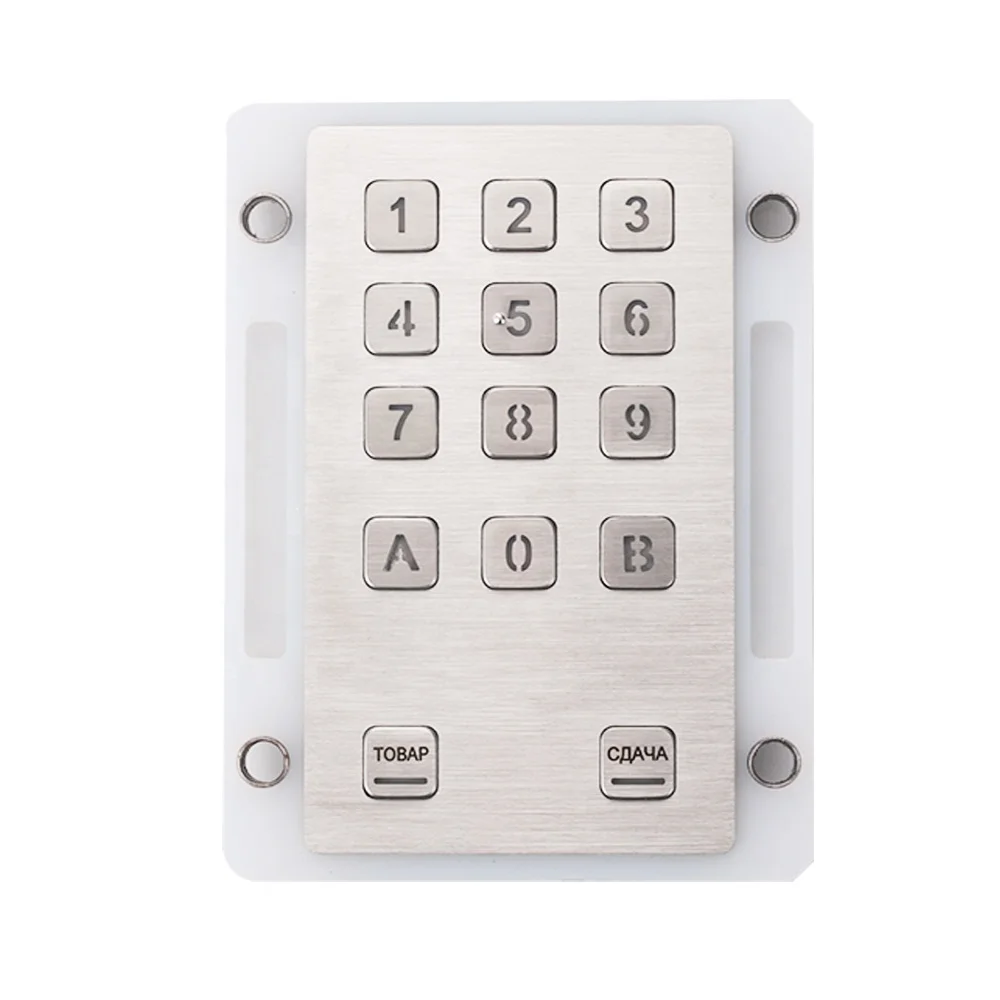

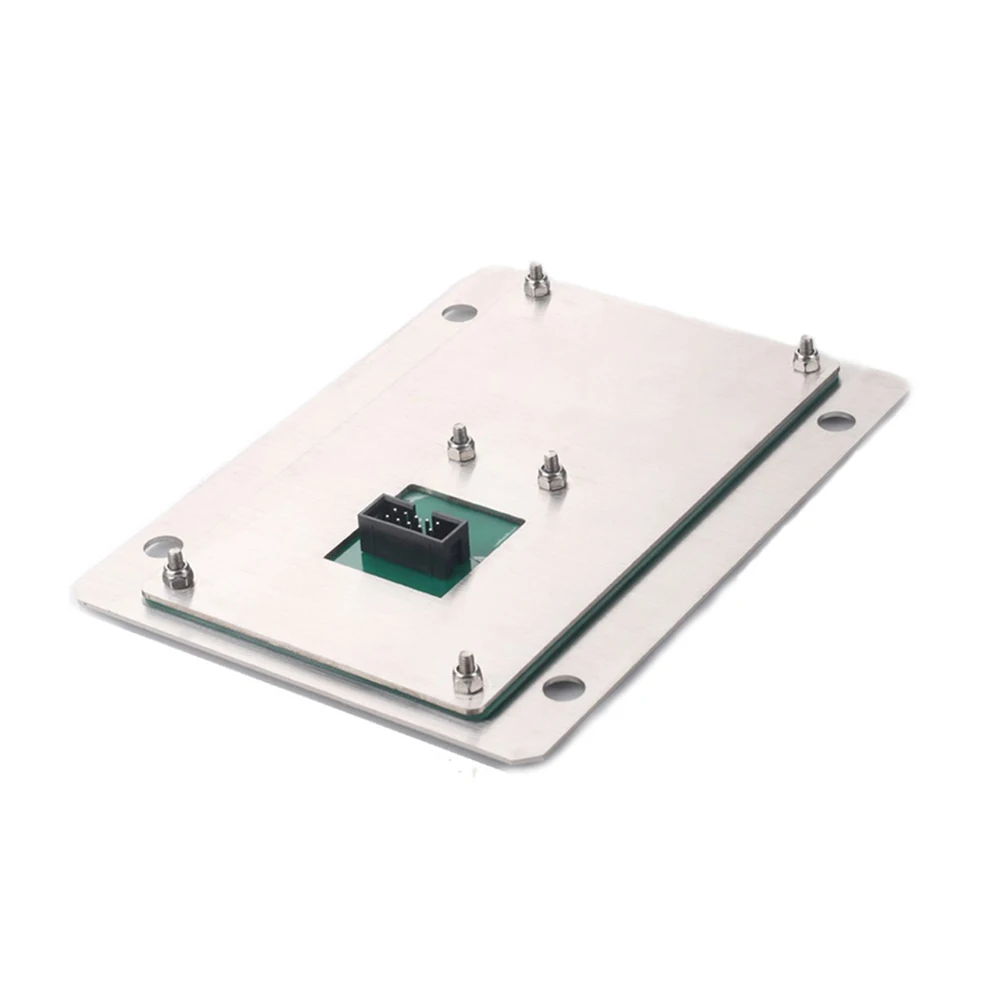

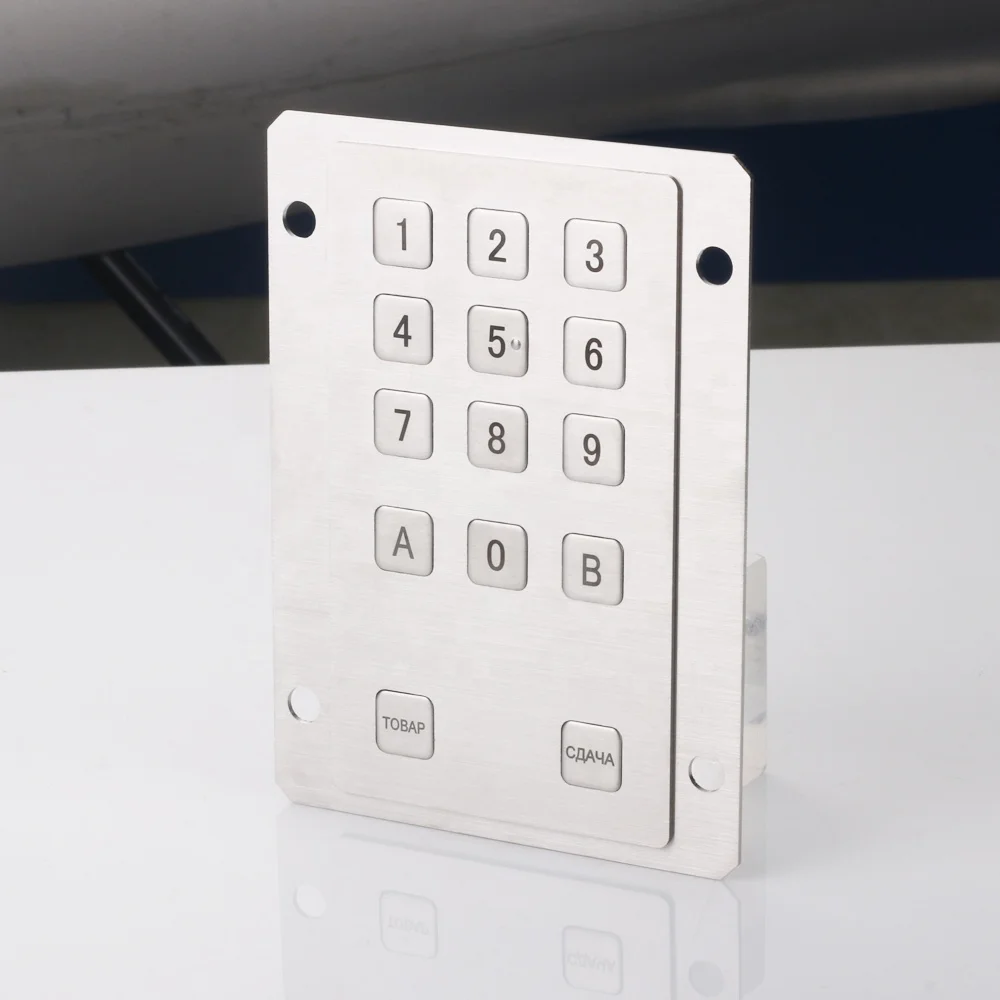

Waterproof IP67 Customized Metal Anti-vandal control system keypad for Outdoor
We are the professional keypad manufacturer with high-end equipment and best after-sale service,your goods will be 100% inspected and fast deliveried. When you choose us, you choose the best solution.
Product Description
MECHANICAL DATA | |
Model Number | JXS32B |
keys | 14 keys |
Switching material | carbon-on-Gold key switch technology PCB |
Actuation Force | 2.0 N+/-0.1N (pressure point) |
Frame/keys materials | Super quality stainless steel 304 |
Dimensions | 80mm *140mm |
led color | Blue/Green/Red |
Key Size | 14.0mm *14.0mm |
Key Travel | 0.45mm |
Key life | more than 1 million of operations |
G.W. | 360g approx |
ELECTRICAL DATA | |
Power supply voltage | 5VDC Or customize |
Current Rating | appr. 20mA |
Backlight: | Yes |
Contact resistance | 5 ohm (max) |
Electrical lifetime | > 5 years |
Interface | Matrix Male pinout connector 10PIN 2.54mm |
Or customize PS2/USB/RS232 | |
OS | All windows, Linux, Unix, Mac OSX |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20℃ to +75℃ |
Storage temperature | -35℃ to +85℃ |
Operating RH | 30-90%RH |
Atmospheric pressure | 60-106Kpa |
RELIABILITY | |
Protection Level | IP67(front panel) |
Vandal resistant | IK09 |
Company Information
Our Services
Packaging & Shipping
PACKAGING | |
Inner Box | 1Set |
Carton | 24Sets |
Carton Size | 38.5*30*19CM |
Carton G.W. | 12KG |
