Популярный товар 2019 года защита от помех высокий коэффициент усиления одиночный выход wimax C Band LNB 5G c band
- Категория: Satellite TV Receivers >>>
- Поставщик: Anhui,Bowei,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 7.88 $* | 7.9 $* |
| Aug-20-2025 | 7.93 $* | 7.91 $* |
| Jul-20-2025 | 6.73 $* | 6.6 $* |
| Jun-20-2025 | 7.43 $* | 7.76 $* |
| May-20-2025 | 6.91 $* | 6.83 $* |
| Apr-20-2025 | 7.75 $* | 7.99 $* |
| Mar-20-2025 | 7.1 $* | 7.59 $* |
| Feb-20-2025 | 7.16 $* | 7.4 $* |
| Jan-20-2025 | 7.45 $* | 7.31 $* |
Характеристики
PRODUCT DESCRIPTION
More Details | ||||||
Technical Parameters | Technical Reference | Technical Parameters | Technical Reference | |||
Input Frequency | 3.7~4.2 GHz | L.O. Leakage Input Port | 45 dBm | |||
Output Frequency | 950~1450 MHz | L.O. Stability | ±1.5 MHz | |||
L.O. Frequency | 5150 MHz | Noise Figure | <17 °K typ | |||
Gain | >65 dB typ | Conversion Gain | >65 dB typ | |||
Noise | 13 °K typ | Gain Flatness | ±1 dB(max) | |||
Operating Temperature | -40℃~+70℃ | Input VSWR | 2.5:1(max) | |||
Storage Temperature | -40℃~+80℃ | Outpur VSWR | 2.0:1(max) | |||
Relative Humidity | 0%~95% | Output Connector | F-female Connector | |||
Output Impedance | 75Ω | Cross Polar Isolation | 20 dB(min) | |||
Phase Noise | -75 dBc/Hz@10kHz(max) | Image Rejection | 45 dB(min) | |||
Supply Voltage | 11.5~14.0V (Vertical Polarization) 16.0~19.0V (Horizontal Polarization) | |||||

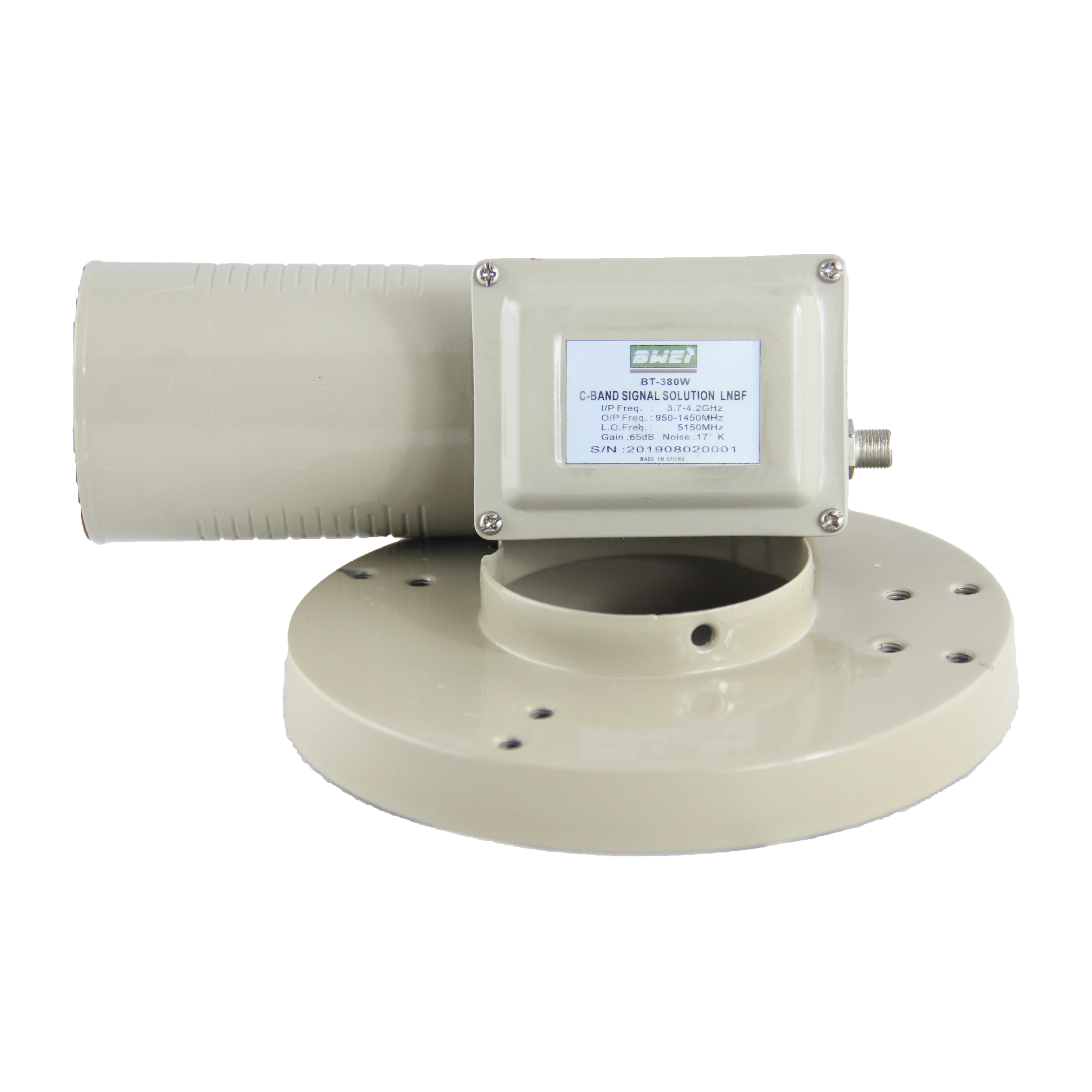

BT-380W
The BT-380W is a voltage-switched dual-polarized C-band LNB that uses a 14/19V voltage output from a satellite TV receiver to the LNB to implement a satellite TV signal that receives horizontally polarized or vertically polarized waves.
Compared with mechanically changing the polarization direction (such as the adjustment of polarization with a motor), it has the advantages of simple feed structure, convenient installation and debugging.
At the same time, it is equipped with a two-ring feed and has passed the testing and certification of the national designated agency.
Compared with mechanically changing the polarization direction (such as the adjustment of polarization with a motor), it has the advantages of simple feed structure, convenient installation and debugging.
At the same time, it is equipped with a two-ring feed and has passed the testing and certification of the national designated agency.

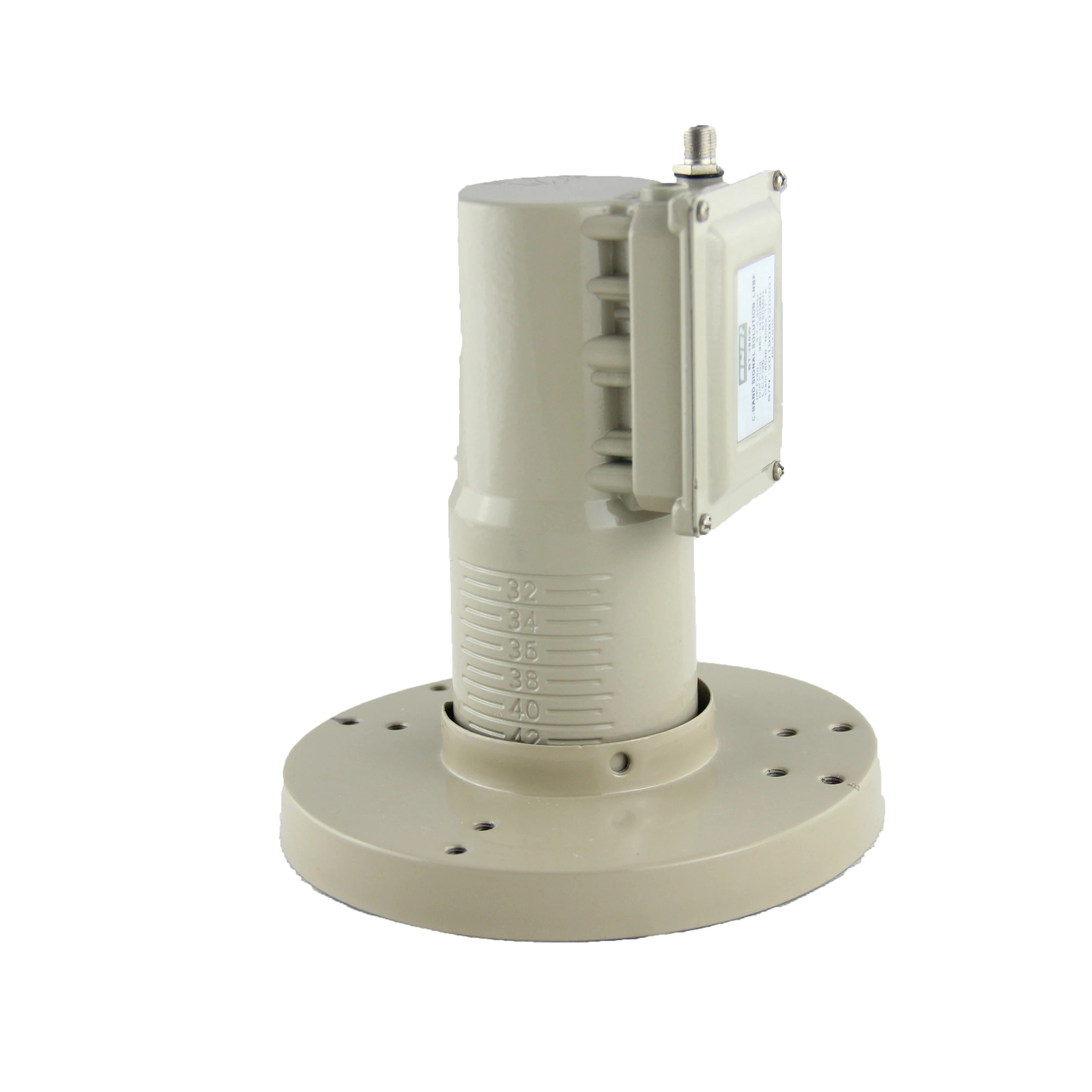

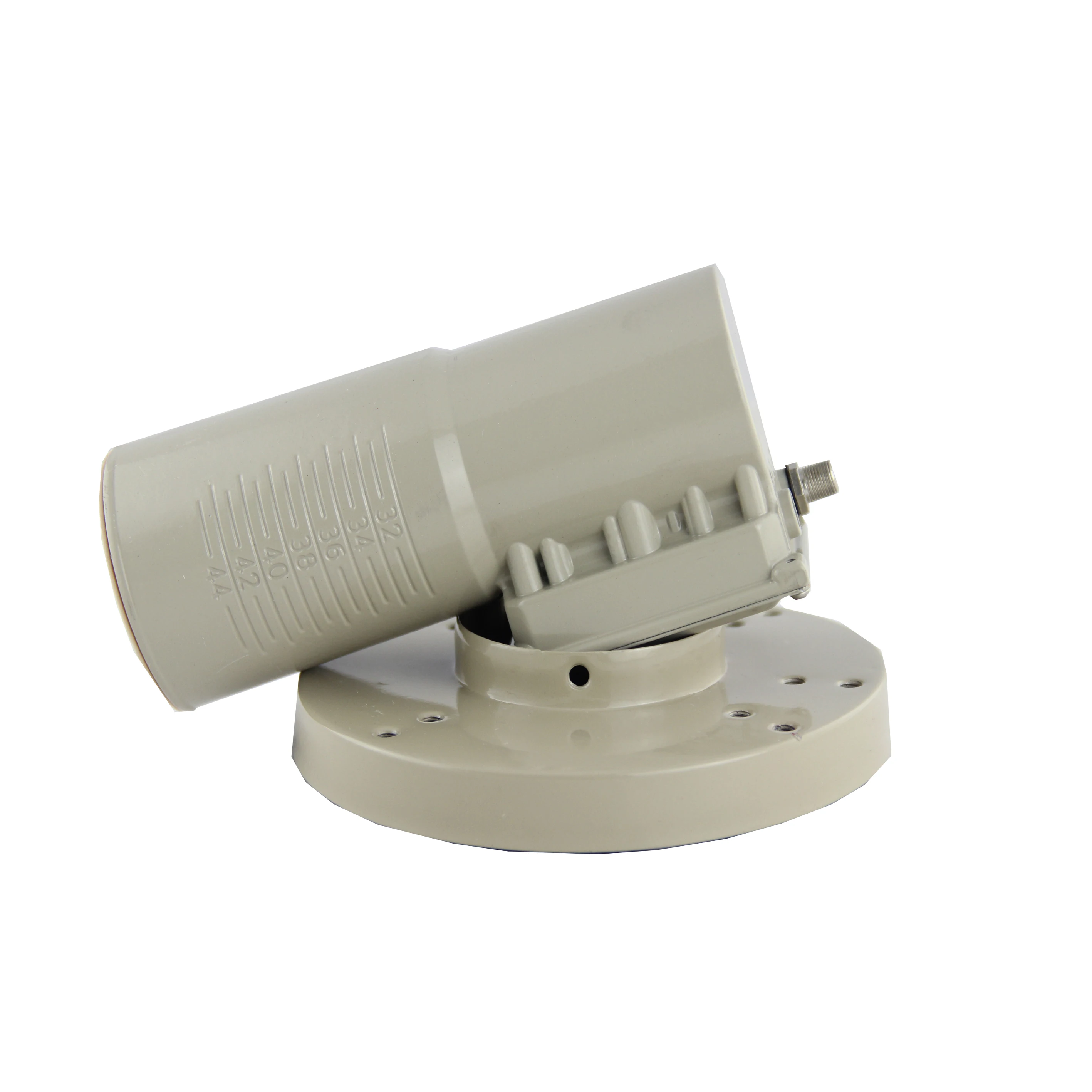

MAIN IMAGES
RELATED PRODUCTS
Technical Parameters | Specification |
Input Frequency | 3.8~4.2 GHz |
Output Frequency | 950~1350 MHz |
L.O. Frequency | 5150 MHz |
FAQ
FAQ
Are you manufacturer?
Yes, we are a professional manufacturer with 15 years of experience, with our own production base and R&D team. Welcome to visit our factory at anytime!
Warranty and return:
Five years warranty. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Could you accept product customization orders?
Of course ,we accept OEM and ODM order. OEM: LOGO and Brand printing,product packaging and outer packaging requirements. ODM: Provide us with product technical parameters and more details.
How about your delivery date?
Sample is around 1-3 days in stock,no stock is around 3-5 days .
Large order is around 7-15 days.
Customized order is around 15-30 days.
Large order is around 7-15 days.
Customized order is around 15-30 days.
