Автоматическая машина для подачи муки из нержавеющей стали вакуумная подача порошка


Поделиться:


Цена:1 100,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 1309.92 $* 1374.32 $*
Aug-18-2025 1298.16 $* 1363.73 $*
Jul-18-2025 1089.16 $* 1143.93 $*
Jun-18-2025 1276.15 $* 1340.37 $*
May-18-2025 1111.94 $* 1167.18 $*
Apr-18-2025 1254.71 $* 1317.11 $*
Mar-18-2025 1243.79 $* 1305.66 $*
Feb-18-2025 1232.73 $* 1294.69 $*
Jan-18-2025 1221.3 $* 1282.10 $*

Характеристики







Technical Parameters


     Model
Capacity (kg/h)
Air Consumption (L/min)
Dimension (mm)
Weight (kg)
PVC-1
350
180
Dia 159 * 560
10
PVC-2
700
360
Dia 220 * 780
16
PVC-3
1500
720
Dia 290 * 850
30
PVC-4
3000
1440
Dia 420  * 1150
50
PVC-5
5000
2880
Dia 420 * 1250
55


Remark

1. Required air pressure 0.6Mpa; Compressed air should be dry, clean, no oil, no water.


2.The capacity of PVC-1 in the sheet is tested in 3 meters, other models are in 5 meters.


3. The capacity range is big on different materials.




Working priciple


Pneumatic Vacuum Conveyor (PVC) is the process of moving bulk dry materials, such as powders, from pick-up place A to destination place B within a factory using suction. The material is transferred in a network of tubing from the pick-up point or source to the customer's process. Most Vacuum conveying system transfer product based on a timed interval to the vacuum receiver.During conveying, the material is entrained in the air stream and there is an almost equal part of air and product. At the end of the timed sequence the discharge valve can open and the conveyed material can discharge into the process.

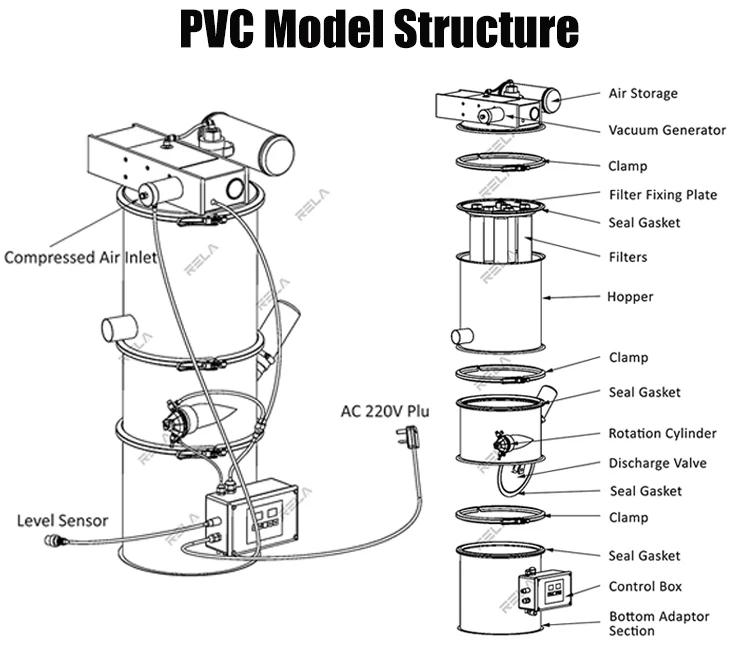

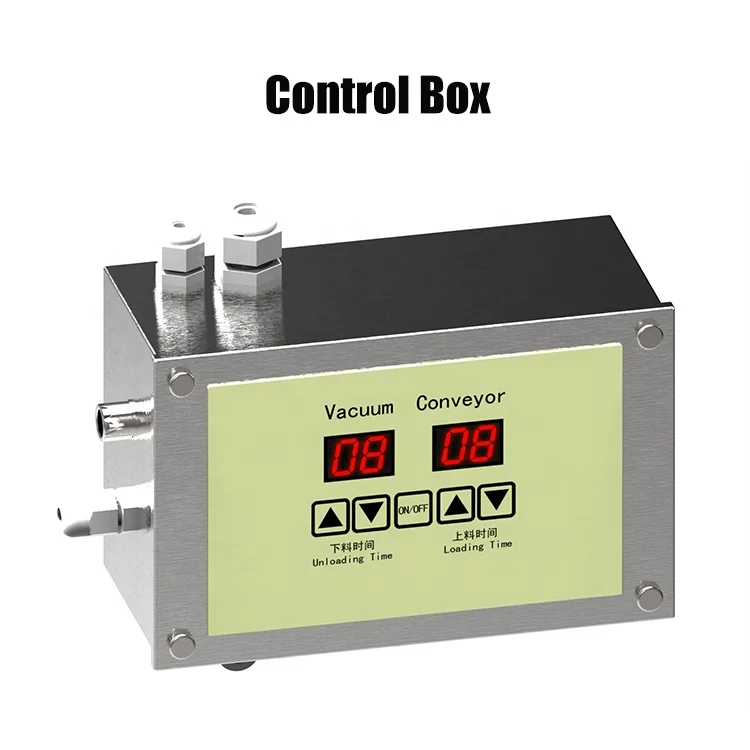

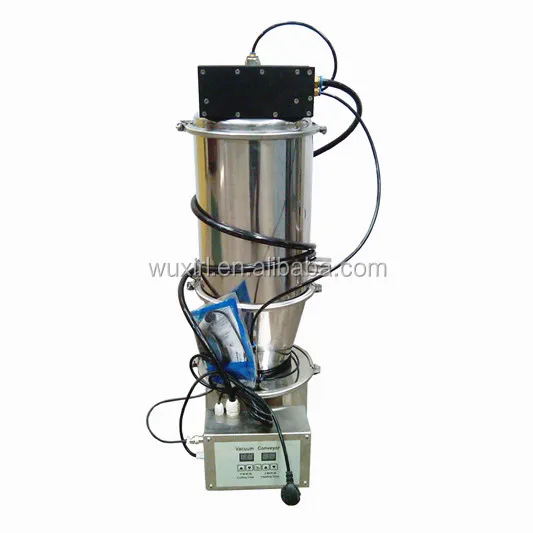

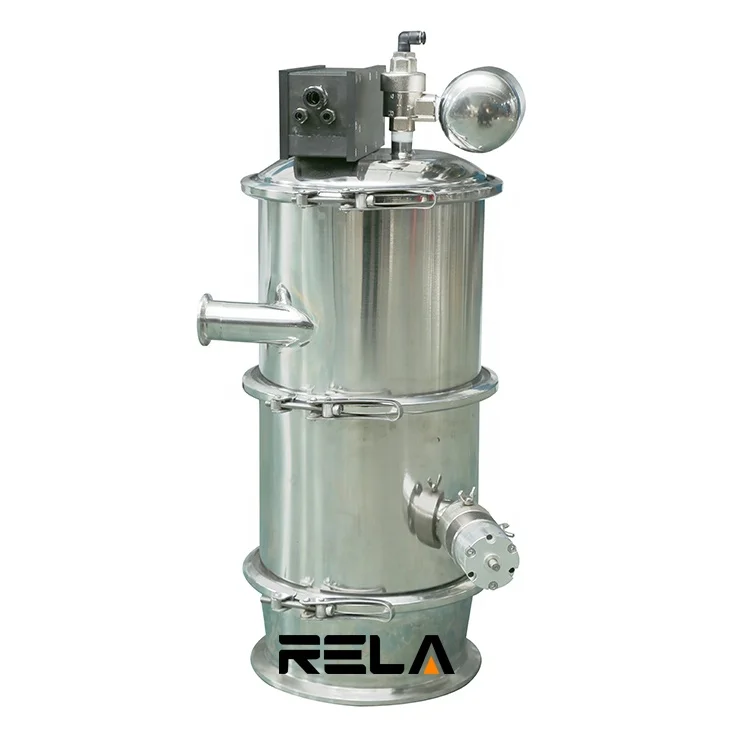

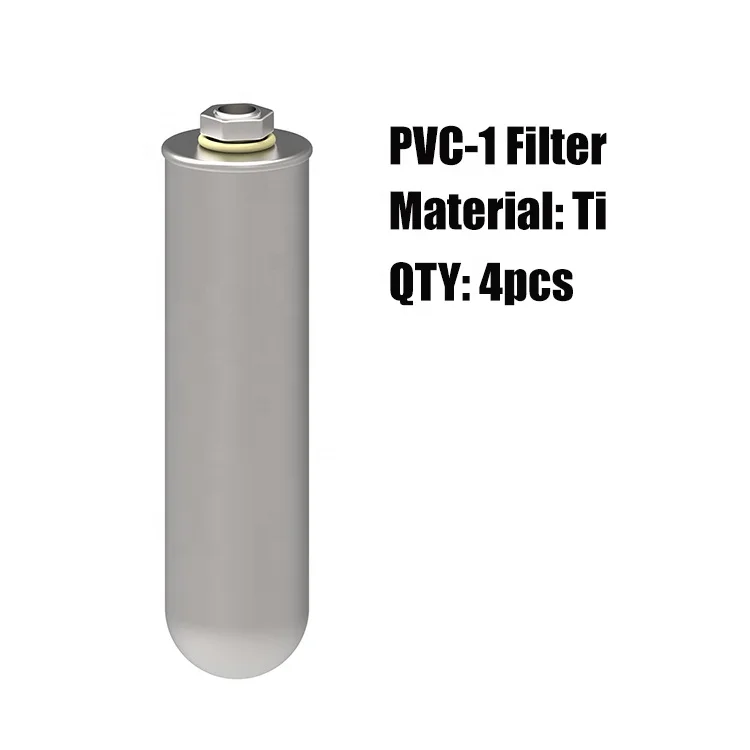

Detailed image






Application

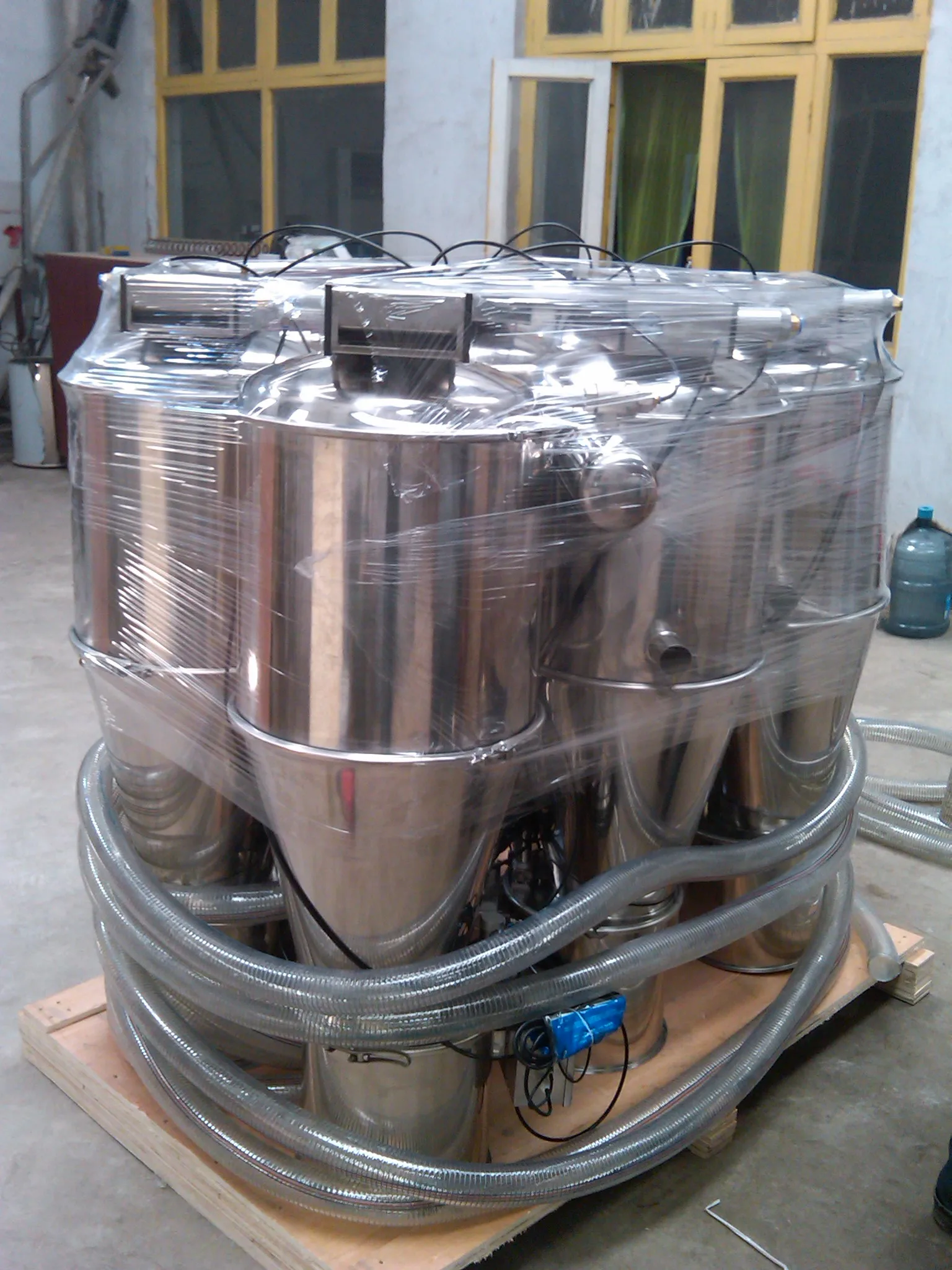

Packing & Delivery




Our company


Wuxi Rela Pharma Machine Co., Ltd, with more than 10 years experience, is focused on the powder solution, from the unit machine to the production line. Our main products are Pulverizer, Mixing machine, Conveying machine, Sifting machine, Granulator, Dryer...which are application to pharmaceutical, foodstuff, foodstuff, food additives, chemical raw material, baking ingredients...




Service






Choose model


If you don't know how to choose the suitable pneumatic vacuum conveyor, please inquiry us with following information


1. What is the product name, size, specific density?

2. From where to where? the pick-up place and the destination place?

3. How long is the transportation distance? the length and height?

4. Which type do you need, Type A (fixed) or Type B (movable)?

5. What is the capacity per hour you need?
