IP65 индивидуальная Защитная подсветка из нержавеющей стали 304 светодиодная
- Категория: Keypads & Keyboards >>>
- Поставщик: Yuyao,Jiexin,Electronics,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 44.98 $* | 45.59 $* |
| Jul-17-2025 | 36.30 $* | 37.69 $* |
| Jun-17-2025 | 44.70 $* | 45.69 $* |
| May-17-2025 | 43.60 $* | 44.1 $* |
| Apr-17-2025 | 35.38 $* | 36.62 $* |
| Mar-17-2025 | 43.13 $* | 44.14 $* |
| Feb-17-2025 | 42.56 $* | 43.95 $* |
| Jan-17-2025 | 42.90 $* | 43.32 $* |
Характеристики
Welcome to purchase the

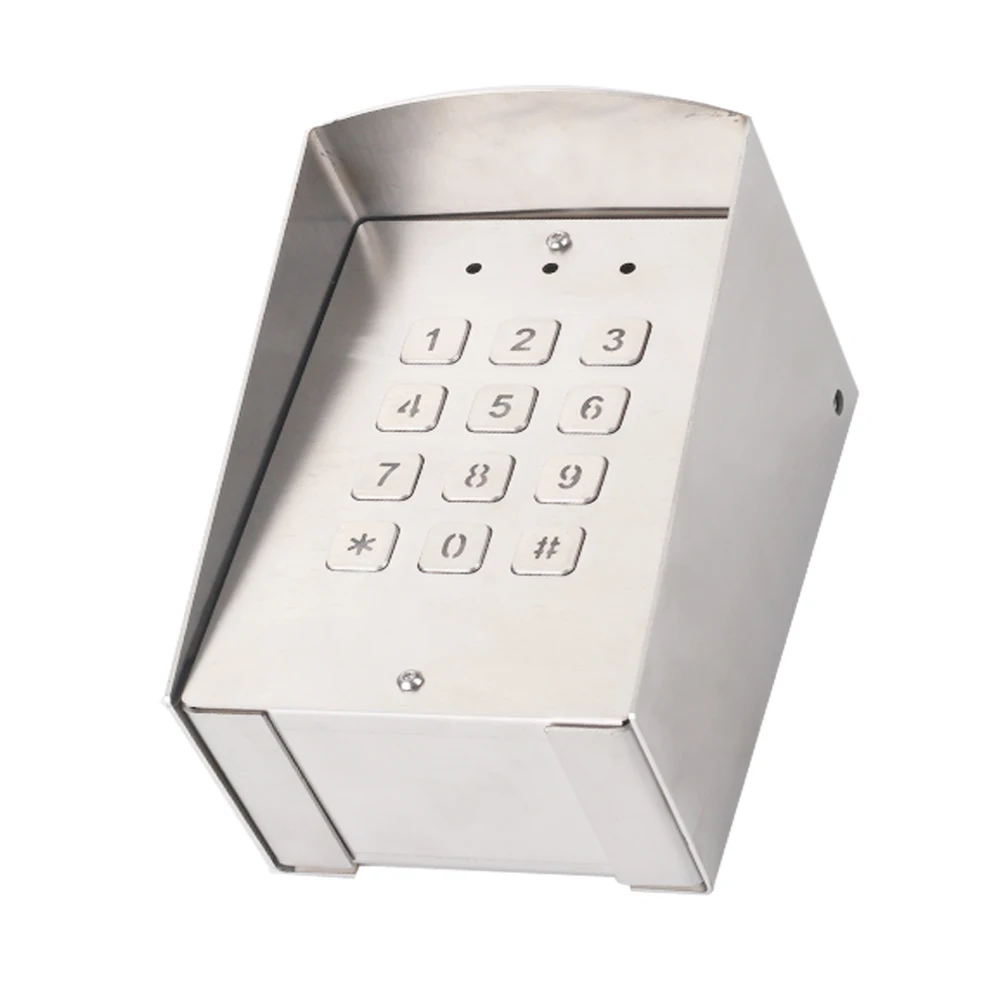

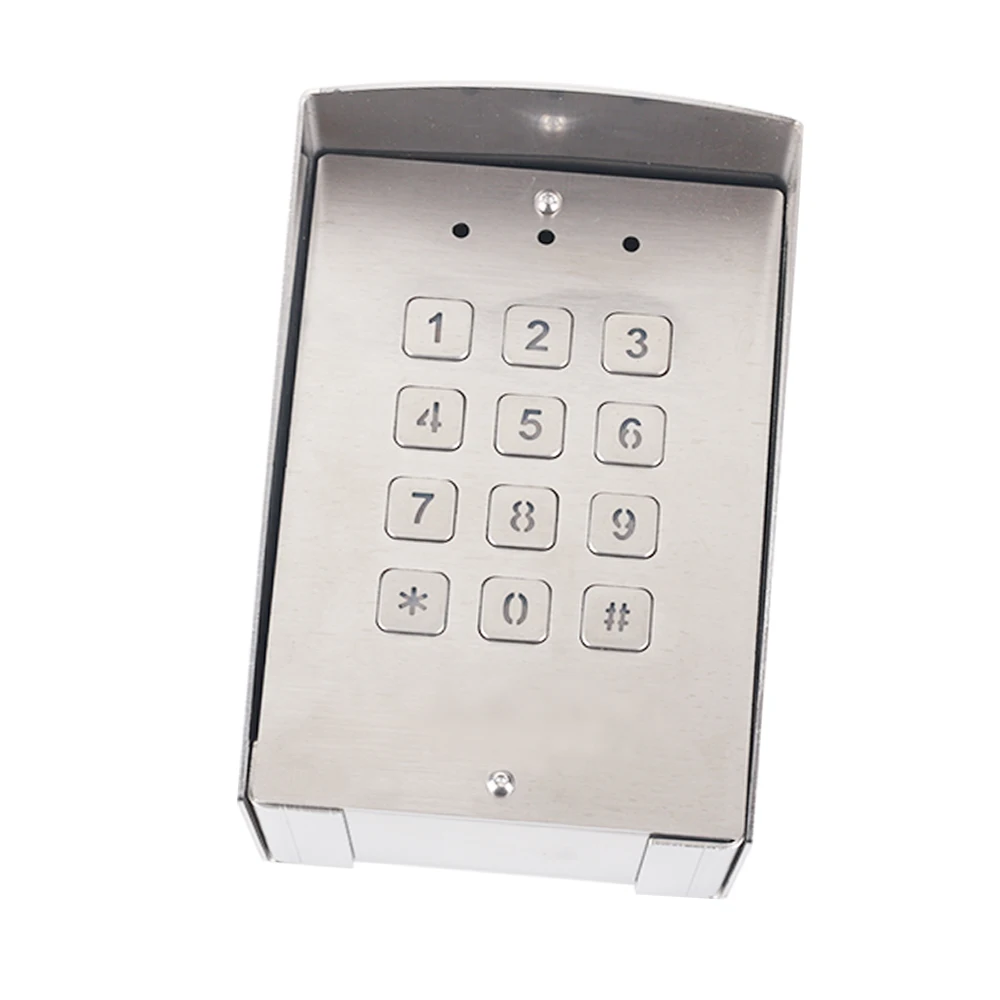

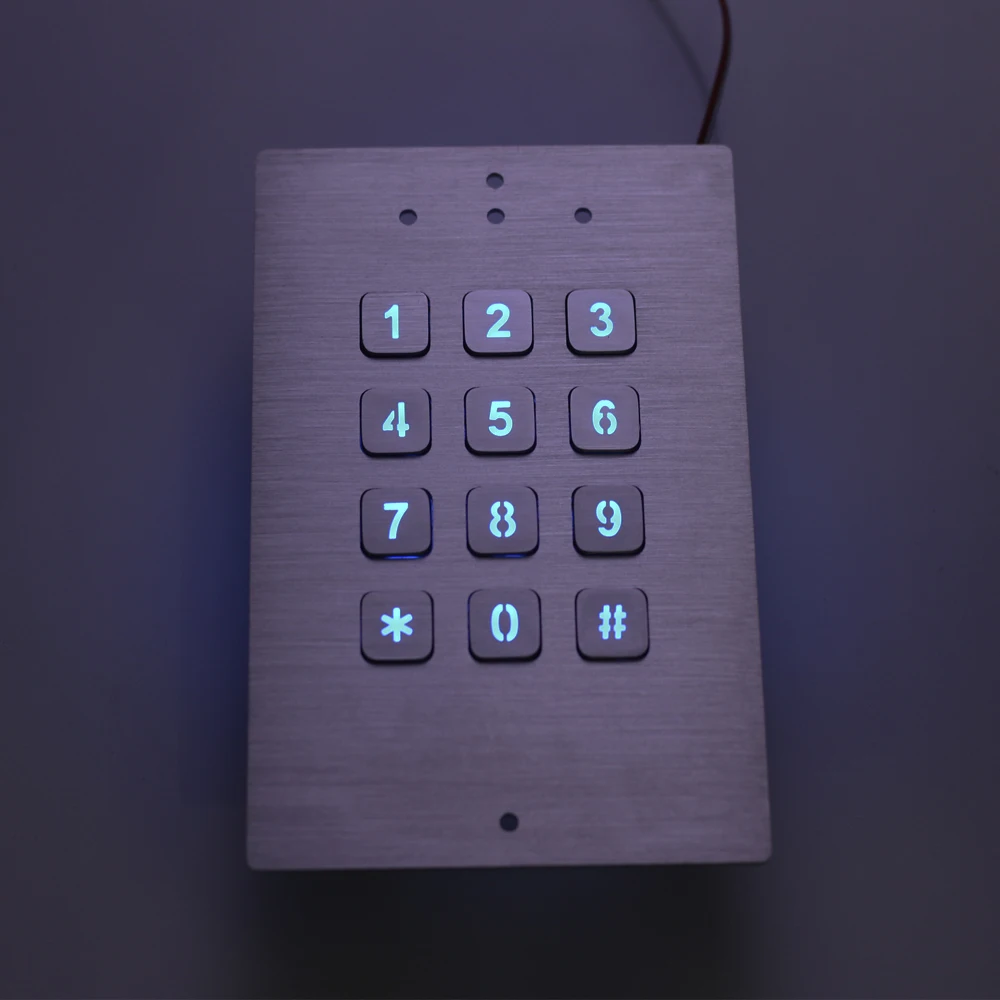

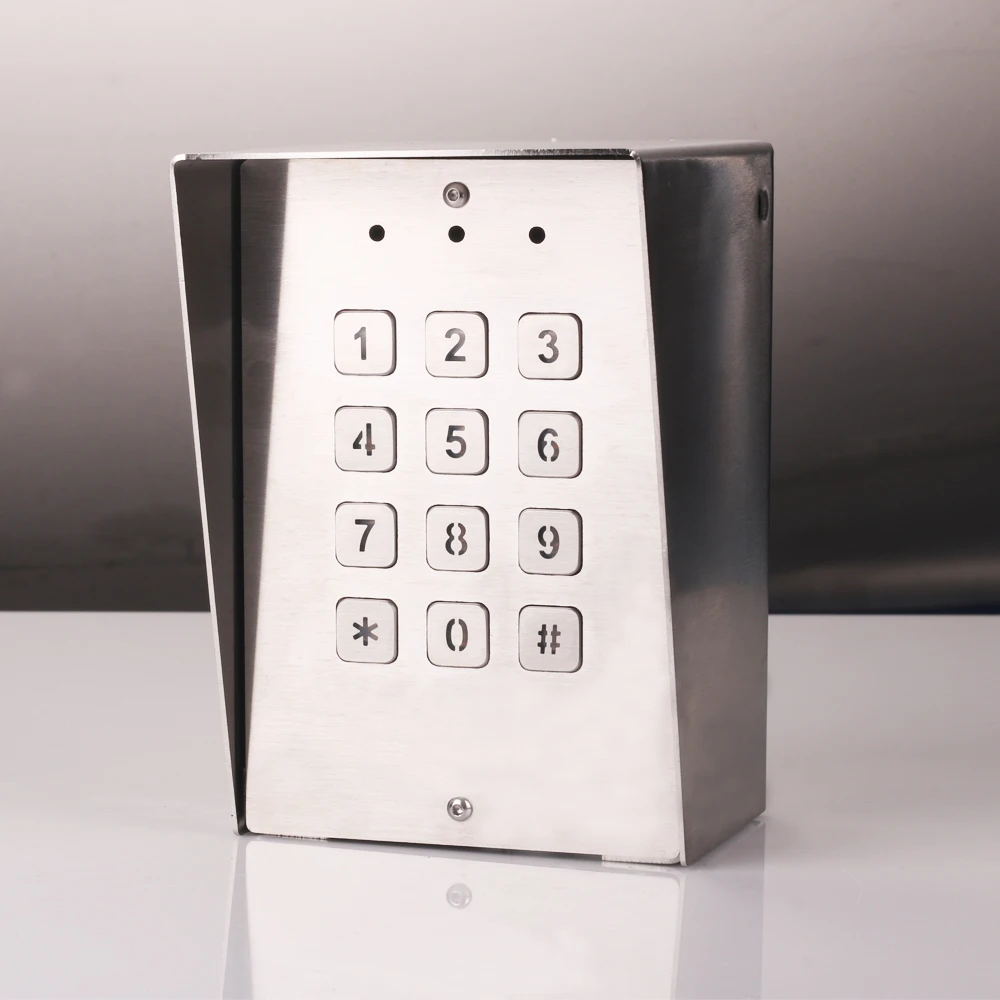

IP65 Customized security backlight Stainless Steel 304 LED Backlight Keypad
We are the professional keypad manufacturer with high-end equipment and best after-sale service,your goods will be 100% inspected and fast deliveried. When you choose us, you choose the best solution.
Product Description
MECHANICAL DATA | |
Model Number | JXKT01 |
keys | 12 keys |
Switching material | carbon-on-Gold key switch technology PCB |
Actuation Force | 2.0 N+/-0.1N (pressure point) |
Frame/keys materials | Stainless steel 304 |
Dimensions | 99mm *146mm |
led color | Blue |
Key Size | 14.0mm *14.0mm |
Key Travel | 0.45mm |
Key life | more than 1 million of operations |
G.W. | 1200g approx |
ELECTRICAL DATA | |
Power supply voltage | 5VDC Or customize |
Current Rating | appr. 20mA |
Backlight: | Yes |
Contact resistance | 5 ohm (max) |
Electrical lifetime | > 5 years |
Interface | Matrix Male pinout connector 10PIN 2.54mm |
Or customize PS2/USB/RS232 | |
OS | All windows, Linux, Unix, Mac OSX |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20℃ to +75℃ |
Storage temperature | -35℃ to +85℃ |
Operating RH | 30-90%RH |
Atmospheric pressure | 60-106Kpa |
RELIABILITY | |
Protection Level | IP65(front panel) |
Vandal resistant | IK09 |
Company Information
Our Services
Packaging & Shipping
PACKAGING | |
Inner Box | 1Set |
Carton | 12Sets |
Carton Size | 44.5*30.5*39.5CM |
Carton G.W. | 16KG |
