Профессиональный усилитель мощности 5000 Вт dsp22000q dsp с несколькими элементами управления
- Категория: Amplifier >>>
- Поставщик: GUANGZHOU,XINBAOSHENG,AUDIO,EQUIPMENT,COMPANY,LIMITED
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1703.48 $* | 1737.17 $* |
| Jul-16-2025 | 1381.47 $* | 1409.2 $* |
| Jun-16-2025 | 1676.12 $* | 1710.97 $* |
| May-16-2025 | 1663.84 $* | 1696.17 $* |
| Apr-16-2025 | 1328.69 $* | 1355.24 $* |
| Mar-16-2025 | 1636.77 $* | 1669.15 $* |
| Feb-16-2025 | 1623.1 $* | 1655.33 $* |
| Jan-16-2025 | 1609.97 $* | 1641.56 $* |
Характеристики
5000 watt power amplifier professional dsp22000q dsp amplifier with multiple power amplifier controls
Product Description
DSP-10Q | DSP12Q | DSP-18Q | DSP-20Q | DSP22000Q | |||||
Channels | 4 Channel Power Amplifier | Sponge | |||||||
Class | Class TD Power Amplifier | ||||||||
8Ω Stereo Power (RMS) | 1300WX4 | 1500WX4 | 1800WX4 | 2200WX4 | 2500WX4 | ||||
4Ω Stereo Power (RMS) | 2100WX4 | 2800WX4 | 3000WX4 | 4000WX4 | 4650WX4 | ||||
8Ω Bridged Power(RMS) | 4200WX2 | 5600WX2 | 8000WX2 | 9500WX2 | |||||
4Ω Bridged Power(RMS) | 5000WX2 | 7000WX2 | 10000WX2 | 15000WX2 | |||||
Frequency Response(+o/-0.3dB,1W/8Ω): | 20 Hz - 34 kHz | DS-9K | DS-14K | FP24000 | |||
Channel | 2 Channel Power Amplifier | ||||||
Class | Class TD Power Amplifier | ||||||
THD 20 Hz - 20 kHz for 1W: | <0.1% | 1800WX2 | 2400WX2 | 4200WX2 | |||
Signal-to-Noise Ratio: | >112 dBA | 3000WX2 | 4400WX2 | 7500WX2 | |||
Channel separation (Crosstalk) at 1 kHz : | >70 dB | 6000W | 8800W | / | |||
Input Connectors (per channel): | 3 pin XLR, electronically balanced | 9000W | 14000W | / | |||
Output Connectors (per channel): | Binding Posts 2-pole | ||||||
TourClass Protection: | ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input | ||||||
Operating voltage, 220V / 110V nominal: | 180-240 V / 90-130 V selectable | ||||||
Voltage Gain(dB): | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable | ||||||
Input impedance: | 20 kOhm | ||||||
Level adjustment (per ch.): | Front panel potentiometer, 31 positions detented from -inf to 0 dB | ||||||

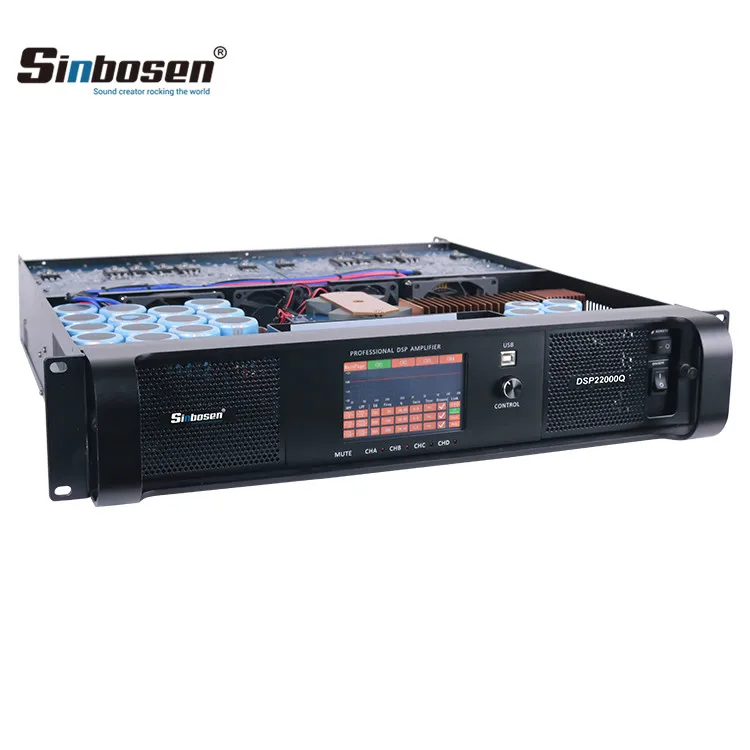

DSP22000Q amplifier description
4 Channel Class TD Switching power amplifier with DSP.
4 x 4,650 Watts into 4 Ohms, 4 x 2,500 Watts into 8 Ohms.
Create SUPER sound quality.

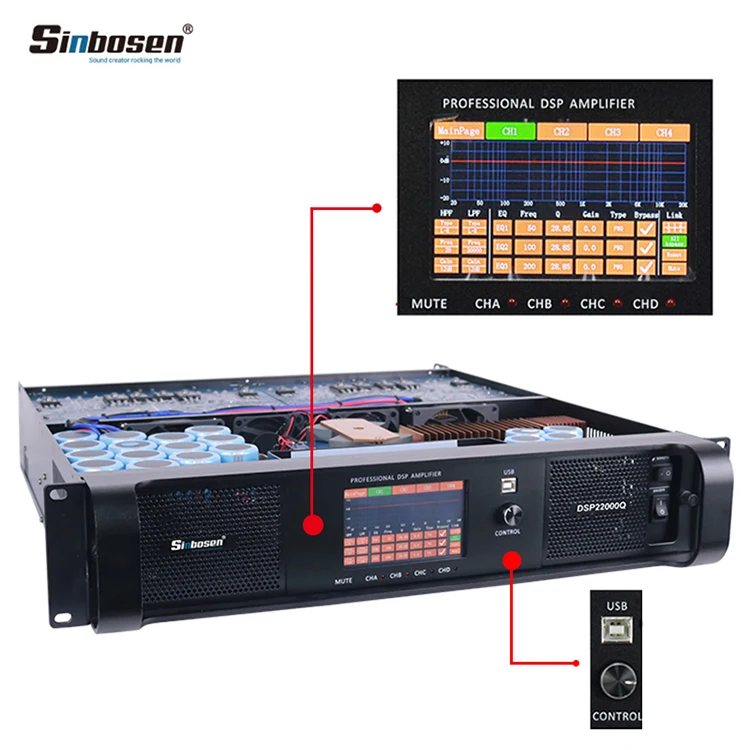

Control the sound effect by Touch on front 4" LED display screen.
Or control the sound effect by Computer.
Simple DSP software, no need install,easy operate it.
Bridge-mode operation for Touring Applications.
Comprehensive protection scheme.
Use original capacitor 3600uf 200v.
Use original high quality XLR connectors.
Extended heatsink to 94 mm.
Software control | Touch screen | Multiple power amplifier controls |
DSP amplifier also cintrol by PC, through software can more precise adjustment dsp processor | Amplifier built-in processor,4 inch size led screen can touch,control the amplifier sound effect | One PC can independent control serveral dsp amplifier at the same time |

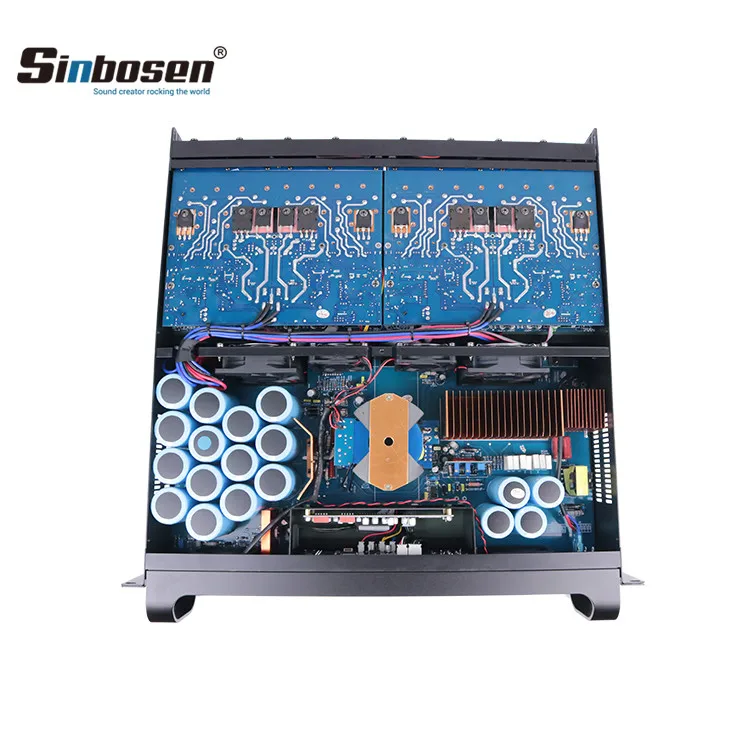

Capacitor Upgrade
The old one is 3300UF 200V and now the new is 3600UF 200V. Totally add more 300UF capacity. The amplifier power supply board is better than before, it will make your subwoofer bass sound quality more loud and powerful.New cooling system

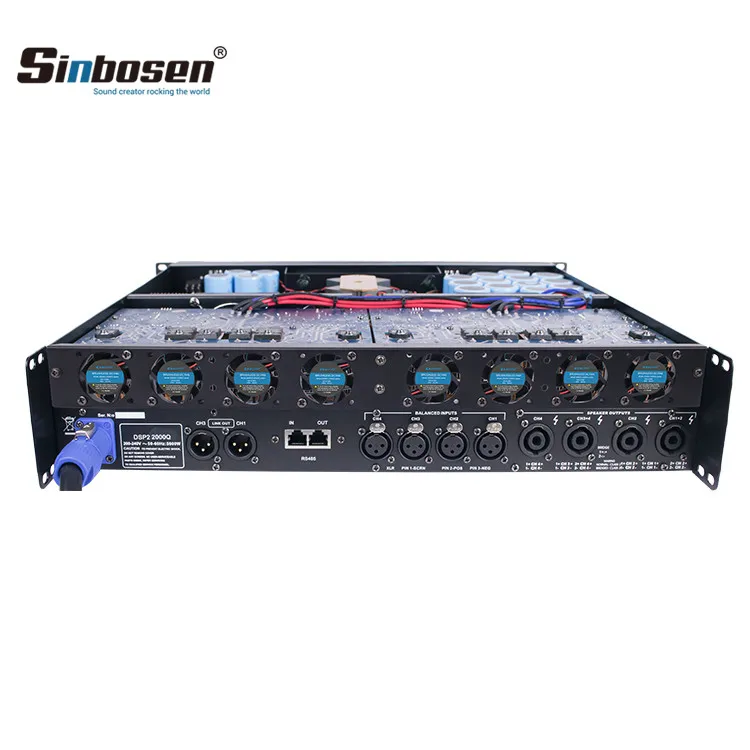

We upgrade cooling system, added 8 fans on the rear panel. Enhance the heat dissipation capability of the amplifier.
Feedback
Related Products
Company Introduction
Our Services & Strength
3 years warranty + after-sales service.
Packing&Shipping
Delivery: Packed in a strong thick carton with built-in thick sponge and fixed feet. Fast and safe.
Transportation: Various ways of transportation, economical, fast and safe.
