Высокая циркуляция обратного осмоса Мембрана 75gpd очистка воды завод питьевой 2000ppm в дизайне 8421999090
- Категория: Water Treatment Machinery >>>
- Поставщик: Zhenjiang,Hid,Membrane,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 4.78 $* | 4.31 $* |
| Jul-16-2025 | 3.78 $* | 3.43 $* |
| Jun-16-2025 | 4.37 $* | 4.44 $* |
| May-16-2025 | 4.70 $* | 4.73 $* |
| Apr-16-2025 | 3.47 $* | 3.34 $* |
| Mar-16-2025 | 4.51 $* | 4.76 $* |
| Feb-16-2025 | 4.36 $* | 4.40 $* |
| Jan-16-2025 | 4.17 $* | 4.79 $* |
Характеристики
\t\t\t\t\t\t\t\t\tRELATED PRODUCTS \t\t\t\t\t\t\t
PRODUCT DESCRIPTION

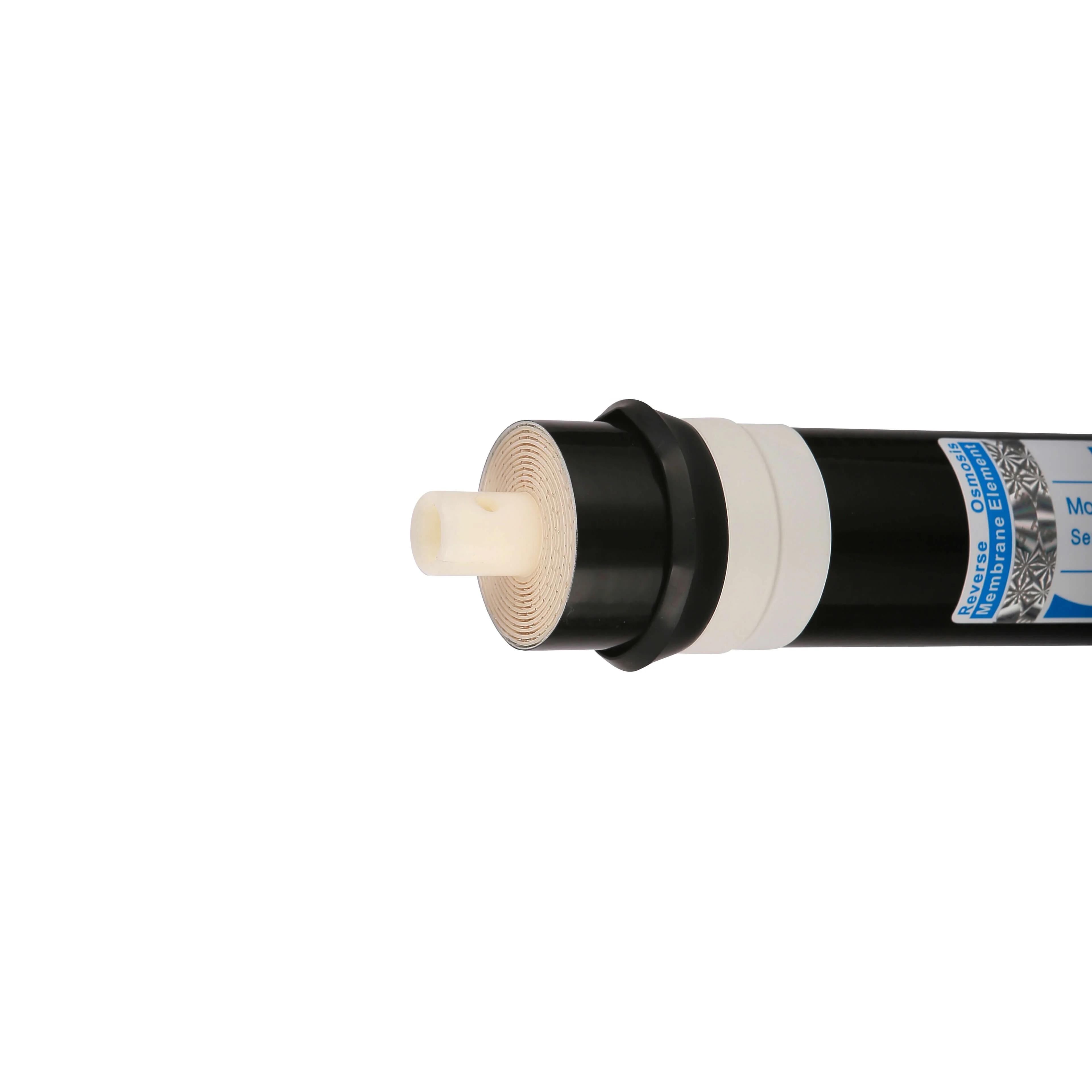

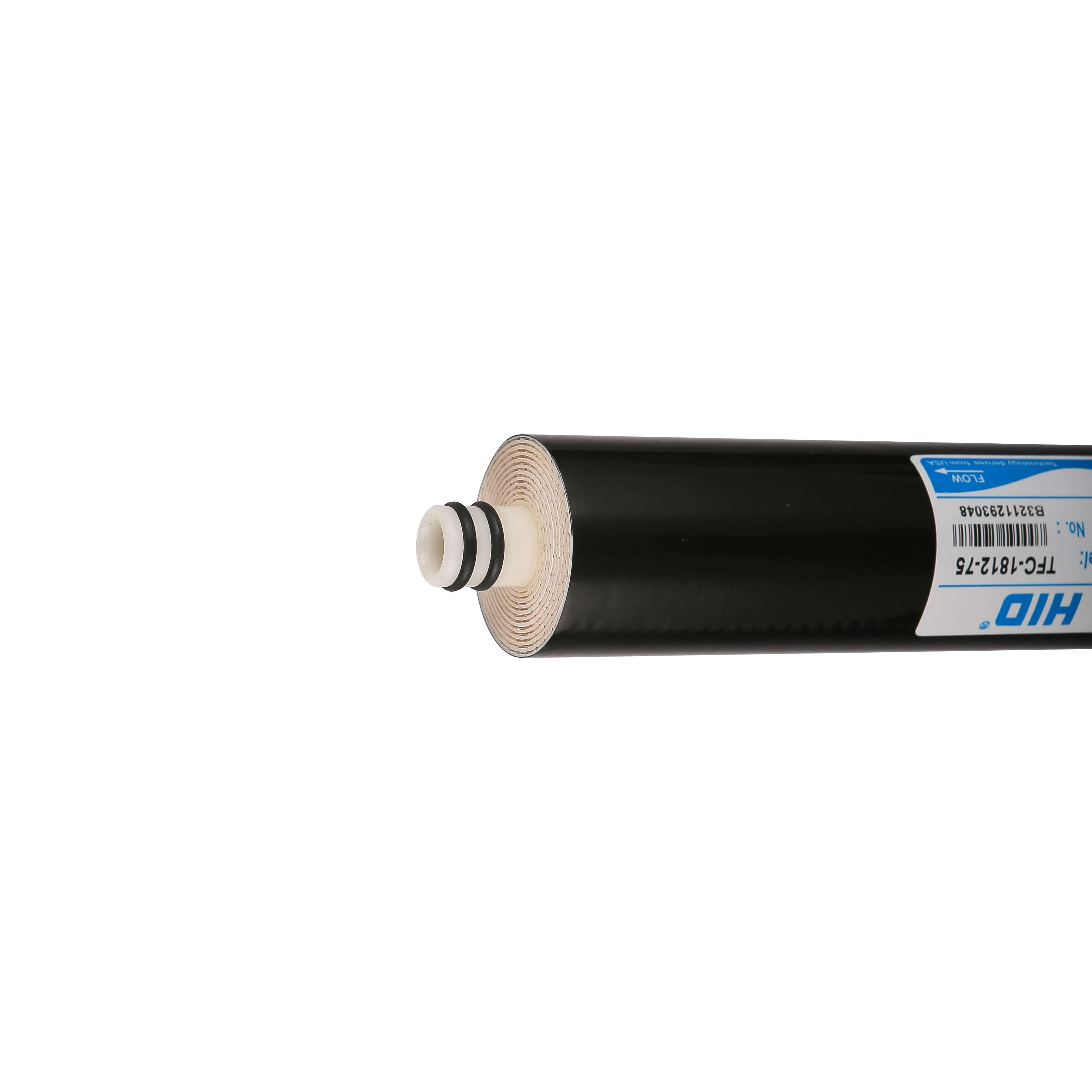

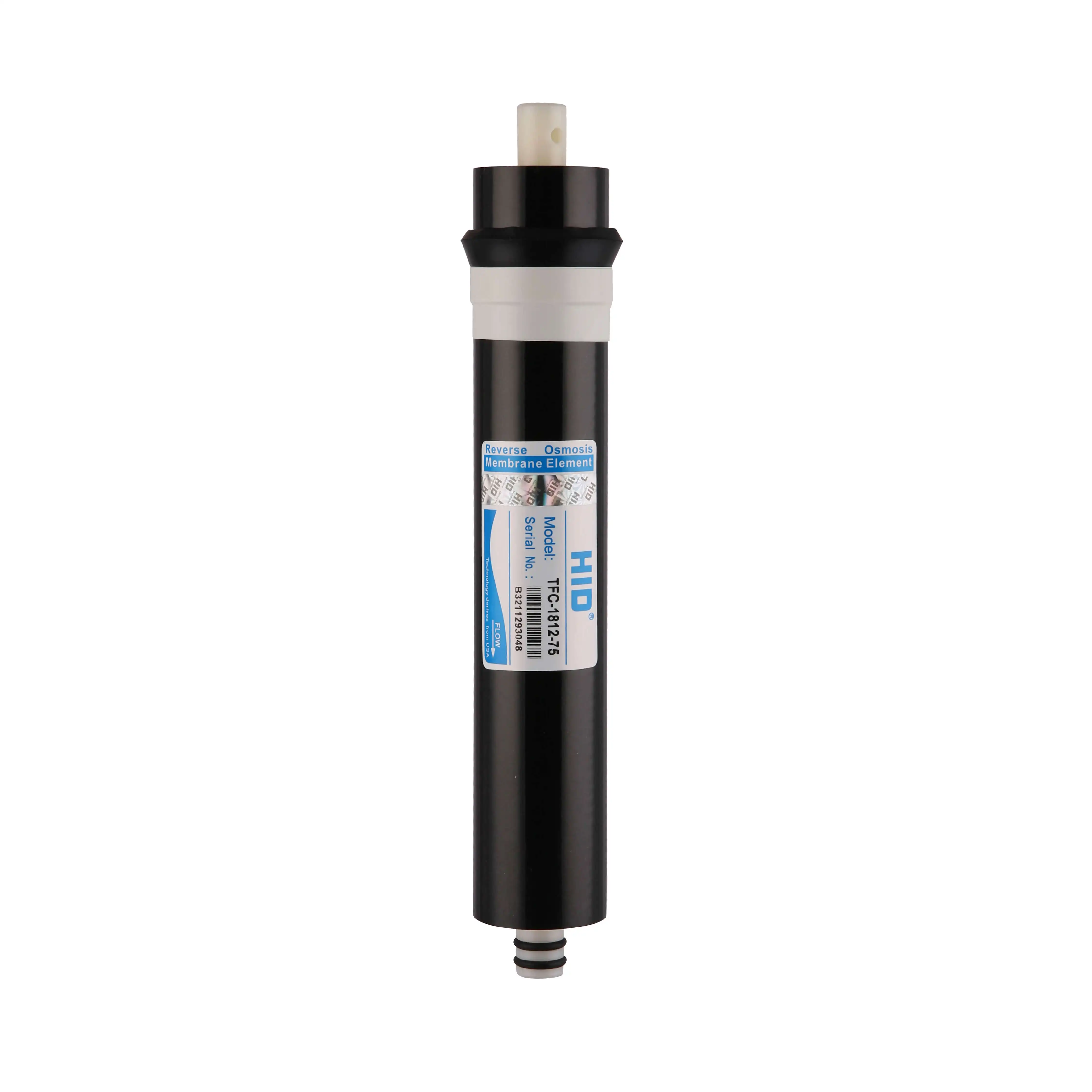

HID RO Membrane Advantage
HID OWN Flat Sheet Rolling
HID has been sticking to quality and competitiveness for years as to supply to our customer, and that's why we invested a lot in flat sheet production line to well enhance the necessary.
Tailored Design to Make Better RO Membrane
With factory capacity increase and quality control demand, we have also invested to automate activities of slitting, stickering, testing & packing, all with tailored design to make better RO membrane itself.
Customization
Wrapping Tape - Available √
Center Tube - Available √
Fabric Tricot - Available √
Spacer - Available √
Gasket - Available √
Stickers Design - Available √
Packing Bags - Available √
Packing Cans - Available √
Packing Cartons Design - Available √
HID RO Membrane Overall Dimension
Model No. | A (inch/mm) | B (inch/mm) | C (inch/mm) | D (inch/mm) | E (inch/mm) |
TFC - 1812 - 50 | 11.7 / 298 | 0.78 / 20 | 0.66 / 16.8 | 1.73 / 44 | 10.2 / 258 |
TFC - 1812 - 75 | 11.7 / 298 | 0.78 / 20 | 0.66 / 16.8 | 1.77 / 45 | 10.2 / 258 |
TFC - 2012 - 100 | 11.7 / 298 | 0.78 / 20 | 0.66 / 16.8 | 1.85 / 47 | 10.4 / 265 |
TFC - 2012 - 125 | 11.7 / 298 | 0.78 / 20 | 0.66 / 16.8 | 1.85 / 47 | 0.4 / 265 |
TFC - 2012 - 150 | 11.7 / 298 | 0.78 / 20 | 0.66 / 16.8 | 1.9 / 48.5 | 0.4 / 265 |
TFC - 2012 - 200 | 11.7 / 298 | 0.78 / 20 | 0.66 / 16.8 | 1.9 / 48.5 | 0.4 / 265 |
HID RO Membrane Performance
Model / Performance | Stable Desalination % | Min. Desalination % | Mean Permeable Flow GDP (L/d) | Active Film Area ft2 (m2) |
TFC - 1810 - 50 | 97 | 96 | 50 (204) | 35 (0.32) |
TFC - 1812 - 50 | 97 | 96 | 50 (204) | 35 (0.32) |
TFC - 1810 - 75 | 97 | 96 | 75 (281) | 4.2 (0.38) |
TFC - 1812 - 75 | 97 | 96 | 75 (281) | 4.2 (0.38) |
TFC - 1810 - 100 | 97 | 96 | 100 (380) | 5.0 (0.46) |
TFC - 2012 - 100 | 97 | 97 | 100 (380) | 5.0 (0.46) |
TFC - 2012 - 125 | 97 | 96 | 125 (478) | 5.0 (0.50) |
TFC - 2012 - 150 | 97 | 96 | 150 (567.75) | 6.0 (0.8) |
TFC - 2012 - 200 | 97 | 96 | 200 (760) | 10.33 (0.96) |
Test Condition:
Pressure-------------------------------------------------------------------------------------------------------------65psi (0.45Mpa)
Water Temp.--------------------------------------------------------------------------------------------------------25℃
Concentration (NaCl)---------------------------------------------------------------------------------------------500ppm
Water PH------------------------------------------------------------------------------------------------------------6.5 to 7.5
Recovery Rate-----------------------------------------------------------------------------------------------------15%
Operating Conditions:
Max. Operating Pressure----------------------------------------------------------------------------------------300psi (2.0Mpa)
Max. Feed Water Temp.-----------------------------------------------------------------------------------------45℃
Max. Feed Water Silt Density Index (SDI)-------------------------------------------------------------------5
Feed Water Chlorine Tolerance--------------------------------------------------------------------------------＜ 0.1 mg/l
Feed Water PH Range, Continuous Operation-------------------------------------------------------------3 to 10
Feed Water PH Range, Short-Term Cleaning--------------------------------------------------------------2 to 11
Max. Pressure Drop of Single Membrane-------------------------------------------------------------------10psi (0.07Mpa)
1.Permeate flow for each RO membrane element would be 15% floating up and down according to the feed water under the standard test condition.
2.Above data is subject to a continuous test running of 30 minutes.
COMPANY PROFILE
Our Company
HID Membrane Co., Ltd. has specialized in manufacturing Reverse Osmosis (RO) membranes since 2008, and enjoyed competitiveness & sound market share within China and around the world.
With 10+ years of RO membrane manufacture experience, we've developed full auto rolling lines for residential / commercial / industrial RO membrane making, with annual output to 5.5 millions pieces, and models from 50GPD, 75GPD,100GPD, 200GPD, 300GPD, 400GPD, 600GPD, and up to 4040/8040!
With our latest auto production line of flat sheets (film) and testing facility, HID offer you the most reliable quality control and cost efficiency!
Our Workshop
RO Flat Sheet Making - Line 1
RO Flat Sheet Making - Line 2
Flat Sheet Testing
Material Cutting
RO Membrane Rolling
RO Membrane Trimming
RO Membrane Air Testing
RO Membrane Water Testing
RO Membrane Sealing & Packing
Our Certificates
Our Exhibition
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q: Are you a trading company or a manufacturer?
A: We are one of China leading RO membrane manufacturers since 2008, with our OWN auto rolling line and OWN RO flat sheet making line!
Q: Where is your factory? How can I visit?
A: We located in Zhenjiang city of Jiangsu Province, which is west of Shanghai, 1.5 hours by express bullet train available every 30 minutes.
Q: Can we OEM from your factory?
A: Yes. Normally, we export under our brand name HID. If you have any request, we also provide OEM, ODM service.
Q: Can I get some samples? Can I place small order before bulk purchase?
A: We're glad to provide free sample, trial order welcome for first time, please kindly contact us.
Q: How can I place order? How can I pay you?
A: You can contact us by email about your order details, or place order on line. After you confirm our PI, we will request you to pay. T/T (Citibank) and Paypal, Western Union are the most usual ways we are using.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. Or it is 7-15 days if goods are not in stock, it is according to quantity.
