SINOTRUK HOWO 8X4 371HP 14CBM Бетономешалка для правшей

Описание и отзывы

Трекер стоимости

Характеристики

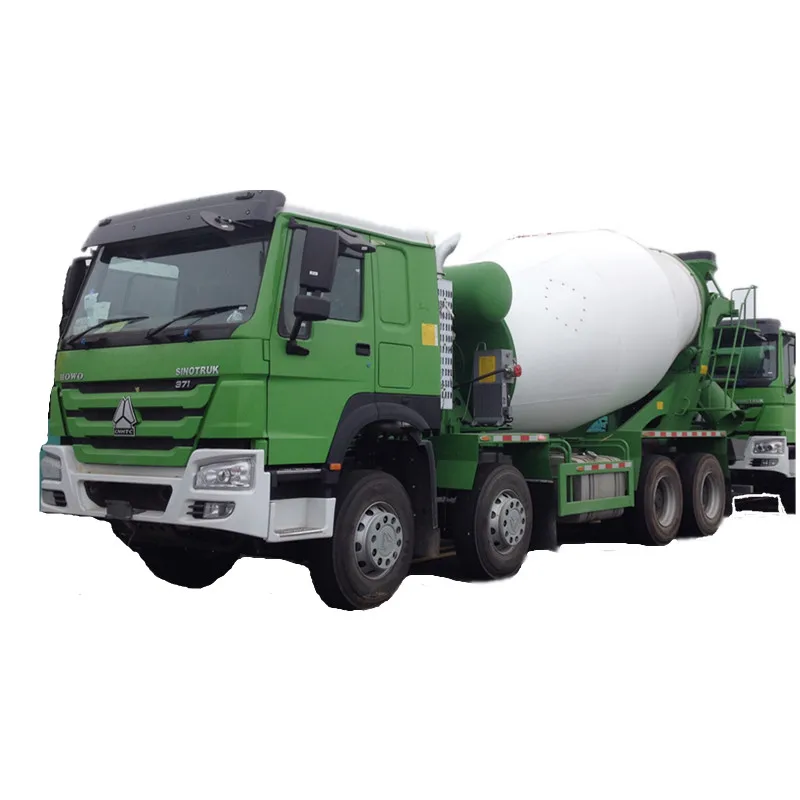

SINOTRUK SINOTRUK HOWO 8X4 371HP 14CBM Concrete Mixer Truck ZZ1317N3561W.

HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.

Model		ZZ1317N3561W
Cabin		HW76, with two seats and one bed, with Air Conditioner
Engine	Model	WD615.47
	Horse Power (Hp/rpm)	371/2200, Euro II Emission
	Max.Toruqe(Nm/rpm)	1460/1100-1600
	Displacement              L	9.726
	Type	DIESEL, 6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine
Transmission		HW19710, 10 speeds forward and 2 speed reverse, with High and Low Gear
Front Axle		HF9, Steering with double T-cross section beam, Loading Capacity:9,000KGS
Driving Axle		HC16, Pressed axle housing, central reduction with hub reduction with differential locks between wheels and axles, ratio: 4.8, option: 5.73
Suspension		Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer
Steering System		ZF8118, Hydraulic steering with power assistance
Brake System		Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake
Tire		12.00R20, Option: 12.00R22.5, 295/80R22.5, 315/80R22.5, 11.00R20
Fuel Tank Capacity (L)		400L Diesel Tank
Kurb Weight (kg)		15,000
Loading Capacity (kg)		358,000
Gross Vehicle Weight (kg)		50,000
Drum Capacity(m3)		14
Hydraulic System		ZF and Rexroth, Eaton for option,
Wheelbase(mm)		1800+3500+1350
Max. Speed (km/h)		90

















Why Choose Us



Worldwide Sales, Marketing and Service Network

During the past 15 years, we have exported over 5,000 units of different kinds of heavy duty trucks to over 50 countries in Africa, Middle East, Southeast Asia, and South America. Our overseas authorized truck dealers and service dealers are all around the world.

Wide Ranges of Various Modified Trucks with Different Applications

Our main products range from Dump Truck, Tractor Truck, Concrete Mixer Truck, Van Truck, Lorry Truck, Off-road Dump Truck, Tanker Truck, Truck Mounted Cranes, trailer, tanker trailers and all other kinds of modified trucks. We can design, produce and supply our customers with any special vehicle.

Flexible Payment Terms for Different Trucks and Business

Besides traditional payment terms such as TT, LC, we still offer our stable and long-term partners with various financial support and credit payment terms at different periods.



Excellent and Outstanding After Sales Service

Our professional technicians and mechanics and parts staff always concentrate all our products and our customers. Top Starting Point, High Quality and Worry-free Service is our promise to all our customers.





High Efficiency is One of Our Goal and Promise to Our Customers

We will be always with our customers whenever and wherever we are. All problems and questions shall be solved by our end at the first time. Customer priority outstands without any doubt.



Latest Truck Development and Trends Shall Be Delivered Regularly

We have abundant technical team, familiar with local and major exporter product standards. Our customers will be regularly updated with the latest truck development and trends in China and other countries.



Who we are?

The most professional truck and spare parts distributor in China;

The leading truck and spare parts exporter in China;

The most comprehensive truck and spare parts solution provider in China;

The most worry-free and most satisfactory and reputable supplier for you in China.



We will never let you down if you choose us.
