Оптический 1550 нм передатчик catv с двойным источником питания HFC network1550 внутренняя прямая модуляция CATV 10 дБ высокое
- Категория: Radio & TV Broadcasting Equipment >>>
- Поставщик: Zibo,Hensure,Electronic,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 417.51 $* | 438.39 $* |
| Aug-16-2025 | 413.23 $* | 434.70 $* |
| Jul-16-2025 | 347.3 $* | 364.67 $* |
| Jun-16-2025 | 406.4 $* | 426.44 $* |
| May-16-2025 | 354.77 $* | 372.79 $* |
| Apr-16-2025 | 399.16 $* | 419.34 $* |
| Mar-16-2025 | 396.39 $* | 416.70 $* |
| Feb-16-2025 | 392.77 $* | 412.16 $* |
| Jan-16-2025 | 389.33 $* | 408.23 $* |
Характеристики
Product Description
Features:
1U 19’ standard case with liquid crystal display (LCD/VFD) in front panel;
Frequency bandwidth: 47—750 / 862MHz;
Output power from 4 to24mw;
Advanced pre-distortion correction circuit;
AGC/MGC;
Automatic power control (APC) and Automatic temperature control (ATC) circuit.
Specifications
OT8510A:Distance 15km
OT8510B: Distance 25km
OT8510C: Distance 35km
OT8510D: Distance 42km

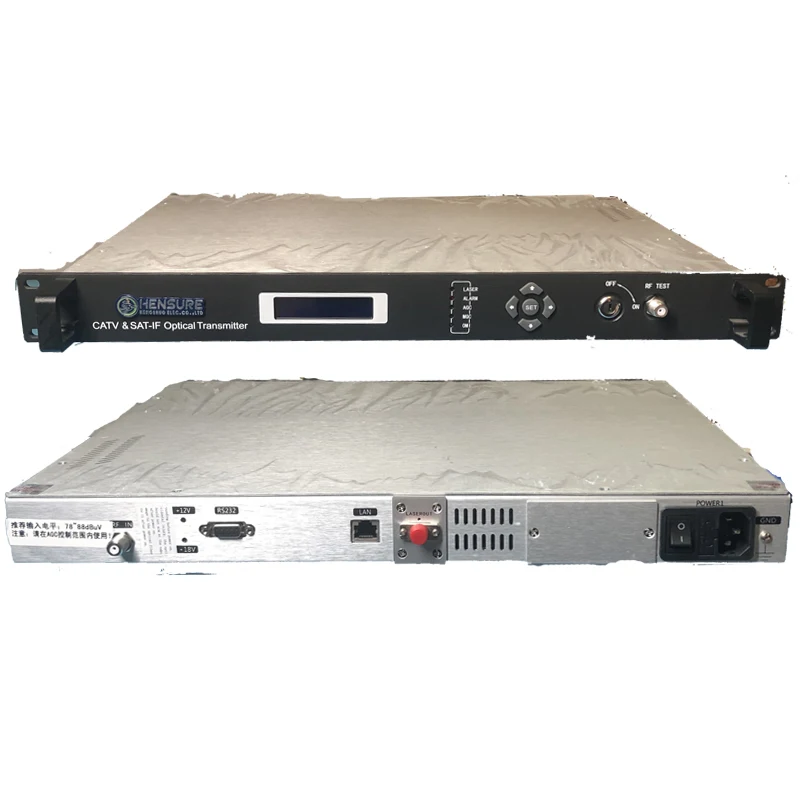

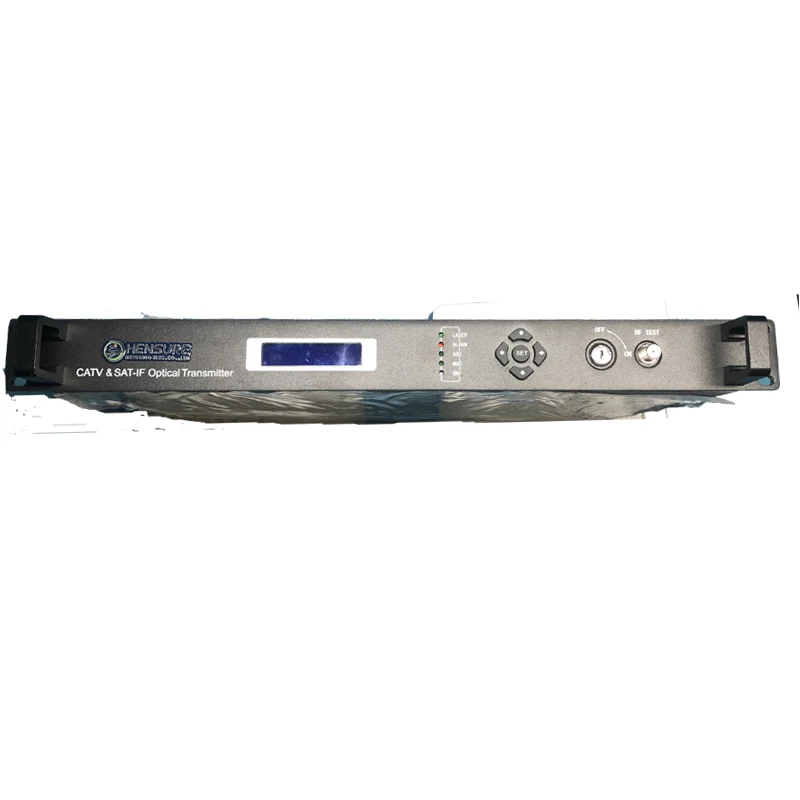

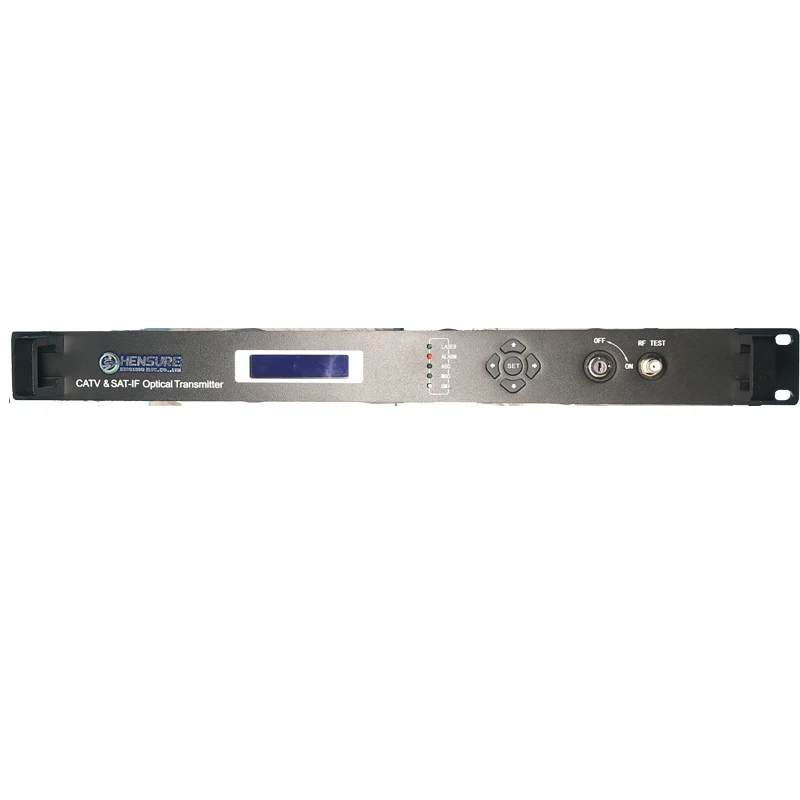

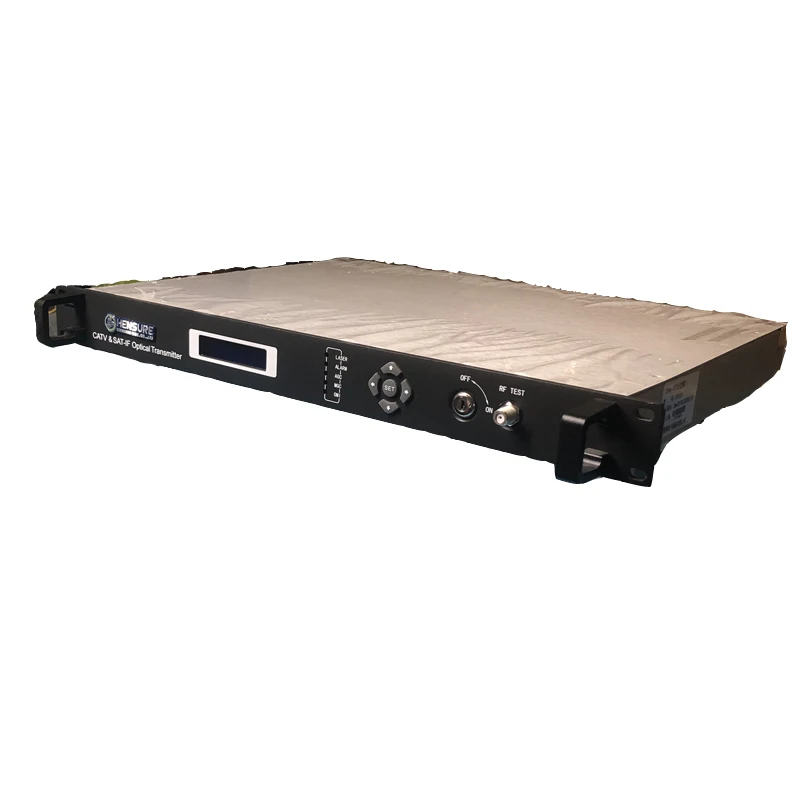

n Front Panel
Item | Explanation |
LASER | Green light, lasers to work |
ALARM | Red light, RF signal or laser alarm |
AGC | Green light,RF amplifier module is AGC Model |
MGC | Green light,RF amplifier module is MGC Model |
OMI | MGC Status,ADJ Level |
Status Bottom | Up and down left and right buttons
|
RF TEST | RF test port,75Ω F connector,>RF IN 2 dBµV |

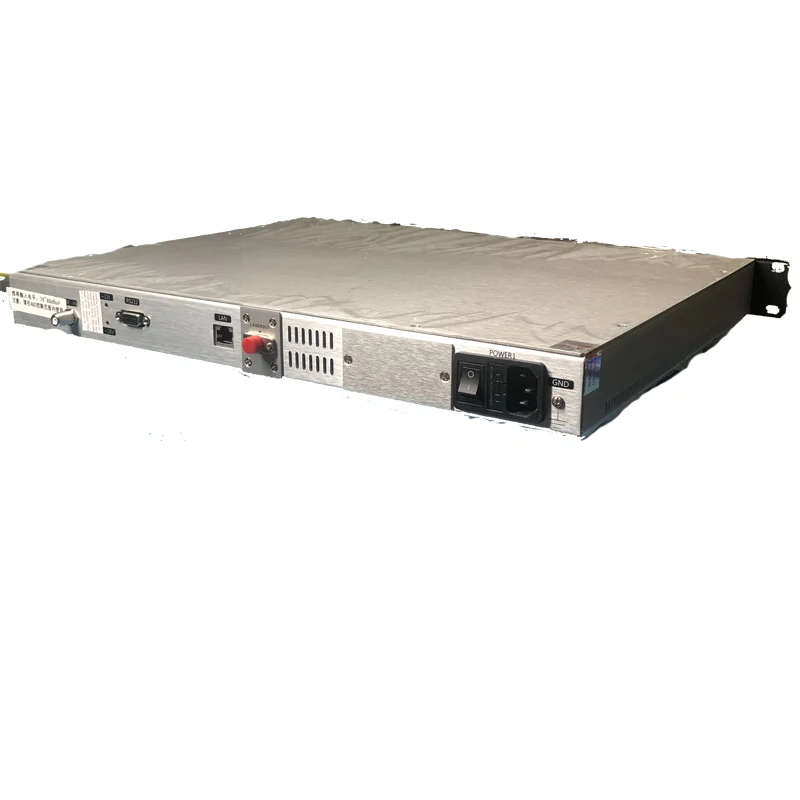

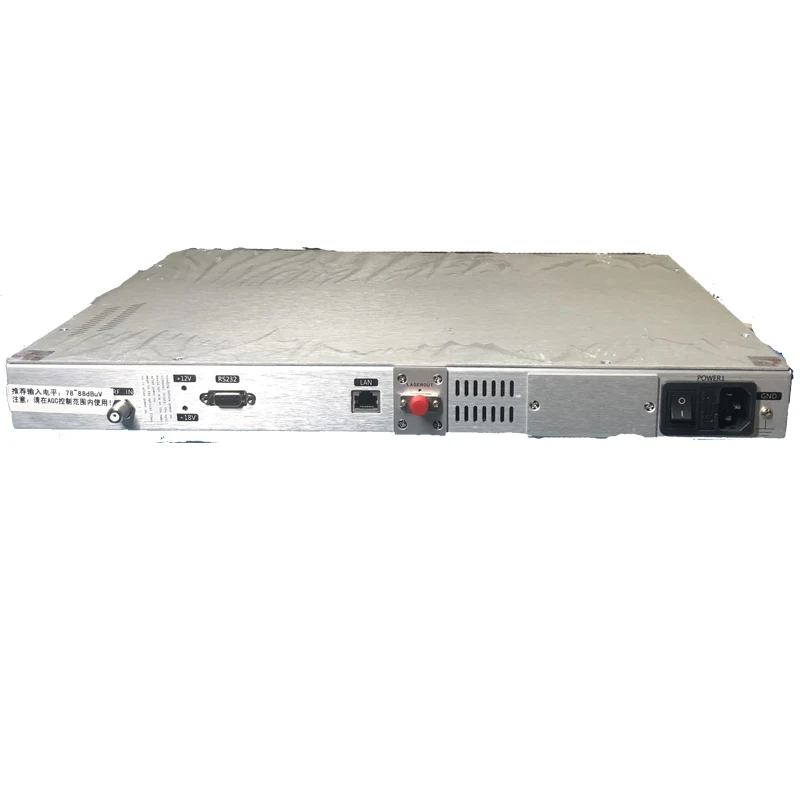

n Back Panel
Item | Explanation |
Cooling | Internal auto-cooling process, the temperature is 20+10℃
|
RF input | 75Ω F connector. Typical RF input range: 20dBmV+5dBmV |
Optical output | Optical output connector. Confirm you are using the right type of connector before connect the equipment. When the connector is idle, be sure to place a dust cover on the connector to protect the surface from dust or damage. Do not look into Optical Output Connector in the back panel of the transmitter with power applied. |
RS232 | RS232 communication interface. |
AC POWER | Switch, socket and fuse tube. ON/OFF: Power supply is turned on/off. Type of Fuse tube: 1.5A/250V. To replace fuse tube, please turn off the switch first, then open the cover and change it. For continued protecting against fire, replace all fuses only with fuses having the same electrical ratings. |
GND | Grounded terminal. Make sure ground wire is connected to the actual surface of the earth. |
Remarks:
1 At the same time, to protect laser module, the circuit of laser module will be cut off when RF level is too high.
2 To protect laser module, RF level no high
Functional Diagram
Going through amplifier module and AGC circuit, RF input signal is amplified and controlled in gain, this ensures high sensitivity and allows low-level RF input. Adjusting the attenuator can change the optical modulation degree.
MPU (Micro processor unit) controls ATC (Automatic temperature control) & APC (Automatic power control circuits) and keeps watch on main status of laser module. Main operating parameters: optical power, interior temperature, +24V, ±5V are displayed by LCD/VFD.
gather
PACING
FAQ
Packaging & Shipping
Fiber Optic to RF Converter Mini AGC FTTH CATV Optical Receiver Package: 1pcs / Bag, 5pcs / Carton
Our Services
This device warranty is 12 months. If the problem is caused by the user’s wrong operation or natural force majure, we will only be responsible for the maintenance and charge the appropriate material cost.
When the device has problem, please contact us immediately. On-site maintenance of faulty device should be operated by professional technician to avoid causing more damage to the equipment.
Note: For users who disassemble and repair equipment wihtout our authorization, our company will not offer free warranty. Reasonable maintenance and materials costs will be collected.
Company Information
Zibo hensure Electronic Equipment Co., Ltd has been manufacturing CATV Optical equipment since 2015. We have been mainly engaged in designing, researching, manufacturing and marketing CATV HFC network equipment.
Our company has been researching and developing HFC network products, including EDFA, 1550nm/1310nm optical transmitters, optical receivers, FTTH optical node, CATV amplifiers, hybrid modules, power supplies and passive devices.
After years of development, we have strong overall operational capabilities, rich experiences in international trade, and have made good relationship with many countries like USA, India, Vietnam, Spain, Romania, Ukraine and Russia, Peru, Colombia, African countries, etc. We are looking forward to forming business relationship with new clients around the world.
If you are interested in our products, welcome to your inquiry and visit our factory.
