Китайский поставщик мембранных фильтров с одной
- Категория: Filter Press Equipment >>>
- Поставщик: Cangzhou,Best,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 5950.93 $* | 6248.78 $* |
| Aug-17-2025 | 5900.64 $* | 6195.15 $* |
| Jul-17-2025 | 4950.98 $* | 5198.40 $* |
| Jun-17-2025 | 5800.60 $* | 6090.87 $* |
| May-17-2025 | 5050.20 $* | 5303.23 $* |
| Apr-17-2025 | 5700.73 $* | 5985.50 $* |
| Mar-17-2025 | 5650.50 $* | 5933.9 $* |
| Feb-17-2025 | 5600.84 $* | 5880.16 $* |
| Jan-17-2025 | 5550.22 $* | 5828.99 $* |
Характеристики
Chinese Top One Chamber Membrane Filter Press Machine Supplier
Product Description
Automatic filter press is on the basis of the pressure filter, according to user's different requirements for filter press equipment automation degree, choose to increase automatic plate system, auxiliary varicose arm of discharging slag system, single lever water flushing system, flap hydraulic system, PLC control system and other auxiliary facilities, in order to reduce the workers labor intensity, improve production efficiency.Filter Press equipment is widely used for Widely used in petroleum, chemical industry, dye, metallurgy, pharmacy, food, paper making, coal washing,water treatment and sewage treatment and so on all kinds of solid-liquid separation is required.
Model | No. of filter board | filter area(m2) | flow t/h(water) | Dimension of filter board (mm) | Motor power (kw) | Dimension of appearance (mm) |
XYZ400UN-1 | 20 | 3 | 2-3 | 400×400 | 1.5 | 1550×600×1400 |
XYZ400UN-1 | 30 | 4 | 3-4 | 400×400 | 1.5 | 1750×660×1400 |
XYZ400UN-1 | 44 | 6 | 4-6 | 400×400 | 1.5 | 2100×660×1400 |
XYZ400UN-1 | 62 | 8.5 | 6-8 | 400×400 | 2.2 | 2500×660×1400 |
XYZ400UN-1 | 70 | 9.5 | 8-10 | 400×400 | 2.2 | 2700×660×1400 |
Parameter
Structure
Main Beam
Structure: using a box composite structure
Material: Q235B bridge steel
Main processing technology: submerged arc protection welding forming, high-speed shot blasting, rust removal, internal stress removal
Performance: high strength, corrosion resistance, side bending resistance, deformation resistance

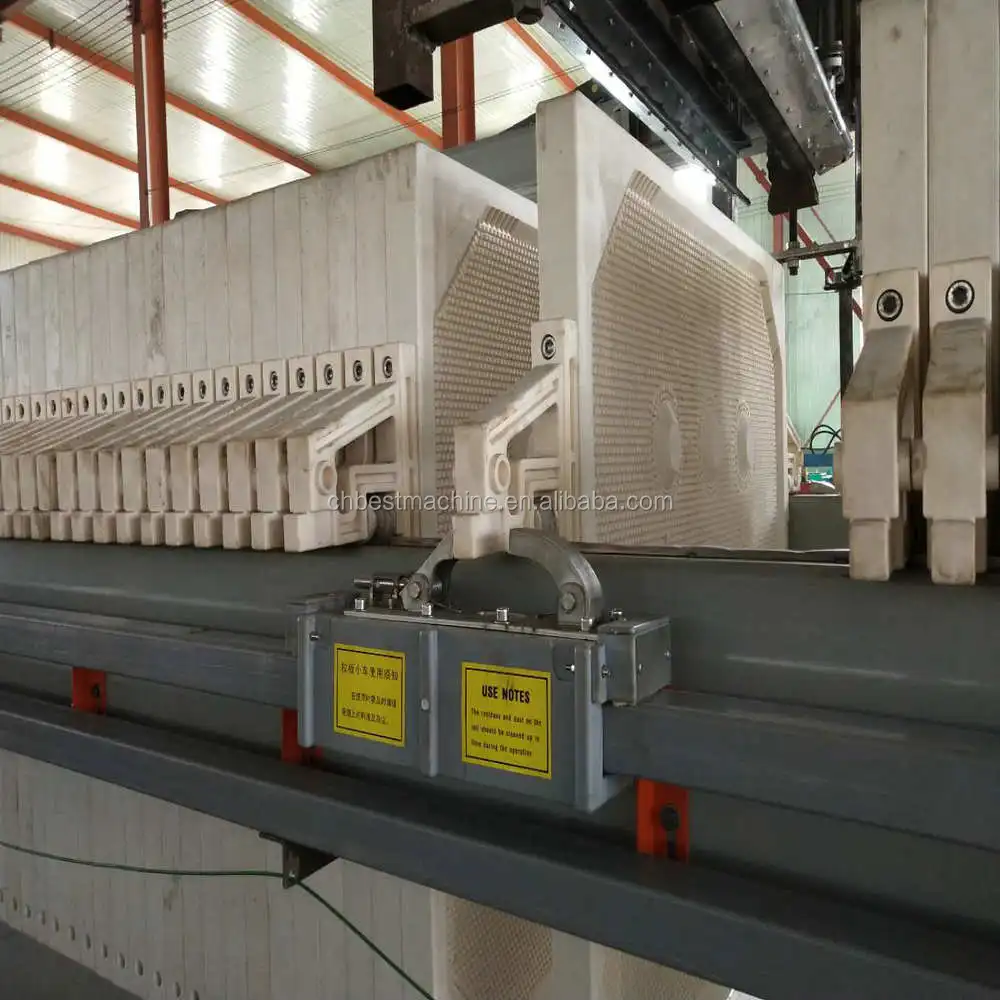

Pull plate system
Structure: closed plate mechanism
Material: composite material
Pull plate power form: motor pull plate, reliable operation
The motors are universal asynchronous motors with protection class IP54 and insulation class F. The working voltage of the motor is AC 380V, frequency: 50HZ, ambient temperature +40°C~-15°C: the working system is S1, that is, continuous working system: the stator winding is measured by the resistance method and the temperature rise does not exceed 80℃.

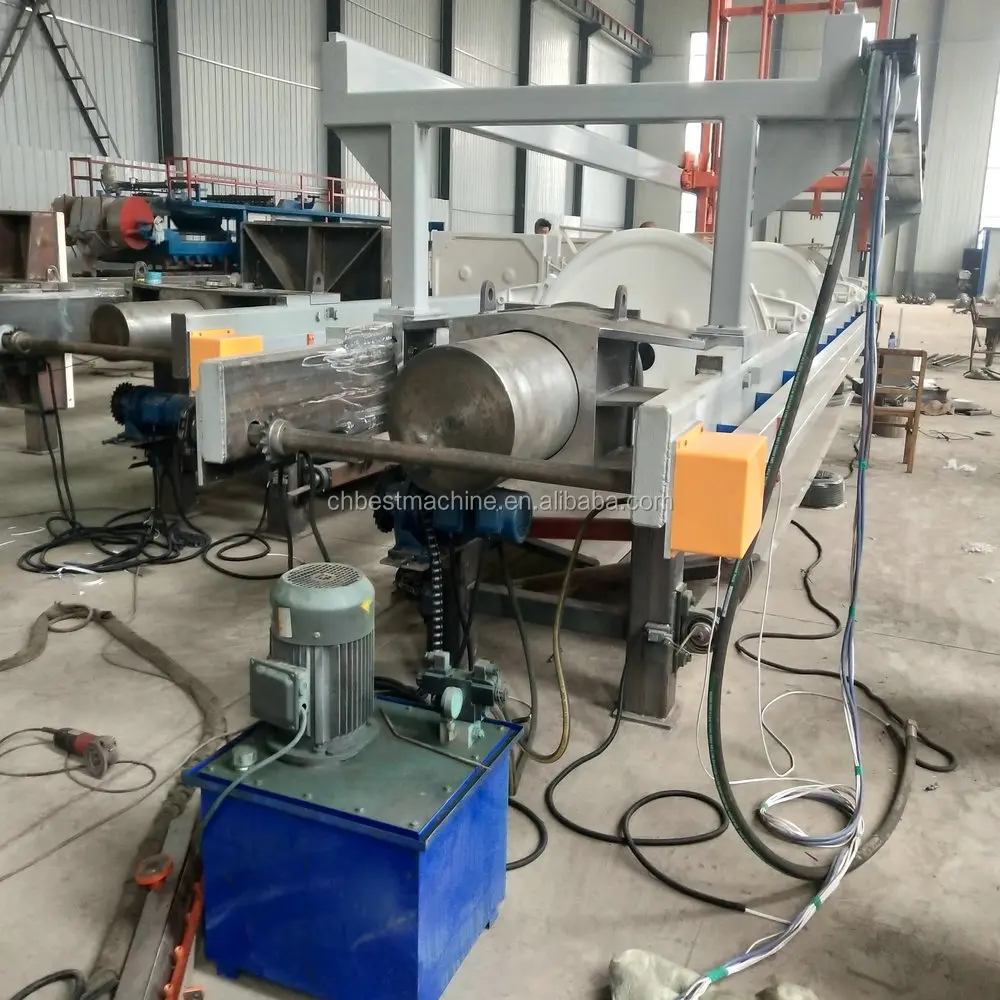

Hydraulic System
Structure formation: open structure
Hydraulic cylinder production: 27SiMn seamless steel pipe, through rough hammer, rolling, IT8 precision
Piston rod: 45# steel chrome plating
Sealing ring: silicon oxide material
Hydraulic system assembly conditions: assembly, experiment in a dust-free, constant temperature environment
Hydraulic system performance: safe, flexible and reliable operation, 5000 hours of faultless filter press hydraulic compression system is reliable and stable, integrated hydraulic station control, reliable performance of cylinder and mechanical strength, stable cylinder, withstand design pressure 25MPa, use The pressure is 20 MPa.
Fiter Press Apllication
Service
Pre-sale service:
1.24 hours online service.
2.Help you to select suitable model
3.Design totally according to your requirements
After-sale service:
1.Provide 12 months warranty period and you will have our technology support forever
2.Engineering available to offer the service to your machinery overseas
Welcome to visit our factory anytime
Contacts
Packaging & Shipping
