Product description

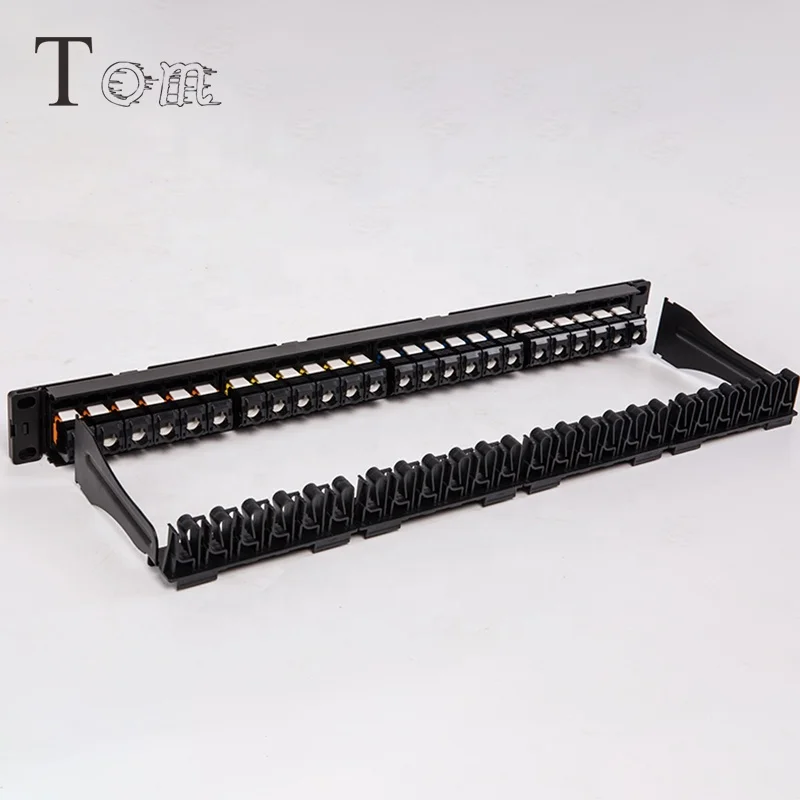

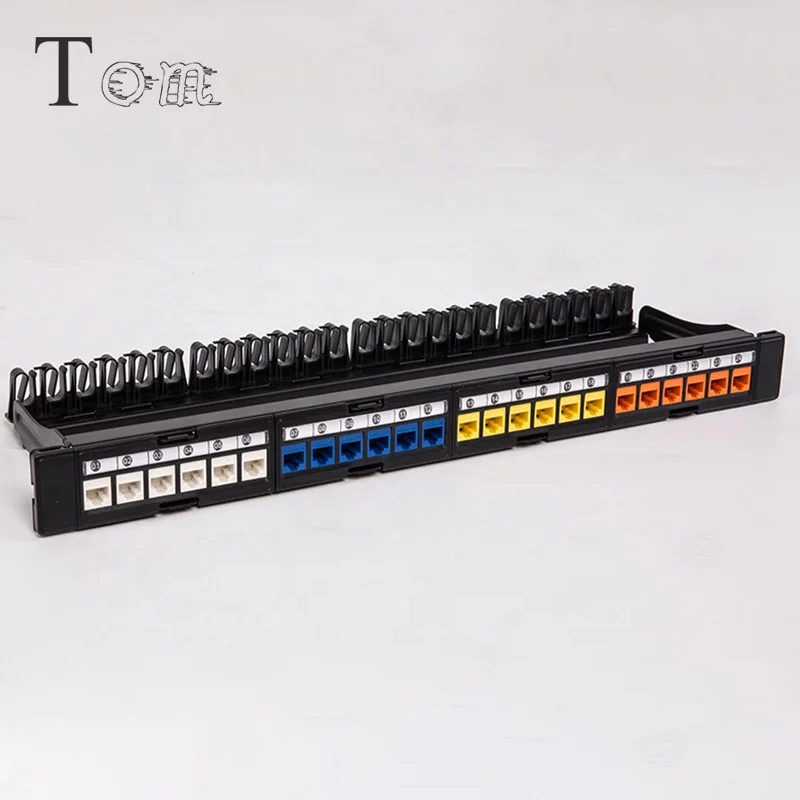

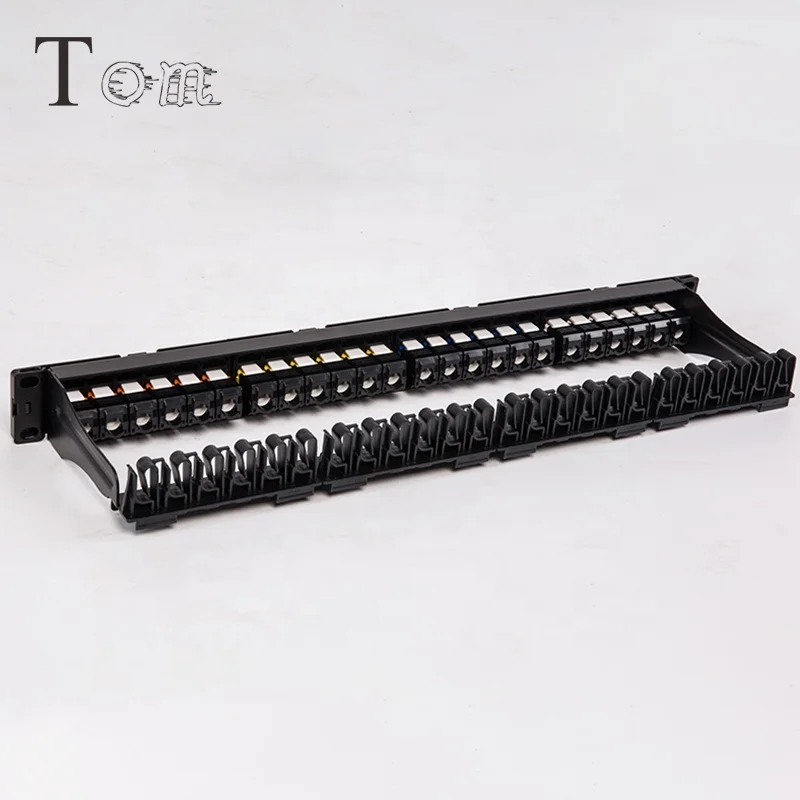

Product Name: Category 6 / Super Category 6 Modular Patch Panel

Product Type: 24-port patch panel, unshielded

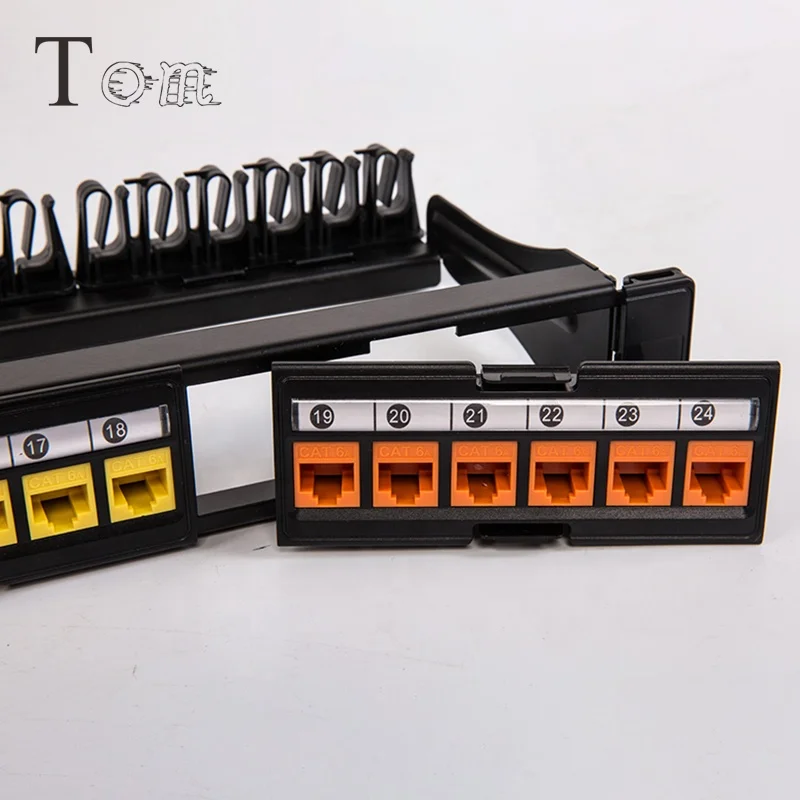

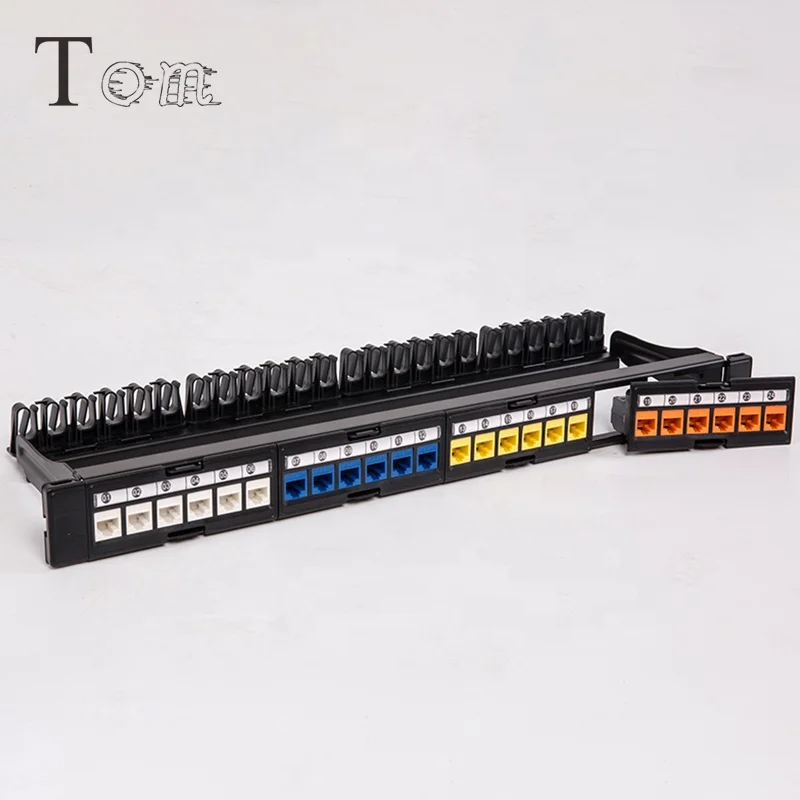

Specifications: 19′′ installation size, 24 ports, 4 groups can insert 6 modules per group

Material: injection molded from high quality cold rolled steel, phosphor bronze and PC

Color: Black

Main technical parameters

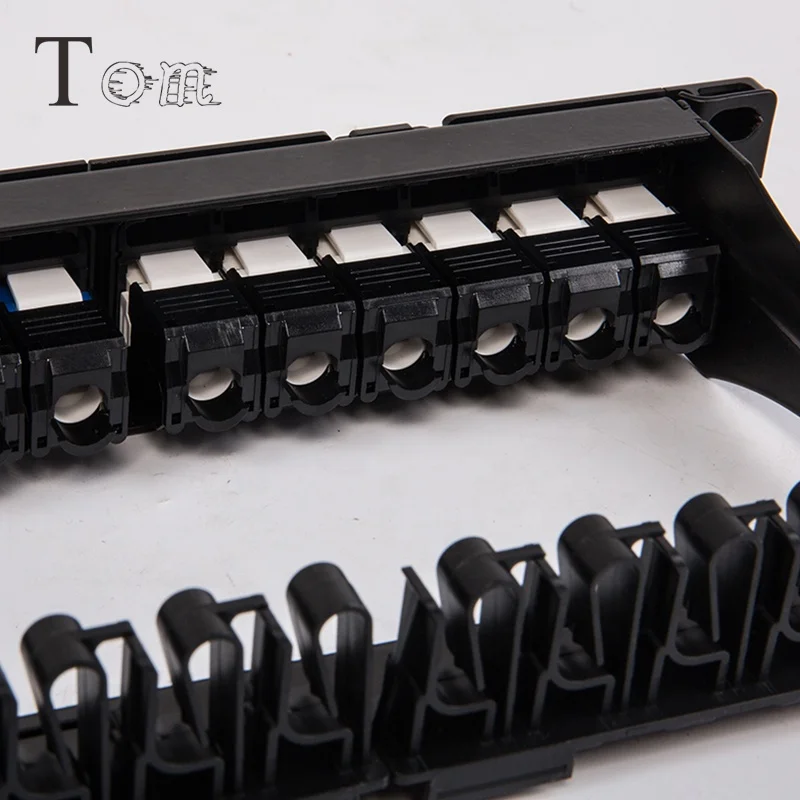

*IDC: Phosphor bronze, silver plated (20~50uiLZh), suitable for cables of 22, 24 and 26AWG (0.64, 0.5 and 0.4mm), with a life of not less than 250 times.

*8-line pin: phosphor bronze, gold-plated (20~50uiLZh), plug and socket can be re-plugged no less than 750 times

* Flame retardant: injection molded with PPO+PC to meet international standards

* Contact resistance: no more than 2.5mΩ under normal atmospheric pressure (without body resistance)

*Insulation resistance: not less than 1000MΩ under normal atmospheric pressure conditions

*Electrical strength: DC 1000V (AC, 700V) No breakdown and arcing in 1 minute

*Standard: Designed and manufactured according to international standard ISO/IEC11801; TIA/EIA568

Note: The order quantity is small or the customer does not specify, the shipment defaults to the module is all white

Q1:Are you a factory or trade company?

We are a factory.

Q2: Can your company accept customize?
Welcome OEM & ODM.

Q3: What's your delivery time?

If our company have stock , we will send to you within 3 day once receive your deposit.

Q4: How do you solve after sale service?
This please ask us for technical support if you have workers know how to repair.
If do not have engineers, please send back the items, we can repair the items for you or we will re-produce for you.

Q5: Can you send a sample for us to develop?
Yes, we can. Sample can be sent out once you ask for it, if the samples cost is very higher , we will ask a sample fee. At the same time. the Sample fee will return back in future order.

Q6: What packing ways do you offer?
We offer with own brand packing, neutral packing or customized packing.

Q7: How could I ensure the product quality?
We have our own QC control department, and we also have got many certifications such as, CE, , RoHS and so on to ensure the quality of our products, you could just trust us.
