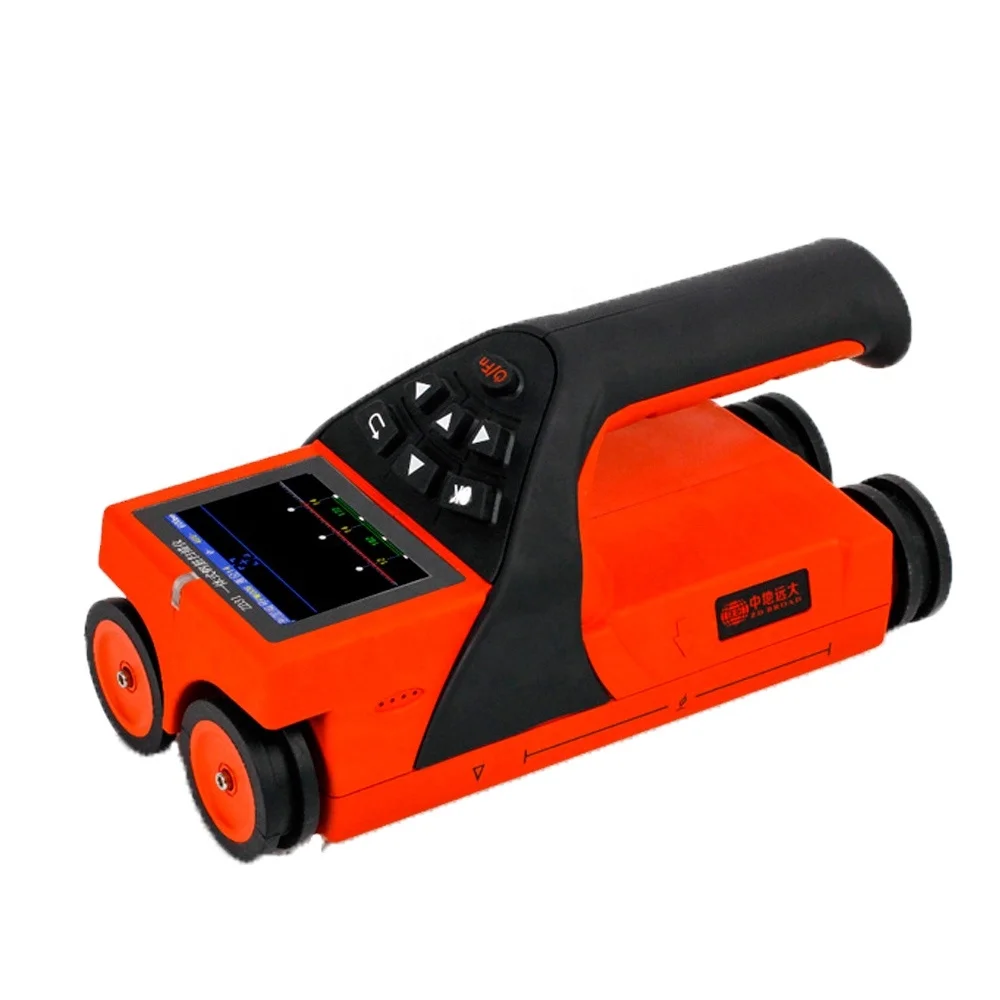

ZD31 Digital Integrated Rebar Detector Steel bar positions Scanner Rebar Protective layer thickness Tester With 4 scan modes





 series integrated Rebar detector are mainly used for detecting the internal reinforcement position, the protective layer thickness, reinforcement spacing and diameter of rebar. It can accurately draw the distribution map of the whole rebar, to provide test data with high precision and high speed; the integrated structure of the host and the sensor coil, making it is convenient and quick when carrying and field operation ; It is characterized in coil structure design, faster speed, higher accuracy, stronger resolution.

Main Features

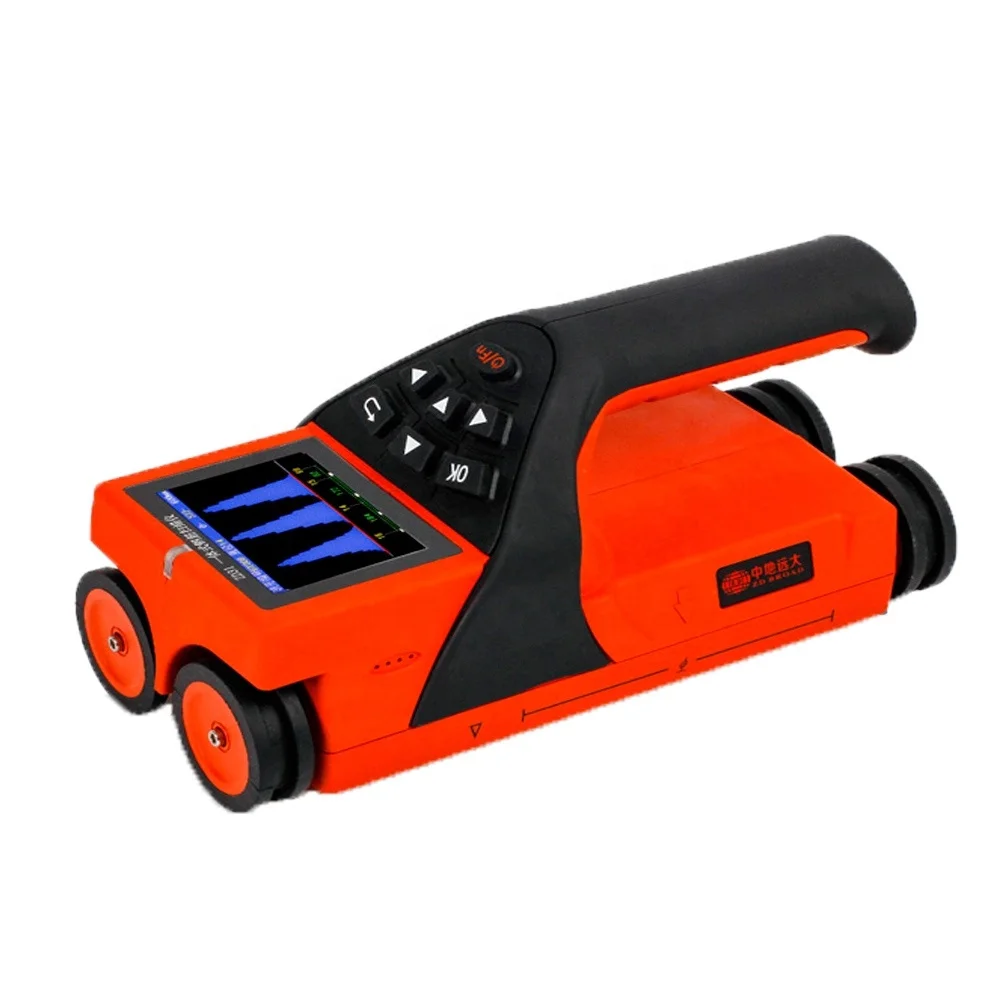

ZD31 Digital Integrated Rebar Detector Steel bar positions Scanner Rebar Protective layer thickness Tester

1.         2.8 inch high resolution color LCD screen (320 x 240 pixels), whether in indoor or outdoor, any situation can be clearly visible detection data;

2.         Multi-coil structure design, faster, higher precision, stronger resolution;

3.         Using USB mode data transmission and charging, you can quickly upload the stored data to the computer through the USB.

4.         With built-in high-capacity lithium battery, the power consumption is low, in the case of battery is full the standby time is about 16 hours;

5.         Data management mode in the data storage, view, delete and other functions, can store about two hundred thousand rebar measuring point data;

6.         The problem of reinforcing steel bar leakage is solved by using super dense tendon resolving power;

7.         Standard test block which can be configured with special and unique design;

8.         Using the host and sensor coil integrated design, compact size, light weight, easy to carry;

9.         Adjacent steel bar intermediate position real-time judgment, indicating light prompt, can avoid around the steel bar, easy drilling coring;

10.     The detector box protection lining adopts the domestic ladder and cylindrical diversion trough, easy to put in the detector;

11.     Equipped with medium and large steel bar detection software, it is convenient for professional data analysis, data processing and generating complete report in PC.

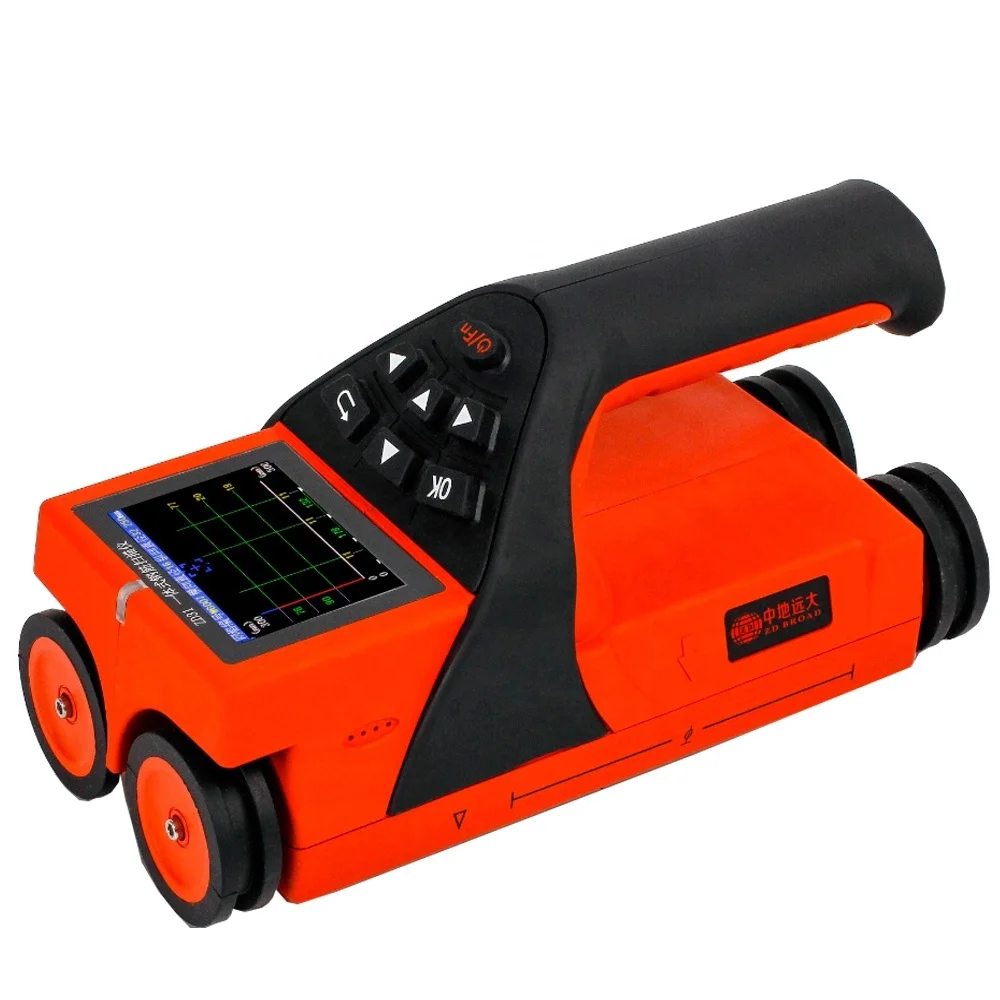

 ZD31 Digital Integrated Rebar Detector Steel bar positions Scanner Rebar Protective layer thickness Tester

Technical sheet:

Items	Values
Applicable range of Rebar(mm)	φ6~φ50
Protective layer thickness range(mm)	Small range:1~80   Large range:5~185
Screen	320×240
Power supply	Built in high capacity lithium battery
Working hours	≥16h
Communication	USB interface
Storage	200K Measuring point of steel bar
Operation	Silicone keypad
Size(mm)	219×92×106
Weight(Kg)	0.60(Battery included)

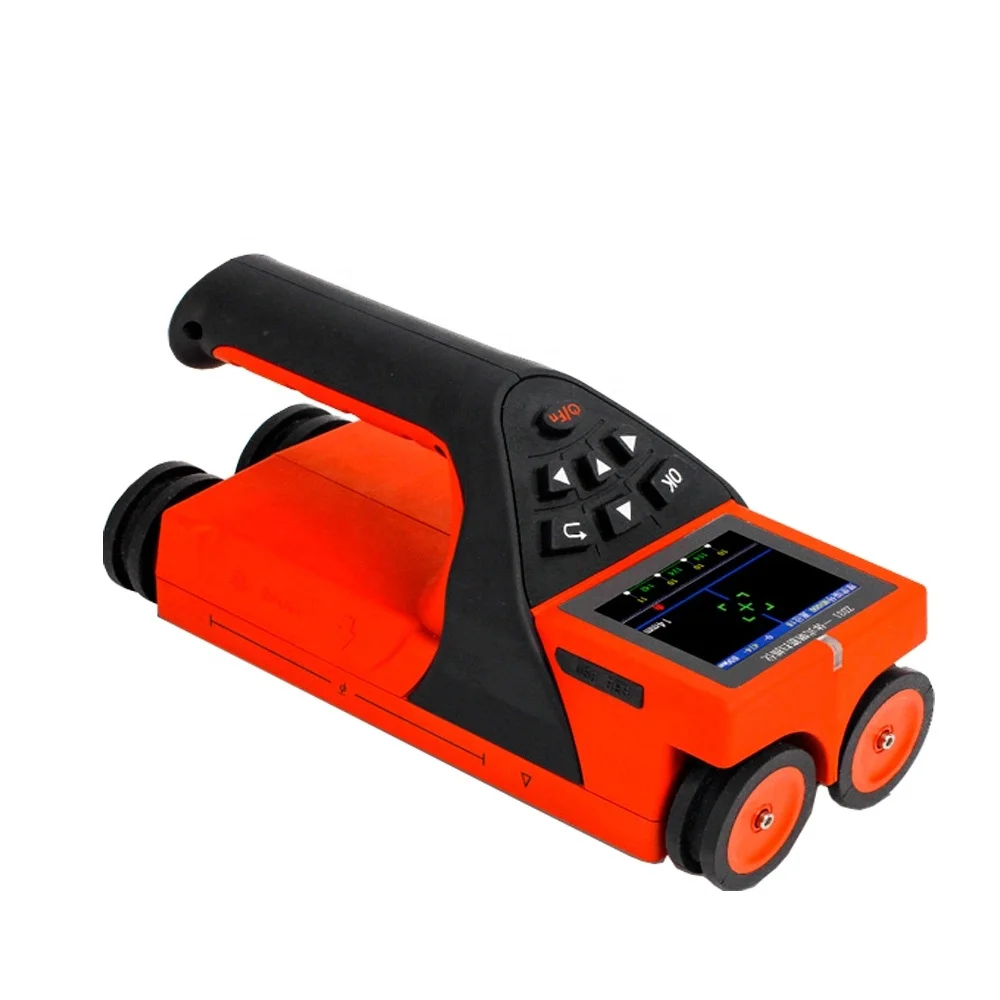

ZD31 Digital Integrated Rebar Detector Steel bar positions Scanner Rebar Protective layer thickness Tester

Measuring range of different steel bar diameter:

Range BarDiameter	Small(mm)	Large(mm)
φ6~Φ8	1~60	5~100
Φ10~Φ18	1~80	5~120
Φ20~Φ28	1~80	5~140
Φ32~Φ50	1~80	5~185

 Error range of different thickness

Range Error range	Small(mm)	Large(mm)
±1	1~59	5~59
±2	60~80	60~79
±3	……	80~99
±4		100~185
