Характеристики
light weight Polyurethane Roof&Wall Sandwich Panel for cold room /warehouse/ farm
Cold Storage Panel Paramenters | ||||
DIMENSION : | SURFACE : | CHARACTERISTICS: | ||
．Cover width : 1135, 1000mm ．Panel width : 1061, 1021mm ．Thickness : 50,60, 80, 100, 120, 150, 180,200mm ．Min. length : 2000 mm ．Max. length: 20000 mm ．Length to order per 10mm ．Tolerances - width : ±2 mm - length : ±5 mm | External facing : - steel plate thickness 0.4 - 0.8mm Internal facing : - steel plate thickness 0.4 - 0.8mm FINISHING LACQUER : ．Polyester - 25μm ．PVDF - 25μm ．HDP - 25μm | Foam density : 40kg/m3 (±2kg/m3) Thermal conductivity : 0.023 W/mK Weight of panel : 60mm = 12.50kg/m2 80mm = 13.40kg/m2 | ||
APPEARANCE: | COLOUR : | WEIGHT OF PANEL : | ||
Surface : - Linear - Micro-Linear - Ribbed - Flat ．Edge profiles: - Water proofing tongue & groove edge - Hidden fixing with omega flashing design | ．Multi standard RAL colour ．Order for special colour Protection film : ．50 micron PVC film on both side | 60mm = 12.20kg/m2, 80mm = 13.10kg/m2 100mm = 14.00 kg/m2, 120mm = 14.90 kg/m2 150mm = 15.30 kg/m2, 200mm = 17.50 kg/m2 | ||

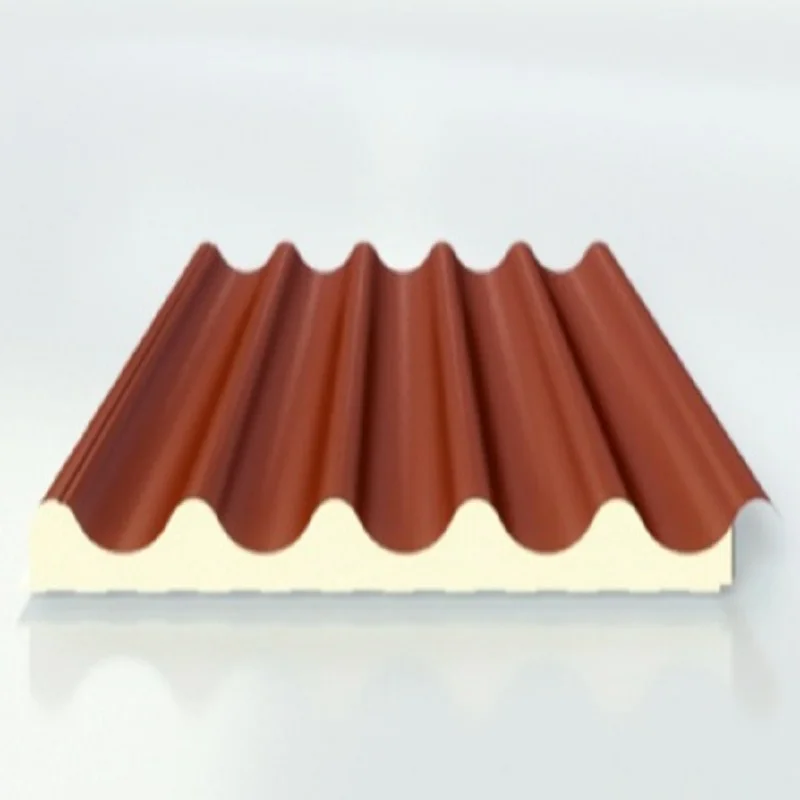

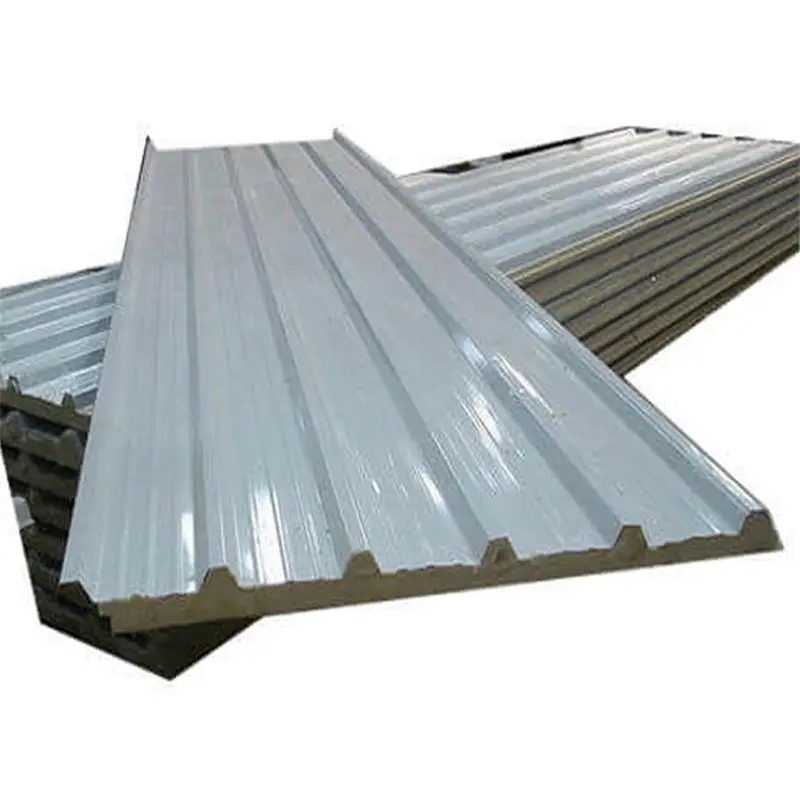

Roof Panel Paramenters | ||||
DIMENSION : | SURFACE: | CHARACTERISTICS | ||
．Panel width : 1000 mm ．Thickness : 75mm / 95mm ．Min. length : 2000 mm ．Max. length: 20000 mm ．Length to order per 10mm ．Tolerances - width : ±2 mm - length : ±5 mm | ．External facing : steel plate 0.4 - 0.8mm ．Internal facing : steel plate 0.4 - 0.8mm FINISHING LACQUER : ．Polyester - 25μm ．PVDF - 25μm ．HDP - 25μm | Insulation foam materials : PUR / PIR Pentane - Fire reaction : BS2d0 ** (**According to EN13501-1, DIN 4102) | ||
APPEARANCE : | COLOUR : | FOAM DENSITY : | ||
Surface : - Linear - Micro-Linear - Ribbed - Flat Edge profiles: Water proofing tongue & groove edge - Hidden fixing with omega flashing design | ．Multi standard RAL colour ．Order for special colour Protection film : ．50 micron PVC film on both side OPTION : ．Skylight ．Louver ．Gutter | Foam density : 40kg/m3 (±2kg/m3) Thermal conductivity : 0.023 W/mK Weight of panel : 60mm = 12.50kg/m2 80mm = 13.40kg/m2 | ||

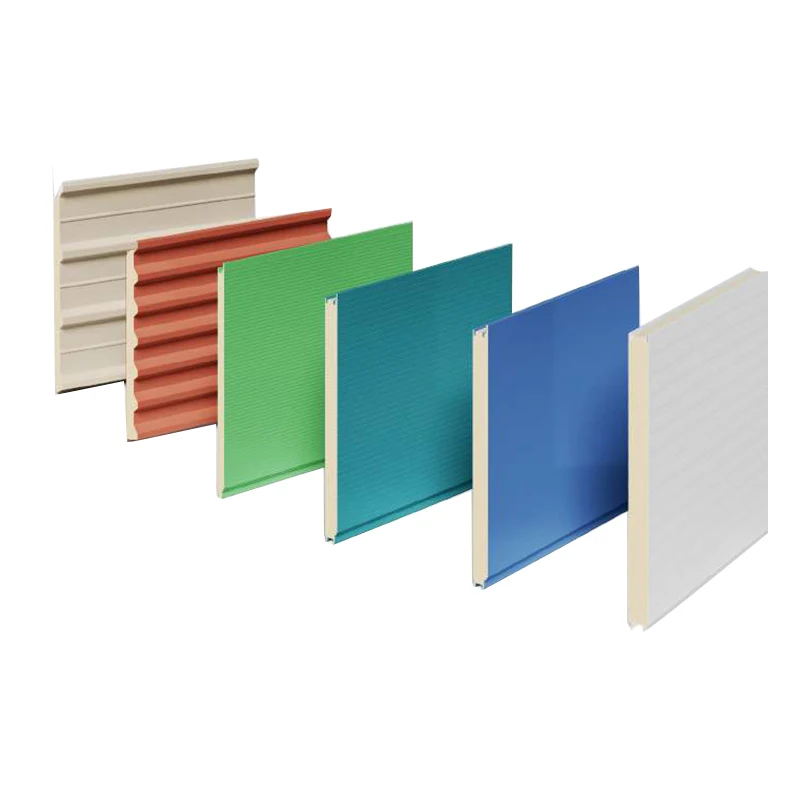

Wall Panel Paramenters | ||||
DIMENSION : ．Cover width : 1000 mm ．Panel width : 1046 mm ．Thickness : 50, 60, 80 mm ．Min. length : 2000 mm ．Max. length: 20000 mm ．Length to order per 10mm ．Tolerances - width : ±2 mm - length : ±5 mm - thickness : ±2 mm | SURFACE External facing : - steel plate 0.4 - 0.8mm ．Internal facing : steel plate 0.4 - 0.8mm FINISHING LACQUER : ．Polyester - 25μm ．PVDF - 25μm ．HDP - 25μm | CHARACTERISTICS : Insulation foam materials : ．PUR - Polyurethane - Fire reaction : CS3d0 ** ．PUR - Pentane - Fire reaction : BS3d0 ** ．PIR - Pentane Fire reaction : BS2d0 ** (**According to EN13501-1, DIN 4102 | ||
APPEARANCE : ．Surface : - Linear - Micro-Linear - Ribbed - Flat ．Edge profiles: Water proofing tongue & groove edge Hidden fixing with omega flashing design | COLOUR : Multi standard RAL colour ． Order for special colour Protection film : 50 micron PVC film on both side | FOAM DENSITY : 40kg/m3 (±2kg/m3) Thermal conductivity : 0.023 W/mK Weight of panel : 60mm = 12.50kg/m2 80mm = 13.40kg/m2 | ||
Insulated sandwich panels consist of metal panels with steel skins and an insulating foam core. This foam core, usually PIR adds a layer of insulation to buildings which increases the energy efficiency. Insulated panels are known for their superior thermal properties, design flexibility and quick installation time.
Appliaction:
Walk -in freezer & cooler / Cold Storage / Logistic Warehouse / Wholesale & Distribution Centre / Food Processing Factories / Pharmaceutical & Biomedical Plant / Electronic & Hi-Tech Products Plant / Cleanroom & Laboratory
Our Advantages:
1: Asian exclusive pir panel manufacturer with FM approval for wall, roof & cold storage type as well as
Australian hurricane test qualification.
Australian hurricane test qualification.
2: Supported by ISOCAB EU for panel & NSC Japan for color coated steel.

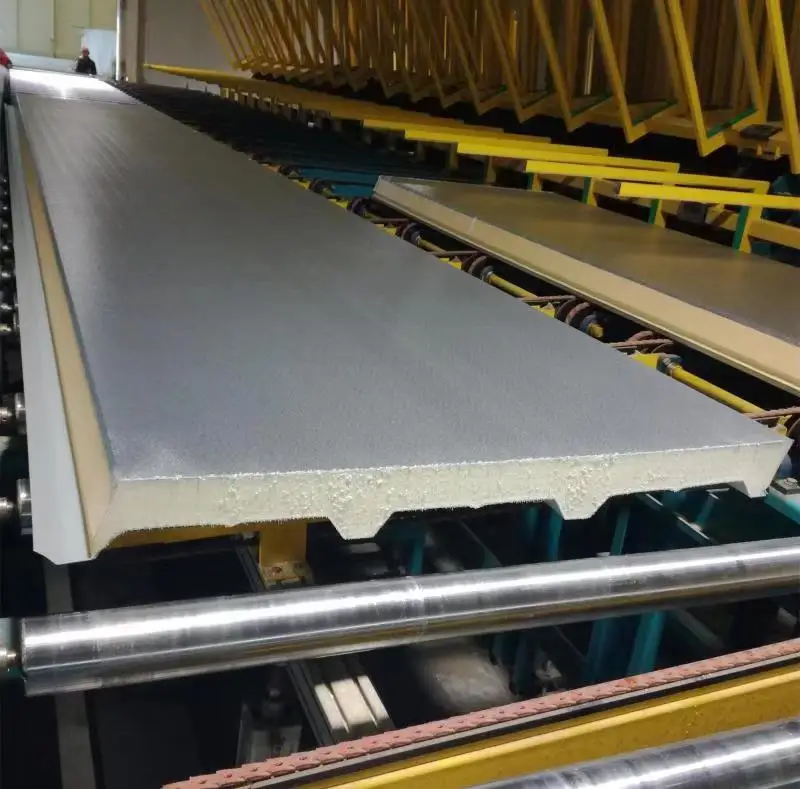

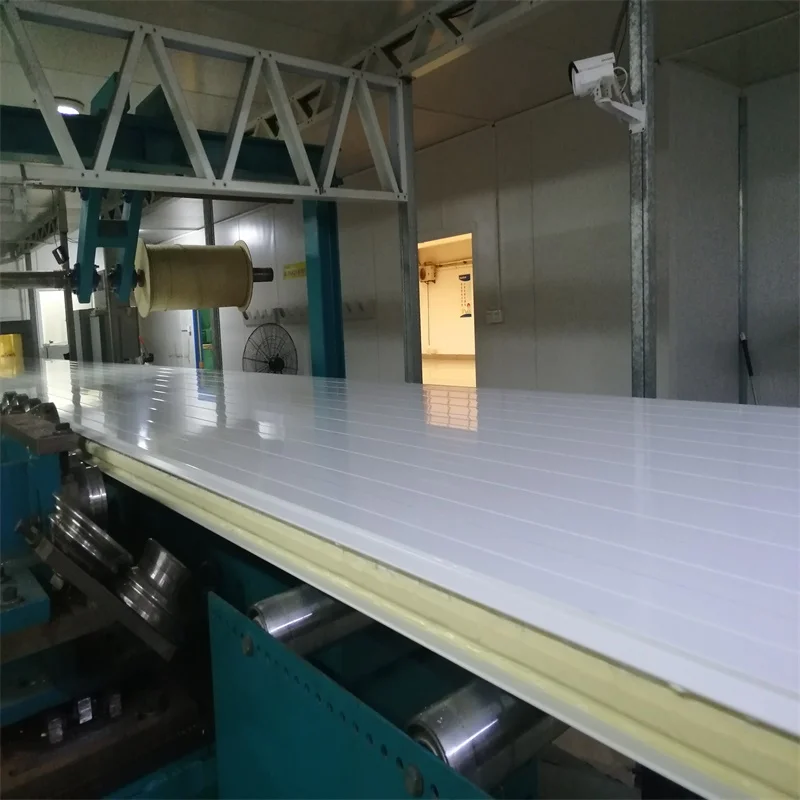

3: Introduced a full set of German (Hennecke) automatic contiuous production line.
4: Regular partner with top 500, Nippon, KCC, Akzonobel, BASF, Dows, Huntsman, Dow Corning, Fermod, Sika, Isocab, guarantee lifetime over 30 years.
5: Bridgehead of One Belt One Road, shorten ocean transportation, facilitate railway transport to Middle Asia or Europe.
Wall Panel Connection Details
Roof Panel Connection
<< Project Cases >>
<< FAQ >>
1: Are you a manufacturer or a trading company?
We are a well-known sandwich panel manufacturer in China, and we also export them.
2: What are the advantages of the FM sandwich panel?
The chemical raw material formula of insulation core layer has passed the test of FM company, its fire prevention and insulation index exceeds the general panel requirement, such as accidental fire, can guarantee the insurance compensation of FM company.
3: What is the R value of polyurethane sandwich panel ?
The R value of polyurethane sandwich panel depends on the thickness of the panel and the thermal conductivity of the core layer (K value). For example, our 80 mm thick polyurethane board has a R value of 3.6. R=T/K.
4: What certifications do you have for your panel ?
Our polyurethane products have obtained U.S. FM certification, Australian wind pressure test
certification, European standard EN-13501-1 fire grade certification, as well as ISO9001 international quality system certification and ISO14001 international environmental management certification.
certification, European standard EN-13501-1 fire grade certification, as well as ISO9001 international quality system certification and ISO14001 international environmental management certification.
5: What are the current export markets?
So far, our products are exported to Vietnam, Thailand, Singapore, Malaysia, Bangladesh, Japan, Australia, Korea, Canada, Mozambique, Indonesia and more than ten countries. In Vietnam, successfully compete with Kingspan andwin CP Group project.
6: Is it possible to suggest suitable panel specifications?
For cold storage, we need to know the location of the project, indoor temperature and temperature difference between inside and outside. We have a professional technical team to provide you with a full range of early services, including design and consultation.
7: What are the terms of payment?
We are familiar with various settlement methods, usually do TT , The industry practice is 30% advance payment 70% before shipment, the initial cooperation can also use 30% TT advance payment + letter of credit.
