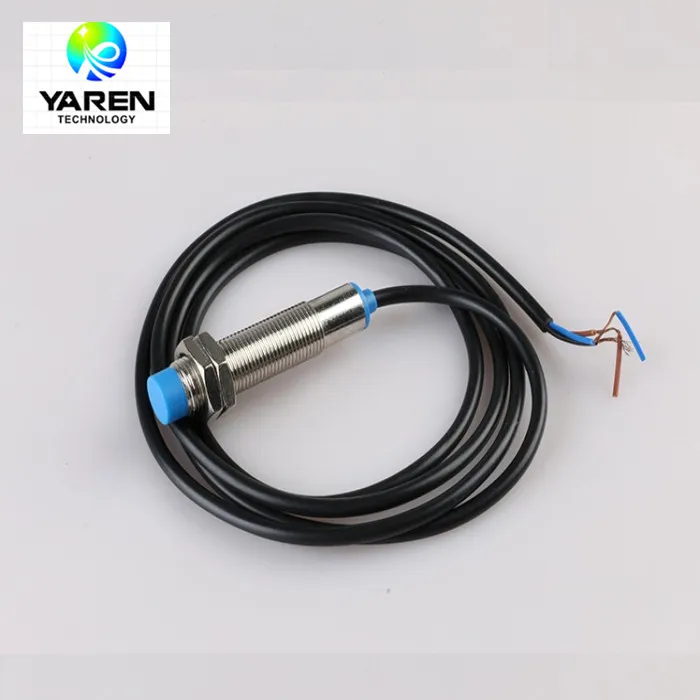

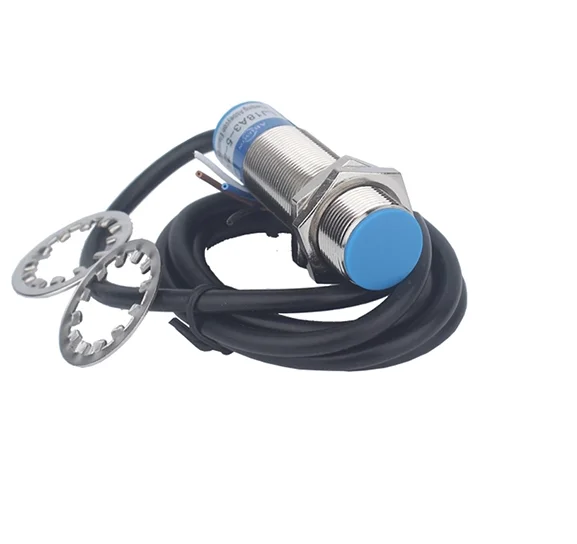

M30 non-flush type electronic capacitive proximity switch dc6-36v outdoor motion sensor

1-5mm Control electrical Capacitance Proximity Sensor Switch

·         Product Name : Capacitive Proximity Switch;

·         Model : LJC30A3-H;

·         Wire Type : DC 3 Wire Type (Brown, Black, Blue);

·         Switch Appearance Type : Cylinder Type

·         Theory : Capacitance Sensor;

·         Output Type : NPN NO(Normal Open);

·         Diameter of Head : 30mm;

·         Detecting Distance : 25mm

·         Detecting Object : Metal or Nonmetal Material;

·         Supply Voltage : DC 6-36V; Current Output : 200mA;

·         Operating Temperature : -25 to +65 Celsuis (Non-freezing Condition);

·         External Material : Plastic, Alloy

·         Net Weight : 160g;

·         Package Content : 1 x Capacitive Proximity Switch

Product feature:

·It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching.

·When proximity switch is close to some target object, it will send out control signal.

·As it is capacitive type proximity switch, its detecting object target is not limited to only conductor, but also liquid and even powder things, like plastic, water, glass, oil, etc.

·It is widely used in machine, paper making, light industry for limiting station, orientation taking count, speeding trial ect.

Factors that affect the function of the sensor:

1. Material density. Most of plastic material is not detectable by a capacitive proximity sensor at a proper distance, sometimes because the density is low , sometimes because the plastic is too thin, for example, if you detect an empty 1mm thick plastic bottle, the detecting distance may be less than 2mm , if you fill the bottle with water ,then the detection distance could be longer than 5mm.

2. The Sensitivity, when the sensor cannot work, there is a sensitivity-adjustment screw on the back of the sensor, you can turn it clockwise with a flat head screwdriver to increase the sensitivity of the sensor

3. Load Current . High output current can result in prodct failue, Inductive load (for instance, motors which draw high current when started) is not allowed  to be directly connected with this sensor, because this sensor can only provide 300mA current for the load, you can use this sensor to provide a low level signal for a PLC which requires very little current ,or you can control a small relay that requires a coil current less than 100mA.
