Оборудование для плазменной очистки с двойной
- Категория: Другое оборудование для очистки >>>
- Поставщик: Anno,Robot,(shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.42 $* | 0.92 $* |
| Aug-16-2025 | 0.34 $* | 0.78 $* |
| Jul-16-2025 | 0.90 $* | 0.1 $* |
| Jun-16-2025 | 0.55 $* | 0.32 $* |
| May-16-2025 | 0.88 $* | 0.25 $* |
| Apr-16-2025 | 0.83 $* | 0.98 $* |
| Mar-16-2025 | 0.68 $* | 0.47 $* |
| Feb-16-2025 | 0.72 $* | 0.37 $* |
| Jan-16-2025 | 0.46 $* | 0.66 $* |
Характеристики
Product Description

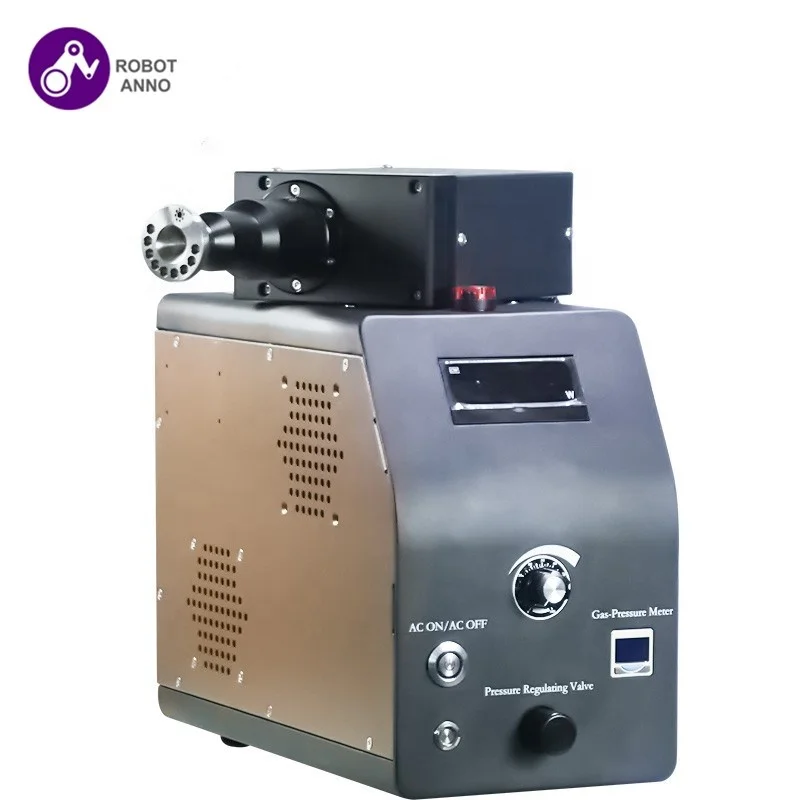

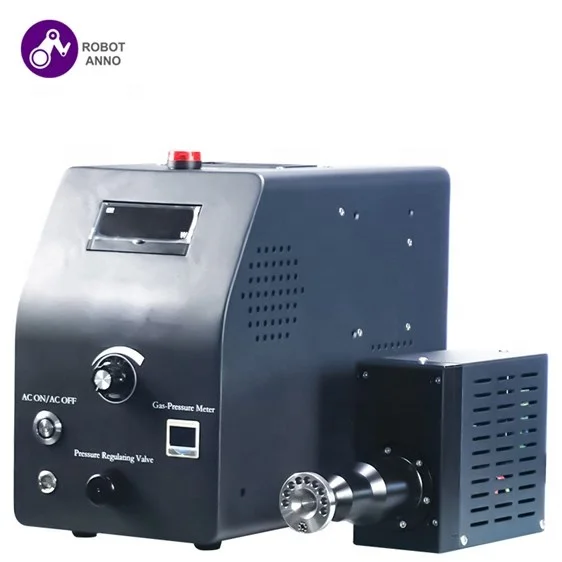

Plasma surface processor is electronic equipment with high precision and complete digital design, which uses TI newest digital DSP to control the whole process accurately by computer.Main power components uses 5th generation high speed IGBT of GermanyInfineon.
IGBT driver is the dedicated high speed drive chip for American Anwar and output voltage, output frequency, output power,flaming delay time and air pressure delay time can be set on the panel.Completely unlike of traditional analog plasma, it is easier touse DLZ2000 with more reliable performance. For processed product, the effect is more obvious, which can be improved several timeson adhesion.
Plasma processing is suitable to be used in various industrial fields, for example, painting, adhesion, silk printing, baking
paint, electroplating and other fields, which can effectively increase product surface adhesion, hydrophobicity and tension.
Improve the adhesive strength of plastic parts, for example, PP material can be increased several times after treatment, and surface energy of most plastic parts can reach more than 60 dyn after treatment;
IGBT driver is the dedicated high speed drive chip for American Anwar and output voltage, output frequency, output power,flaming delay time and air pressure delay time can be set on the panel.Completely unlike of traditional analog plasma, it is easier touse DLZ2000 with more reliable performance. For processed product, the effect is more obvious, which can be improved several timeson adhesion.
Plasma processing is suitable to be used in various industrial fields, for example, painting, adhesion, silk printing, baking
paint, electroplating and other fields, which can effectively increase product surface adhesion, hydrophobicity and tension.
Improve the adhesive strength of plastic parts, for example, PP material can be increased several times after treatment, and surface energy of most plastic parts can reach more than 60 dyn after treatment;
Specification
Model | DLZ5331X |
XYZ axis working range(mm) | 500*300*300*100(mm) |
Load | 10kg |
Repeatability(mm) | ±0.01mm |
Moving speed(mm/sec) | 0-800 |
Drive mode | Synchronous belt/Wire rod |
Iuput power | full voltage AC110V~220V |
Motion fulling function | 3 axis(Three dimensional space ,any route can) |
Main input power supply | AC220V(±20%),50Hz |
Host power consumption | 600~1000VA(adjustable) |
Hight frequency power frequency of main engine | 20-50KHz(adjustable) |
Plasma torch width | Jet type:2~8mm(adjustable) |
Master size(mm) | 400*200*326mm(Master) |
Total net weight of a plasma processor | 11.9KG |
Platform size (mm) | 730*589*632(mm) |
platform Weight | 60kg |
Service temperature range | -10℃~+50℃ |
Equipmen environmental requirements:relative humidity | <93%(notfog) |
Width of plasma nozzle | 10~30mm |
Input atmosheric pressure | 0.3~0.4Mpa |
Output pressure requirement | 15Kpa~20Kpa |
Line length of plasma system | 1.5~2.2meters(according to customer requirement) |
(micro electronic)pressure protetion switch | lowest point 10Kpa |
Motor drive power supply | DC24V/3A |
Electrode sheath | Imported electrode sheath,high temperature resistance and corrosion resistance |
Air inout oil water separation module | Air TAC |
Pressure gauge | Air TAC |
Solenoid valve for pressure protection system | Air TAC |
Main Applications
Recommend Products
Picking&Shipping
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers' destination city air port.
3. By Sea: Delivery from the Shenzhen sea port .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers' destination city air port.
3. By Sea: Delivery from the Shenzhen sea port .
Company Profile
RobotAnno (ShenZhen) Co., Ltd. is a professional R & D and manufacturer of desktop robotic arm solutions. Through continuous innovation, RobotAnno is committed to providing educational robots, light industrial robots and commercial robots with cost-effective, easy-to-operate, and experiential revolutionary desktop robotic products and solutions.
