Контроллер датчика температуры и влажности передатчик Ethernet RS232 с приложением для телефона протокол

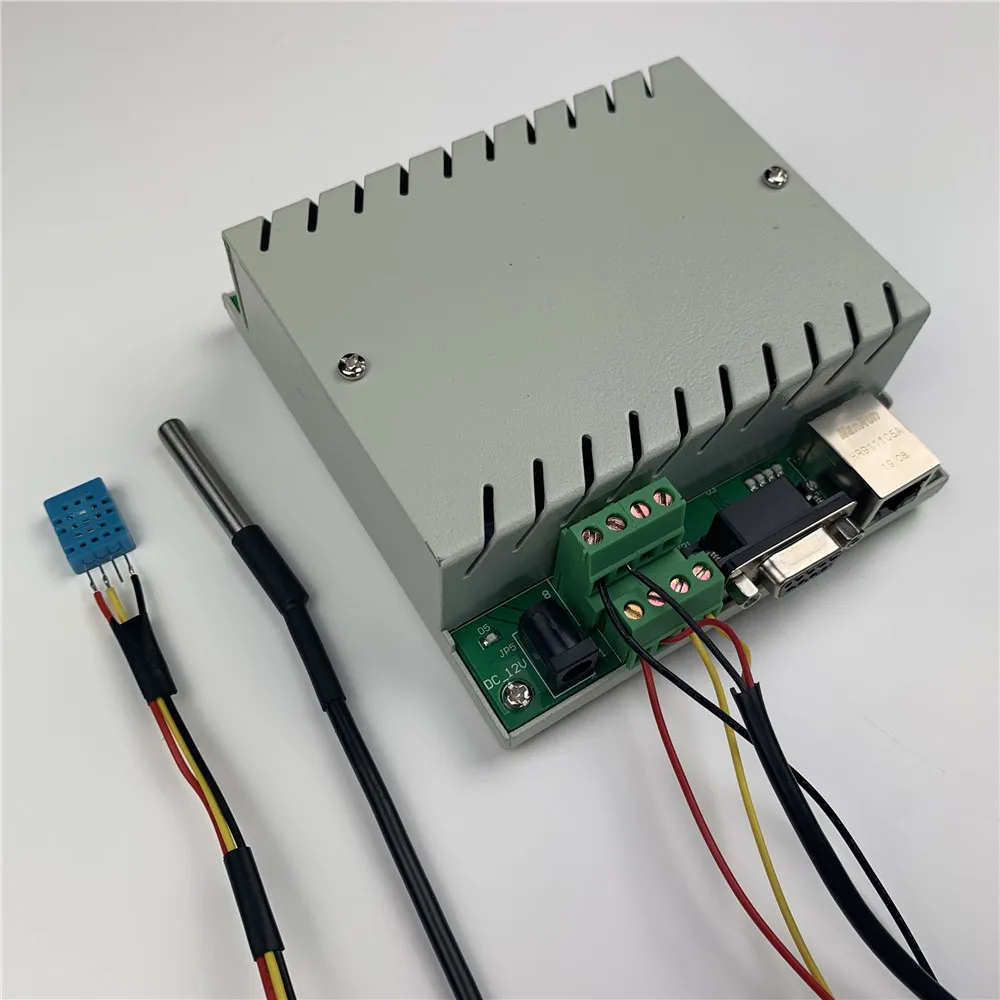

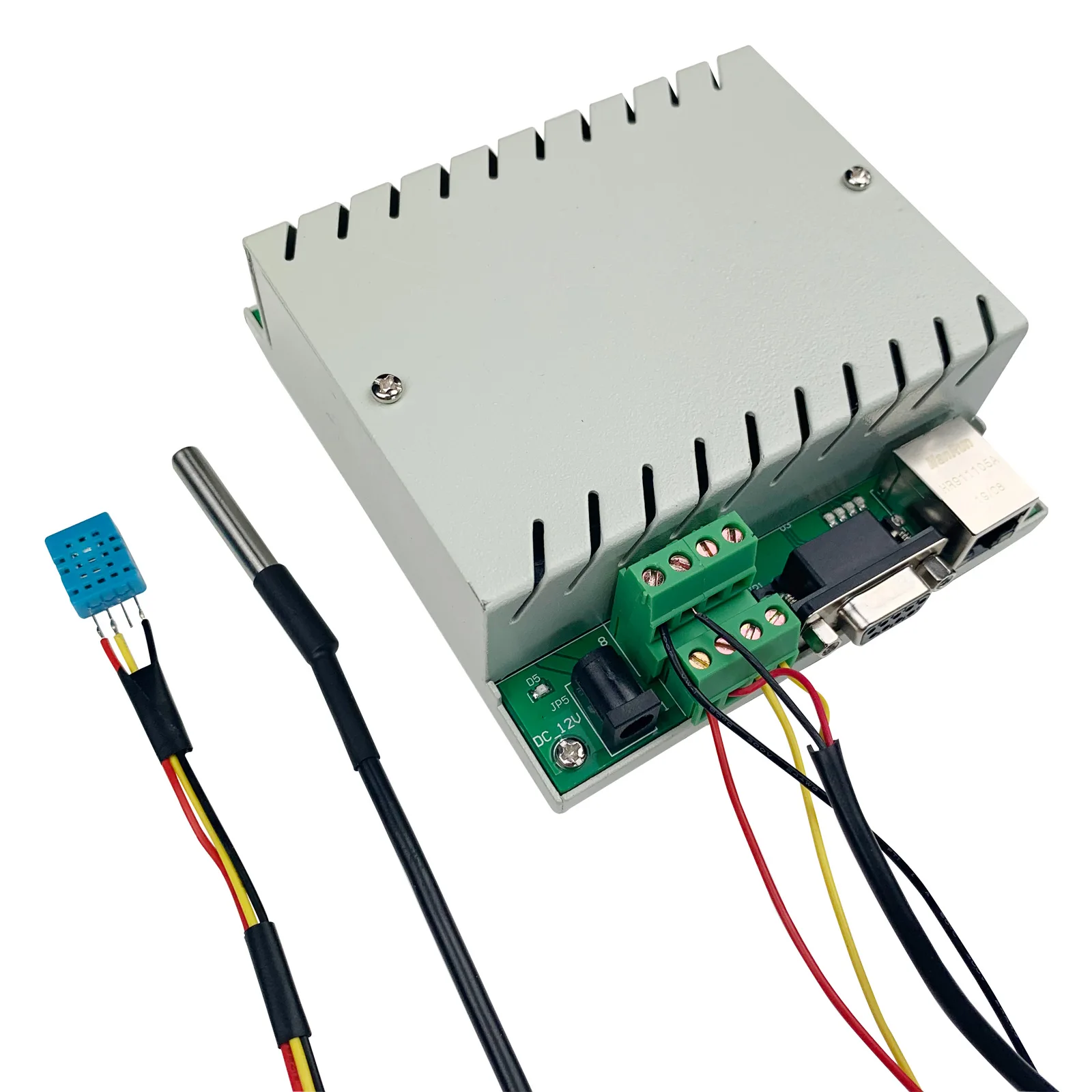

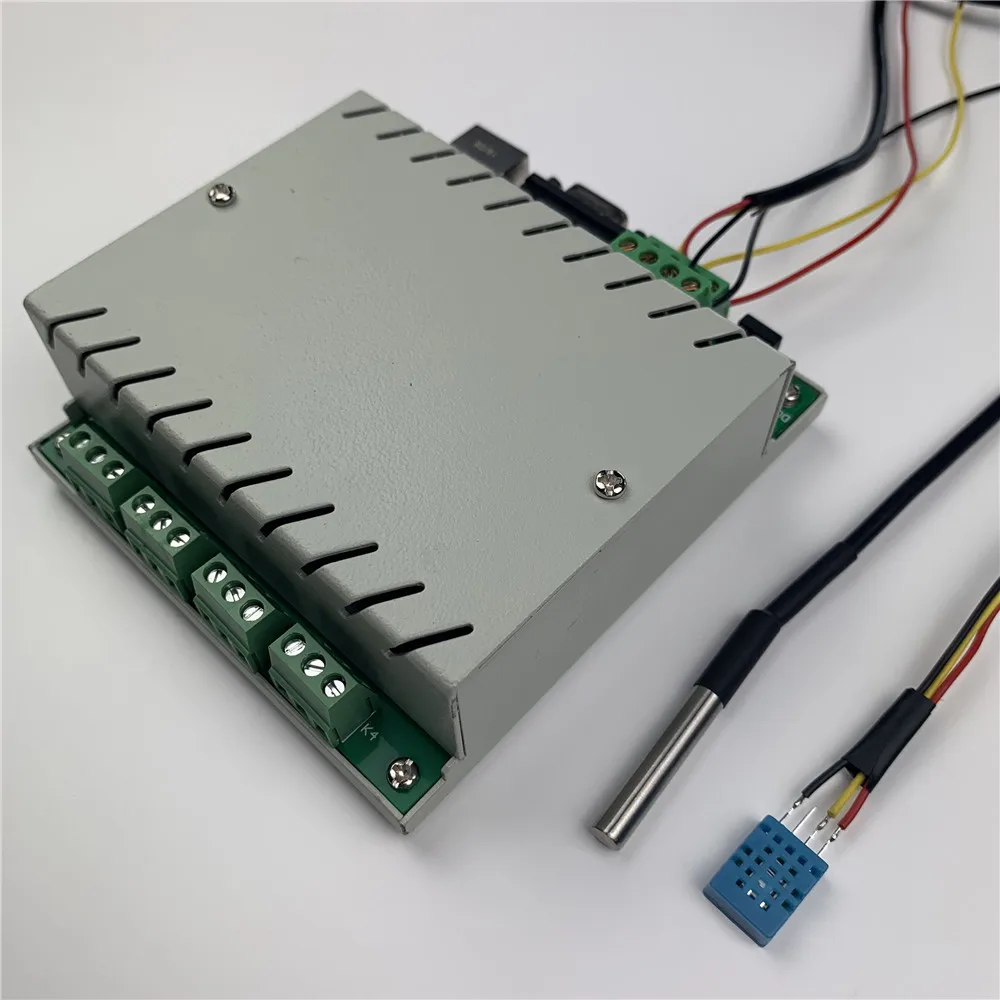

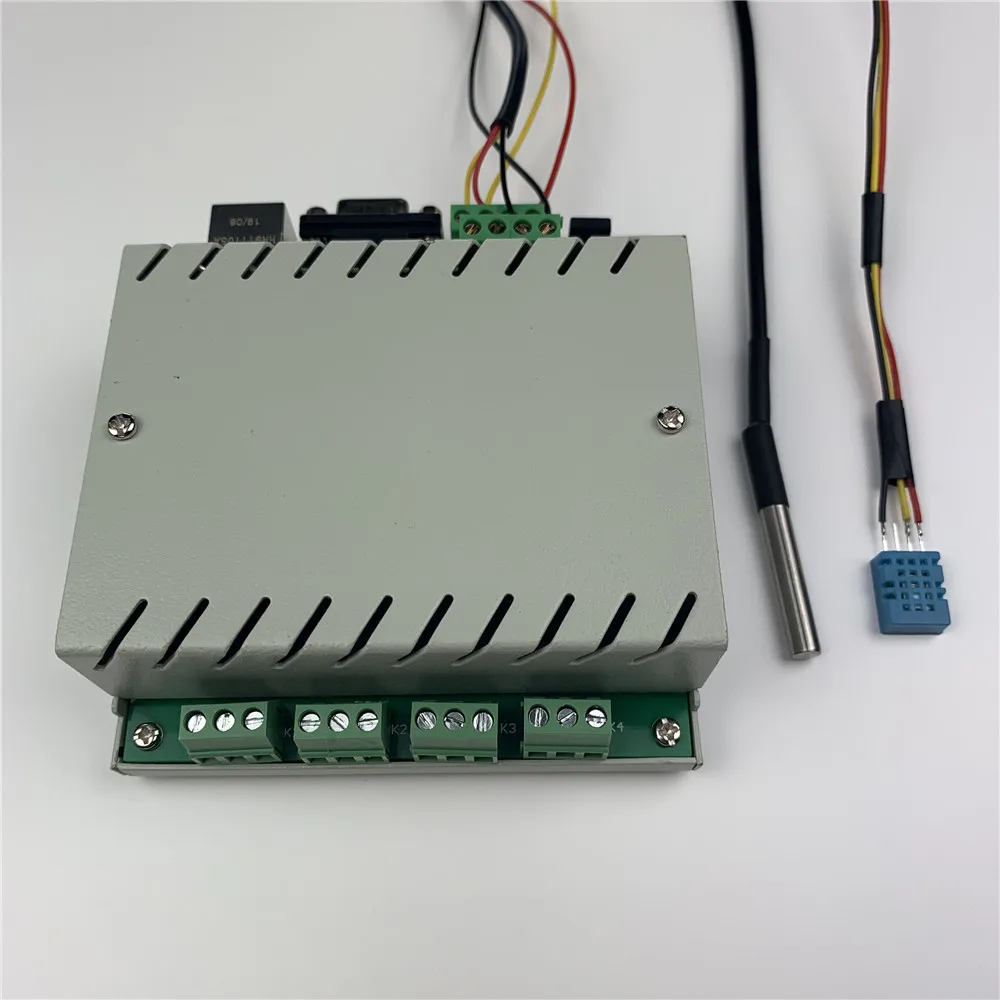

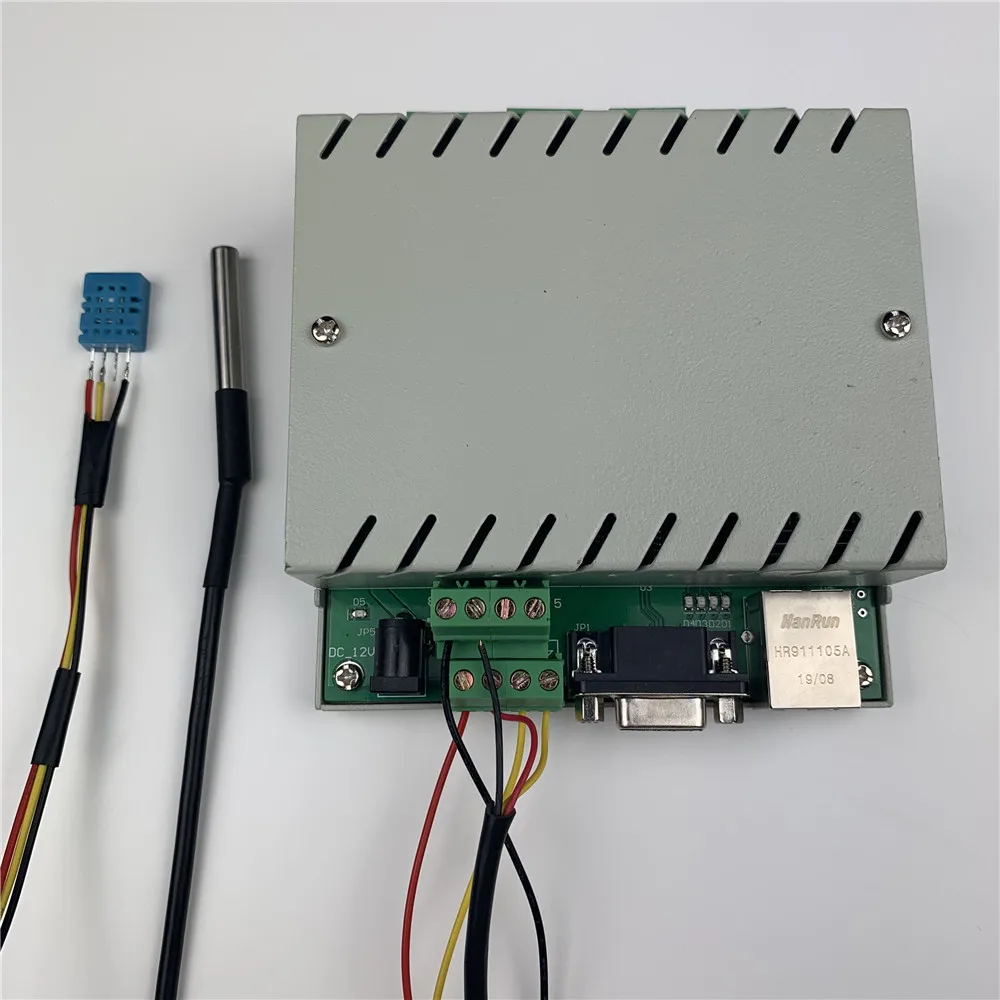

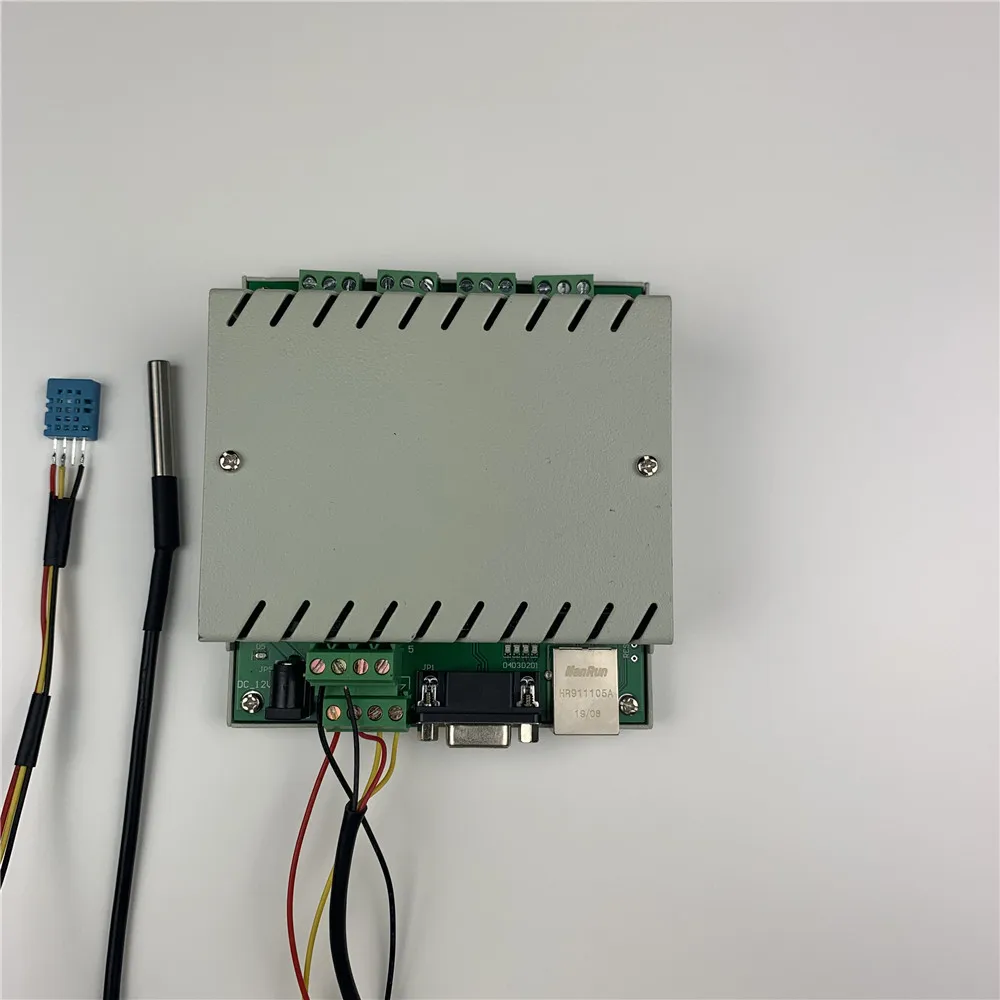

Product function

1. 1 channel of Temperature & Humidity sensor.
2. You can see Temperature & Humidity data (By Month,Week,Hour) on mobile phone.
3. Support RS232 and Ethernet network , Read Temperature & Humidity by RS232 or LAN network.
4. Temperature & Humidity data auto upload to server periodically.
5. There are 4 relay switch, can program control by RS232 or Ethernet.
6. It can auto control with KC868-Hx controller by Temperature & Humidity set value.

Product parameters

Dimension：    108x117x40mm
Working Voltage： DC 12V
Material： Metal Shell
Temperature Sensor： -55℃~125℃
Humidity Sensor： 20%RH ~ 90%RH
Output Load： Each 250V/10A
Relay Max Power: 2200W/gang
Communication mode： Ethernet/RS232

Note: If you need to measure water temperature, we can provide water-proof temperature sensor probe. The probe of the sensor can be extended by users according to their actual needs. Generally, it can be extended to about 10-20 meters. Wire quality determines stability.

Software

By KinCony Smart Home phone APP to view Temperature & Humidity value and history of data. You can see history data by month , by week or by hour. Also you can set the Temperature & Humidity range. If beyond normal range , it can trig a scene that control KC868-Hx controller’s relays.

Development Communication Protocol

A RS232 Sensor Communication（baud rate：115200）：

1. Send：Get-Humidity Return：Current-Humidity:x (x is humidity value)
2. Send：Get-Temperature Return：Current-Temperature:x (x is temperature value)

B Relay Control Communication by RS232：

1. Send：RELAY-SET-1,1,1  Return: RELAY-SET-1,1,1,OK
2. Send：RELAY-READ-1,1   Return: RELAY-READ-1,1,1,OK
3. Send：RELAY-SET_ALL-1,15  Return:RELAY-SET_ALL-1,15,OK
4. Send：RELAY-STATE-1   Return:RELAY-STATE-1,15,OK


C TCP Socket Communication（Tool：NetAssist.exe）
1. TCP Send: Get-Humidity Return: Current-Humidity:x (x is humidity value)
2. TCP Send: Get-Temperature Return: Current-Temperature:x (x is temperature value)

D Relay Control Communication by TCP：

1. TCP Send:RELAY-SET-1,1,1  Return: RELAY-SET-1,1,1,OK
2. TCP Send:RELAY-READ-1,1   Return: RELAY-READ-1,1,1,OK
3. TCP Send:RELAY-SET_ALL-1,15  Return: RELAY-SET_ALL-1,15,OK
4. TCP Send:RELAY-STATE-1   Return: RELAY-STATE-1,15,OK）

E UDP Communication:(Auto Upload Temperature & Humidity to KinCony’s server)

● Interface Description: An Interface for Obtaining Temperature and Humidity History Data
● Interface address: / device/v1.0/fetchLastDays.action
○ deviceCode – Box Device Code
○ intervalUnit – Get data by (Week | Day | Hour)
○ intervalNum - Length of Historical Data

Examples:
HTTP request:

http://sdk.hificat.com:8080/smarthome.IMCPlatform/device/v1.0/fetchLastDays.action?deviceCode=17304c4bda3d8e8b63fxxxx&intervalUnit=Week&intervalNum=1

Server Return：
{
    "data": {
        "deviceCode": "17304c4bda3d8e8b63f1403d",
        "latest": {
            "PM25": 0,
            "humidity": 30,
            "reportDateTime": "2017-01-02T00:00:00",
            "temperature": 16.5
        },
        "records": [
            {
                "PM25": 0,
                "humidity": 35,
                "reportDateTime": "2017-12-30T00:00:00",
                "temperature": 18.078033
            },
            {
                "PM25": 0,
                "humidity": 31,
                "reportDateTime": "2017-12-31T00:00:00",
                "temperature": 18.314703
            },
            {
                "PM25": 0,
                "humidity": 28,
                "reportDateTime": "2018-01-01T00:00:00",
                "temperature": 18.58797
            },
            {
                "PM25": 0,
                "humidity": 28,
                "reportDateTime": "2018-01-02T00:00:00",
                "temperature": 18.459135
            }
        ]
    },
    "message": "",
    "page": 0,
    "success": true,
    "total": 0,
    "totalPages": 0
}

Following is an example of PC browser collecting and reading four temperature and humidity collectors at the same time, displaying the current temperature, humidity and historical curve in real time. If you have any questions, you can contact us and we will provide technical support.

What is Included

Temperature Humidity Box:1pcs
Power adapter: DC12V
