CCTV High frequency online UPS 3Kva 3000va uninterrupted power supply

Power problems—including blackouts, brownouts, power surges and line noise—threaten your investment!They can damage or destroy PCs and other expensive equipment, wipe out valuable data and files, and degrade component performance. Get protected against these all-too-common power threats with Fenice Power UPS System. It provides reliable battery backup that can keep entry-level PC systems operational for up to 60 minutes during blackouts.

Main features:

•Double conversion online UPS

•High performance DSP based full digital controlled,pure sinewave output

•Embeded input power factor corrector, avoid reactive power loss,saving power expense for user

•Good loading adaptibility,work well with laser printer,ultrasonic cleaner

•Attractive performance-cost ratio

•Accept deep customerization,perfect match customer application requirement

•Small profile,save installation space for user

•Compatible with most generatorset

•Having frequency converter operating mode

•Having ECO mode,enable best balance between energy saving and power protection



Online UPS Guide:

Item No		PX2K
Phase		1Phase 2Wire+PE
Capacity		2KVA/1600W
INPUT	Nominal Input Voltage	220/230/240VAC
	Input Voltage Range	110V~300V Halfload 176V~300V Full Load
	Input Frequency Range	40~70Hz
	Input Power Factor	0.99 Full Load
Output	Output Voltage	230V(220/240/280V Selectable)
	Output Voltage Regulation	1%
	Output Frequency(Sync.Mode)	47Hz~53Hz;57Hz~63Hz
	Output Frequency(Bat Mode)	50Hz+/-0.05Hz 60Hz+/-0.05Hz
	Output THDv%	2% linear Load 6% Non-Linear Load
	Output Waveform	Pure sine wave
Transfer Time	Line Mode---Bat Mode	0MS
	INV --- Bypass Mode	<4MS
Efficiency	AC---AC	89%
	ECO	94%
	Battery Mode	87%
Battery & Charger	Battery Voltage/Capacity	Long backup with external battery
	Battery Type	Value Regulated
	Recharge Time	~5Hours
	Max Recharge Current	1.5A
	Floating Charge Volatge	54.6V
Display	Display	LED/LCD (option)
	Buzzer Alarm	Bat.Mode/Bat.Low/OverLoad/Fault
Physical	Dimension	145(W)*220(H)*328(L)mm
	Weight	17.5KG
Environment	Humidity	5~97%(Non Condensing)
Operating Ambient Temperature		0~40C
Communication Port		S232/SNMP(option)/USB(option)

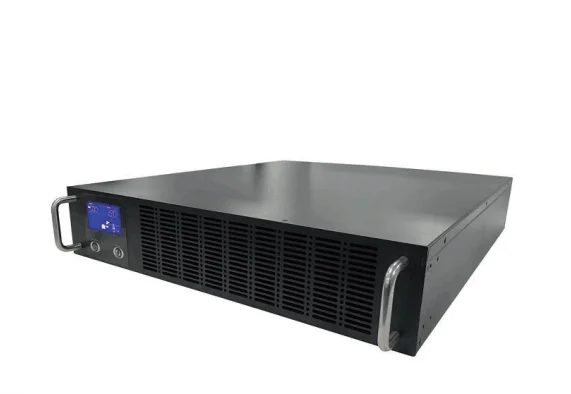

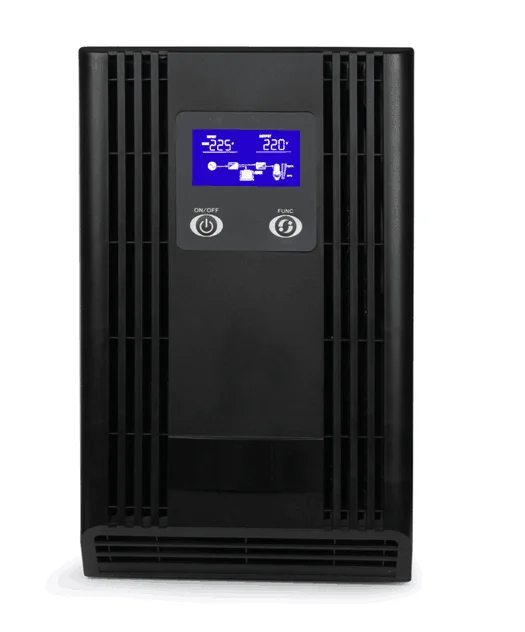

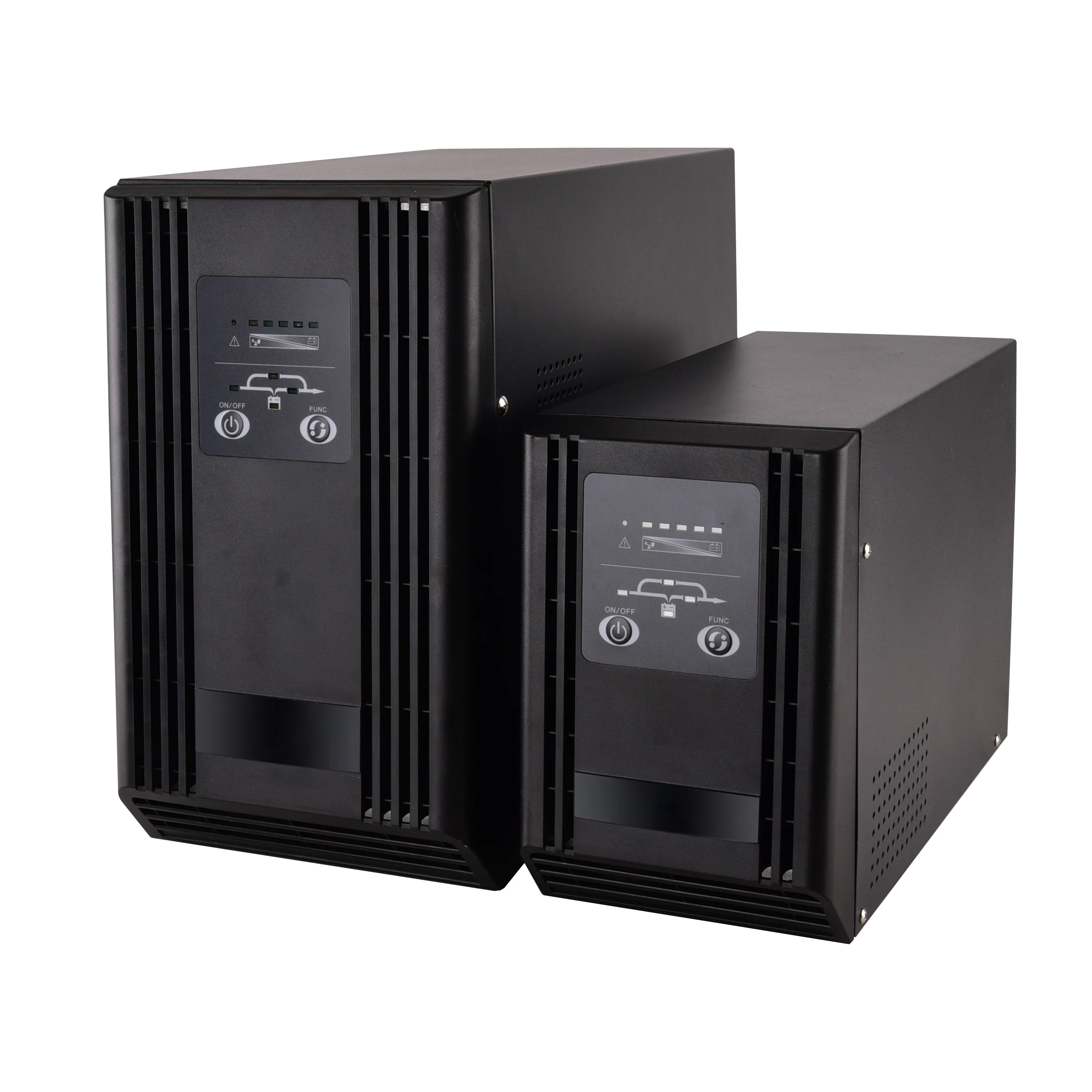

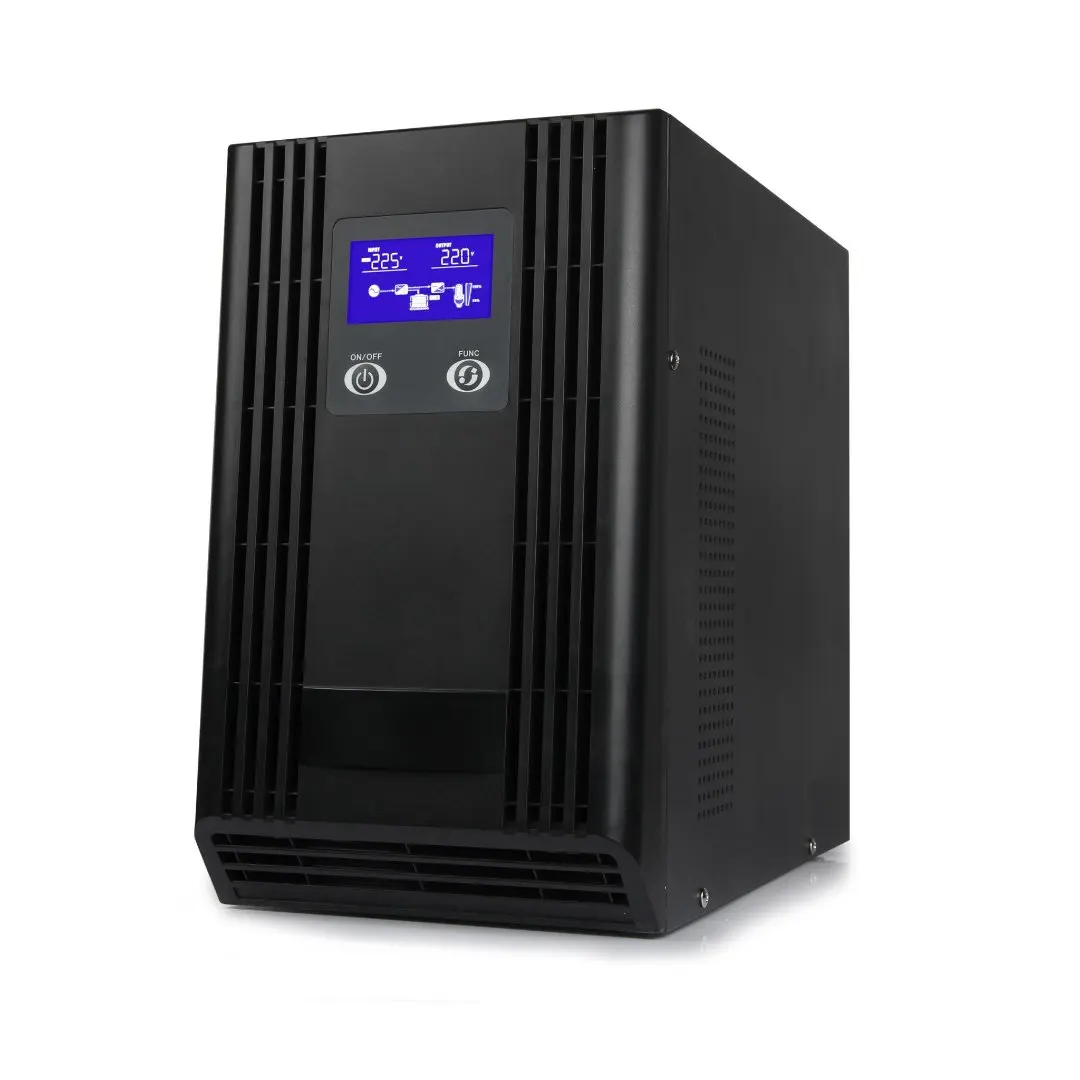

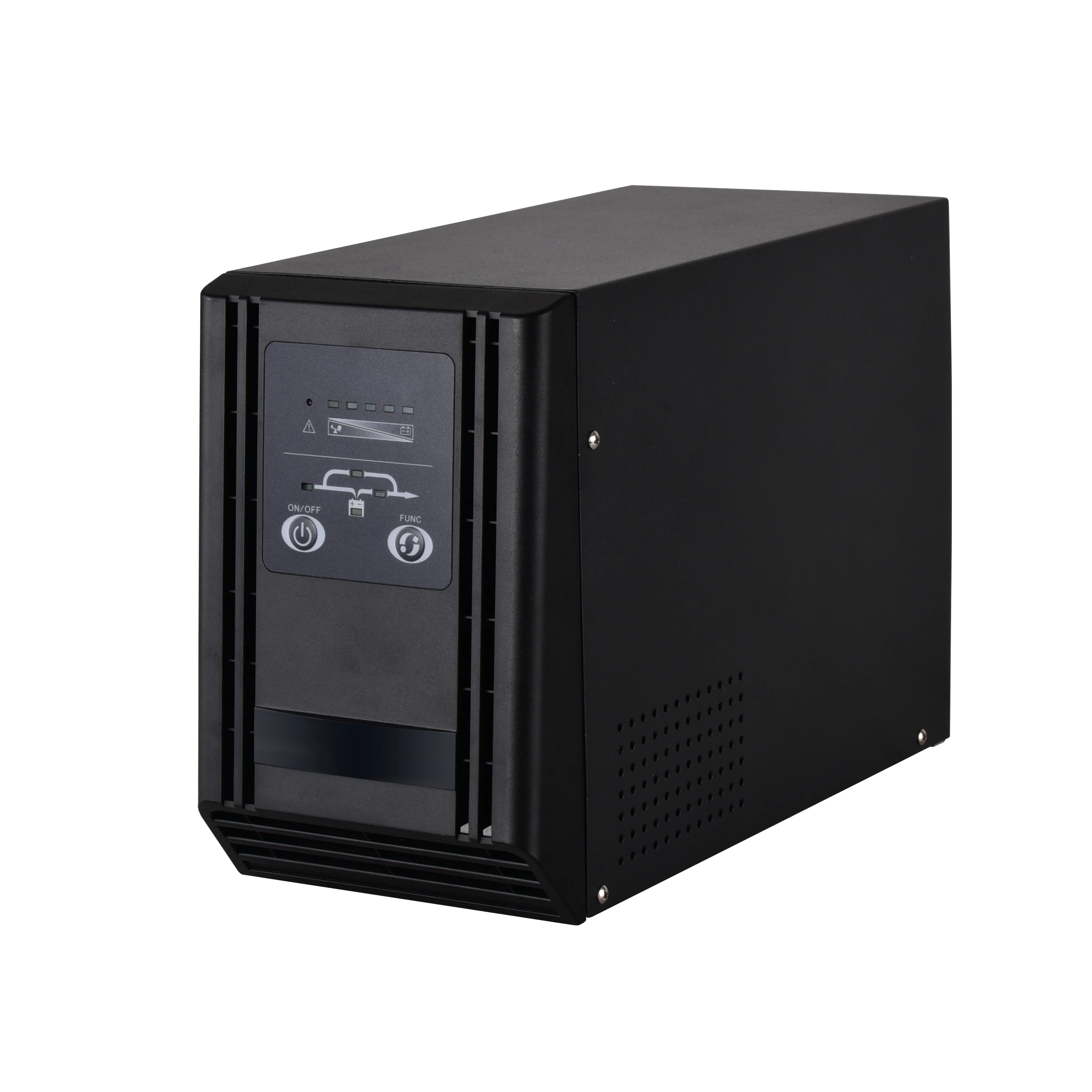

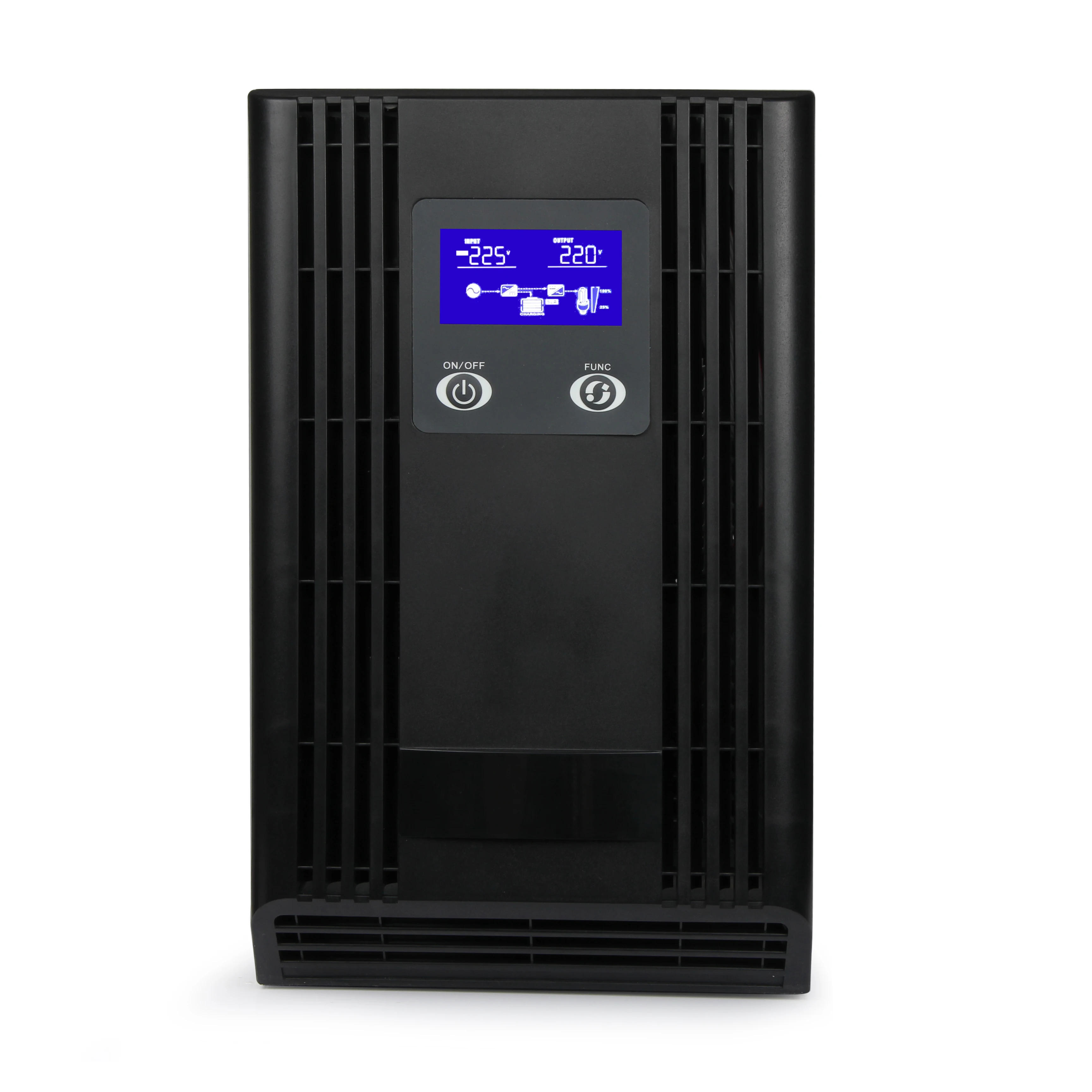

Product Images:



The Apllications& Producing Line:

 Factory Profile

The Certificate

Customers Service:



(1)Warranty :

A.Our product warranty is valid for 2years after the date of receiving.

B. We undertake to repair any malfunctioned units due to defective components of inadequate workmanship



(2)Delivery time:

A.sample orders will be delivered in 3 working days since full payment received.

B.General orders(under 2000pcs) will be delivered in 25 working days after downpayment received or L/C received .

C. Bulk orders (over 2000pcs )will be delivered in 30 working days after downpayment received or L/C received .



(3)Shippment :

By vessel or by freight , For sample order go by EMS, DHL, FedEx, TNT, UPS or other express.



Many customer have placed order to us, but you are free.
