Он имеет высокую эффективность и энергосберегающие открытый подметально-уборочную дорожную машину для чистки/детскй 4-колесный уличные подметально-уборочная


Поделиться:


Цена:54 300,00 $ - 62 100,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 64617.48 $* 67848.11 $*
Aug-16-2025 64074.47 $* 67278.32 $*
Jul-16-2025 53757.15 $* 56445.7 $*
Jun-16-2025 62988.45 $* 66137.22 $*
May-16-2025 54843.79 $* 57585.96 $*
Apr-16-2025 61902.6 $* 64997.1 $*
Mar-16-2025 61359.0 $* 64427.0 $*
Feb-16-2025 60816.42 $* 63857.21 $*
Jan-16-2025 60273.48 $* 63287.15 $*

Характеристики


Product Description

Main Features

1. In-vehicle intelligent management system, which can timely and effectively understand the use of the machine, deal with potential safety hazards in advance, and improve the machine utilization rate;
2. Wide cab, ergonomic chair and operating lever design, the driver's comfortable and spacious working experience, easy to adapt to long-term work;
3. Articulated design, beautiful and compact, flexible and easy to turn, can be cleaned on narrow, curved non-motorized vehicles and sidewalks;
4. 22% degree of climbing ability and 150mm high step climbing force under full load conditions, fully capable of walking problems on uneven road surface and narrow complex scenes;
5. The large-capacity garbage bin can be lifted freely to 1.45 meters, effectively avoiding the secondary pollution problem when dumping garbage;
6. Unique 4 brush design to provide a larger, more flexible sweep width;
7. The independent front brush and side brush can simultaneously perform cross-stereo work on planes of different heights, and easily deal with the uneven dirt on the road surface and the dirt and garbage on the steps;
8. Strong sweeping ability, can easily handle garbage, leaves, mineral water bottles, etc. on the road;
9. Each brush has an independent spray dust control device, and the suction port is provided with circulating water to effectively suppress dust;
10. Configure the extension of the vacuum pipette to expand the sweeping capacity and cleaning range of the roadside vehicles to the area;
11. Equipped with sewage pipe and 20Mpa high pressure water gun, it can quickly remove road markings, stubborn stains, chewing gum, street lamp poles and small ads on the wall;
12. Install different working devices (optional), no tools, switch in one or two minutes, fearlessly deal with all kinds of cleaning operations.

Detailed Images

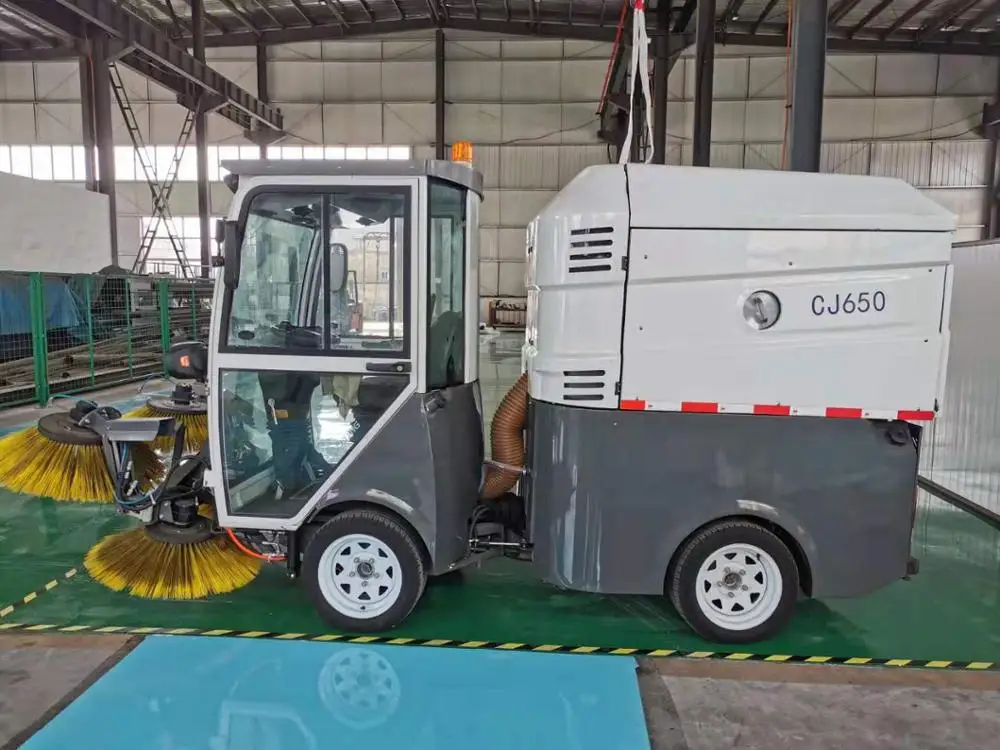

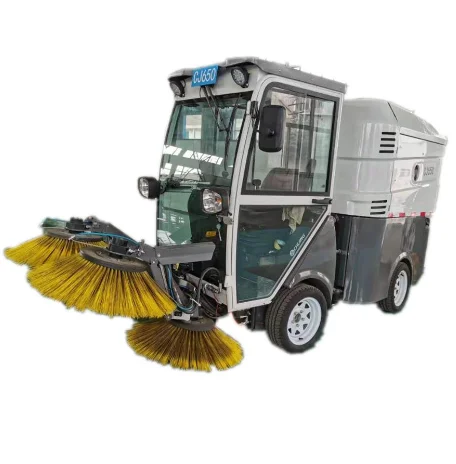

Model

CJ650

Engine model

Water-cooled four-cylinder Yanmar diesel engine 4TNV88-ZMZL

Engine power

30.6Kw/2600rpm

Transmission

1.Hydrostatic transmission with four-wheel drive

2.Two-four drive adjustment transmission control in transport mode

3.Four-drive three-speed constant speed in working mode (economic - standard - heavy load)

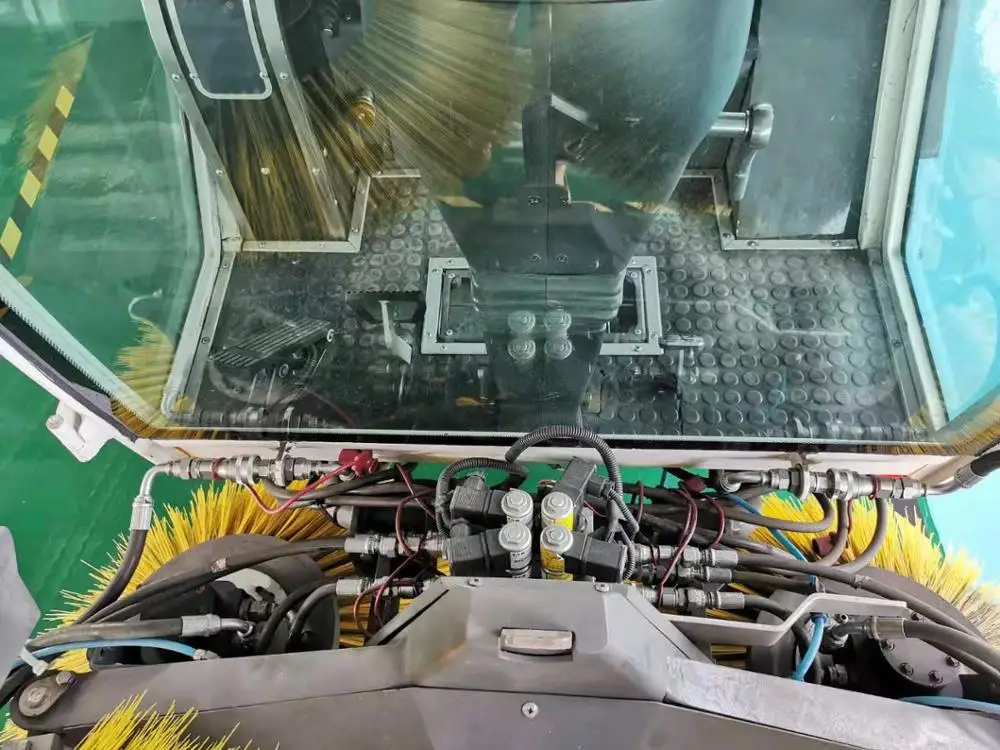

Hydraulic system

1.22 circuit, high pressure hydraulic unit, 280 bar

2.Electro-hydraulic proportional solenoid valve control, CPU controller linkage

Speed

Driving speed: speed 0-25km/h

Working mode, hydrostatic 0-12Km/h

Chassis and steering system

Hydraulic articulated, four-wheel chassis with steering angle of 42°

Braking device

Hydrostatic braking via transmission

Hydraulically operated brake assisted by foot pedals

Fuel tank volume

60 L

Working fuel consumption

4.2L/h

Cleaning efficiency

26000 m²/h

Maximum grade

22%

Extend pipette length and caliber

4m/110mm

Trash bin volume

650 L

Clear water tank capacity

330 L

Circulating water volume

70 L

Four brush sweep span

2.6 m

Rubber tires

195/50R13C ,900/825kg

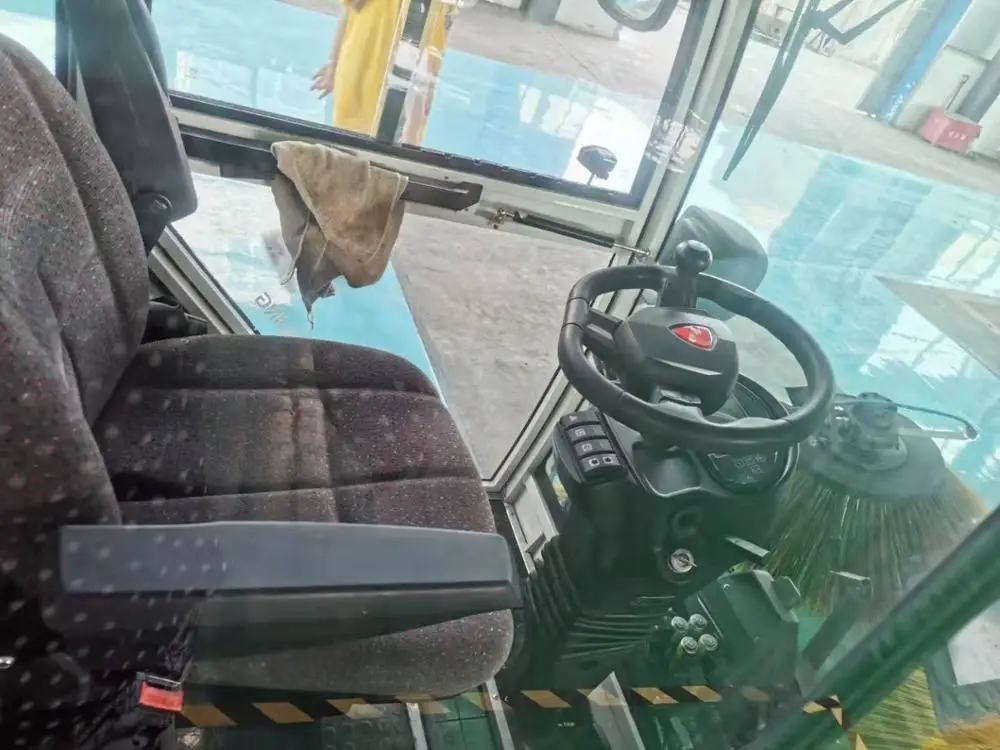

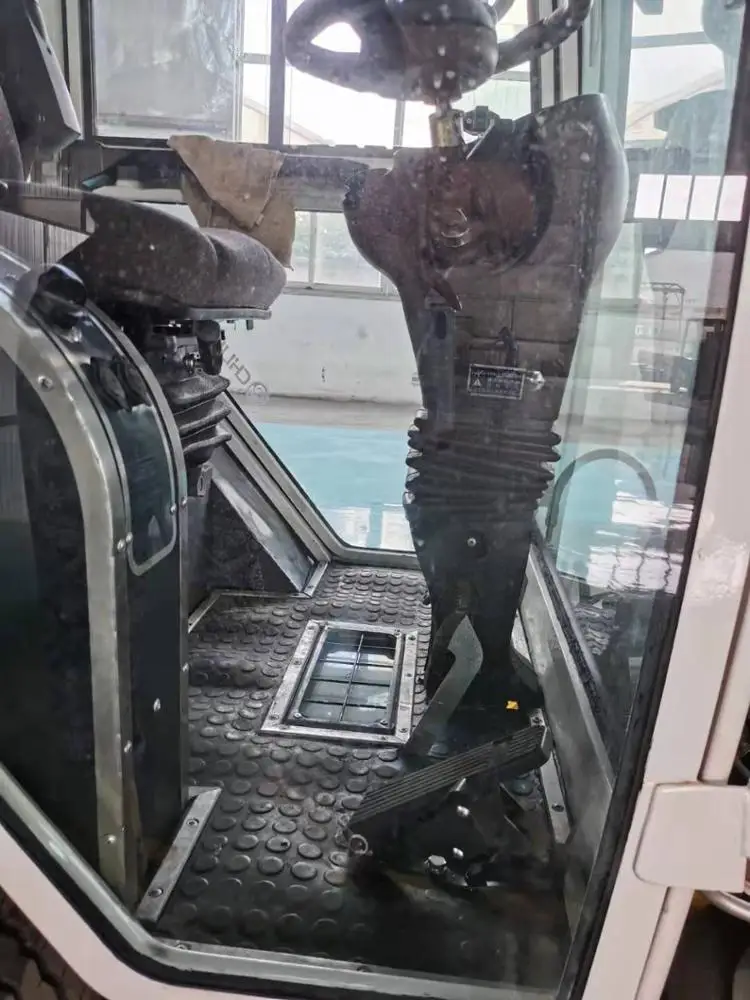

Cab

1.Single-seat cab with comfortable seats and operator panels at the armrests

2.Central display and LCD display show all functions

3.Cooling and heating optional air conditioner

Specifications (length * width * height)

3285mm*1175mm*1999mm
