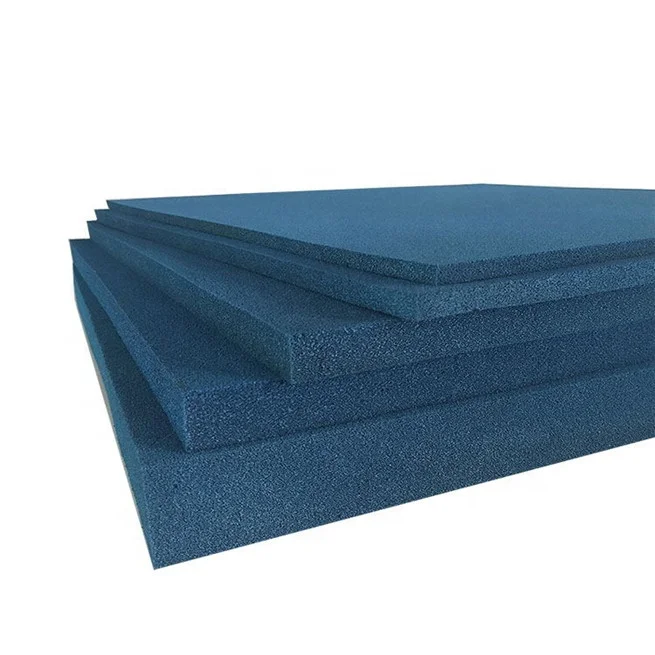

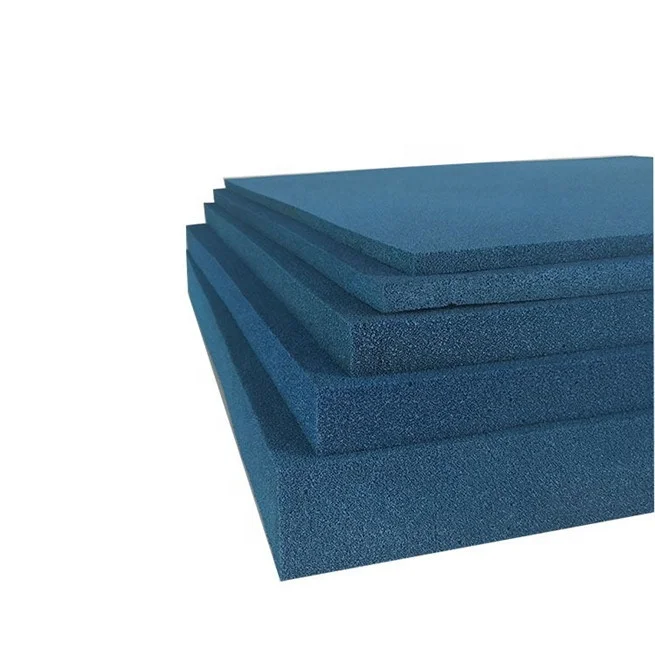

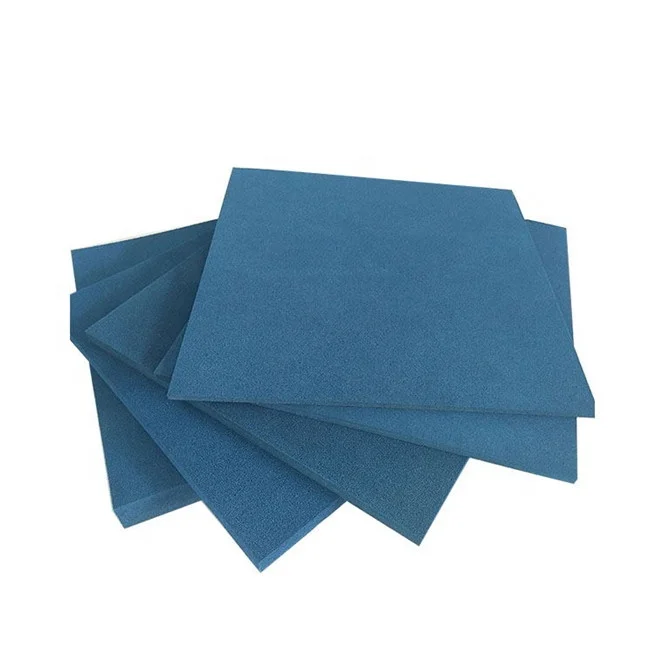

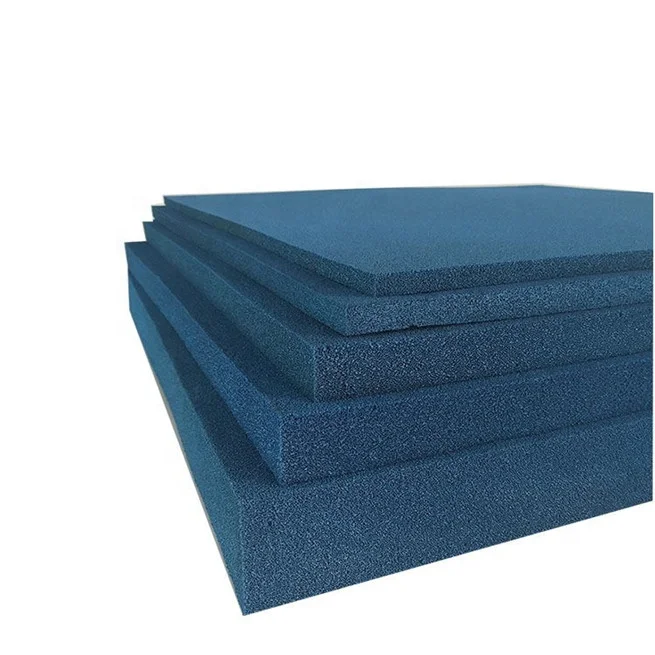

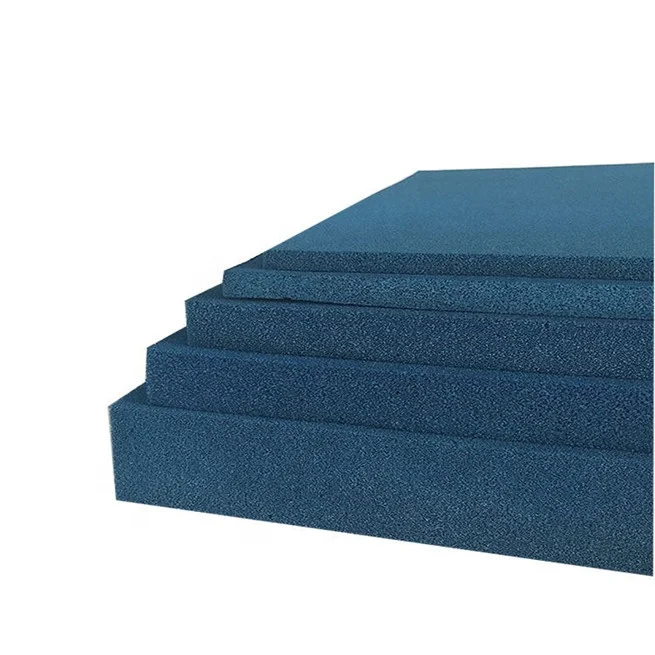

Хорошая производительность проводящий полисиреновый углеродный лист
- Категория: Filters >>>
- Поставщик: Dalian,Yingshi,Microwave,Absorption,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 74.5 $* | 78.71 $* |
| Aug-16-2025 | 73.4 $* | 77.27 $* |
| Jul-16-2025 | 61.2 $* | 64.77 $* |
| Jun-16-2025 | 72.28 $* | 76.85 $* |
| May-16-2025 | 63.39 $* | 66.98 $* |
| Apr-16-2025 | 71.58 $* | 75.88 $* |
| Mar-16-2025 | 70.67 $* | 74.31 $* |
| Feb-16-2025 | 69.43 $* | 72.28 $* |
| Jan-16-2025 | 69.88 $* | 72.95 $* |
Характеристики
Product Description
| Model | Thickness | Weight | Frequency | Vertical incidence reflectivity | Single size |
| mm | Kg/m2 | GHz | -dB | ||
| YFAT-5.5GHz-10 | 10 | 1.2 | 5.5 | 17 | 500*500*10 |
| YFAT-9.4GHz-6 | 6 | 0.8 | 9.4 | 17 | 500*500*6 |
| YFAT-12G-4 | 4 | 0.5 | 12 | 17 | 500x500*4 |
| YFAT-12G-3 | 3 | 0.4 | 12 | 15 | 500x500*3 |
| YFRT-4G-8 | 8 | 1 | 4 | 10 | 500x500*8 |
| YFRT-4G-4 | 4 | 0.5 | 4 | 5 | 500x500*4 |
| YFRT-4G-3 | 3 | 0.4 | 4 | 4 | 500x500*3 |
| Model | 3GHz transmission attenuation - dB | 10GHz transmission attenuation - dB | Single size |
| YFCT-20 G-3mm | 24 | 20 | 500*500*3 |
| YFCT-10G- 3mm | 11 | 10 | 500*500*3 |
| Model | Thickness | Weight | Frequency | Vertical incidence reflectivity - dB | |
| mm | Kg/m2 | GHz | Average | Worst | |
| YFAT-8~18GHz | 5 | 0.7 | 8~18GHz | 11 | 8 |
| YFAT-4~18GHz | 8 | 1.1 | 4~18GHz | 11 | 8 |
| YFAT-2~18GHz | 15 | 2 | 2~18GHz | 11 | 8 |
| Model | Thickness | Weight | Reflectance (-dB) at normal incidence over a specific frequency range (GHz) | Size mm | ||||||
| mm | Kg/m2 | 15 | 10 | 5 | 3 | 2 | 1.5 | 1 | ||
| YFML-10 | 10 | 1.2 | 20 | 15 | 10 | 500x500 | ||||
| YFML-20 | 20 | 2.3 | 20 | 17 | 15 | 10 | 500x500 | |||
| YFML-40 | 40 | 4.2 | 20 | 20 | 20 | 17 | 15 | 13 | 500x500 | |
| YFML-60 | 60 | 6 | 20 | 20 | 20 | 20 | 17 | 15 | 13 | 500x500 |
Related Products
Company Information
Dalian Yingshi Microwave Absorbing Material Co., Ltd. is the professional manufacturer of
microwave absorbing material .
We mainly provide rubber microwave absorbing material,foam microwave absorbing material,
resin microwave absorbing materials, inorganic materials, etc.
Our products are widely used in aerospace, aviation, military,electronic technology,
communicatioins, railways, ships and other fields.
We provide one-stop service for design,development and manufacture of microwave
absorbing material products.
Certifications
Production Reality
Packing & Shipping
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry.
2. Q: How can I get a sample to check your quality?
A: After we know your requirement, if need,will send the sample to you.
3. Q: Can you do the design for us?
A: Yes. You can tell us your requirement, we can manufacture the products as
per your requirements.
4. Q: What's your terms of delivery?
A: We accept FOB, CIF, etc. You can choose the one which is the most
convenient or cost effective .
