Характеристики
Meanwell SMPS 750W 15V 50A RSP-750-15 Mean Well Power Supply
Product Overviews
Features:
- Meanwell DC Regulated Power Supply
- Universal AC input / Full range
- AC input active surge current limiting
- High efficiency up to 92%
- Built-in 12V/0.1A auxiliary power
- Built-in active PFC function, PF>0.97
- Protections: Short circuit / Overload / Over voltage / Over temperature / Fan alarm
- Output voltage can be trimmed between 40 ~ 110% by 2 ~ 5.5VDC external control signal
- Output current can be trimmed between 40 ~ 110% by 2 ~ 5.5VDC external control signal
- Forced air cooling by built-in DC Fan with fan speed control function
- High power density 9.44w/inch³
- 1U low profile 41mm
- DC OK Signal
- Built-in remote ON-OFF control
- Built-in remote sense function
- 3 years warranty
Model Series:
RSP-750-5 / RSP-750-12 / RSP-750-15 / RSP-750-24 / RSP-750-27 / RSP-750-48
Detailes:
| Model No. | RSP-750-5 | RSP-750-12 | RSP-750-15 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V |
| RATED CURRENT | 100A | 62.5A | 50A | |
| CURRENT RANGE | 0 ~ 10A | 0 ~ 62.5A | 0 ~ 50A | |
| RATED POWER | 500W | 750W | 750W | |
| RIPPLE & NOISE | 150mVp-p | 150mVp-p | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 4.75 ~ 5.5V | 10 ~ 13.5V | 13.5 ~ 16.5V | |
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±2.0% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 50ms at full load | |||
| HOLD UP TIME | 16ms/230VAC 16ms/115VAC at full load | |||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR | 0.97/230VAC 0.98/115VAC at full load | |||
| EFFICIENCY | 82% | 87% | 89% | |
| AC CURRENT | 5.6A/115VAC 2.8A/230VAC | 8.2A/115VAC 3.9A/230VAC | ||
| INRUSH CURRENT | 25A/115VAC 40A/230VAC | |||
| LEAKAGE CURRENT | <2.0mA / 240VAC | |||
| PROTECTION | OVERLOAD | 105 ~ 125% rated output power | ||
| Protection type: Constant current limiting, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 5.75 ~ 6.75V | 13.8 ~ 16.8V | 17 ~ 20.5V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | 85°C±5°C(TSW2 ) detect on heatsink of O/P diode; 80°C±5°C(TSW1 ) detect on heatsink of power transistor | |||
| Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | ||||
| FUNCTION | AUXILIARY POWER(AUX) | 12V on 0.1A ; tolerance : ±10% | ||
| REMOTE ON/OFF CONTROL | Power on : short between on/off(pin13) & 12V-AUX(pin14) on CN50 Power off : open between on/off(pin13) & 12-AUX(pin14) on CN50 | |||
| DC OK SIGNAL | The TTL signal out, PSU turn on = 0 ~ 1V ; PSU turn off = 3.3 ~ 5.6V | |||
| OUTPUT VOLTAGE TRIM | Adjustment of output voltage is possible between 40 ~ 110% by 2 ~ 5.5VDC external control signal | |||
| OUTPUT CURRENT TRIM | Adjustment of output current is between 40 ~ 110% by 2 ~ 5.5VDC external control signal | |||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70°C (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85°C , 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | 0.03%/°C (0 ~ 50°C) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY&EMC | SAFETY STANDARDS | U60950-1, TUV EN60950-1 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH | |||
| EMC EMISSION | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 | |||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A | |||
| OTHERS | MTBF | 120.8K hrs min. MIL-HDBK-217F (25°C ) | ||
| DIMENSION | 250*127*41mm (L*W*H) | |||
| PACKING | 1.64Kg; 6pcs/10.8Kg/1.1CUFT | |||
Mechanical Specification:
Packing
Meanwell 750W Power Supply 15V 50A RSP-750-15 Mean Well DC Regulated Power Supply

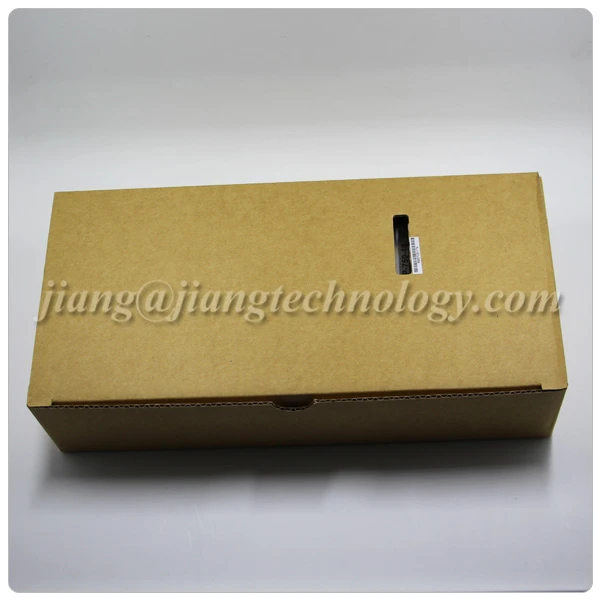

Packing:
