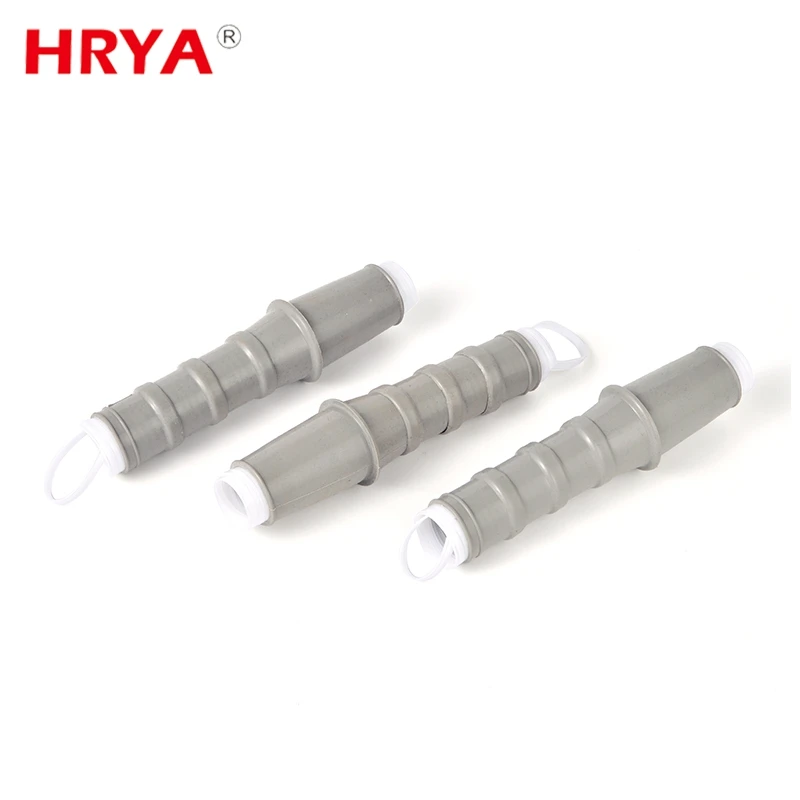

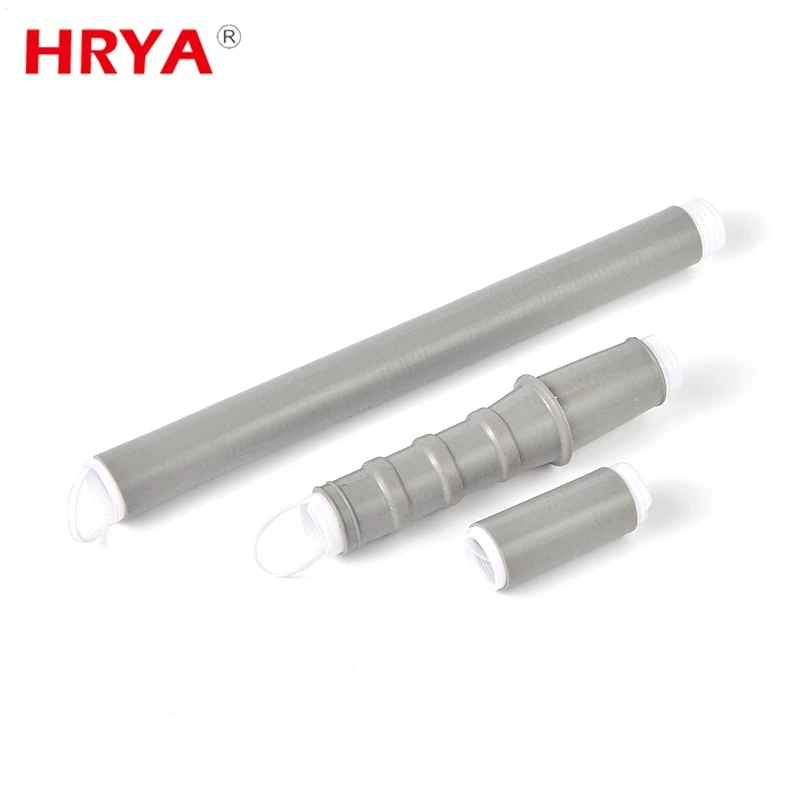

Affordable price cable insulated terminal cold shrink cable terminal kit





Cold shrinkable power cable accessories:

MV cable cold shrinkable termination kit of low voltage 0.6/1KV, middle voltage 8.7/15KV, 12/20KV and high voltage 17/36KV cable

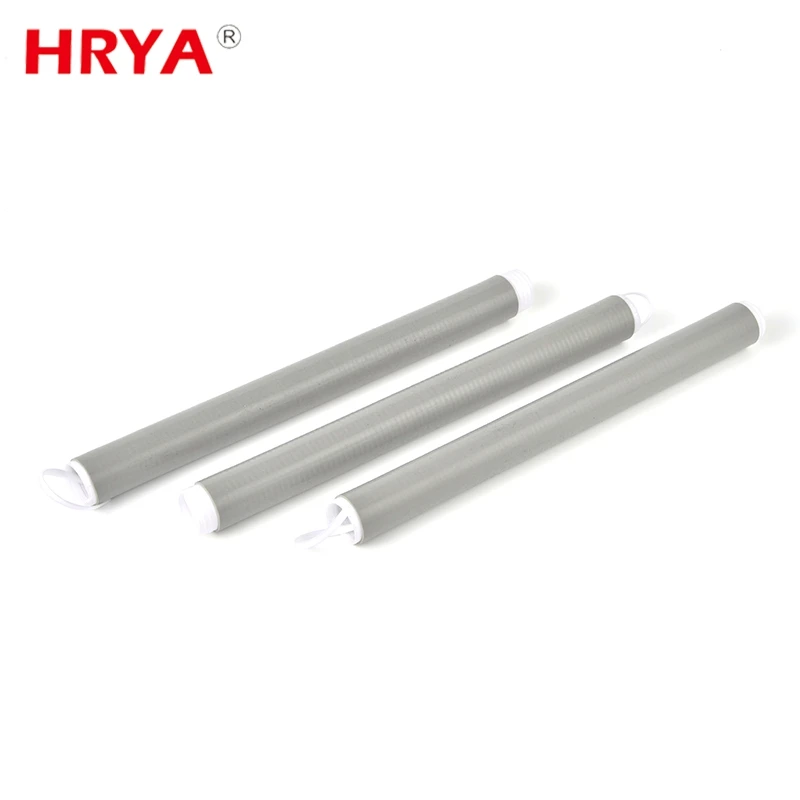

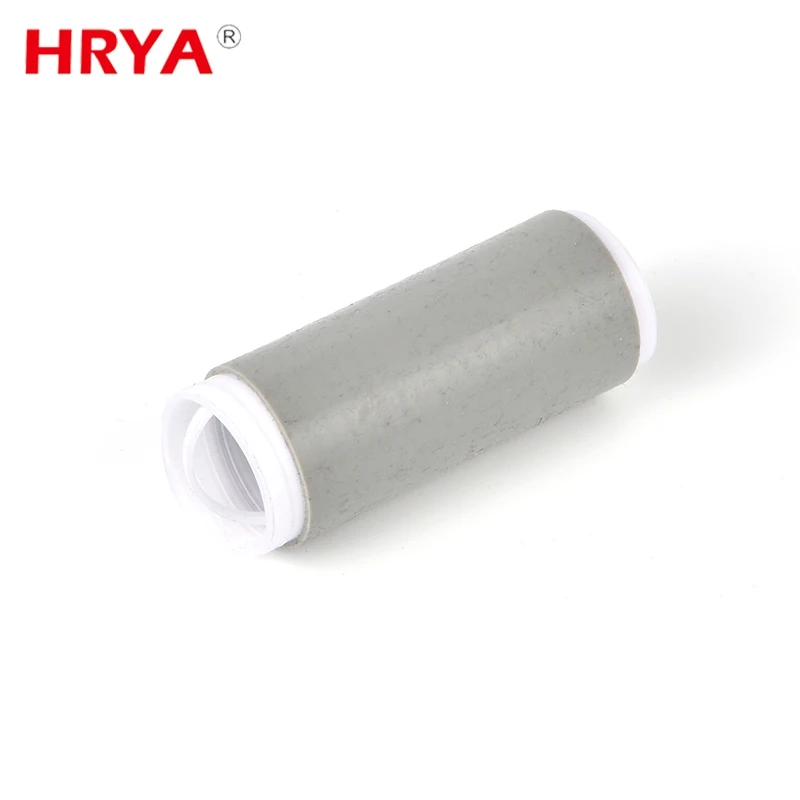

0.6/1.0KV Cold Shrink Tubing :



It mainly divided into the single core, two-core, three-core, four-core, five-cove, which is widely used in the terminals processing and middle connection of low-voltage electric cable. Cold Shrinkable cable accessories adopt the most advanced thchnology of cold shrinkable, dispense with using fire or others special tools. Only need to draw out the wires, when you prepare for installaion, and the elastomer will rapidly shrink and appress to the installation position.



Used widely, high prominent anti-fouling, anti-aging, hydrophobicity and heat-resisting, cold-resisting performance. Especially suitable for areas of high altitudes, cold, wet, umidity, salt spray and heavy pollution. Popular for oil field, chemical industry, diggings, tunnel and others various inflammable and explosive locations. Manufacturing equipment advanced, automaticity high dependable performance.



Type and Specification:



Name	Item No.	Cable sectional area (mm2)	Name	Item No.	Cable sectional area (mm2)
0.6/1KV 3-core Cold Shrinkable Termination Kits	VLZ-1/3.0	10~16	0.6/1KV 3-core Cold Shrinkable Joint	VLJ-1/3.0	10~16
	VLZ-1/3.1	25~50		VLJ-1/3.1	25~50
	VLZ-1/3.2	70~120		VLJ-1/3.2	70~120
	VLZ-1/3.3	150~240		VLJ-1/3.3	150~240
	VLZ-1/3.4	300~400		VLJ-1/3.4	300~400
0.6/1KV 4-core Cold Shrinkable Termination Kits	VLZ-1/4.0	10~16	0.6/1KV 4-core Cold Shrinkable Joint	VLJ-1/4.0	10~16
	VLZ-1/4.1	25~50		VLJ-1/4.1	25~50
	VLZ-1/4.2	70~120		VLJ-1/4.2	70~120
	VLZ-1/4.3	150~240		VLJ-1/4.3	150~240
	VLZ-1/4.4	300~400		VLJ-1/4.4	300~400
0.6/1KV 5-core Cold Shrinkable Termination Kits	VLZ-1/5.0	10~16	0.6/1KV 5-core Cold Shrinkable Joint	VLJ-1/5.0	10~16
	VLZ-1/5.1	25~50		VLJ-1/5.1	25~50
	VLZ-1/5.2	70~120		VLJ-1/5.2	70~120
	VLZ-1/5.3	150~240		VLJ-1/5.3	150~240
	VLZ-1/5.4	300~400		VLJ-1/5.4	300~400



Tech Data:

No.	Test Project	Standard Requirements	Conclusion
1	Power Frequency Voltage	39KV 5min No Flashover and No Breakdown	pass
2	Partial Discharge	Under 15KV, Discharge volume≤10pc	pass
3	Impulse Voltage Test	Under 95KV, ±10times	No flashover and No Breakdown
4	Constant Voltage load Cycle(in air)	The conductor applied voltage 23KV, and heated to (95-100°C). In which the temperature stability 2h,cooling 3h, a total of 3cycles.	Not flashover and assessed by the following test result
5	Constant load Cycle test	The conductor applied voltage 23KV, and heated to (95-100°C). In which the temperature stability 2h,cooling 3h, a total of 6cycles.	Not flashover and assessed by the following test result
6	Thermal Stability Test	Under 23KA, Short circuit 2 times, No visible damage.	pass
7	Dynamic Stability Test	Under 81KA, Short circuit 1 time, No visible damage	pass
8	AC Withstand Voltage	23KV, 15min	No flashover and No Breakdown
9	Tide Temperature Test	11KV, 300h	pass
10	Salt Spray Test	11KV, 1000h	pass
