2019 хорошее качество китайская фабрика GVS K-bus KNX/bei KNX температурная панель 55 мм термостата HVAC вентиляторная катушка умные

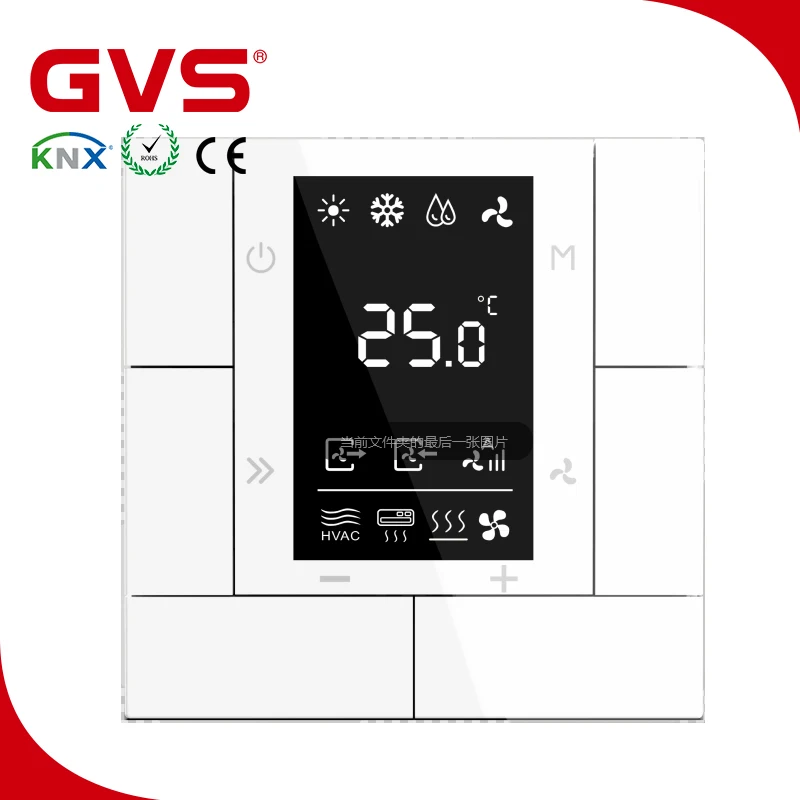

Product Name                        KNX Multifunctional Thermostat

Color Options                         White Shinny, White Matt, Dark Grey Matt

Power Supply  Operation Voltage                   21-30V DC,supplied via BUS
                        Bus Current                             <12mA
                        Bus Power Consumption         <360mW
Connection          EIB / KNX Via bus connection terminal(Black/Red)
                            2-Fold PT1000 input interfaces
                            2 pcs 3 pin holder connection terminals
                            2-Fold temperature detection
                            3-wire/2-wire system PT1000 temperature sensor
Measuring range                  –9.9°C ... + 80°C,Accuracy ±1℃
Cable length <2m
                                  Built-in temperature sensor
Measuring range                                   –9.9°C ... + 80°C,Accuracy±1℃
Temperature range Operating               –5 °C ... + 45 °C
Storage                                                  –25 °C ... + 55 °C
Transportation                                        – 25 °C ... + 70 °C
Environmental conditions                      Humidity <93%,No dewing
Installation Standard 60mm or 86mm box wall-mounted installation

2019 Good Quality China Factory GVS K-bus KNX/EIB KNX Temperature Panel  55mm Thermostat Panel HVAC Fan coil Smart KNX Systems

The temperature control panel “KNX Multifunctional Thermostat, 55mm”, Hereinafter referred to as Thermostat. It is mainly applied in building control system, connected to the BUS via EIB terminals and installed together with other devices on the bus to become a system. It’s functionally simple and intuitive to operate. Users can plan according to their own needs to performs these functions in the system.

The Thermostat is mainly designed according to European standards (55mm system panel frame), which can be used for HVAC control, air conditioning control, floor heating control, central ventilation control, common push button function, temperature detection and so on. The Thermostat is mounted in a standard 60- or 86-box wall mount. Note: It is best to program the physical address before installing.
The Thermostat is connected directly to the bus via the EIB terminal and does not require an additional supply voltage. The physical address assignment and parameter settings can be used with the engineering tool software ETS (version ETS4 or above) with the .knxprod file.

KNX Smart Home/Building Automation System KNX Multifunctional Thermostat

• Operation lock function
• HVAC control: heating / cooling, control of up to 3 fan speed fans
• Air conditioning control: support split infrared (IR Split Unit) air conditioning and air conditioning gateway (Gateway Integrate) control
• Floor heating control: adopts two-point control mode, with 5 scenes
• Central ventilation control: support air intake and exhaust control, and each with 5 scenes
• Common button functions: switch, dimming, curtain, scene, value sending function
• Support 4 event group functions (each with 8 configurable outputs)
• Support 8 logic functions, support AND, OR, XOR, logic gate forwarding, threshold comparator, format convert of different data types
• Built-in temperature sensor
• With 2-Fold PT1000 temperature sensor interfaces

KNX Multifunctional Thermostat Feature:

• 4 IN 1 integrated control with two channels external sensors, pioneered by the industry
• First Fresh air function supports both intake and exhaust
• Small volume, thin thickness, high capacity
• 55mm, there are not only display screens, but also six large keys, which are basically the same as the size of the GVS 55mm Push Button
• Each button can be independently configured as a temperature control function or a normal button function.
• The structure has been upgraded and optimized, which is more in line with the routine wiring and installation methods.
• It belongs to the same series as the our 55mm European Push Button. It also contains white Shinny/Matt FrameWhite, Matt Dark Grey Frame. It is suitable for European Key Pad standards.

• It can be assembled and installed with panel frame made by those manufacturers, such as:
• 1. - GIRA Standard 55, E2, E22, Event, Esprit
  2. - BERKER S1, B3, B7
  3. - JUNG A500, Aplus, Acreation, AS500
  4. - MERTEN 1M, M-Smart, M-Plan, M-Pure

KNX Multifunctional Thermostat Dimension

KNX Multifunctional Thermostat Wiring Diagram
