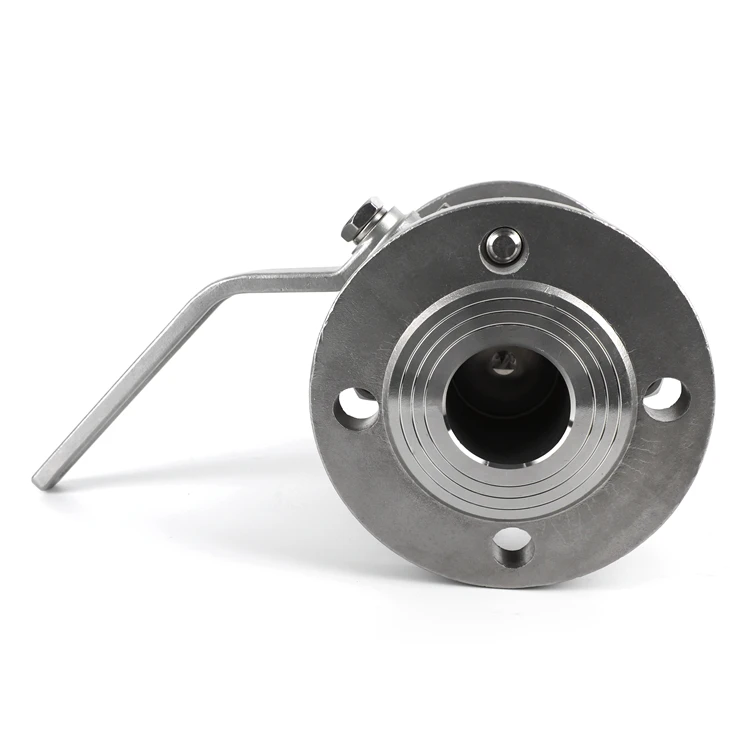

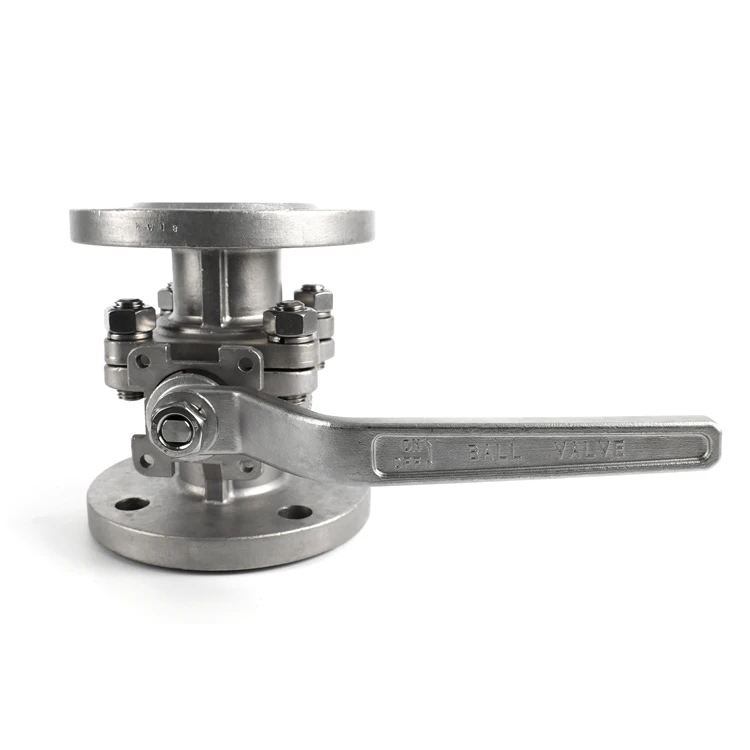

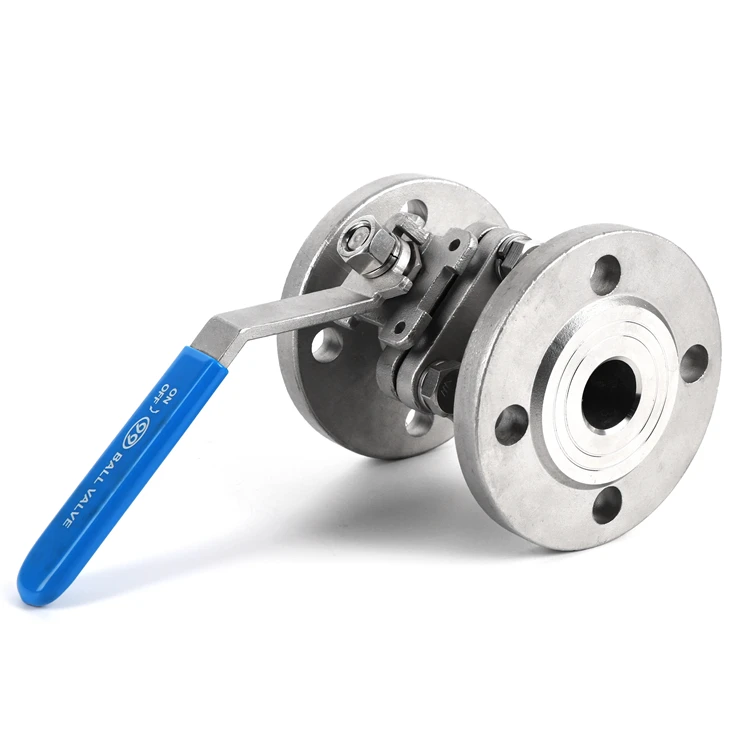

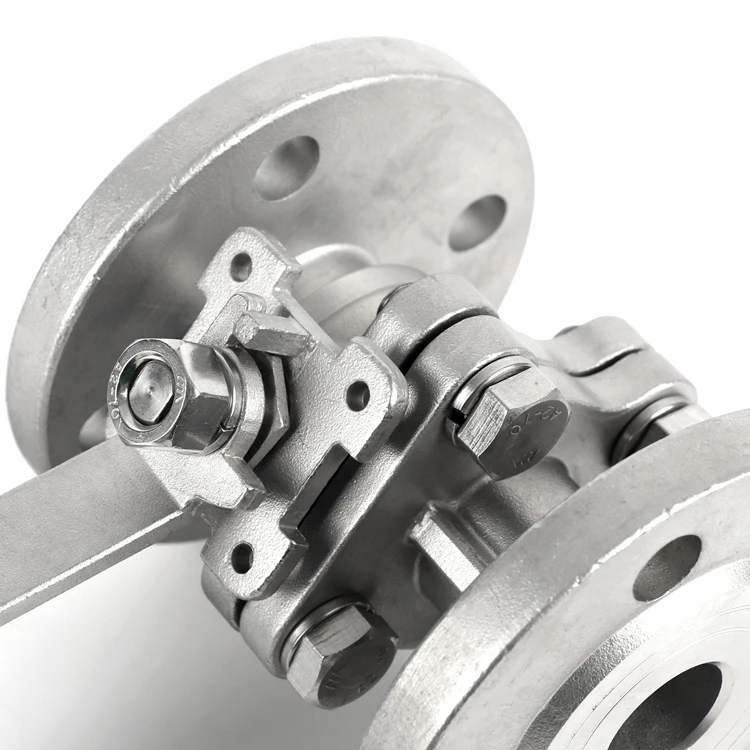

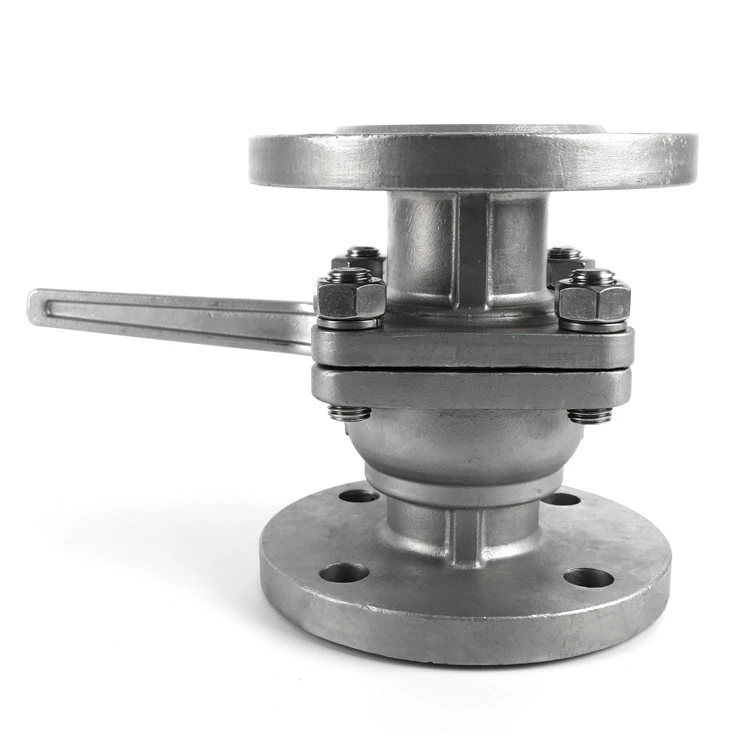

China PN16 full port din 1/2 4  inch 2pc SS flanged ball valve



General information about 99 valves
Material	SS304,304L,316,316L/SCS313,314/CF8,CF3,CF8M,CF3M
Product Size	DN6-DN100
Working pressure	PN16,PN25,PN40,PN64/Class 150, Class 300, 1000PSI
Standard	DIN, API,ANSI, ASTM, JIS, EN, BS, GB
Working temperature	-30-185°C
Connection type	Thread(screw), Flange, Weld
Production process	Mold making, Precision casting(Investment Casting), Testing, CNC machining, Pressure and sealing tests, Assembling
Certificate	ISO9001, National Certificate, SGS. (Other certificates can be applied with each shipment)
Lock and platform	Based on customers’ requirements
Applications	Fluid and pipeline transportation, Petroleum industry, Chemical and metallurgy, Medicine and Food industry
Package	Paper box with woven bag/Wooden Box/As customers’ requirements
Delivery	Based on quantity, normally 30-45 days / Delivery from Tianjin port or as customers’ choice

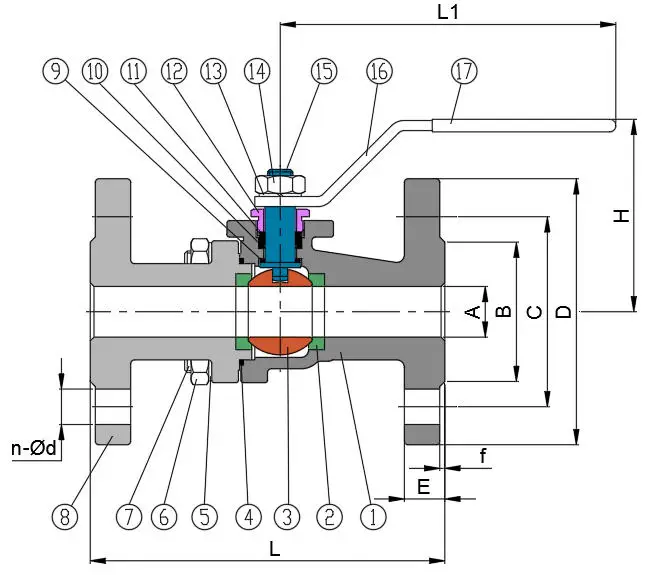

ITEM	PARTS	MATERIAL
1	Valve body	CF8/CF8M(SS304/SS316)
2	Seat	PTFE
3	Ball	CF8/CF8M(SS304/SS316)
4	Body seal	PTFE
5	Spring washer 1	A2-70 (SS304)
6	Nut	A2-70 (SS304)
7	Stud	A2-70 (SS304)
8	Cap	CF8/CF8M(SS304/SS316)
9	Stem seal	PTFE
10	Lower packing	PTFE
11	Upper packing	PTFE
12	Gland nut	CF8/CF8M(SS304/SS316)
13	Spring washer 2	A2-70 (SS304)
14	Stem nut	A2-70 (SS304)
15	Stem	CF8/CF8M(SS304/SS316)
16	Handle	Stainless steel
17	Handle cover	Plastic











>>Shijiazhuang ShuangJiu precision casting co., ltd was founded in 1999 as a precision

casting factory at the very beginning. After 20 years hard work, now we are a professional

high-tech enterprise dedicating to designing, R&D, casting, machining and marketing.

ShuangJiu mainly focus on manufacturing stainless steel ball valve, pipe fittings, quick

couplings. ShuangJiu products are widely applied to the area of petroleum, chemical and

metallurgy, architecture, medicine, food processing and transportation.

>>As the biggest supplier of special valves for liquid gas tankers in China, ShuangJiu

company purchased a lot CNC machines and test equipment from aboard, which lays a

solid foundation for high quality products. Besides, ShuangJiu has fully experienced design

and QC team which can satisfy each customer’s demand before and after sales.

Now we are exclusively distribute to more than 20 countries. Please give us a chance to

provide you the best products and service.

1.Q: How long has the company been established ?

A: About 20 years.

2.Q: Are you a trading company or manufacture ?

A: We are professional manufacturer of stainless steel ball valves, pipe fittings,

quick couplings and casting products.

3.Q: What is your delivery date ?

A: Depends on quantity. Normally it would be 40 days.

4.Q: Do you provide free samples ?

A: We will charge if the sample is too value.

5.Q: What information do you need from me if I want to inquire?

A: The valve type or product picture, material, normal diameter, temperature range, connection

type, operation.



6.Q: How do you control your quality?

A: a). We purchased a lot of test equipments from Germany.

b). Our own QC system and professional team ensure the quality.
