40 мм 5 в 12 В 24 4020 40x40x20 Бесщеточный Охлаждающий вентилятор постоянного
- Категория: Ventilation Fans >>>
- Поставщик: Zhejiang,Fengdeng,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.28 $* | 0.95 $* |
| Aug-16-2025 | 0.63 $* | 0.11 $* |
| Jul-16-2025 | 0.20 $* | 0.45 $* |
| Jun-16-2025 | 0.17 $* | 0.28 $* |
| May-16-2025 | 0.68 $* | 0.82 $* |
| Apr-16-2025 | 0.61 $* | 0.96 $* |
| Mar-16-2025 | 0.55 $* | 0.81 $* |
| Feb-16-2025 | 0.22 $* | 0.89 $* |
| Jan-16-2025 | 0.85 $* | 0.4 $* |
Характеристики
Product Description

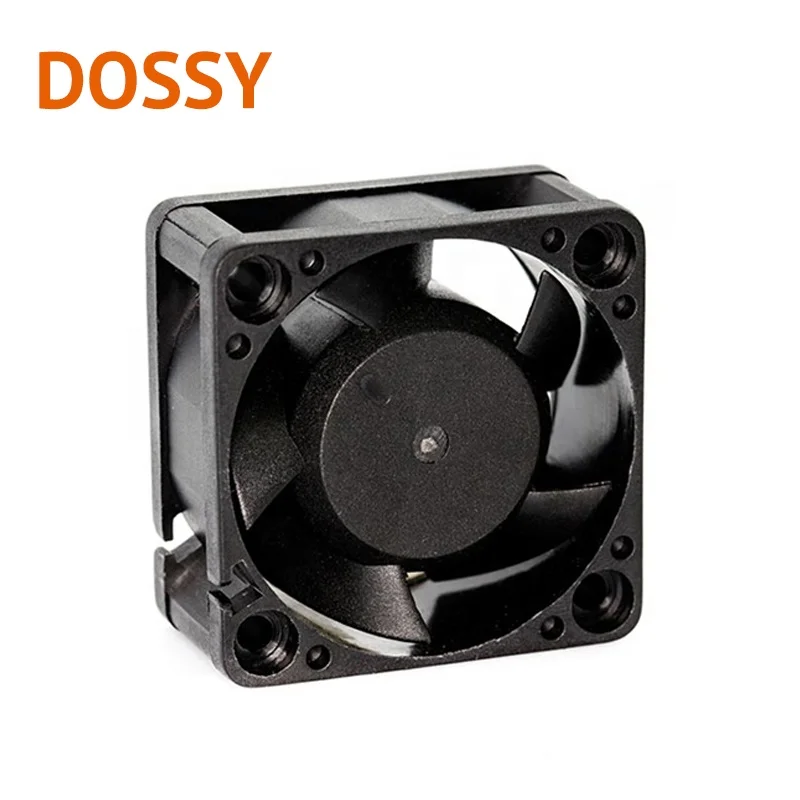

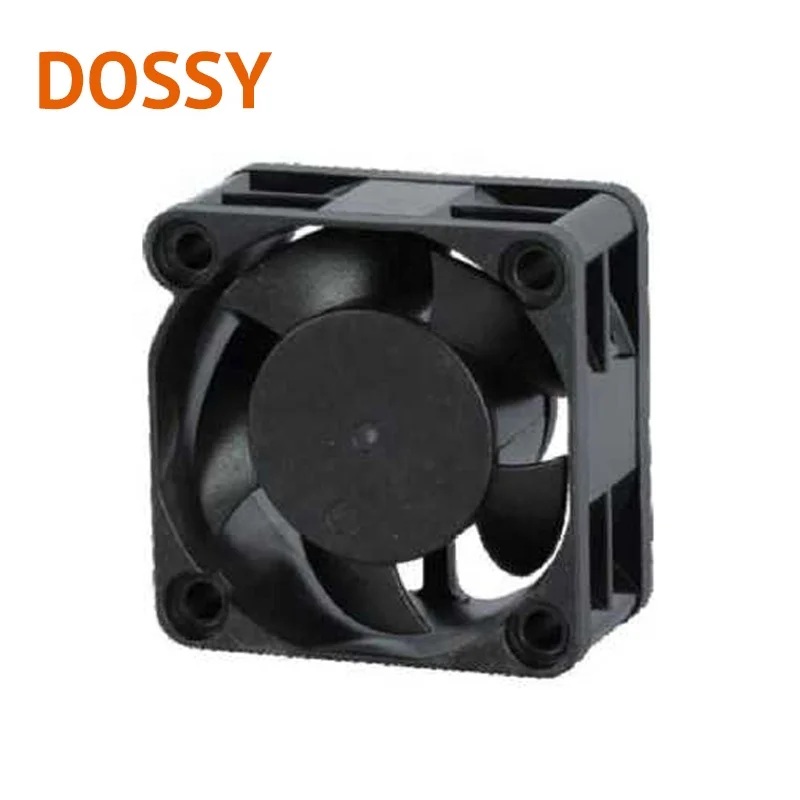

40x40x20mm
DC Brushless Fan
DOSSY DC Brushless Fan applied high efficient brushless DC motors and those products’ power consumption reduced almost 80% compared with our conventional AC Axial fans. Furthermore, it can be equipped with more intelligent features like speed control and thermal controls. Importantly, our DC fan also meet CE directive & RoHs standards and make sure the safety of commercial refrigerator, freezer, icemaker, heat-pump water heater, heat-pump dryer and air-conditioning application.
Product Display
| Model | Bearing type | Rated voltage | Rated Current | Rated input power | Nominal Speed | Air Flow | Air pressure | Noise | Weight | ||
| (V) | (A) | (W) | (RPM) | (CFM) | (m³ /min) | (mm /H2O) | (inch/H2O) | (dBA) | (g) | ||
| DF4020B(S)5U | sleeve/ball | 5 | 0.30 | 1.50 | 8200 | 8.90 | 0.25 | 8.13 | 0.32 | 33.5 | 25 |
| DF4020B(S)5H | sleeve/ball | 5 | 0.22 | 1.10 | 7200 | 7.87 | 0.22 | 6.48 | 0.26 | 28.9 | |
| DF4020B(S)5M | sleeve/ball | 5 | 0.16 | 0.80 | 6200 | 6.70 | 0.19 | 4.85 | 0.19 | 24.8 | |
| DF4020B(S)5L | sleeve/ball | 5 | 0.14 | 0.70 | 5000 | 4.97 | 0.14 | 2.89 | 0.11 | 22.6 | |
| DF4020B(S)12U | sleeve/ball | 12 | 0.12 | 1.44 | 8200 | 8.90 | 0.25 | 8.13 | 0.32 | 33.5 | |
| DF4020B(S)12H | sleeve/ball | 12 | 0.10 | 1.20 | 7200 | 7.87 | 0.22 | 6.48 | 0.26 | 28.9 | |
| DF4020B(S)12M | sleeve/ball | 12 | 0.08 | 0.96 | 6200 | 6.70 | 0.19 | 4.85 | 0.19 | 24.8 | |
| DF4020B(S)12L | sleeve/ball | 12 | 0.06 | 0.72 | 5000 | 4.97 | 0.14 | 2.89 | 0.11 | 22.6 | |
| DF4020B(S)24U | sleeve/ball | 24 | 0.10 | 2.40 | 8200 | 8.90 | 0.25 | 8.13 | 0.32 | 33.5 | |
| DF4020B(S)24H | sleeve/ball | 24 | 0.07 | 1.68 | 7200 | 7.87 | 0.22 | 6.48 | 0.26 | 28.9 | |
| DF4020B(S)24M | sleeve/ball | 24 | 0.06 | 1.44 | 6200 | 6.70 | 0.19 | 4.85 | 0.19 | 24.8 | |
| DF4020B(S)24L | sleeve/ball | 24 | 0.05 | 1.2 | 5000 | 4.97 | 0.14 | 2.89 | 0.11 | 22.6 | |
Related Products
Company Information
Certifications
FAQ
Q1: Are you a factory or trading company ?
A1: Yes,We are the factory which have 15 years manufacture history.
Q2: What is DC Fan and AC fan?
A2: DC fan is power by DC voltage,always is 5V 12V 24V 48V 60V and72V.
AC fan is power by AC voltage,always is 110V,220V and 380V.
Q3: How to choose Fan?
A3: To choose a Fan, you should consider the points below:
a. Fan size b. Fan voltage c. Fan speed
d. Fan bearing type ? ( Sleeve-bearing or Ball-bearing type?)
e. Fan power ( Wattage) f. Fan airflow.
Q4: How long is the warranty?
A4: We Guarantee 1 years warranty.
Q5: What is the delivery time?
A5: Sample lead time:3-5 days
Mass production Delivery lead time: 1 -3 weeks(Depend on the quantity)
Q6: Can you tell me the normal DC fan Model?
A6:
15*15*04mm/ 20*20*06mm / 20*20*10mm/ 25*25*07mm/ 25*25*10mm / 30*30*07mm/ 30*30*10mm / 35*35*10mm/40*40*07mm/ 40*40*10mm /40*40*15mm/ 40*40*20mm / 40*40*28mm /45*45*10mm/ 50*50*10mm /50*50*12mm/ 50*50*15mm/ 50*50*20mm/ 50*50*25mm/ 60*60*10mm/ 60*60*15/ 60*60*20mm/ 60*60*25mm/ 60*60*38mm/70*70*10mm/ 70*70*15mm / 70*70*25mm / 80*80*10mm/ 80*80*15mm / 80*80*20mm/ 80*80*25mm / 80*80*38mm / 92*92*20mm/ 92*92*25mm/ 92*92*38mm/ 120*120*25mm/ 120*120*32mm/ 120*120*38mm/ 127*127*38mm/140*140*25mm/ 150*150*51mm / 172*150*51mm/ 172*172*51mm/ 200*200*20mm/ 200*200*60mm
Q7: Can you tell me the normal AC fan Model?
A7: 80*80*25mm, 80*80*38mm, 92*92*25mm, 92*92*38mm,
110*110*25mm, 120*120*25mm, 120*120*38mm, 135*135*32mm
172*150*38mm, 172*150*51mm, 150*150*51mm, 172*172*51mm,
180*180*61mm, 200*200*60mm, 223*223*61mm, 230*200*65mm,
107*100*30mm, 150*160*60mm, 210*210*70mm 172*150*51mm 225*225*80mm,280*280*80mm, 250*410*90mm, 300*460*100mm,
200mm-600mm External Rotor fan, 130FLJ1 blower
