Тяговый блок XJ300
- Категория: Нефтяная буровая установка >>>
- Поставщик: Sinotai,Petroleum,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.70 $* | 0.95 $* |
| Aug-20-2025 | 0.30 $* | 0.7 $* |
| Jul-20-2025 | 0.3 $* | 0.7 $* |
| Jun-20-2025 | 0.19 $* | 0.54 $* |
| May-20-2025 | 0.31 $* | 0.52 $* |
| Apr-20-2025 | 0.84 $* | 0.59 $* |
| Mar-20-2025 | 0.32 $* | 0.26 $* |
| Feb-20-2025 | 0.83 $* | 0.25 $* |
| Jan-20-2025 | 0.95 $* | 0.36 $* |
Характеристики

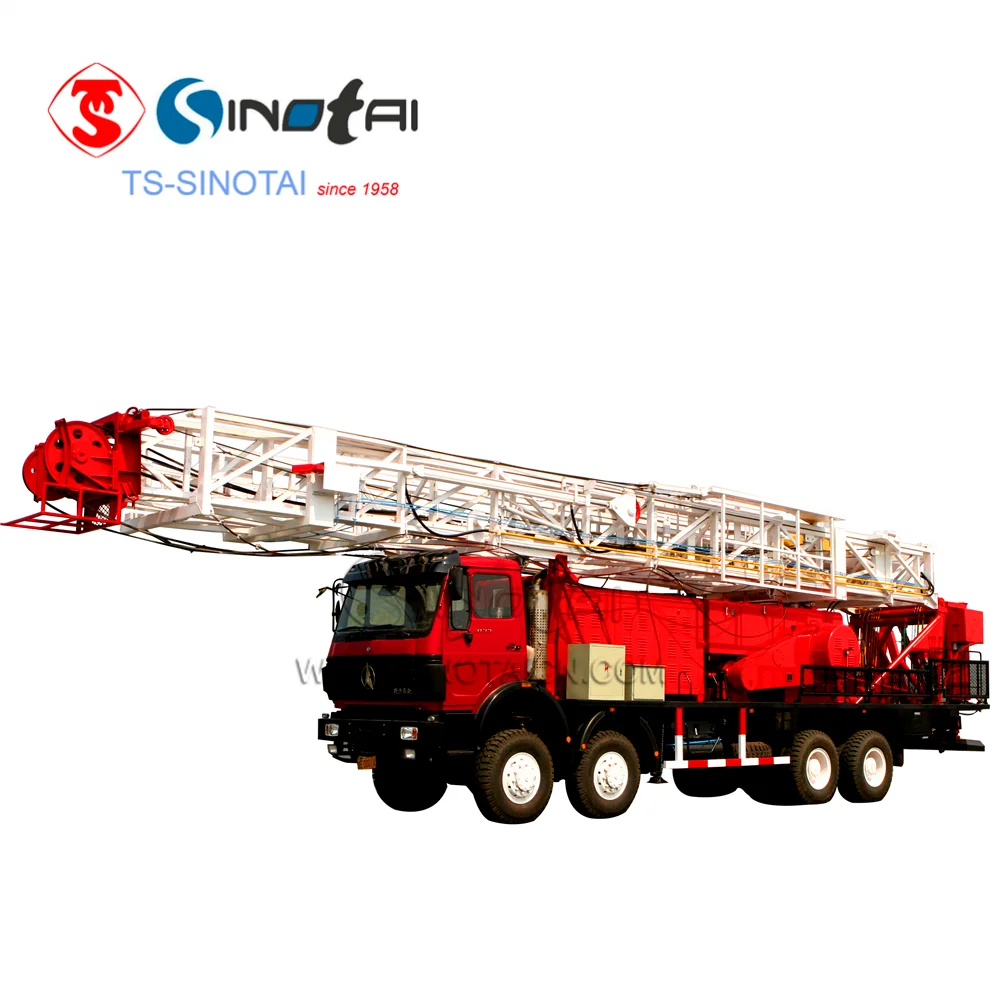

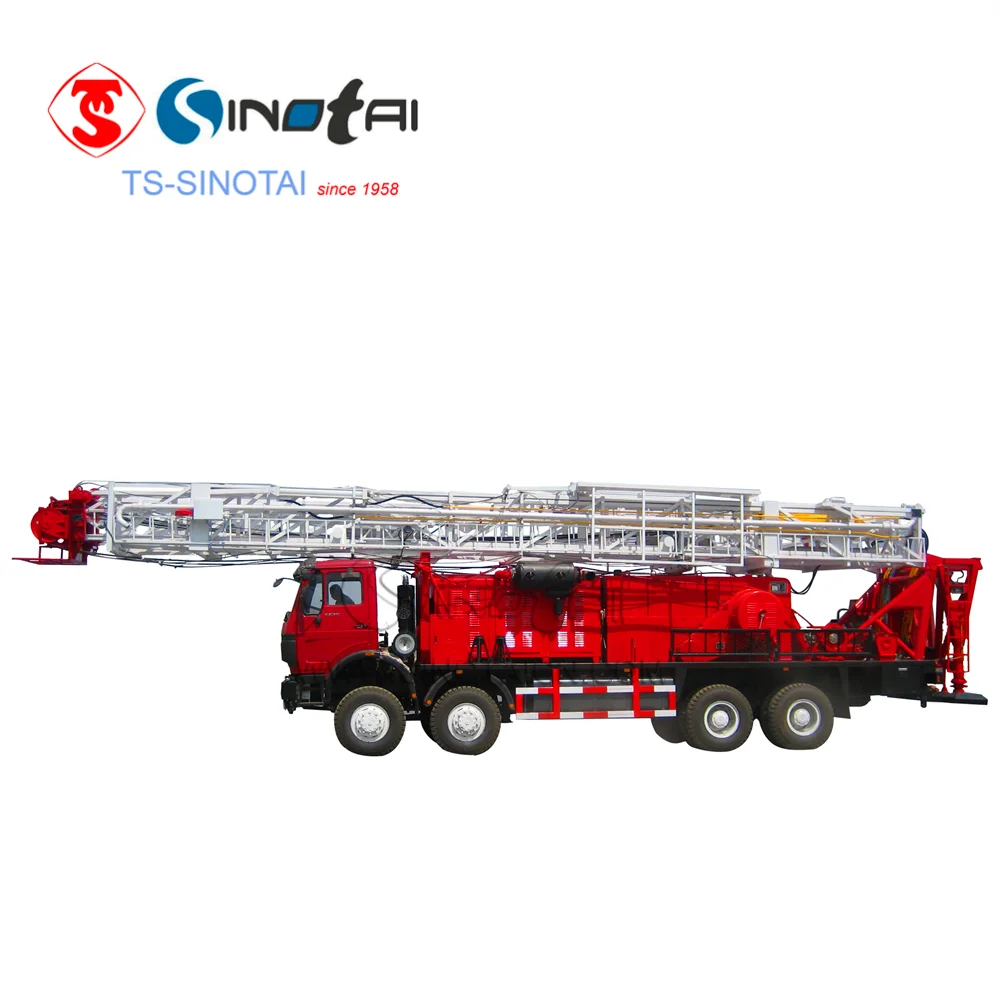

XJ300 50Ton Workover Rig
Product Description
XJ300 is rated as the top brand by SINOPEC and CNPC. Truck mounted type Chassis, The Rig could work on complex ground/ geological condition suck as desert and mountain aera, the workover depth could reach to 3000m.
Advantages: 20% Larger Load, 30% Higher Speed
Capacity: 50Ton
Technial Parameters:
Workover Depth | 2,600,mm/8,530ft, 2 7/8” DP | |
1,200,mm/3,940ft,4 1/2” DP | ||
Serving Depth | 3,600m/11,800ft, 2 7/8” EUE Tubing | |
Max.Hook Load | 750kN/168,600lbf | |
Rated Hook Load | 500kN/112,400lbf | |
Chassis Engine | Model: WP10.336 Power: 247Kw(330hp)/2,200rpm | |
Rig Engine | Model: CAT C9 Power: 261Kw(350hp)/2,200rpm | |
Transmission | Allison 4700 OFS | Allison 4500 OFS |
Drawwork Drum | Φ406x800mm/Φ16”x31.5” | |
Mast Height | 28.5m/93.5ft | 21m/69ft |
Traveling System | 4x3mm(Φ26mm/1” Wireline) | 5x4mm(Φ26mm/1” Wireline) |
Hook Hoisting Speed | 1-1.5m/s(0.3-4.9ft/s) | |
Overall Dimension LxWxH | 16.4x2.5x4.3m 53.8x8.2x14.1ft | 14.5x2.5x4.2m 47.6x8.2x13.8ft |
Weight | 36,000Kg 79,400lb | 31,000Kg 68,300lb |
Chassis | North Benz ND2310G41J(8x8) | Steyr SX1315TT465 (8x4) |
Packaging & Shipping
Our Services
THpetro offers integrated oilfield solution from on-site seacrch, design and training after sale to improve well service efficiency and reduce the environmental impact. The prodcution line includes:
1. Workover rig: Model XJ60-XJ750 & No-guyline workover rig
2. Swabbing rig & truck
3. Oil recovery truck
4. Sand washing truck
5. Flushing fluid truck
6. Wel flushing & dewaxing unit
7. Cementing truck
8. Water drilling rig
Company Information
FAQ
More Information and Services, please press Chat Now!
