UHF RFID LMR195 или 3D-FB коаксиальный кабель с низкой потерей антенна для подключения к считывателю


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 0.1 $* 0.3 $*
Aug-19-2025 0.15 $* 0.9 $*
Jul-19-2025 0.50 $* 0.19 $*
Jun-19-2025 0.70 $* 0.94 $*
May-19-2025 0.53 $* 0.25 $*
Apr-19-2025 0.37 $* 0.89 $*
Mar-19-2025 0.34 $* 0.58 $*
Feb-19-2025 0.41 $* 0.54 $*
Jan-19-2025 0.55 $* 0.66 $*

Характеристики

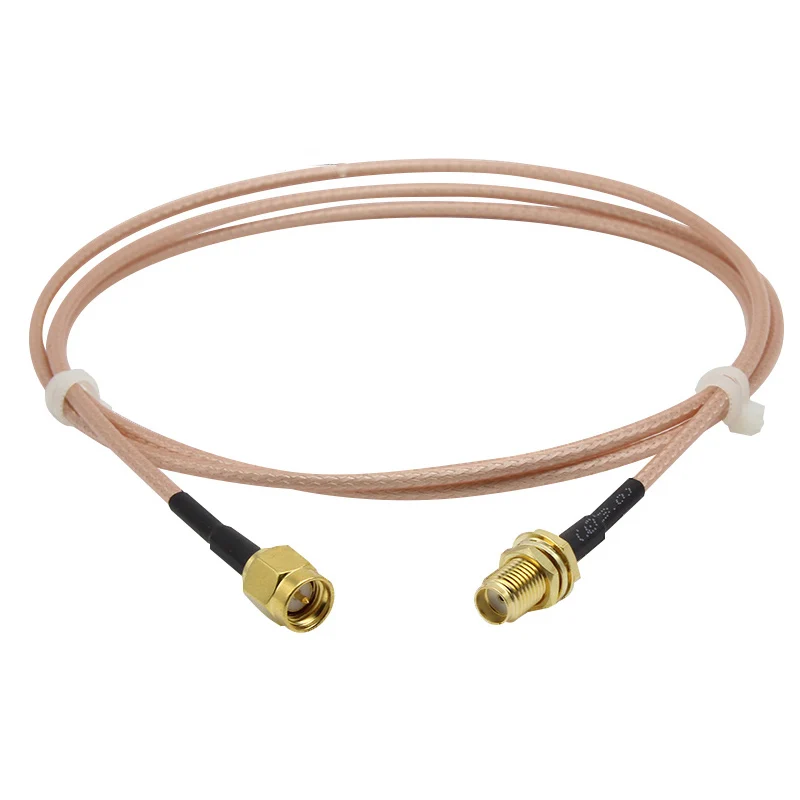

Product Description


 A coaxial RF connector (radio frequency connector) is an electrical connector designed to work at radio frequencies in the multi-megahertz range. RF connectors are typically used with coaxial cables and are designed to maintain the shielding that the coaxial design offers. Better models also minimize the change in transmission line impedance at the connection. Mechanically, they provide a fastening mechanism (thread, bayonet, braces, blind mate) and springs for a low ohmic electric contact while sparing the gold surface, thus allowing very high mating cycles and reducing the insertion force.

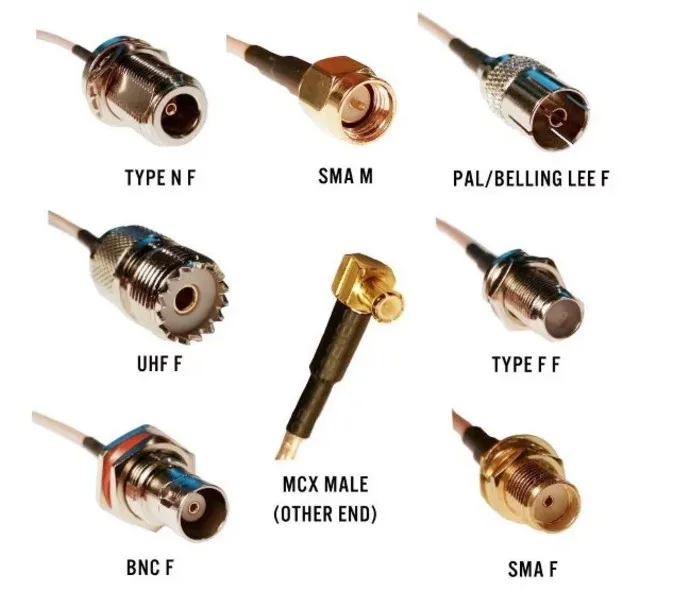

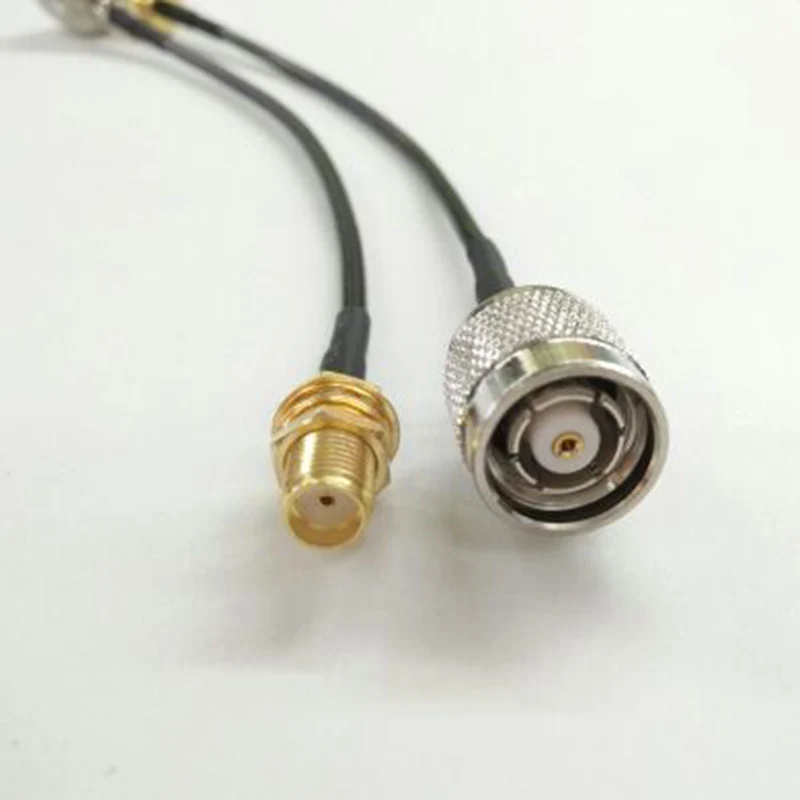

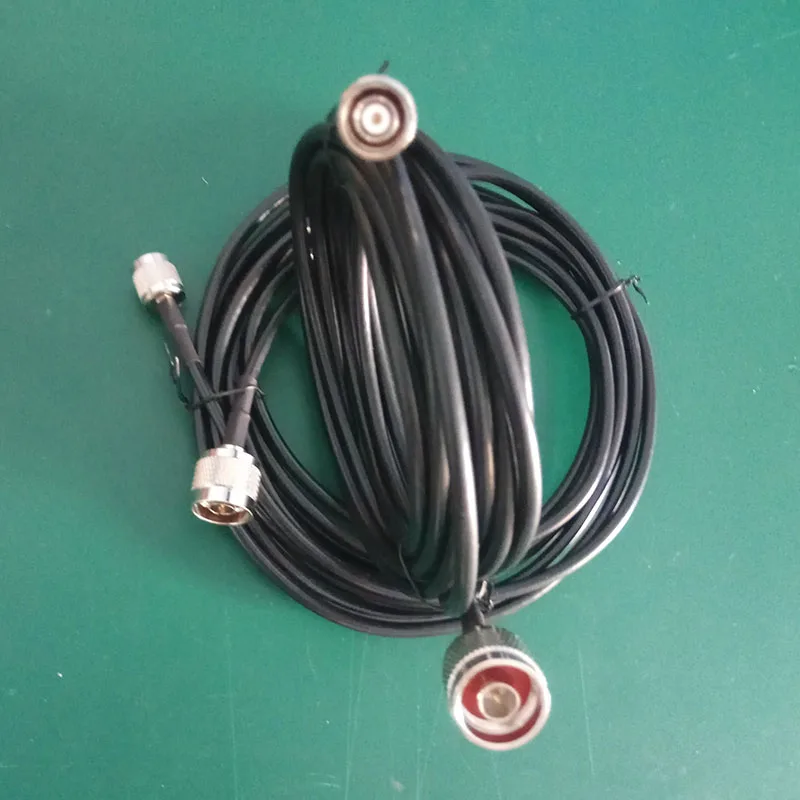

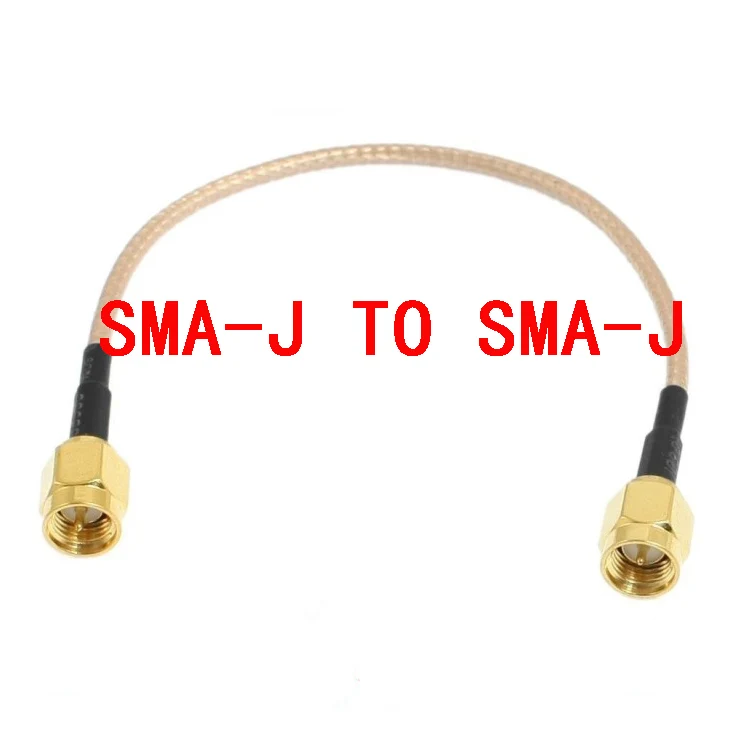

RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)

We focus on coaxial assemblies

Our customized RF cable assemblies are built-in and shipped worldwide

RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB

RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U

RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications

If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department



Electrical Characteristics
Capacitance (Pf/M)
79.7
Impedance (Ohm)
50
Velocity(%)
80
Shielding Effectiveness (>dB)
90
Inner Conductor DC Resistance (Ω/km)
24.94
Outer Conductor DC Resistance (Ω/km)
16.08
Voltage Withstand (Volts DC)
1000
VSWR≤(Return Loss ≥dB)
5-3000MHz
1.20  (20)
5-3000MHz
1.20  (20)
800-1000MHz
1.10  (26)
1700MHz-2000MHz
1.15  (23)
2000MHz-2400MHz
1.15  (23)
Min. Bend Radius (mm)
25
Operating Temp. (°C)
-40 to 80


Detailed Images












Our Company




Shenzhen Fonkan Technology Co., Ltd. was established in 2016. We are a professional UHF RFID hardware(Reader/antenna/tags) provider. We have our own R&D team and production workshop in Shenzhen, China. We are committed to providing our customers with quality products and services that help them build their successful RFID cases and solutions. Our customers are located all over the world, we provide reliable products and excellent services, continue to create value for our customers, inspire their creativity, and provide innovative RFID solutions and applications to the world.

In Fonkan you can get:
1. High quality and reliable products
2. Cordial and continuous service
3. Committed fast delivery
4. Adequate after-sales support

We believe that creating value for customers, serving with heart and developing together is the best choice for the company. We are willing to be your most reliable long-term partner.




Web:https://fonkan.en.alibaba.com/

E-mail: joerica@fonkan.com

Wechat: CandyFonkan

Skype: joerica@fonkan.com

Mobile: +8618138863916

Whatsapp:+8618138863916


Packing & Delivery


Length of cable
1m / 2m / 3m / 5m  or customized
Connector
MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC etc.
Lead time
3-7 days
Warranty
12 months
Delivery
DHL / TNT / FedEx / Aramex / EMS


Applicaion




Certifications




FAQ


1. Q:Who are we?
A:We are a leading Chinese professional UHF RFID Hardware manufacturer with more than 10years. We are located in Shenzhen, a city near to HongKong.

2. Q: What products do you manufacture?
A: We can be able to manufacture all kinds of UHF RFID reader, antenna and tag (comply the protocol of EPC C1G2  andISO-18000/6C).  we can help you customize all kinds of reader, antenna and tag.

3. Q: What are your advantages?
A: we have many advantages.
Firstly, we have been focusing on R&D, productions, sales and implementation of UHF RFID reader, UHF RFID antenna and UHF RFID Tag for more than 10 years. Secondly, we are good at designing all kinds of RFID solution for different industries or applications. Thirdly, our products has been sold to all over the world, they are serving for government, bigretailer, school, big manufacturing company and logistic company as well as vehicle management/transportation etc.
Fourth, we have own professional staffs in RFID, no matter what production, research or engineer or sales.

4. Q: What are your client type?
A: As a RFID hardware manufacturer, we usually work with system integrator, solution provider or IT software company directly because we can supply hardware to them and they can develop software and implement/install/integrate hardware and software for their end-user directly.

5. Q: If I want to buy your products, what should we do first?
A: as RFID product is complex system (need further development), so you need to tell us your project requirement, for example,
What is the tracked item?
What is the reading distance required?
What type of reader do you want to use on your project?
Fixed reader or handheld reader?
After we are clear your requirements, we will send you datasheet and quotation for your reference.
After confirming well, we will send you PI for paying fund to us and then we will send you goods ASAP once we got yourpayment already.

6. Q: Do you supply software?
A: we don't have any management software, but we have SDK of reader for your further developing interface with your current management software.
