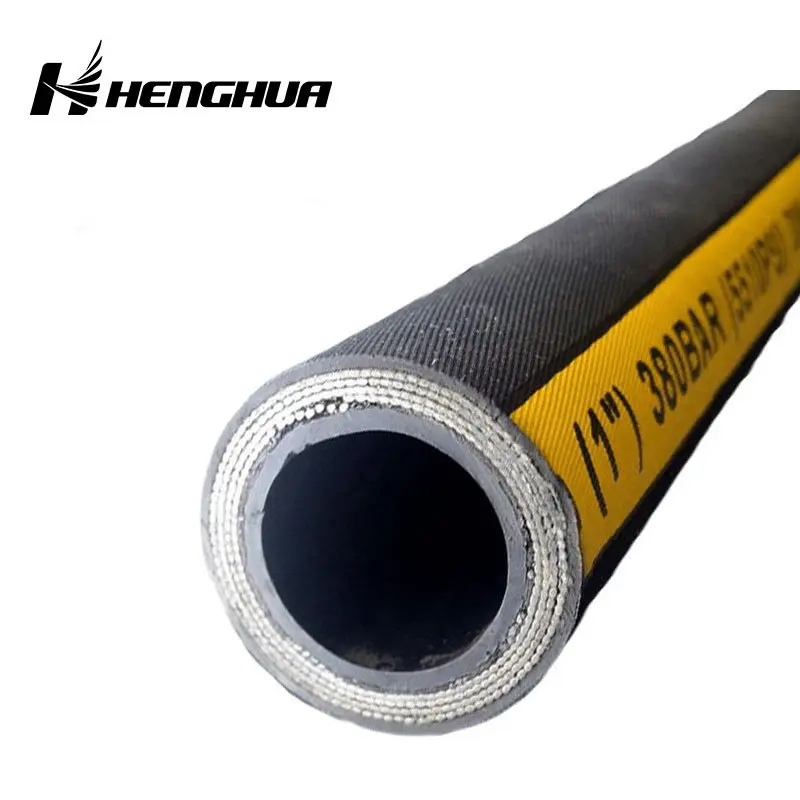

Гидравлический резиновый шланг высокого давления/резиновый гидравлический
- Категория: Rubber Hoses >>>
- Поставщик: Tianjin,Kaida,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.65 $* | 0.33 $* |
| Aug-16-2025 | 0.20 $* | 0.1 $* |
| Jul-16-2025 | 0.98 $* | 0.65 $* |
| Jun-16-2025 | 0.88 $* | 0.53 $* |
| May-16-2025 | 0.5 $* | 0.21 $* |
| Apr-16-2025 | 0.72 $* | 0.47 $* |
| Mar-16-2025 | 0.55 $* | 0.4 $* |
| Feb-16-2025 | 0.92 $* | 0.37 $* |
| Jan-16-2025 | 0.22 $* | 0.39 $* |
Характеристики
Product Description
Main Features:
1/ No-skive design eliminates the need to remove the hose cover before 2/ 2/ crimping
3/ MSHA accepted cover
4/ 3000 PSI constant working pressure in all sizes
5/ It is made from the latest nanmeter material, providing good resistance to oil,ozone,and high pulse performance.
Product Features:
Premium Hose(Fc500/H471)
Easier Installation-46% improvement in force-to-bend, ½ SAE minimum bend in sizes -12 thru -24 and 33% reduction in bend radius for SAE 100R13-32
Environmentally Friendly - Class 0 Cool Down Leakage per SAE J1176 when assembled with the 4S/6S Fitting Series.
Reduced Downtime- using hoses that exceed industry performance requirements
Engineered Hose Assembly System-Quick and easy assembly through a matching and mating hose assembly process: Reduces the time to produce a hose assembly through color coordinated identifiers on the hose,hose fittings and crimp tooling
| Hoze size | Inside Diameter mm | Reinforcement Diameter mm | Outside Diameter mm | Working Pressure | Proof Pressure | Burst Pressure | Min.Bend Radius mm | Weight Kg/m | |||
| Mpa | Psi | Mpa | Psi | Mpa | Psi | ||||||
| 1-5-21 | 5±0.5 | 9.5±0.6 | 12.7±0.8 | 21 | 3043 | 31.5 | 4564 | 63 | 9129 | 90 | 0.25 |
| 1-6-20 | 6±0.5 | 11.3±0.6 | +1 | 21 | 3043 | 31.5 | 4564 | 63 | 9129 | 100 | 0.34 |
| 15.3-0.8 | |||||||||||
| 1-8-18 | 8±0.5 | 13.3±0.6 | +1 | 18 | 2536 | 27 | 3804 | 54 | 7607 | 115 | 0.41 |
| 17.3-0.8 | |||||||||||
| 1-10-6 | 10±0.5 | 15.3±0.6 | +1 | 16 | 2318 | 24 | 3478 | 48 | 6955 | 130 | 0.47 |
| 19.3-0.8 | |||||||||||
| 1-13-14 | 13±0.5 | 18.8±0.6 | +1.2 | 14 | 2028 | 21 | 3043 | 42 | 6086 | 180 | 0.67 |
| 22.8-0.8 | |||||||||||
| 1-16-12 | 16±0.5 | 21.8±0.8 | +1.2 | 12 | 1739 | 18 | 2608 | 36 | 5216 | 205 | 0.7 |
| 25.8-1 | |||||||||||
| 1-19-10 | 19±0.5 | 24.8±0.8 | +1.2 | 10 | 1449 | 15 | 2174 | 30 | 4347 | 240 | 0.84 |
| 28.8-1 | |||||||||||
| 1-22-9 | 22±0.5 | 27.8±0.8 | +1.2 | 9 | 1304 | 13.5 | 1956 | 27 | 3912 | 280 | 0.95 |
| 31.8-1 | |||||||||||
| 1-25-8 | 25±0.5 | 31.3±0.8 | +1.2 | 8 | 1159 | 12 | 17.9 | 24 | 3478 | 300 | 1.09 |
| 35.3-1 | |||||||||||
| 1-32-6 | 32±0.7 | 38.7±0.8 | +1.5 | 6 | 869 | 9 | 1304 | 18 | 2608 | 420 | 1.24 |
| 42.7-1.2 | |||||||||||
| 1-38-5 | 38±0.7 | 44.7±0.8 | +1.5 | 5 | 725 | 7.5 | 1087 | 15 | 2174 | 500 | 1.45 |
| 48.7-1.2 | |||||||||||
| 1-54-4 | 51±0.7 | 58.1±0.8 | +1.5 | 4 | 579 | 6 | 8694 | 12 | 1739 | 630 | 1.9 |
| 62.1-1.2 | |||||||||||
| 1-64-2.5 | 64±1 | 71.2±1 | 75.2±1.5 | 2.5 | 362 | 3.75 | 543 | 7.5 | 1087 | 770 | 2.4 |
| 1-76-1.5 | 76±1 | 83.8±1 | 87.8±1.5 | 1.5 | 217 | 2.25 | 326 | 4.5 | 652 | 930 | 2.95 |
| 1-89-1 | 89±1 | 96.8±1 | 100.8±1.5 | 1 | 144.9 | 1.5 | 217 | 3 | 435 | 1100 | 3.24 |
| 1-102-1 | 102±1 | 111±1 | 115±1.5 | 1 | 144.9 | 1.5 | 217 | 3 | 435 | 1250 | 3.85 |
| 1-127-1 | 127±1 | 136±1 | 141±1.5 | 1 | 144.9 | 1.5 | 217 | 3 | 435 | 1500 | 4.8 |
| 1-152-1 | 152±1 | 162±1 | 167±1.5 | 1 | 144.9 | 1.5 | 217 | 3 | 435 | 1800 | 5.8 |
| 1-203-1 | 203±1 | 214±1.5 | 220±2 | 1 | 144.9 | 1.5 | 217 | 3 | 435 | 8.8 | 8.8 |
Product Application
Hydraulic system service with petroleum and water-based fluids, for general industrial service. Petroleum and fire-resistant hydraulic fluids, fuel and lubricating oils, gasoline, water and other industrial fluids Logging, construction, mining and other off highway applications.
We can provide various models and functions of rubber hose to meet your needs , You can click on the link below to view our more product catalog :
https://pipeindustry.en.alibaba.com/productgrouplist-807619169/Hydraulic_rubber_Hose.html
https://pipeindustry.en.alibaba.com/productgrouplist-807619169/Hydraulic_rubber_Hose.html
Or please immediately Send Inquiry (click here) or Chat online(click here)for more proudcts you needs and complete nice price!
FAQ:
1.What hose do you provide?
HENGHUA pipeindustry company offer hundreds of products. Main hose products:
high pressure steel wire braided hose,
high pressure steel wire spiral rubber hose,
steel wire winding hose,
flame retardant,resistance to high temperature and high pressure drilling hose
assembly,marine high pressure oil hose,
expansion pipe,
metal hose,
rollers,
rubber seals,etc
2.What are the product applications?
Mining, hydraulic support, hydraulic system, emulsification pump, construction machinery, coal mine underground water delivery, feng shui working face, water delivery, oil transportation, sand pumping, mud discharge, suction dust, exhaust gas, ash, engine gas pumping, Gas drainage / gas discharge / warm air duct
3.What are your advantages?
High quality, complete specifications, stock in stock. company has passed ISO9001:2015 international quality management system certification, ISO14001:2015 environment management system certification. HOSAS18001:2007 certification of safety management system certification,mining products safety sign,etc.
Products are sold well all over the country, and exported to India,British,Russia,Turkey,Germany, the United States and other countries,favored by the users.
