Коннектор RP SMA Pigtail «штырь-гнездо» обжимной соединитель RG174 кабель в сборе
- Категория: >>>
- Поставщик: Zhenjiang,Voton,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.17 $* | 0.95 $* |
| Aug-16-2025 | 0.71 $* | 0.18 $* |
| Jul-16-2025 | 0.70 $* | 0.6 $* |
| Jun-16-2025 | 0.38 $* | 0.23 $* |
| May-16-2025 | 0.91 $* | 0.56 $* |
| Apr-16-2025 | 0.60 $* | 0.20 $* |
| Mar-16-2025 | 0.62 $* | 0.60 $* |
| Feb-16-2025 | 0.5 $* | 0.39 $* |
| Jan-16-2025 | 0.24 $* | 0.68 $* |
Характеристики
Product Description

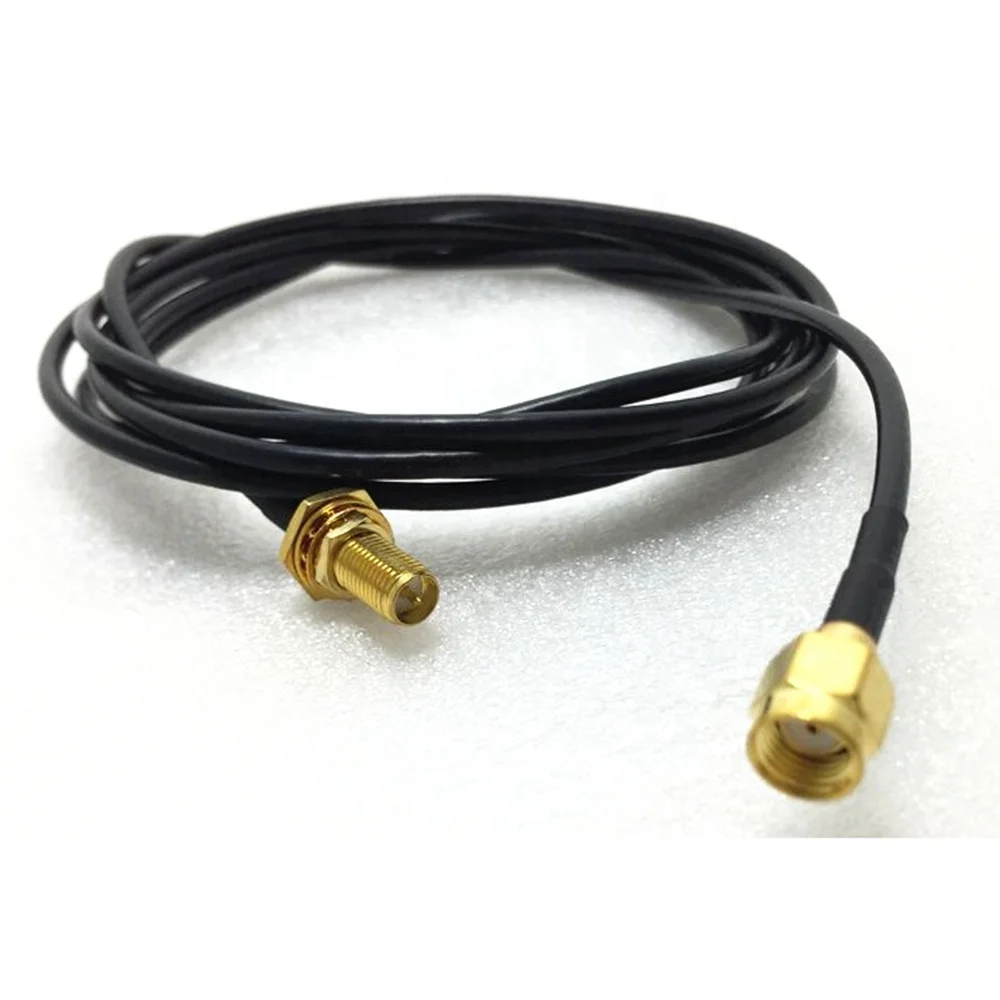

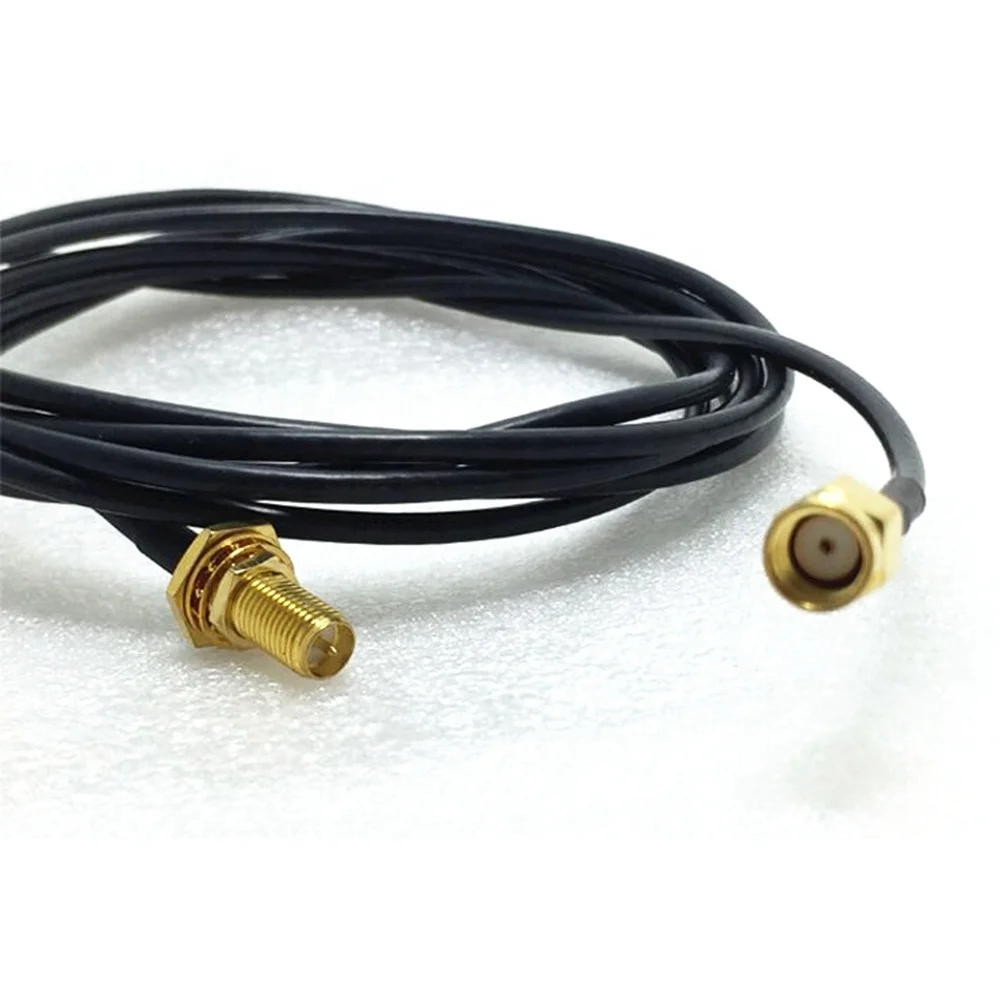

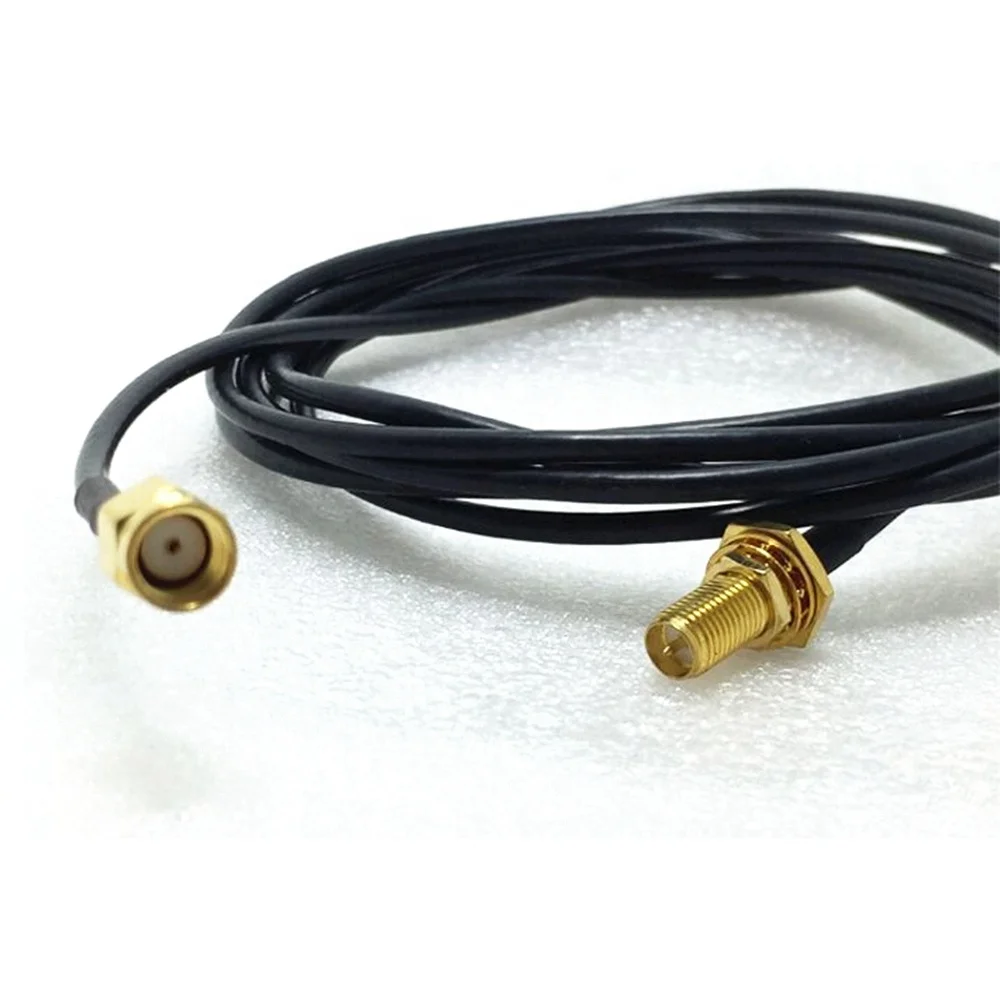

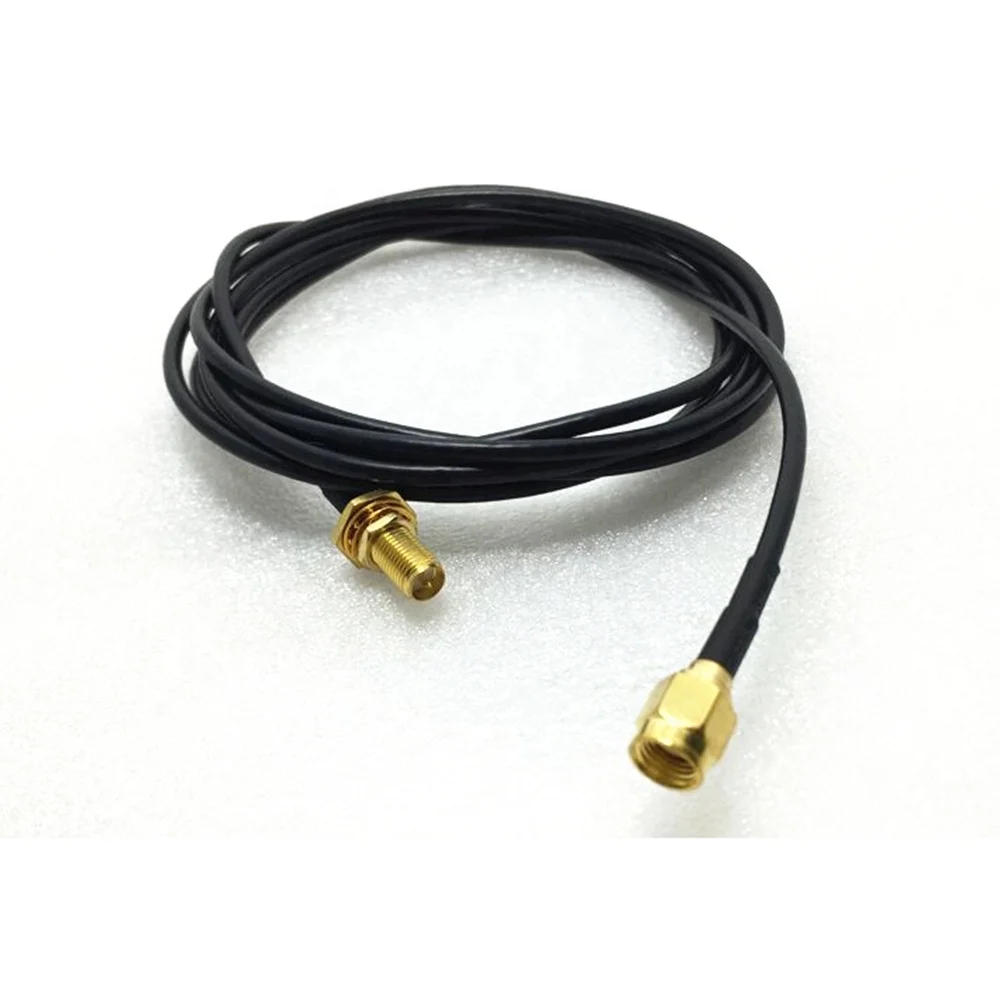

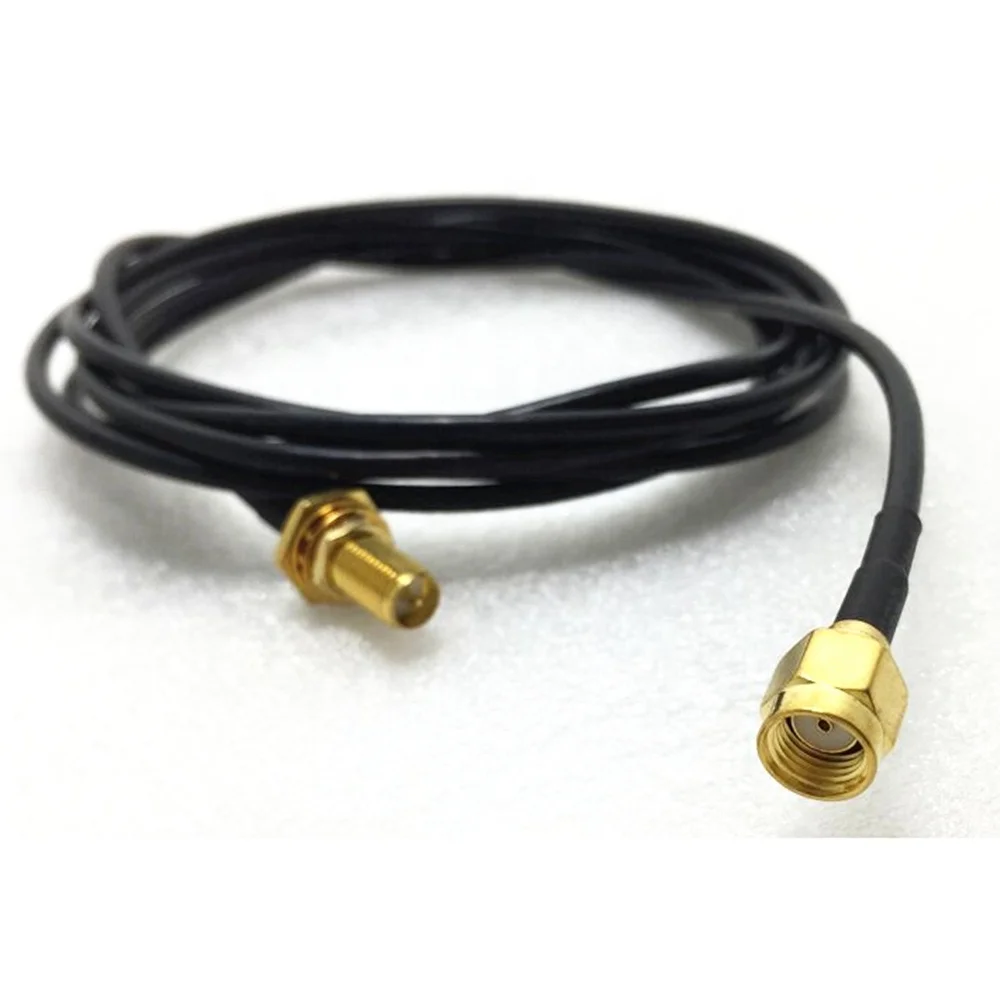

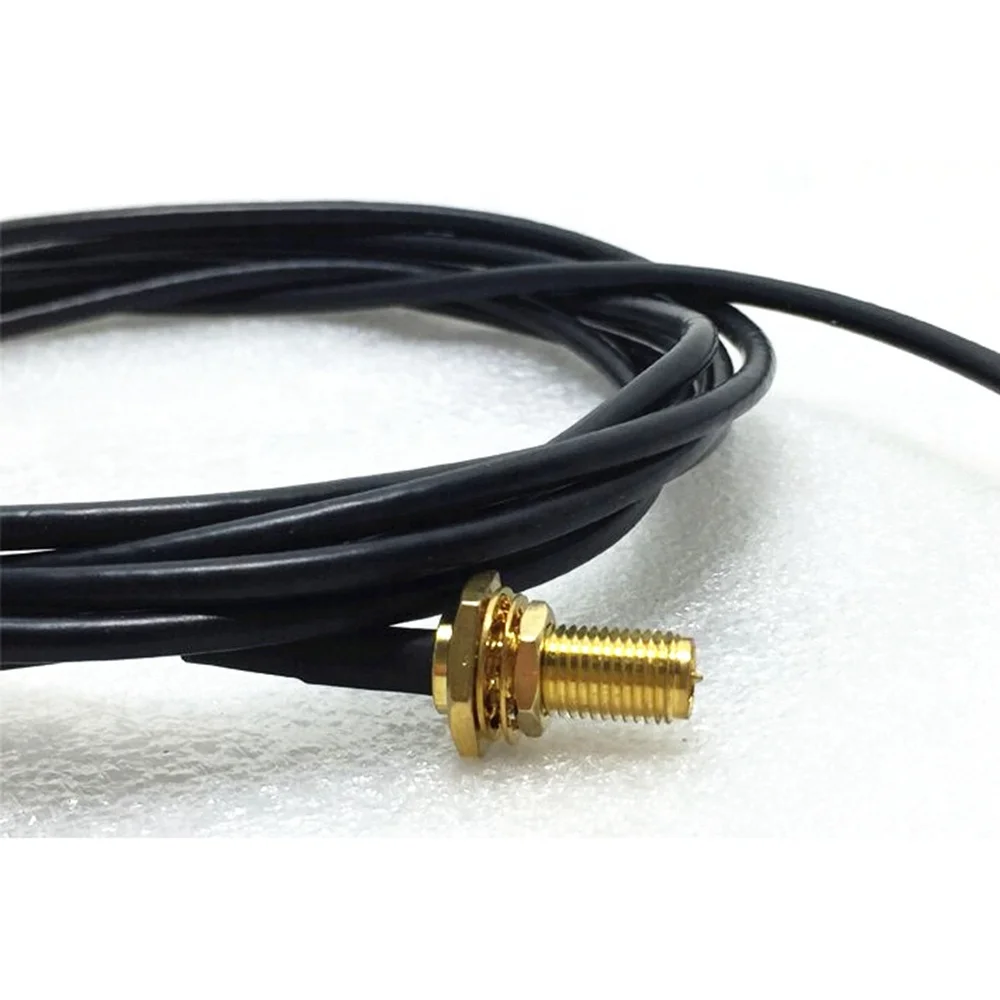

RP SMA Pigtail RP SMA Male To Female Bulkhead Crimp Connector RG174 Cable Assembly 50cm
Series of SMA products one application extensive small-scale coaxial person who join that whorl join, it has a reliable characteristic with long life-span that the width, performance are excellent, high frequently. Suitable for the microwave equipment and body of the digital communication system and join the body in the cable or the micro-strip line frequently in the loop frequently.
RP SMA Pigtail
RP SMA male to female rg174 cable assembly
Right Angle SMA female for PCB connector
Temperature range | -65~+165°C (PE Cable -40~+85°C) |
Vibration | MIL-STD-202,Method 213 |
Impedance | 50 OHM |
Frequency Range | DC – 12.4GHz(0-18GHz) |
Working Voltage | 335V max |
Withstand Voltage | 1000V rms |
Center Contact | ≤ 3 mΩ |
Outer Contact |
≤2mΩ |
Insulation resistance | ≥5000M OHM |
Insertion loss | ≤0.15 dB/6GHz |
Durability (mating) | ≥500 (cycles) |
Insertion loss | 0.15dB (7.5GHz max) |
| VSWR |
Straight Soft cable ≤1.10+0.002f Semi-steel cable≤1.05+0.001f
Right angle Soft cable ≤1.20+0.003f Semi-steel cable≤1.10+0.001f |
Material & Plating
Body | Brass | Nickel plated / Alloy plated |
Inner Pin | Brass | Gold plated |
Resilient Contact | Beryllium Copper | Gold plated |
Socket Contact | Beryllium or tin bronze | Gold plated |
Insulator | PTFE |
|
Crimp Ferrule | Copper alloy | Nickel / Gold plated |
O-ring sealing | Silicone Rubber |
|
APPLICABLE STANDARD
MIL-C-39012;
CECC 22110;
IEC 60169-15.
Related Products
Company Information
Zhenjiang Voton Machinery Co., Ltd.
Zhenjiang Voton Machinery Co., Ltd. is located in Zhenjiang City and is specialized in manufacturing, designing and researching RF connectors, coaxial cable,antenna,cable assembly.We also agent as Glow starters and microwave products.With 27 experienced and professional team, we have exported our products to many countries and regions all over the world, especially America and Europe. We also provide OEM services.We have been produced pins for connector as OEM'S manufacturer . Our products enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.We have quite strict quality control before shipment,this is why RFVOTON hot sale in the world.Rohs RP SMA male to female rg174 cable assembly
Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500-800pcs, this we can negotiate.
Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit.
If use customer brands, we will take a 3-5days to prepare materials and mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.Lmr Serie RP SMA male to female rg174 cable assembly
Our Services
what we could do for you are :
1) factory sell directly
2) long-term,strong and steady supplying ability
3) delivery time: 1-2 working days
4) do as your requirements on package,brand or other designs
5) strong sales promotion policy
6) ex-factory price and competitive price
7) we can provide you a good survice
8) replying you asap.(will reply you 10-20 mins on the basis of getting your require. RP SMA male to female rg174 cable assembly
Customization advantages Reliable performance Perfect production management system(ISO9001,ISO14001) we have experience about RF components more than ten years Experienced R&D staff. All Goods will be tested before shipping OEM/ODM service available.
Certifications
Quality Control
Packaging & Shipping
FAQ
| Q:what's your company MOQ? |
| A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate. |
| Q: What's your delivery time? |
| A: This please ask our stock in first, products can send out once receive your deposit. If use customer brands, we will take a 3-5days to prepare materials and mass production. |
| Q: Can your company accept customize? |
| A: Welcome OEM & ODM. |
| Q: How do you solve after sale service? |
| A: This please ask us for technical support if you have workers know how to repair. If do not have engineers, please send back the items, we can repair the items for you. |
| Q: Can you send a sample for us to develop? |
| A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order.RP SMA male to female rg174 cable assembly |
Contact US
If you are interest in any of our products, please feel free to contact us for more information. We will give you a satisfied response during 12 hours!
RP SMA Pigtail RP SMA Male To Female Bulkhead Crimp Connector RG174 Cable Assembly 50cm
