Адаптер питания 24 вт 12 в 2000 ма европейский блок адаптер постоянного тока 5 9 1 а 2

Описание и отзывы

Трекер стоимости

Характеристики

24w 12v 2000ma 12v power adapter european power supply wholesale DC EU 9v/12v/24v 1A 2A AC/DC power adapter

Input	Input voltage	AC 100~240V
	Variation Frequency	50-60Hz
	Input frequence	50~60Hz
Output	Output voltage	12v
	Output current	2A
	Output power	24W
Input plug types	EU/ US /UK /AUS /South Korea /South African Plugs
Out plug types	DC jack, XLR, JST, Cigar Lighter, Alligator Clips,Viation Plug, Din Plug.etc

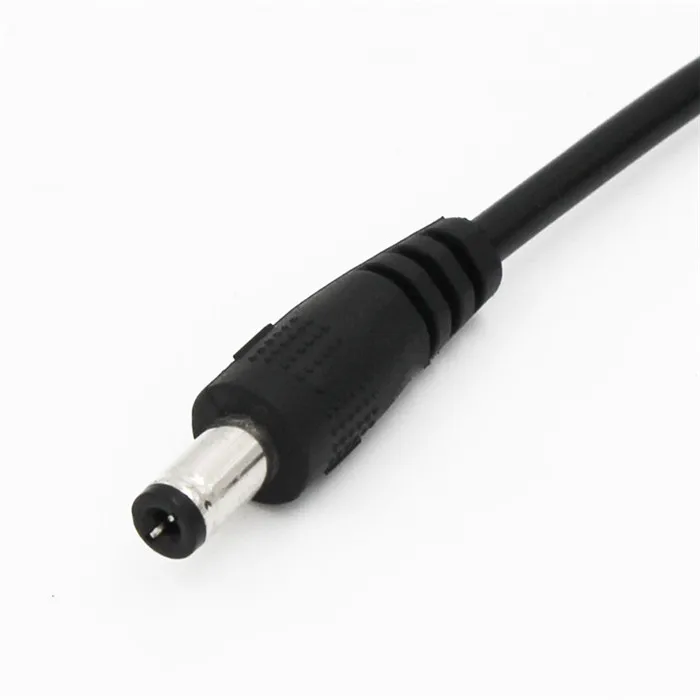

DC jack size	5.5*2.1mm, 5.5*2.5mm, 3.5*1.35mm, 3.5*1.0mm, 4.0*1.7mm, 2.5*0.7mm .etc
Safety protection	Over voltage protection	120% min
	Over current protection	120% min
	Short circuit protection	auto recovery
	Over hot protection	auto recovery
Electronic characteristics	Operating Temperature	-40~50°C
	Storage Temperature	-40 to +85 °C
	Humidity	10%~95%RH
	Efficiency	80%
	Ripple And Noise	Output voltage 1%, Ripple&Noise≤120mv
	Turn-on Delay Time	3 second max
	Overshoot at Turn-on	10% max when turn on or off
	AC leakage Current	0.25mA max at AC 240V voltage
	Load Regation	±5%
	Line Regation	±5%
	High-Voltage test	Primary to secondary: 3 kV / 5mA 60S
	Drop Test	0.75m drop test, 6 times
	Burn-In Test	100% load, 5hours
Application	CD/DVD,MP3/MP4,Digital camera,Comunication Terminals Etc
Safe Certificate	CE ROHS FCC CB BS SAA C-tick PSE KC
