Манометр с масляным наполнением 2 дюйма 50
- Категория: Приборы для измерения давления >>>
- Поставщик: Kunshan,Alf,Machinery,And,Instruments,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2.10 $* | 2.99 $* |
| Aug-19-2025 | 2.89 $* | 2.56 $* |
| Jul-19-2025 | 2.8 $* | 2.97 $* |
| Jun-19-2025 | 2.2 $* | 2.89 $* |
| May-19-2025 | 2.98 $* | 2.55 $* |
| Apr-19-2025 | 2.45 $* | 2.81 $* |
| Mar-19-2025 | 2.4 $* | 2.97 $* |
| Feb-19-2025 | 2.34 $* | 2.89 $* |
| Jan-19-2025 | 2.7 $* | 2.95 $* |
Характеристики
Detail Information

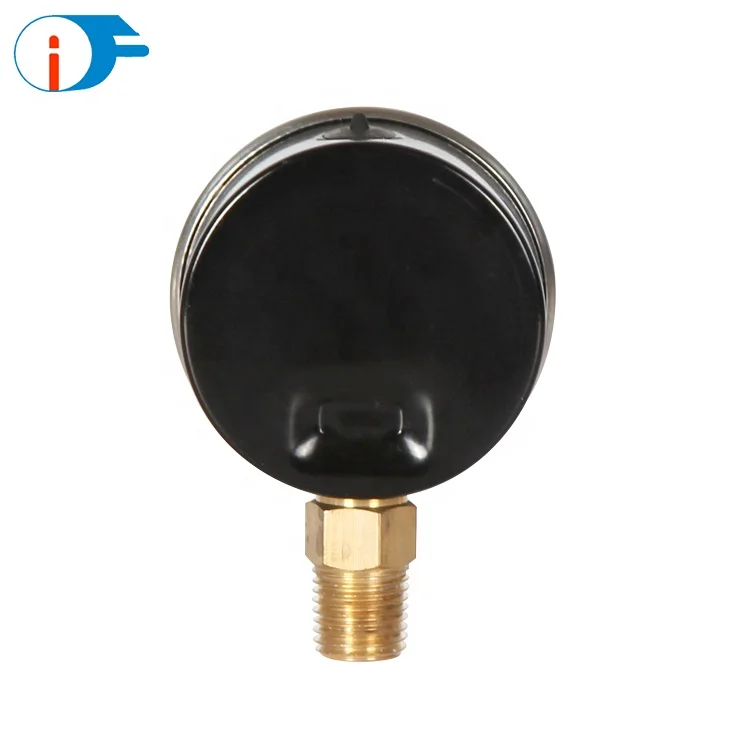

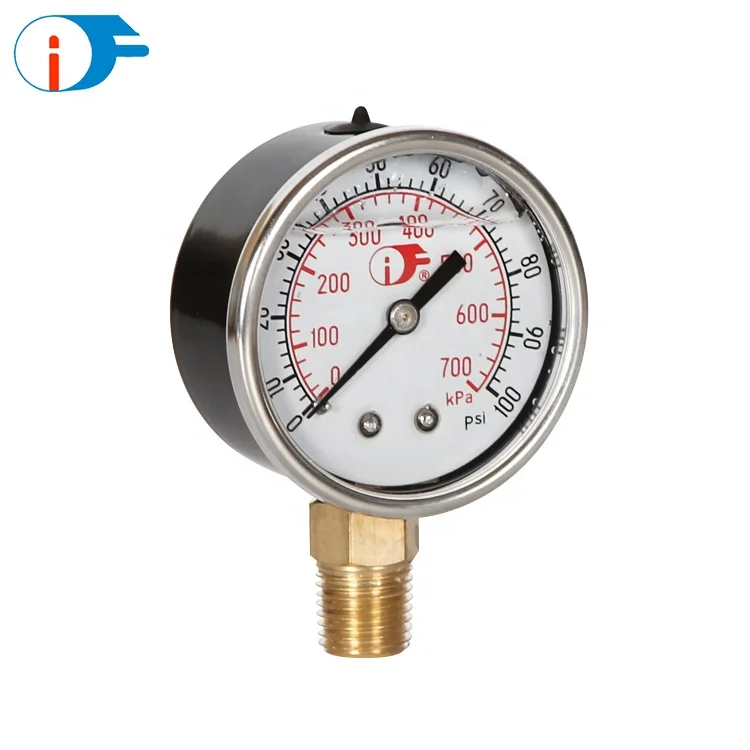

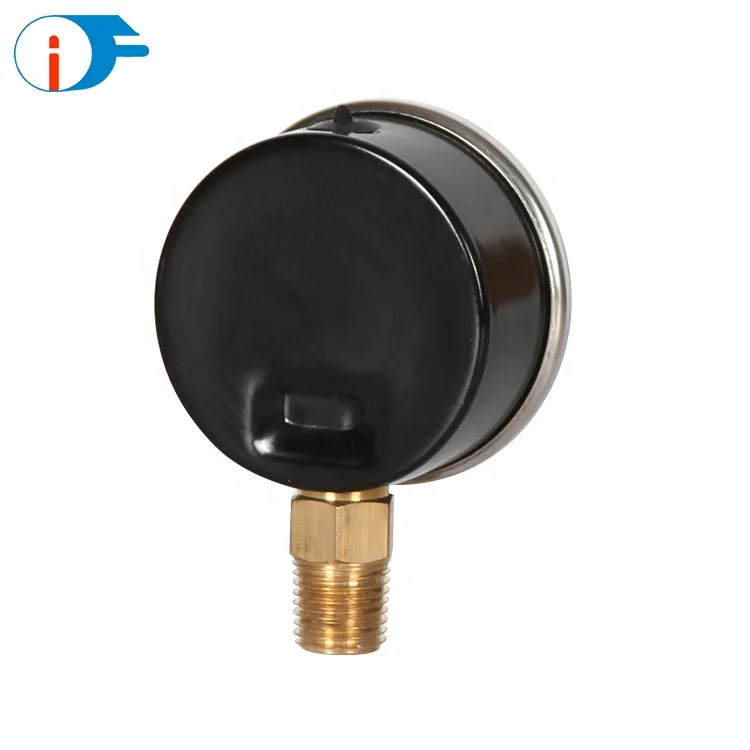

2.5" 63mm dial bourdon tube lower mount oil filled pressure gauge
| Model | CY001-1 |
| Description | Liquid Filled /Liquid fillable Pressure Gauge |
| Application | Mailny used in petroleum chemical industry,liquid help to absorb vibration and pressure spikes, increasing the service life of the gauge |
| Size | 1.5"(40mm),2"(50mm),2.5"(63mm),3.5"(95mm),4" (100mm) and 6" (150mm) and Customized |
| Pressure Range | 15 to 15,000psi, vacuum, and compound |
| Socket | Brass,lower mount, Center back mount, or Lower back mount |
| Connection Thread | NPT , BSP, BSPT, PT, ZG, or other customized threads |
| Tube | Phosphor bronze, copper alloy |
| Case | Black steel |
| Bezel | Crimped-on SS bezel |
| Window(Lens) | Polycarbonate lens or safety glass lens |
| Liquid | Glycerine, silicone, oil fillable, or without liquid |
| Dial plate | Single or dual scale (psi, kpa, mpa, bar, kg/cm2) |
| Bracket | U-clamp & front flange is available |
| Accuracy | +/- 3/2/3% (ASME B40.1 Grade B); +/-1% (ASME B40.1 Grade 1A) |
| Ambient Temperature | Glycerin filled: 5℃ to 55℃; Siliconee filled: -25℃ to 55℃ |
Product Overviews
Production Flow
FAQ
Application
Certification&Patent
ALF received the following certificates and patents:
- ISO9001:2015 manufacture of pressure gauge and door lock
- UL listing: use no oil pressure gauges
- CSA certificate: lead free pressure gauge
- ANSI Grade 3: entry door lock
- High-Tech Enterprise (Jiangsu Province)
- 32 different patents on products and processes
Our Company
Kunshan ALF Machinery & Instrument Co. Ltd. was founded in Shanghai in 1998. With a production base of 70,000 square meters located at Huaqiao Town, Kunshan, Jiangsu province, ALF is specialized in the production and export of pressure gauge and door lock.ALF look forwards to strengthen our cooperation with customers and suppliers and enter a fast-growth lane through training key personnel, fasten technical developments, improving product quality, and enhancing customer satisfaction.
Packing and shiping
