Плазменный Мини-резак с ЧПУ двойным приводом и плазменным резаком
- Категория: CNC Plasma Cutters >>>
- Поставщик: Wuhan,Lansun,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.34 $* | 0.0 $* |
| Aug-19-2025 | 0.58 $* | 0.24 $* |
| Jul-19-2025 | 0.3 $* | 0.13 $* |
| Jun-19-2025 | 0.82 $* | 0.85 $* |
| May-19-2025 | 0.29 $* | 0.42 $* |
| Apr-19-2025 | 0.98 $* | 0.10 $* |
| Mar-19-2025 | 0.86 $* | 0.17 $* |
| Feb-19-2025 | 0.95 $* | 0.65 $* |
| Jan-19-2025 | 0.60 $* | 0.1 $* |
Характеристики
Mini Cnc Plasma Cutter with Lgk 120 Plasma Cutter
Product Introduction
Portable Cnc Cutting Machine Introduction:
Portable cnc flame/plasma cutting machine can be programmed to cut any plane shape parts composed of beeline and arc ,which are same as large gantry cutting machines . It is equipped with a 7 inch LED with dynamic and static graphical display .It is directly perceived and very easy to learn.
Why Choose Wuhan Lansun?
1. CNC Machines are of high in quality and beautiful in design, easy installation and operation.
11 years Alibaba supplier; 5000 + customers Choice;

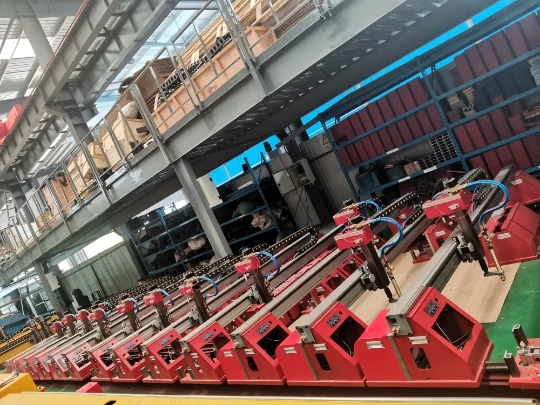

2. 20,000 SQM+ large-scale production site .
3. Factory and exporting CNC cutting machine over 17 years, very familiar with whole shipping process.
4. Delivery time: fast delivery, with enough stock.
5. Providing detailed videos of installation, operation and maintenance of machines.
6. Experienced technology & quality team, our engineers have over 17 years working experience. we can give you best solutions.

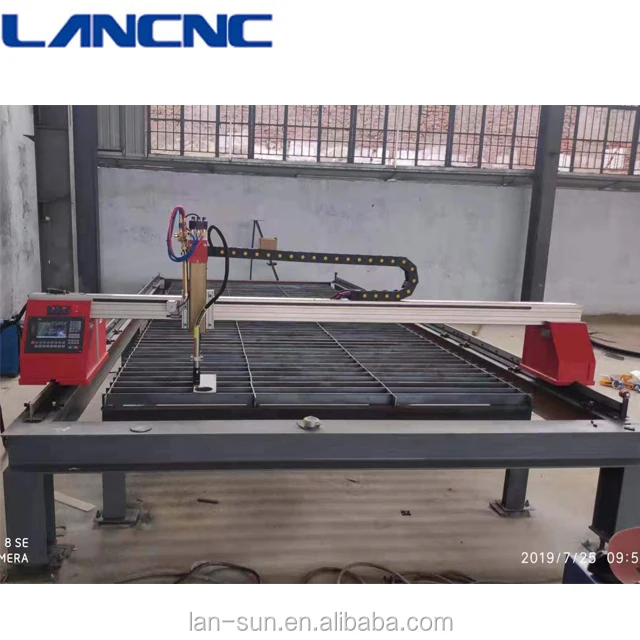

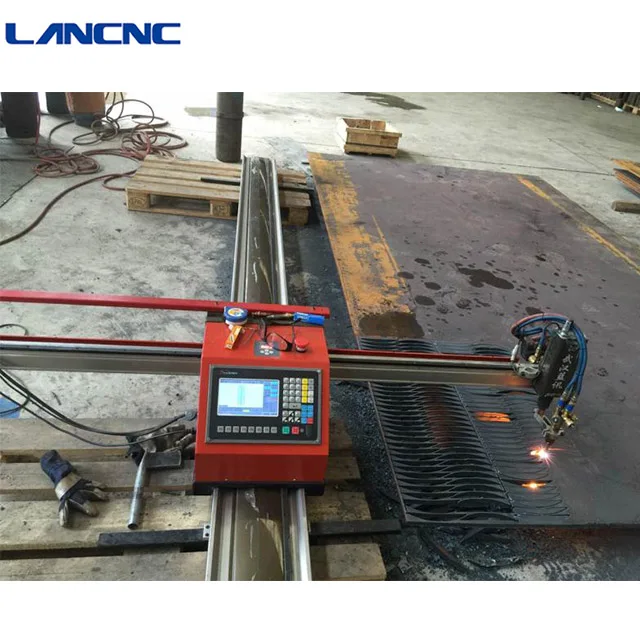

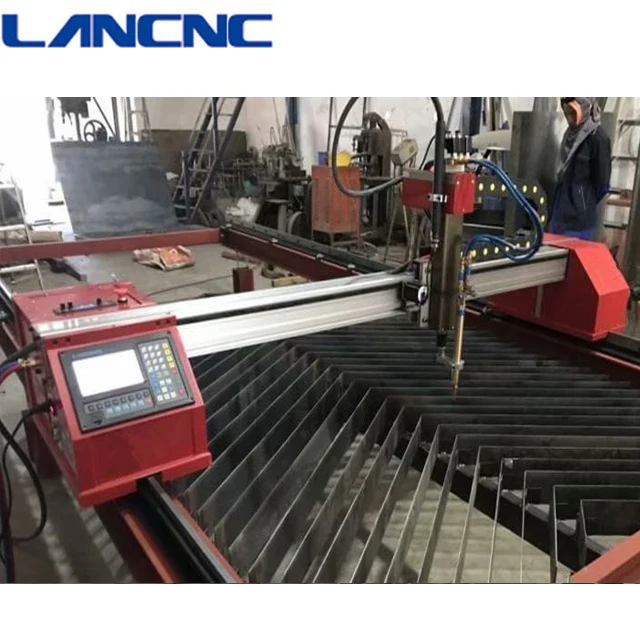

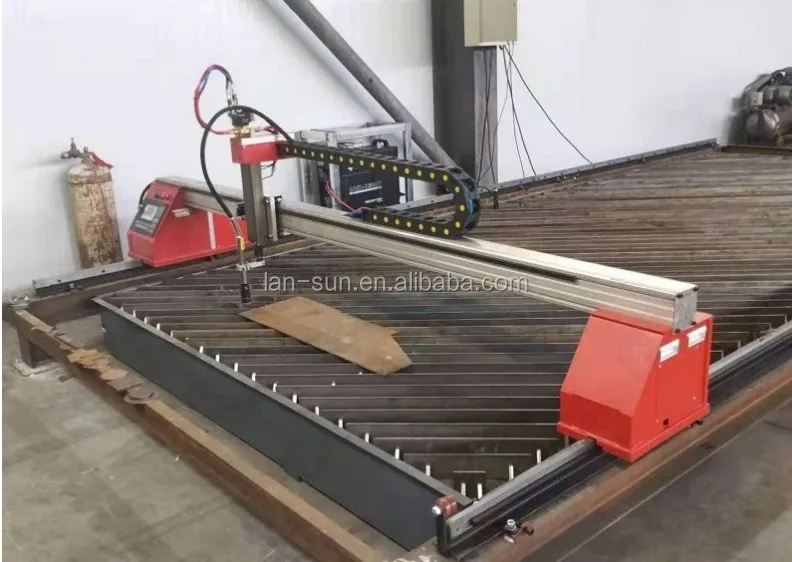

Product Picture
Portable Cnc Cutting Machine Picture Show:
Technical Data
Portable Cnc Cutting Machine Parameter
1,Flame cutting: Suitable for cutting carbon steel larger than 20mm;
2,Plasma cutting:Plasma cutting cost is 1/3~1/2 of flame cutting;So the plasma is suitable for cutting carbon steel within 20mm;
3,Stainless steel, aluminum or galvanized sheet etc materials suitable for plasma cutting.
Main Technical Performance Indexes of products | |
Model | ZLQ-14B |
Effective Cutting area (mm) | 1500x3000 1500x4000 1500x6000 |
Cutting Thickness(mm) | Flame:5-60mm, Plasma:1-25mm |
Cutting Speed (mm/min) | 50-3800 |
Running speed (mm/min) | 12000 |
Cutting Mode | Flame/plasma/flame and plasma |
Drive Motor Number | stepper motor , single-side |
Cutting Torch Number | Customize according user’s need |
NC Controller | LANSUN or Shanghai Or Beijing |
Programming software | Startcam or Fastcam |
Operation language | English or Chinese or Russian |
Voltage | 220V/380V |
Plasma generator | 63A,100A ,120A , 200A ect . China , USA brand |
Power voltage | 3×380V±10% or up by user’s local condition |
Surroundings | Ventilation, no big shake |
Humidity | <90%, no condensation |
Working temperature | - 10°C -45°C |
Detailed Pictures
 | CNC System English , Russian , Spanish and Chinese etc languages can switch, execute, display; |
Main FeaturesCutting mode: flame or plasma or flame & plasma; Flame cutting thickness: 5-60mm(edge:120mm); Plasma cutting thickness:1-25mm; according to the plasma generator: LGK63A:1-5mm; LGK100A:1-15mm; LGK120A:1-18mm;LGK200A:1-25mm. |  |
 | Machine Parts : Guide rail
Aluminum unitary guide rail , more stable for machine running . |
Application
Portable Cnc Cutting Machine Application and Sample Shows:
Applicable Industries: heavy industries, pipe, sheet plates, shipbuilding industry and other industries
Applicable Materials: steel, iron, copper, galvanized sheet, plated steel and other electrically conductive material.
Package & Delivery
Packaging Details: The normal package is wooden box. The wooden box will be fumigated.
Delivery time: 1-3 working days after receiving deposit.
FAQ
1. Are you factory or foreign trade company?
We are over 17 years experienced manufacturers, large-scale production of CNC cutting machine.
2. Where is your factory located? How can I visit there?
Our factory is located in Wuhan, Hubei. We will meet you at airport or train station. Warmly welcome to visit us!
3. What's the quality of your products?
We are very focused on the quality of the products, All spare parts of this machine come with best brand and best quality, after completing the installation we will test the machine for 48 hours. Our factory has gained CE, ISO9001 authentication.
4. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day.
5. What other things also need after we bought your machines?
(1) With flame cutting: oxygen and fuel gas.
(2) With plasma cutting: air compressor. Plasma power is purchased by us, so that we can debug online, and we all need very good plasma power to ensure quality.
6. What are your payment terms?
We support T/T, L/C, Western Union, Alibaba Trade Assurance and so on. Other ways can also be received after we both sides discussion and agreement.
