4SSC4.5/165-D72/1000 высокоголовочная Солнечная насосная система для


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.75 $* 0.64 $*
Aug-16-2025 0.53 $* 0.57 $*
Jul-16-2025 0.90 $* 0.72 $*
Jun-16-2025 0.16 $* 0.1 $*
May-16-2025 0.20 $* 0.77 $*
Apr-16-2025 0.63 $* 0.69 $*
Mar-16-2025 0.4 $* 0.17 $*
Feb-16-2025 0.69 $* 0.84 $*
Jan-16-2025 0.58 $* 0.53 $*

Характеристики


MODEL SELECTION
\t
NO.
\t
Outline
\t
Max. Head
\t
Max. Flow
\t
Model
\t
Discharge
\t
Voltage
\t
Pump Power
\t
inch
\t
Mtrs.
\t
m3/hr
\t
inch
\t
VDC
\t
HP
\t
kW
\t
01
\t
4
\t
35
\t
4
\t
4SSC4.0/35-D36/450
\t
1.25''
\t
36
\t
0.6
\t
0.45
\t
02
\t
4
\t
42
\t
4
\t
4SSC4.0/42-D36/500
\t
1.25''
\t
36
\t
0.7
\t
0.5
\t
03
\t
4
\t
125
\t
4.2
\t
4SSC4.2/125-D72/1000
\t
1.25''
\t
72
\t
1.3
\t
1
\t
04
\t
4
\t
140
\t
5
\t
4SSC5/140-D90/1300
\t
1.25''
\t
90
\t
2.0
\t
1.3
\t
05
\t
4
\t
170
\t
5
\t
4SSC5/170-D90/1200
\t
1.25''
\t
90
\t
1.6
\t
1.2
\t
06
\t
4
\t
190
\t
5
\t
4SSC5/190-E90/1350
\t
1.25''
\t
90
\t
2.0
\t
1.35
\t
07
\t
4
\t
85
\t
6
\t
4SSC6/85-D60/750
\t
1.25''
\t
48/60
\t
1.0
\t
0.75
\t
08
\t
4
\t
140
\t
6
\t
4SSC6/140-D90/1350
\t
1.25''
\t
90
\t
2.0
\t
1.35
\t
09
\t
4
\t
158
\t
6.6
\t
4SSC6.6/158-D90/1300
\t
1.5''
\t
90
\t
2.0
\t
1.3
\t
10
\t
4
\t
90
\t
7
\t
4SSC7/90-D90/1300
\t
1.5''
\t
90
\t
2.0
\t
1.3
\t
11
\t
4
\t
120
\t
7
\t
4SSC7/120-D90/1350
\t
1.5''
\t
90
\t
2.0
\t
1.35
\t
12
\t
4
\t
65
\t
8
\t
4SSC8/65-D60/750
\t
1.5''
\t
48/60
\t
1.0
\t
0.75
\t
13
\t
4
\t
80
\t
8
\t
4SSC8/80-E72/1200
\t
1.5''
\t
72
\t
1.6
\t
1.2
\t
14
\t
4
\t
120
\t
8
\t
4SSC8/120-D90/1350
\t
1.5''
\t
90
\t
2.0
\t
1.35
\t
15
\t
4
\t
40
\t
12
\t
4SSC12/40-D72/1100
\t
2''
\t
72
\t
1.5
\t
1.1
WE WANNA KNOW FROM YOU-

1) What's the water source? How's the water quality?
2) Flow rate per day or per hour?
3) What's the vertical head?

4) What's the horizontal distance between water source and application?

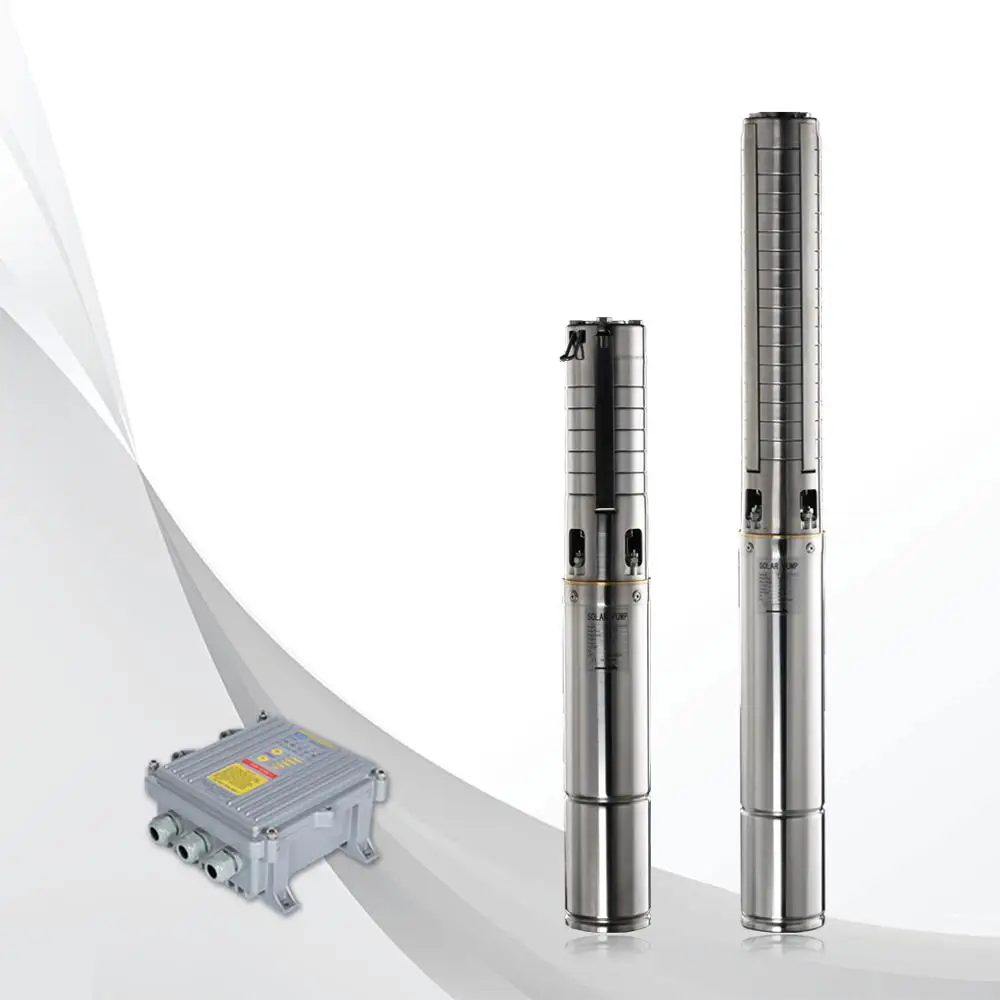

PUMP DETAILS

Discharge (Outlet)

Material: AISI 304 SS



Impeller

Material: AISI 304 SS


Pump Body & Filter

AISI 304 SS

Motor Rotor

Shaft - AISI 304 SS


Rotor laminationQuantity is totally enough for corresponding motor power


Magnetic steel - N35UH NdFeB Magnet

Motor Stator

Reinforced plastic bobbin


100% enamelled copper wire


Stator lamination - Quantity is totally enough for corresponding motor power

Motor Pressure Test

Motor oil leakage test

5KGS pressure

90 seconds

Twice

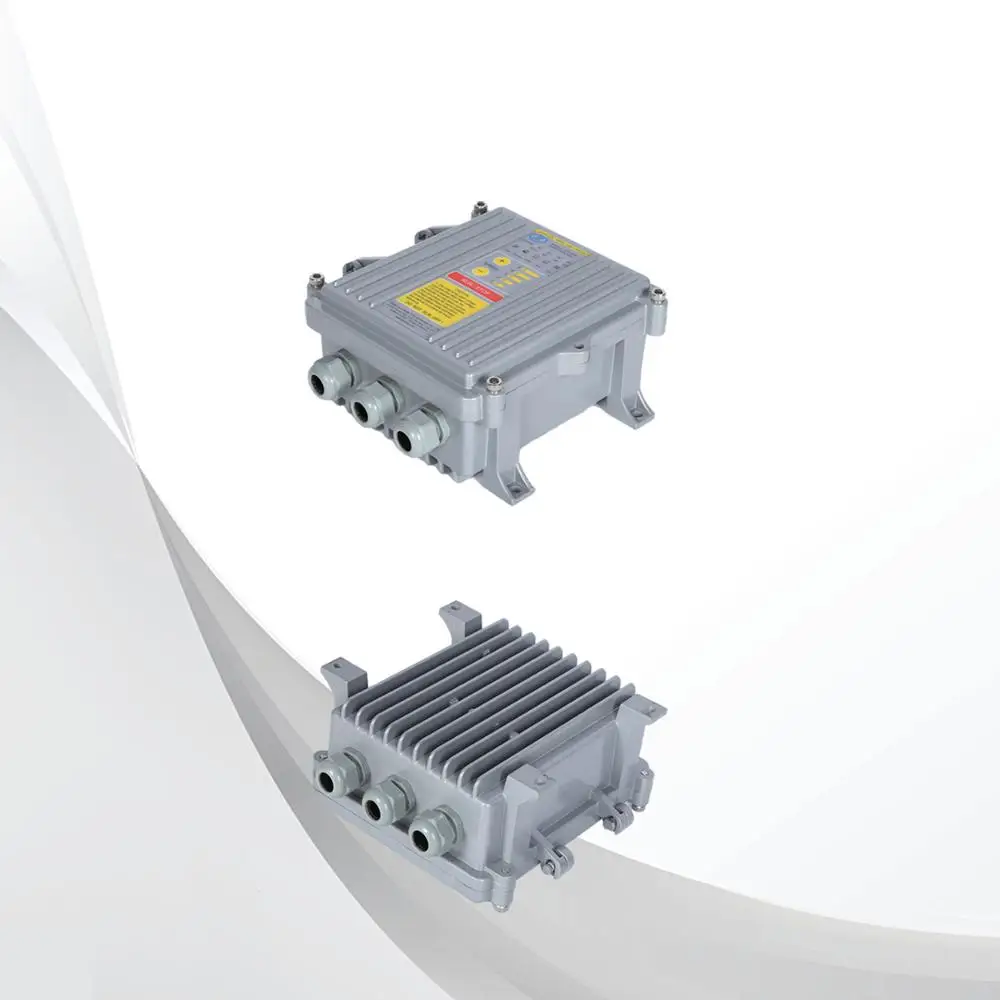

CONTROLLER DETAILS


 Controller Shell

 ◆ Material - Die-cast aluminum                                                    ◆ Protection degree - IP54

 ◆ Unique design with patent                                                        ◆ Good heat dissipassion

Cable joint

Lockhole

Mounting holes

Automatic SMT line

      Burn-in test for 72 hours

FREE PARTS
\t
ITEMS
\t
QUANTITY
\t
Spare screw
\t
1
\t
Float switch for water source
\t
1
\t
Tank level sensors
\t
3
\t
Heat-shrinkable tube
\t
1
\t
Terminals
\t
5
\t
Allen key
\t
1
APPLICATIONS

Solar pumping system serves to provide water in remote applications where electrical grid power is either unreliable or unavailable. BLDC solar pump controller can direct use the DC power from PV array, and drive the brushless DC pumps. In sunny days, the pumping system can continuously pump water. There is no need of batteries or other energy storage devices. It's recommended to pump water to a reservoir for storage.

A float switch can be installed in the water tower to control the pump operation. And install a low-level probe in well to detect the well water so that pump will stop when there is no water. Below diagram shows a typical diagram of the solar pumping system, including major parts and components.

◆ Drinking water, livestock water, village or family water supply
◆ Agricultural irrigation / Greenhouse irrigation
◆ Garden / Courtyard irrigation
◆ Swimming pool circulation
◆ Desertification / Barren control
◆ Tank / Cistern filling
◆ Water supply for bivouac or camping car
◆ Fountains
◆ Large scale watering system for commercial establishments

PACKING & DELIVERY

Strong plywood cases

Plastic film

Column air bag

Clear model name print
