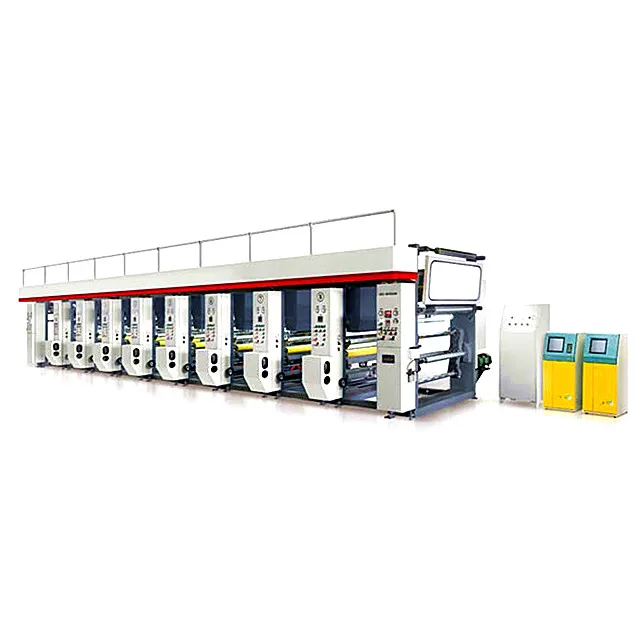

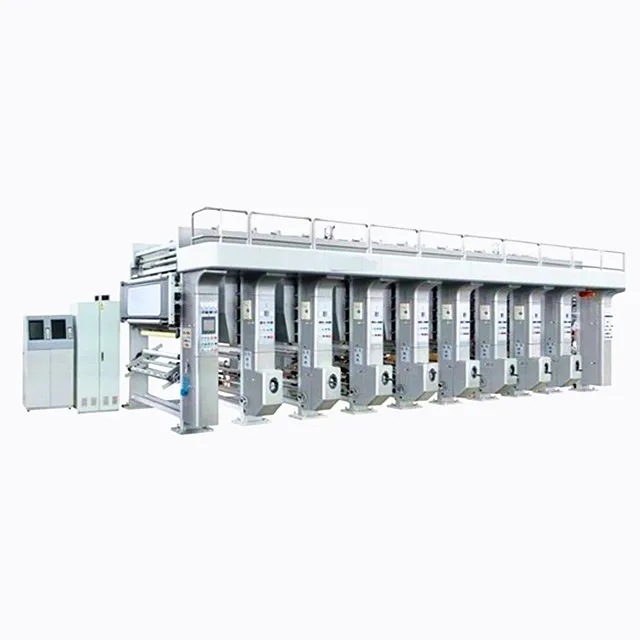

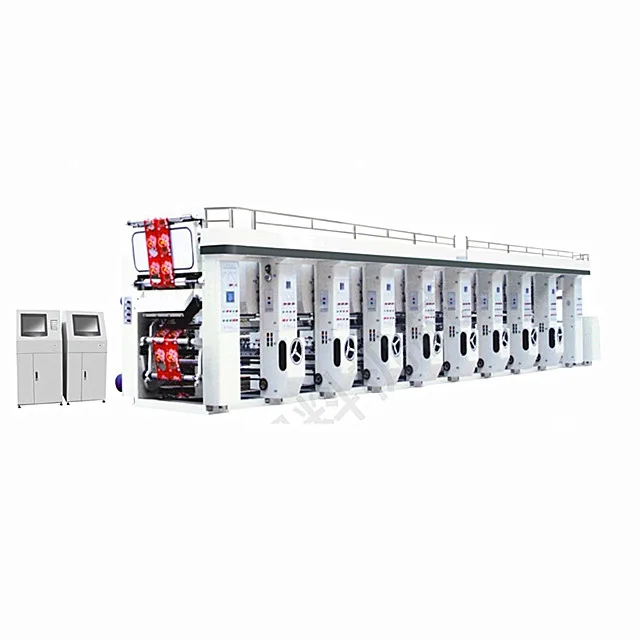

2019 Ruian HuaRui Multi Color Computer Control Rotogravure Printing Machine Manufacture From

2019 Ruian HuaRui Multi Color Computer Control Rotogravure Printing Machine Manufacture From

Категория: Машины для ротационной глубокой печати >>>
Поставщик: Ruian,Huarui,Plastic,Machinery,Co.,Ltd.

Цена:421 892,24 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	502051.83 $*	527154.28 $*
Aug-20-2025	497833.13 $*	522725.15 $*
Jul-20-2025	417673.57 $*	438557.7 $*
Jun-20-2025	489395.44 $*	513865.82 $*
May-20-2025	426111.64 $*	447417.14 $*
Apr-20-2025	480957.78 $*	505005.2 $*
Mar-20-2025	476738.64 $*	500575.80 $*
Feb-20-2025	472519.25 $*	496145.78 $*
Jan-20-2025	468300.50 $*	491715.8 $*

Характеристики

Product Description

Product Application

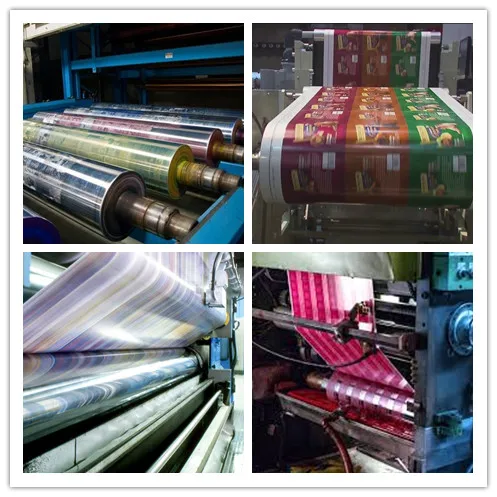

The machine is used for BOPP,PET,PVC,PE Rolling Paper etc with good printing performance of rolling material got multi-color continuous printing.
Printing color unit can be increased or decreased according to the customers ,requirement with composite style,the printing can be finished one time continuously with both sides,with 360 degree of installment equip.ease of operation and stability ,the parts of transmission is adopted with gear structure with full sealing lubrication,the tension system is adopted with magnetic powder clutch controller, the parts of rewinding is adopted with torque motor ,with double oven passage design ,fast drying ,fast printing ,winding and rewiding are both double working mechanisms to make the material complete with non-stop.

Model	HRASY-600M	HRASY-800M	HRASY-1000M
Max Print Width	600mm	800mm	1000mm
Print Speed	60-100m/min	60-100m/min	60-100m/min
Machine Speed	120m/min	120m/min	120m/min
Precision	<0.15mm	<0.15mm	<0.15mm
Print Length	200-1250mm	200-1250mm	200-1250mm
Unwind Diameter	600mm	600mm	600mm
Rewind Diameter	600mm	600mm	600mm
Plate Thickness	120-350mm	120-350mm	120-350mm
Tension Range	2-30kg	2-30kg	2-30kg
Fan Blower	1.2kw/unit	1.2kw/unit	1.2kw/unit
Main Motor	11kw	15kw	18.5kw
Traction Motor	2.2kw	2.2kw	2.2kw
Air Source	0.8Mpa	0.8Mpa	0.8Mpa
Overall Dimension(LWH)	2.822.5m	2.82.22.5m	2.82.42.5m

Main Features

1. Independent tower type double arm duplex position slewing and wall rack combination.

2. Independent driving control system: Digital AC frequency control system.

3. Auto alarm change materials, new material auto driving at the same speed with main machine, automatic reel cutting and splicing, automatic adhesive tape position detection, alarm before reel changing,

4. High speed non-stop change material, automatic receiving and cutting in unwinding and rewinding without stopping, save time and improve efficiency.

5.AC control active unwinding, zero tension control, have steady output in both low or high speed. Pneumatic double-shaft blade, mobile range:±6mm. Achieve up-down registered, steady and fast high yield.

6. High-sensitivity tension closed loop control system, international brand float roll tension cylinder.

7. Install printing cylinder without shaft, tension controlled by dancer-roller, automatic rewinding tension weakening. Automatic vertical registration, pre-registration before printing, advanced ink-transferring roller system, centralized control by PLC and Human-machine interface.

8. Independent heating system in every color unit and water-cooling roller system.

9. Intelligent continuous constant temperature control, outside separate heat system.

10. Luxury and mannerly appearance design , wind insert closed oven.

11.Four float roll and seven-motor synchronous control in closed loop, international brand motor and vector frequency converter.

12..Driven by immersed-oil type pressurize gear box, which make the machine run more smooth.

13. Seven motors inverter control, shaftless pneumatic clamp for plate installation, two-position non-stop reel changing without speed changing, embossing rubber roller point-up and cylinder auto lock function.

14.Exact double lead screws and pre-register structure, electric lateral registration, high static picture and accuracy register system.

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* 24hours consulting service.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	1.2 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
