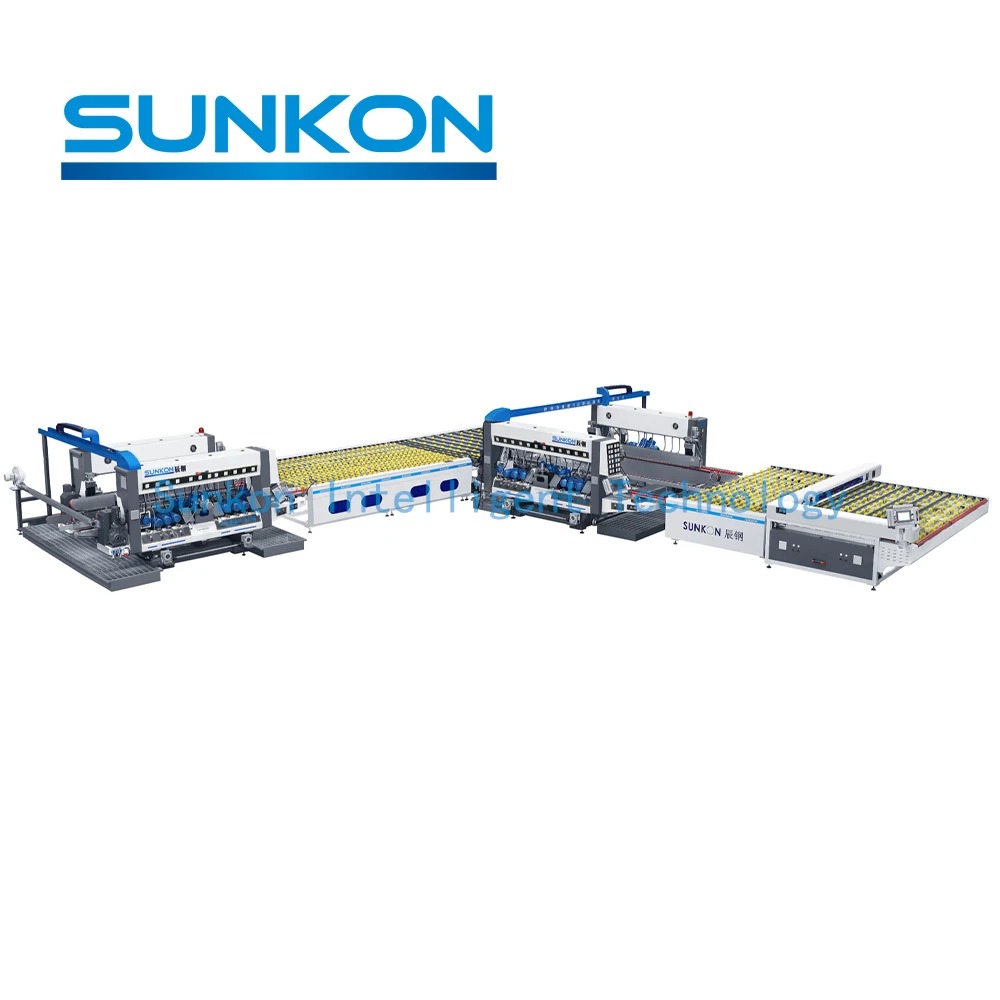

20 22 24 шпинделя стеклянная прямая линия производственная с двойной кромкой и автоматическим переводным столом L-образной
- Категория: Glass Processing Machinery >>>
- Поставщик: Cgtech,Glass,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.73 $* | 0.11 $* |
| Aug-16-2025 | 0.65 $* | 0.11 $* |
| Jul-16-2025 | 0.0 $* | 0.10 $* |
| Jun-16-2025 | 0.36 $* | 0.74 $* |
| May-16-2025 | 0.38 $* | 0.7 $* |
| Apr-16-2025 | 0.46 $* | 0.70 $* |
| Mar-16-2025 | 0.96 $* | 0.11 $* |
| Feb-16-2025 | 0.64 $* | 0.14 $* |
| Jan-16-2025 | 0.56 $* | 0.17 $* |
Характеристики
Product Description
The Brand-new design makes the machine looks smart and practical.
Is suitable forprocessing furniture glass, architecture glass which need high quality of polishinghigh precision.
The machine adopts high precision transmiss structure with two liner guiding rail and twoball screw rods.
It is equipped with PLC system and human-computer surface to guarantee convenient operation.
Glass Straight Line Double Edging Machine is an economic, efficient, practical and reliable equipment, which is researched & developed independently by SUNKON company. Suitable for furniture, construction and other type of flat glass processing.
Model | CGSZ2242+CZT4225+ CGSZ2225 | Min.Glass size for the rotation of the working table | 350*350mm |
Thickness of glass | 3~25mm | Glass paralle tolerance | ≤0.5mm/m |
Min.Width glass size | 350*350mm | Speed of size changing | 700m/min |
Max.Width glass size | 4200*2500mm | Height of working table | 920±20mm |
Glass diagonal tolerance | ≤0.2mm/m | Processing speed | 1-6.8m/min |
Max.Grinding quantity of chamfer | 1-3mm | Air pressure | 0.4-0.6Mpa |
Max.Grinding quantity of bottom edge | 1-2mm | Total power | 106KW,380V/50HZ |
Detailed Images
Transmission structure
The flange adopts double ball screw and linear guide, which has fast width adjustment, precise position and good reset.
Base
The base is made of cast iron annealed, the box is made of stainless steel, and the closed structure has good waterproof performance.
Lateral fixation
The conveying plate is made of high-quality carbon steel, which is annealed and not easily deformed.
Secondary positioning mechanism
Automatic adjustment of the belt for easy adjustment and maintenance.
Main transmission mechanism
The bearing is waterproof, not easy to damage and durable. Directional wheel replacement is quick and easy.
PLC
It adopts man-machine interface and PLC control system, which is easy to operate and can be operated in just one hour of teaching.
Our Company
SUNKON (CGTECH) GLASS MACHINERY CO., LTD., which is a leading manufacturer for Glass deep-processing machinery in China. We are capable of supplying high performance Glass Machines with competitive cost, also the excellent after-sales service. Well-trained engineers will offer you any technical support.
Furthermore, every spare parts after strictly inspected before assemble and make sure every one set machine debugging well before ex-factory.
Our machine is approved by CE rated and our factory is approved the inspection by SGS. OEM & ODM orders are acceptable as well. We hope to cooperate with you and export our machine to all over the world.
SUNKON (CGTECH) on glass exhibitions in China / America / Turkey / Germany/ Singapore, etc.
Certifications
Packing & Delivery
Packing Details : Film packing/wooden package.
Delivery Details : 30 days
Delivery Details : 30 days
FAQ
1.What's the guarantee?
(1)The whole set of machine warranty period is 1 year.
(2)24 hours technical support by email or calling.
(3)English instruction manual . Free training provides. Our engineers are available to go overseas to help you install and debug your machine.
(4)We will provide the consumable parts at an agency price.
2.Why your price is higher than another company or factory?
We use world famous brands of electrical parts with longer usage life. Our strong engineers have more than 10 years of R&D experience in this field, we always use mature structure/design of our machines.
3.How long is the delivery time?
Normally its 20 to 45 days.
4.If I want to use some certificates to pay less tax for importing your machines,can you help me?
We can make the different Certification of Origin, it will make you to pay the less tax if you import our machines.
(1)The whole set of machine warranty period is 1 year.
(2)24 hours technical support by email or calling.
(3)English instruction manual . Free training provides. Our engineers are available to go overseas to help you install and debug your machine.
(4)We will provide the consumable parts at an agency price.
2.Why your price is higher than another company or factory?
We use world famous brands of electrical parts with longer usage life. Our strong engineers have more than 10 years of R&D experience in this field, we always use mature structure/design of our machines.
3.How long is the delivery time?
Normally its 20 to 45 days.
4.If I want to use some certificates to pay less tax for importing your machines,can you help me?
We can make the different Certification of Origin, it will make you to pay the less tax if you import our machines.
