17 дюймов УВИДЕЛ сенсорный экран Elo полностью в металлическом корпусе с открытой рамкой монитор сердечного

17 дюймов УВИДЕЛ сенсорный экран Elo полностью в металлическом корпусе с открытой рамкой монитор сердечного

Категория: Сенсорные мониторы >>>
Поставщик: Leadingtouch,Technology,Co.,Ltd.

Цена:150,00 $ - 155,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	179.42 $*	188.57 $*
Aug-17-2025	177.59 $*	186.61 $*
Jul-17-2025	149.50 $*	156.1 $*
Jun-17-2025	174.17 $*	183.95 $*
May-17-2025	152.51 $*	160.9 $*
Apr-17-2025	171.92 $*	180.25 $*
Mar-17-2025	170.26 $*	179.41 $*
Feb-17-2025	168.49 $*	176.62 $*
Jan-17-2025	167.89 $*	175.15 $*

Характеристики

Product Description

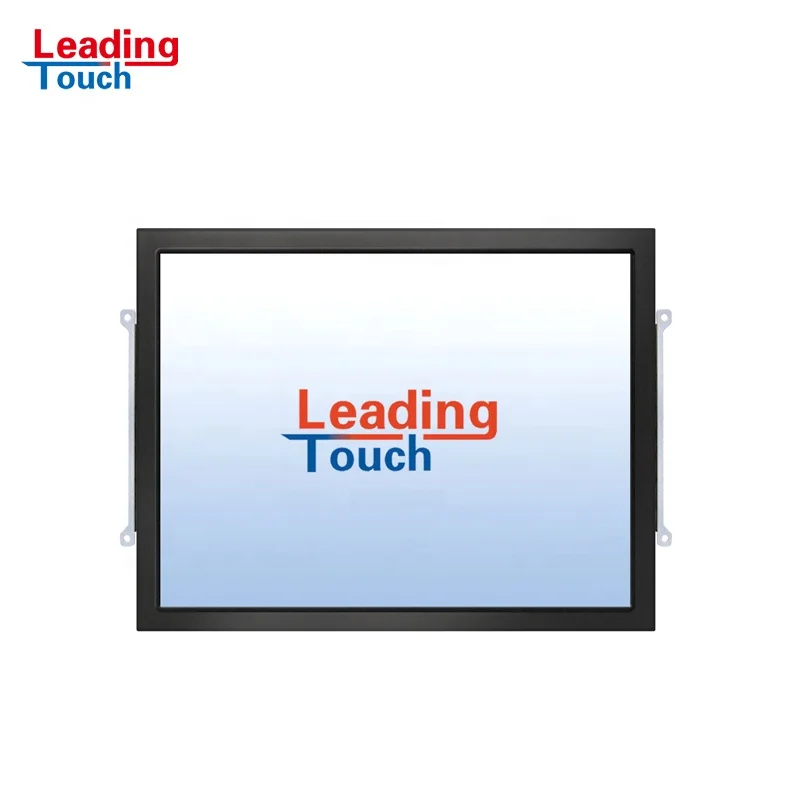

17" Open Frame Touch Monitor

TM-1739 series are designed for space saving and easy mounting integrations. The rear-mount configuration along with optional side mounting brackets would enable you to easily customize into Kiosks, cabinets, in-wall as well as other enclosures.

TM-1739 series will have LeadingTouch Combo controller with dual touch ports for convenience and flexibility. It will enable you to use both the Serial RS-232 as well as USB port for your touchscreen application.

LeadingTouch Rear Mount LCD's touch monitors are designed for easy integration info kiosk, gaming machine, industrial enclosure and other installations where compact, touch-integrated display are preferred.

Features

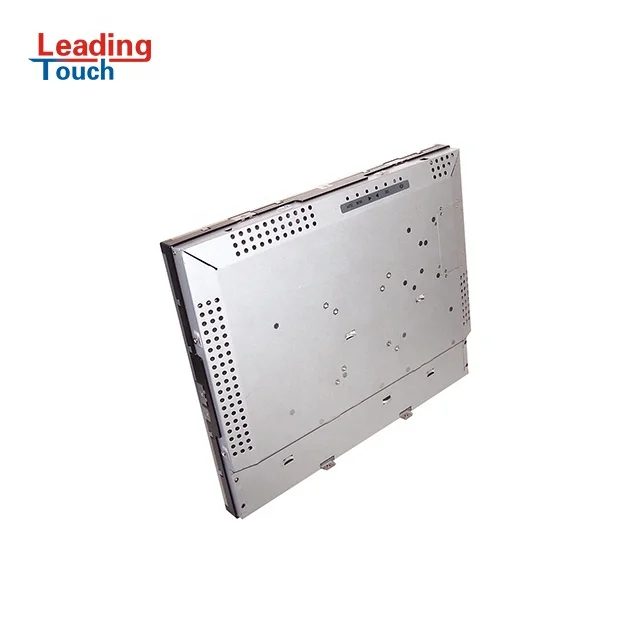

Rear Mount

Rear-mount Standard VESA hole as mounting option

Detachable cables for easy cable harnessing

Multilingual and detachable On-Screen display (OSD)

Super-sensitive, drift-free, precise touch with no overlay

Worldwide agency approvals

Slim profile with unique narrow boarder

Optional mounting brackets (Front, side or rear)

Single power supply for all optional devices

Combo Serial and USB touch interface

Long-Lasting product cycle

Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.

\t TM-1739 17" Open Frame Touch Monitor Specification
\t Model	\t TM-1739-G402D1
\t Description	\t 17" Rear-Mount Surface Acoustic Wave(SAW) Touch Monitor
\t Case/Bezel Color	\t Black
\t Display	\t 5:4 Active Matrix TFT LCD
\t Optimal (native) Resolution	\t 1280×1024 @60Hz
\t Sychronization Range	\t Horizontal: 30 -80 KHz, Vertical:60 -75 Hz
\t Useful Screen Area	\t 338mm × 270mm
\t Colors	\t 16.7 M
\t Brightness	\t 250 cd/m2
\t Pixel Pitch	\t 0.264 × 0.264 mm
\t Response Time	\t 5ms (Typically)
\t Contrast Ratio	\t 1000:1 (Typical)
\t Viewing Angle(CR≥10)	\t Horizontal: ±85° or 170° total; Vertical: ±80° or 160° total
\t Backlight Lamp Life	\t 50000 hrs
\t Input Video Format	\t VGA / DVI Options
\t Input Video Signal Connector	\t VGA/ DVI Options
\t On Screen Display(OSD)	\t Controls (back): ON/OFF，MENU，LEFT，RIGHT，SEL，AUTO
\t On Screen Display(OSD)	\t Remote OSD with 1.2m Cable
\t Touch Technology	\t LeadingTouch Surface Acoustic Wave (SAW) touch technology
\t Touch Interface	\t Dual RS232 & USB touch interface
\t Protected Level	\t Standard dust proof, IP65 (front bezel) options
\t OS and Driver	\t Windows XP, Windows 7/8/10 and Linux, android, Elo drive or LeadingTouch driver
\t Mounting Options	\t VESA Mount (75mm or 100mm) , Side Mount or Front Mount with optional bracket
\t Power Supply	\t DC:+12VDC ± 5%
\t Power Supply	\t External Adapter: 100-240VAC, 50-60Hz
\t Power Consumption	\t 36W Max
\t Temperature Range	\t Operating: 0℃ to 50℃; Storage: -20℃ to 60℃
\t Humidity Range (no condensing)	\t Operating: 20%-80%; Storage: 10%-90%
\t Dimension and Weight	\t Touch Monitor 368 x 306 x 48mm 4.7KGS
\t Warranty	\t 1 year
\t Agency Approvals	\t CCC, FCC, CE, RoHS

Packing & Delivery

PCAP (Project Capacitive)

Open Frame Touch Monitor

Infrared (IR)

Open Frame Touch Monitor

Resistive

Open Frame Touch Monitor

Certifications

Our Company

Founded in 2001, LeadingTouch, the global leader in touch technology, develops, manufactures and markets a complete line of touch screen and touch monitor products, with PCAP, SAW, Infrared, Resistive touch technology. LeadingTouch offers the largest selection of touch screen technologies and LCD touch monitors and carefully designs each product for the demanding requirements of diverse applications, such as Industrial, Medical, POS, Kiosks, Retail, Hospital, Transportation, Office Automation, and Gaming.

FAQ

Q: How to calibrate touchscreen
1. Finish driver installation and click LeadingTouchSetup icon in desk, then select calibration menu and do
4points calibration.
2. Enter "Start"-"Program"-“leadingtouch”—“touchsetup”— “Caliberate”, then touch the 4points shown in
screen to finish calibration.

Q: How to uninstall driver?
1. Enter “Start”----“programmer”----“Leadingtouch” ----“Uninstall” to uninstall driver and restart computer
to effective your operation.
2. Enter “Start”----“Settings”----“Control panel” ----“Add/Delete Program”----“Leadingtouch Driver for
windows” to uninstall driver and restart computer to effective your operation.
