Беспроводная мини-ленточная пила для резки металла
US $409.00-$449.00
Вертикальная ленточная пила GV5360/100-600 машина для резки металла гидравлическая натяжения лезвий листовая промышленность Китай 11
- Категория: Band Saw Machines >>>
- Поставщик: Zhejiang,Weilishi,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 69020.27 $* | 72471.18 $* |
| Aug-16-2025 | 68440.45 $* | 71862.9 $* |
| Jul-16-2025 | 57420.34 $* | 60291.89 $* |
| Jun-16-2025 | 67280.53 $* | 70644.84 $* |
| May-16-2025 | 58580.0 $* | 61509.10 $* |
| Apr-16-2025 | 66120.43 $* | 69426.37 $* |
| Mar-16-2025 | 65540.55 $* | 68817.2 $* |
| Feb-16-2025 | 64960.45 $* | 68208.25 $* |
| Jan-16-2025 | 64380.73 $* | 67599.57 $* |
Характеристики
Product Description
Product Application
GV5360/ 100-600 is medium-sized block vertical band sawing machine. It is mainly used for cutting module & die stock and steel plate of medium thickness. The frame moves along level direction, occupation of small land area. Feed speed is adjustment; the performance of low feed speed system is stable. Greater rigidity and strength and with good band tension, which is necessary for fast and accurate cuts.
SPECIFICATIONS FOR VERTICAL BANDSAW MACHINE GV5360/100-600 | ||||||
Cutting Capacity | L*W*H 600*100*60cm | Power | 11KW 1440r/min | |||
Cutting Speed | 0-60 m/ min inverter | Feeding Motor Power | 3.75 KW | |||
Saw Frame Feed Speed | Variable in 0.1-50 mm/min | Coolant Motor Power | 120W | |||
Blade Tension | Hydraulic | Guide Arm | Hydraulic | |||
Hydraulic Tank | 170L | Coolant Tank | 182L | |||
Hydraulic Feeding Travel (LIFTING FUNCTION) | 400mm | Hydraulic System Pressure | 4.5-5.5MPa | |||
Size of Machine | 8000*5100*3500mm LxWxH | Net weight of machine body | 9200 KGS | |||
Net weight of saw beam | 4500 KGS | Net weight of feeding table | 7500KGS | |||
Gross weight of machine | 21200KGS | Specification of blade saw | 54*1.6mm | |||
Main Features
A. Hydraulic blade tensioning device
B. Blade break detector sensor
C. Deviation sensor and auto adjustment
D. Driving brush.
E. Servo motor for feeding blade
F. Controller screen and PLC
G. Three saw wheel structure is more stable

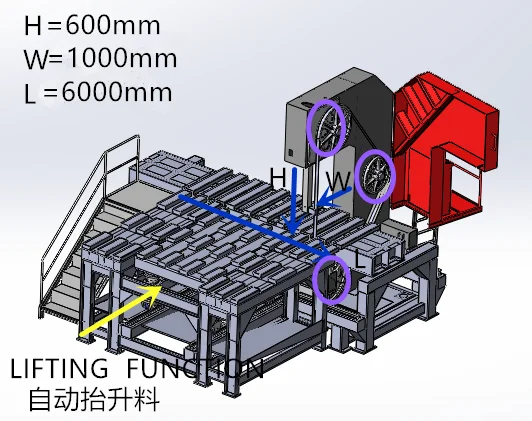

H. Feeding table with lifting function
Certifications

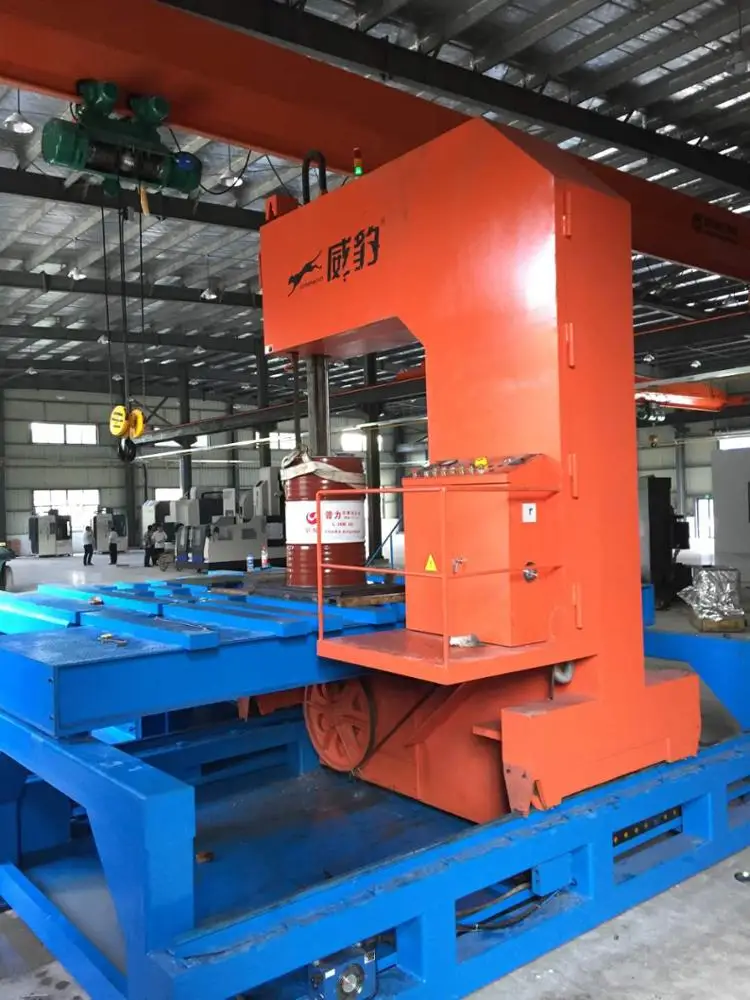

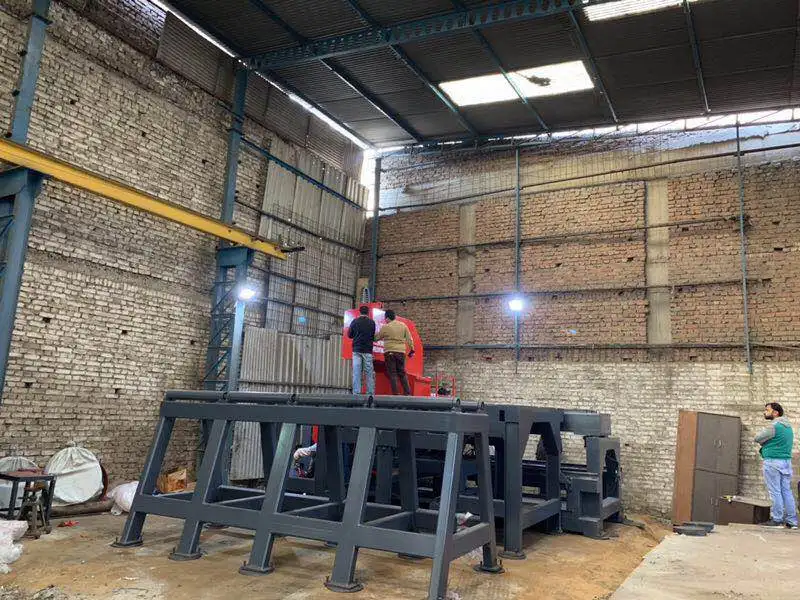

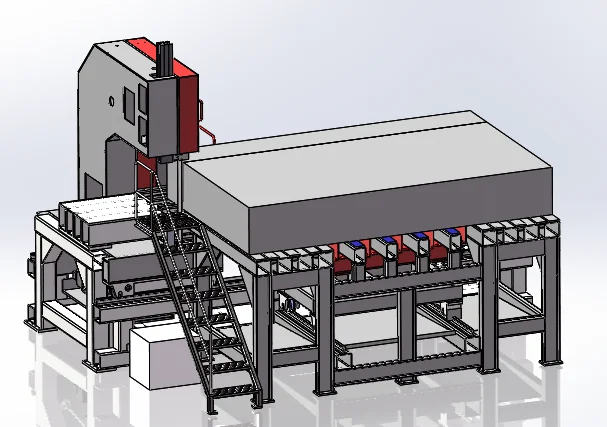

Detailed Images
Machine Parts---Control Panel
Machine Parts---Touch Screen
Machine Parts--Out Feeding Table with Lifting Function
Machine Parts-Deviation Sensor
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 800 (L) * 510 (W) * 350 (D) | |
Weight | 22.2 T | |
Packaging Details | Three parts 2 pc 40HQ | |
