CNPNJI Белый Нейлоновый Винт Пластиковые Заглушки для отверстий стоп-заглушка штепсельная
- Категория: Cable Glands >>>
- Поставщик: Shanghai,Pinji,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.18 $* | 0.15 $* |
| Aug-16-2025 | 0.93 $* | 0.30 $* |
| Jul-16-2025 | 0.53 $* | 0.68 $* |
| Jun-16-2025 | 0.11 $* | 0.81 $* |
| May-16-2025 | 0.10 $* | 0.36 $* |
| Apr-16-2025 | 0.1 $* | 0.84 $* |
| Mar-16-2025 | 0.36 $* | 0.94 $* |
| Feb-16-2025 | 0.29 $* | 0.31 $* |
| Jan-16-2025 | 0.17 $* | 0.24 $* |
Характеристики
High Quality Plastic cable gland mold cable screw plug blind plug

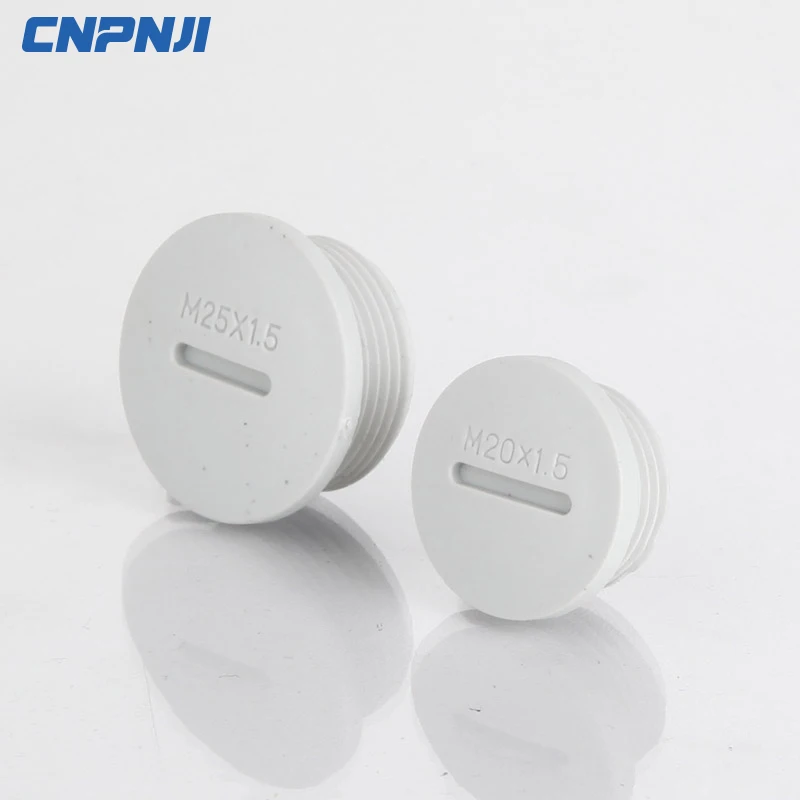

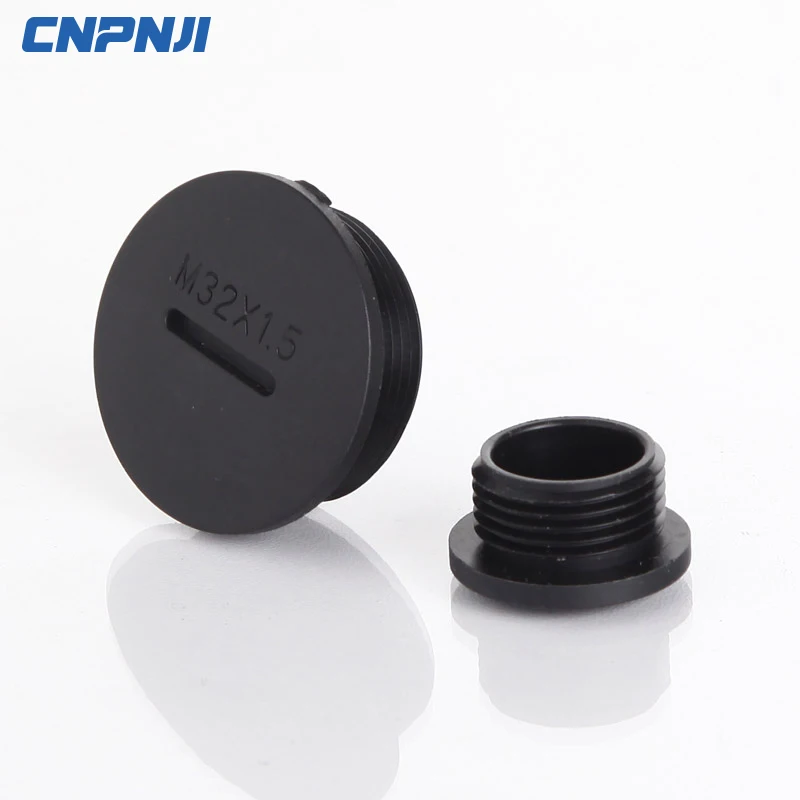

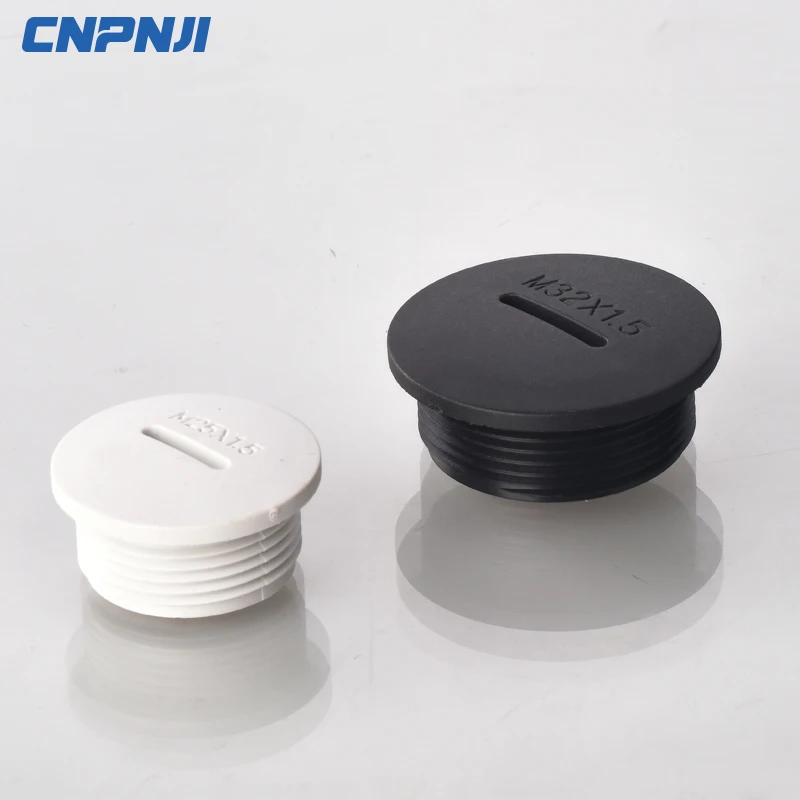

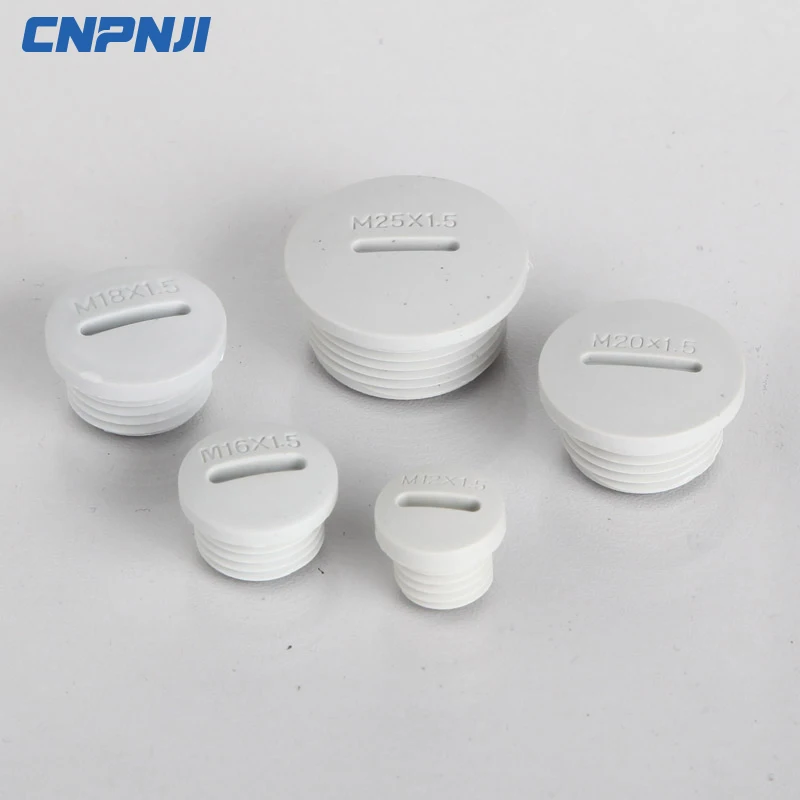

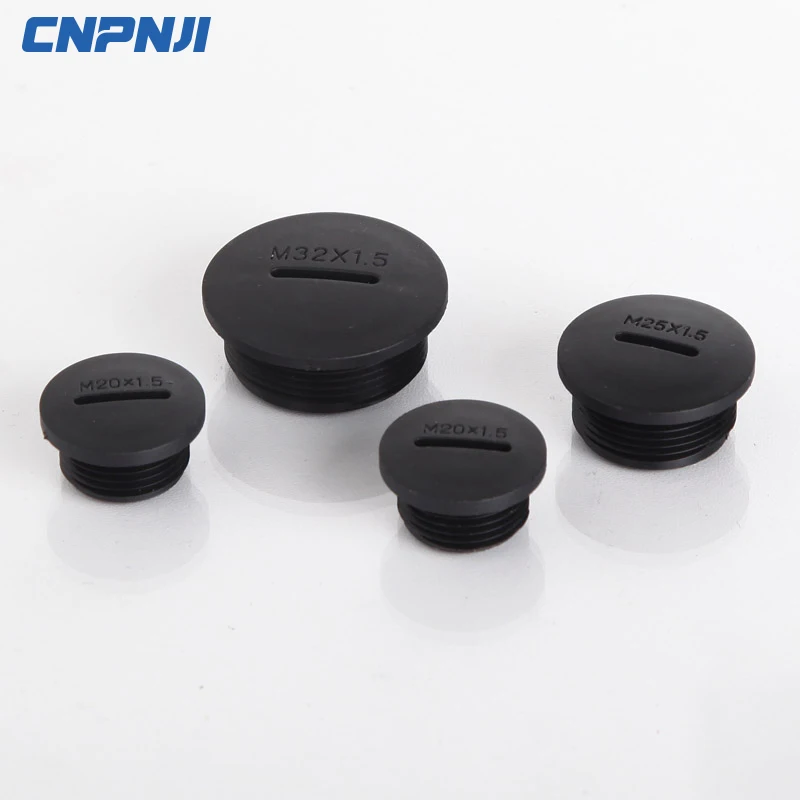

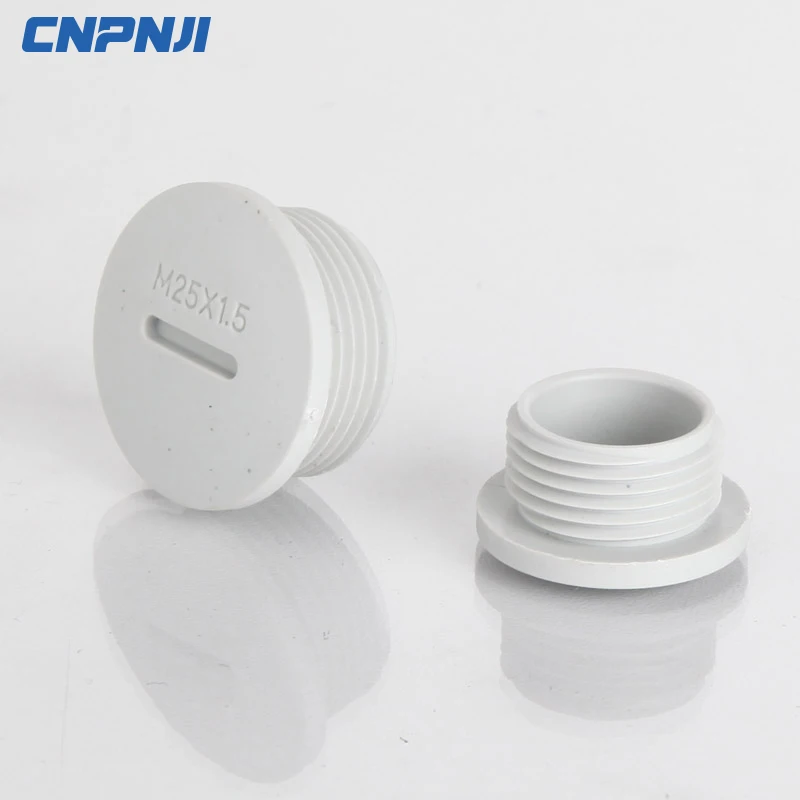

1. Pictures Of IP68 Cable Gland Plug
2. Specification Of IP68 Cable Gland Plug
| Standard Thread | Metric,PG |
| Fresh Material | Nylon PA66(Flammability UL 94V-2) |
| IP Protection | IP68 (10 Bar) |
| Working Temperature | Static:-40 °C to +100 °C ,short time can be reach +120 °C |
| Dynamic:-20 °C to +80 °C ,short time can up to +100 °C | |
| Color | Gray,Black,Other colors customized. |
| MOQ | Small orders accept |
| Own Mold | Design new mold for customer's specail size |
| Packaging Details | A.Common Packing:polybag + label + export carton |
| Certification | Halogen-Free,CE,ROHS,SGS,IP68,PAHS. |
3. Exploded View And Applications Of IP68 Cable Gland Plug
| Type | AG(mm) | GL(mm) | D(mm) |
| PG7 | 12.5 | 9.5 | 16.5 |
| PG9 | 15.2 | 9.5 | 19.2 |
| PG11 | 18.6 | 10 | 22.6 |
| PG13.5 | 20.4 | 11 | 24.4 |
| PG16 | 22.5 | 11 | 26.5 |
| PG21 | 28.3 | 11 | 32.3 |
| PG29 | 37 | 12 | 33 |
| PG36 | 47 | 12 | 53 |
| PG42 | 54 | 12 | 60 |
| PG48 | 59.3 | 12 | 65.3 |
| M12×1.5 | 12 | 9.5 | 16 |
| M16×1.5 | 16 | 10 | 20 |
| M18×1.5 | 18 | 11 | 22 |
| M20×1.5 | 20 | 11 | 24 |
| M22×1.5 | 22 | 11 | 26 |
| M25×1.5 | 25 | 11 | 29 |
| M27×1.5 | 27 | 11 | 33 |
| M32×1.5 | 32 | 11 | 38 |
| M40×1.5 | 40 | 12 | 46 |
| M50×1.5 | 50 | 12 | 56 |
| M63×1.5 | 63 | 12 | 69 |
