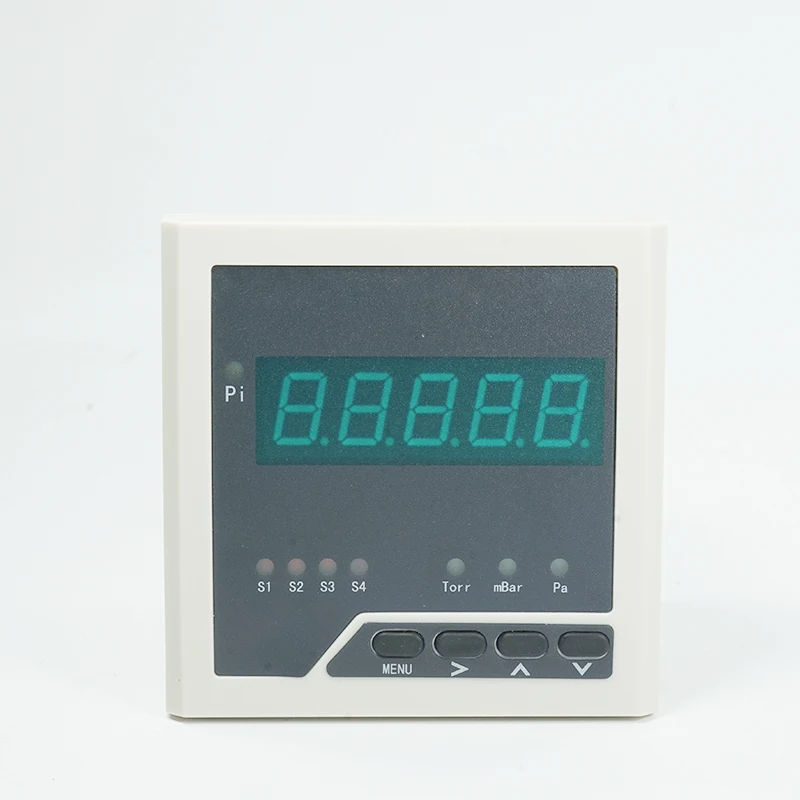

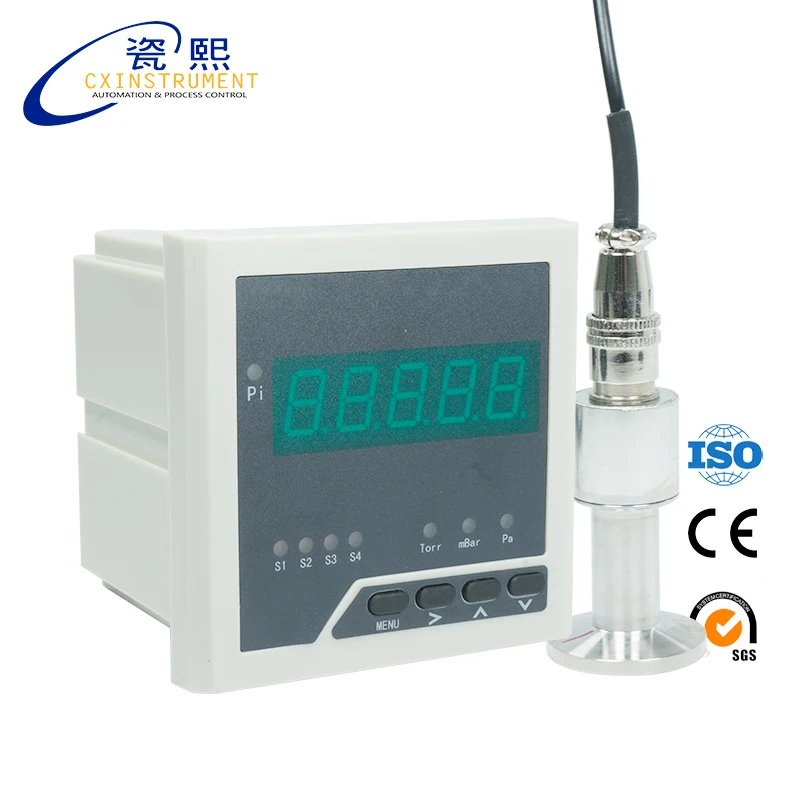

PRN160S  Singel Channel LED Remote Pirani Vacuum Controller with one pirani sensor

[Features of Pirani Vacuum Gauge Controller]

Measuring range

The Cixi Split type CNC intelligent Pirani vacuum gauge measuring range :1.0×10^-5 ~ 1.0×10⁺⁵ Pa



Multiple display
Double row five bit LED digital display real-time vacuum degree and target vacuum degree



Measurement characteristics

The vacuum gauge control accuracy:+/-1%;Control stability:+/-3%.



Point control selection

Four-way SNDP relay: load 3A/220VAC, response time<1 second, set to remove power memory



[Parameters]

The parameters of Split type CNC intelligent Pirani vacuum controller
Measuring range	1.0×10-5 ~ 1.0×10+5 Pa(Select probe according to control range)
Measurement characteristics	control accuracy:+/-1%;Control stability:+/-3%
response time	The detection response :< 10 milliseconds;Adjust response: < 2 seconds.
Point control selection	Four-way SNDP relay: load 3A/220VAC, response time<1 second, set to remove power memory
Display	Single row of 5 LEDs display
Output	0-10V analog voltage output/4-20mA current output
Communication	RS485/Moubus
power supply	85~265VAC/50Hz/60Hz
size	96mm*96mm*84mm

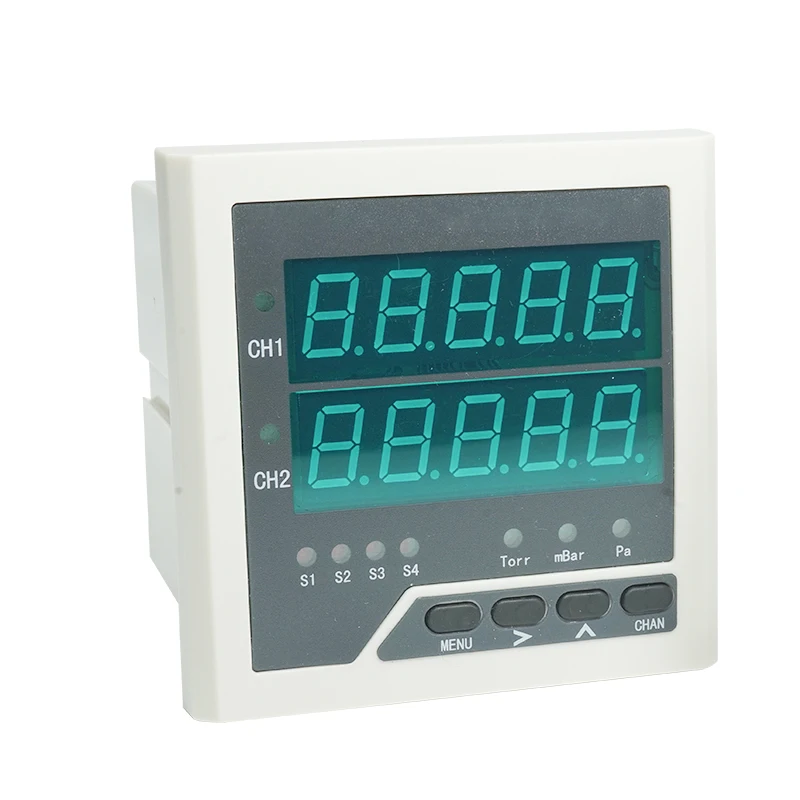

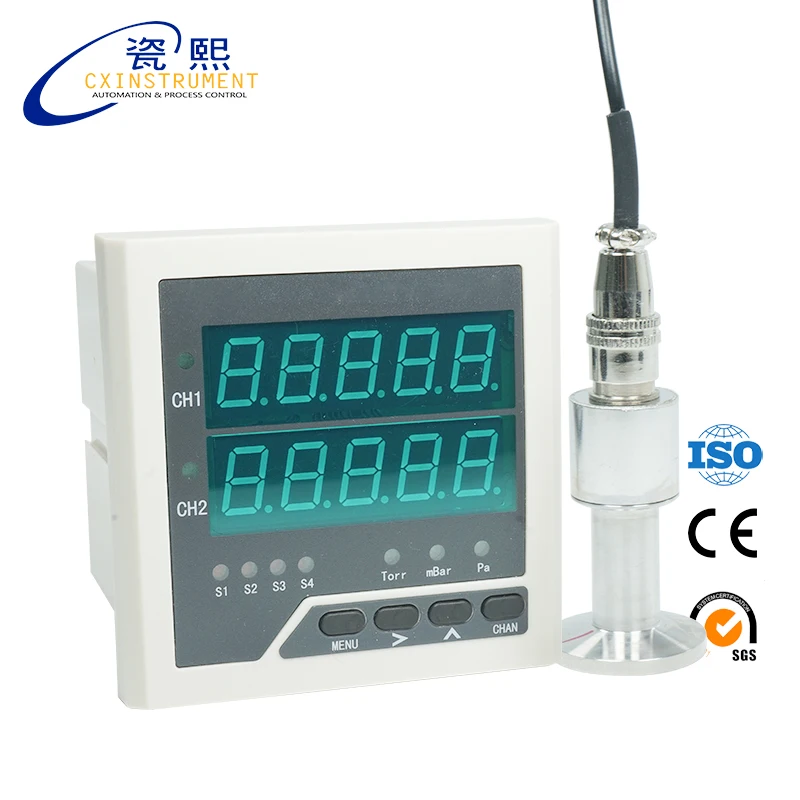

n  Dual LED display: one actual measurement value, one set value



n  High-speed dynamic response 10 milliseconds



n  Pirani sensor self-matching temperature 3D real-time calibration to eliminate temperature disturbance



n  Independent research and development for vacuum wide range flow regulation proportional solenoid valve



n  Digital PWM-PID algorithm, user-set adjustment vacuum chamber and pumping speed load



n  Support RS485 Modbus-RTU protocol and host computer communication

                 PRN12                                    PRN10                                      PRN13
