Лидер продаж 1 кв низковольтный 4-жильный алюминиевый силовой кабель abc 3 фазы 4
- Категория: Power Cables >>>
- Поставщик: Chunbin,Cable,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.94 $* | 0.72 $* |
| Aug-19-2025 | 0.90 $* | 0.45 $* |
| Jul-19-2025 | 0.40 $* | 0.5 $* |
| Jun-19-2025 | 0.52 $* | 0.35 $* |
| May-19-2025 | 0.42 $* | 0.22 $* |
| Apr-19-2025 | 0.43 $* | 0.70 $* |
| Mar-19-2025 | 0.73 $* | 0.96 $* |
| Feb-19-2025 | 0.35 $* | 0.14 $* |
| Jan-19-2025 | 0.64 $* | 0.2 $* |
Характеристики
Product Description
Main Features

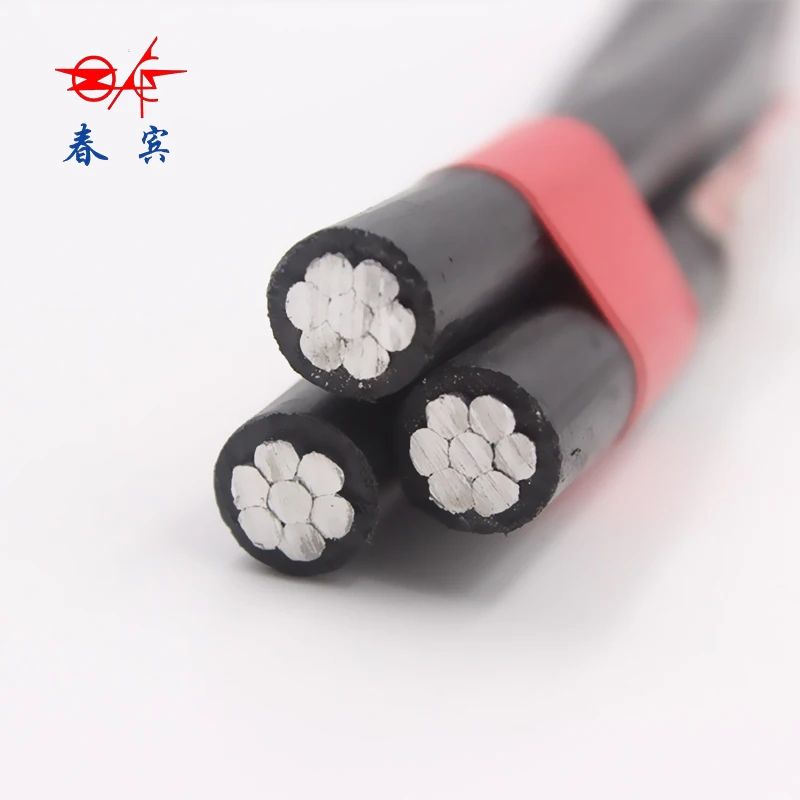

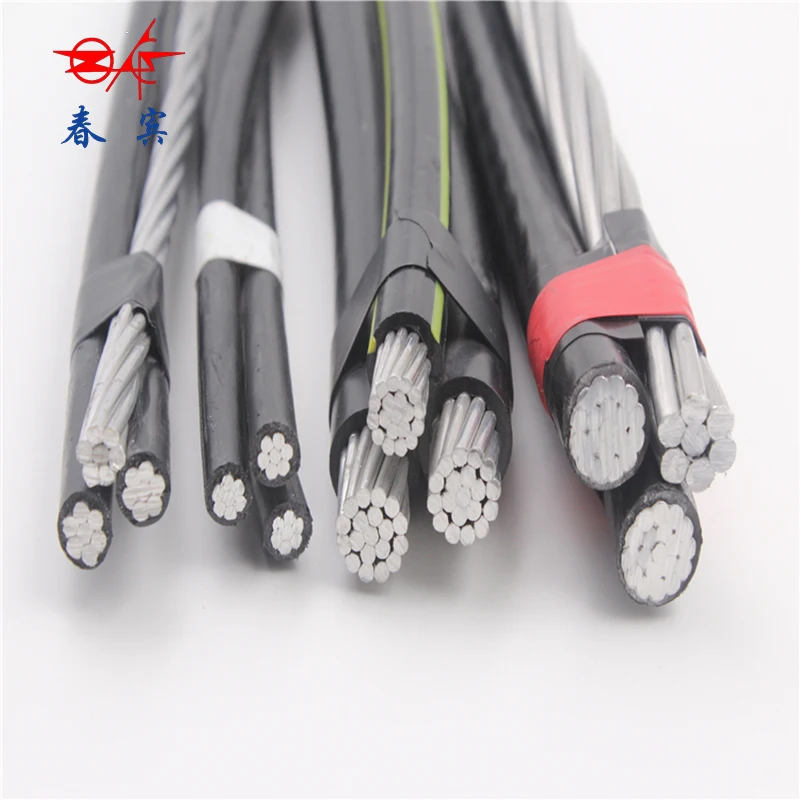

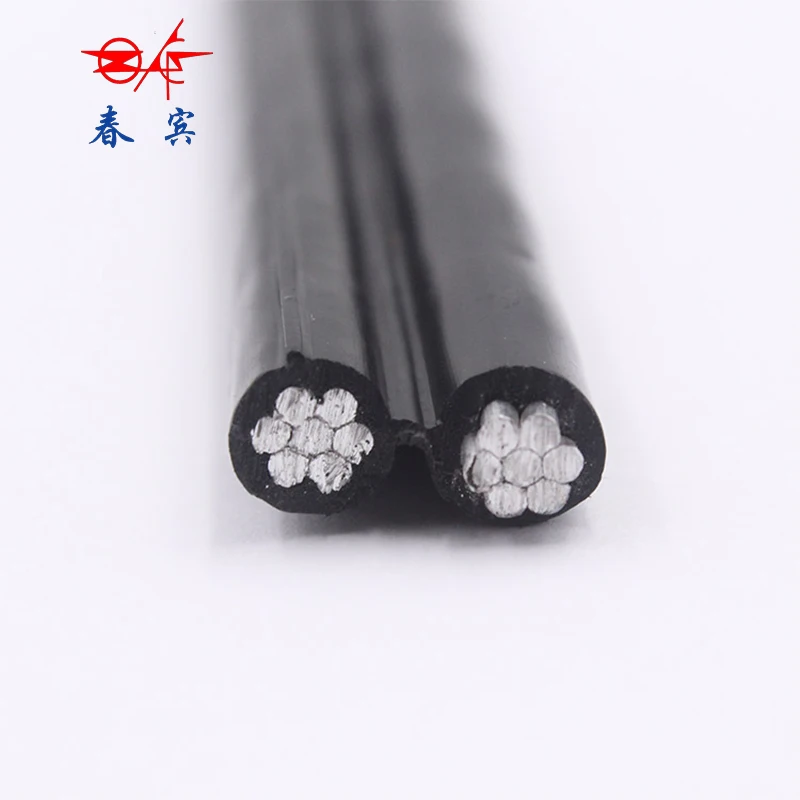

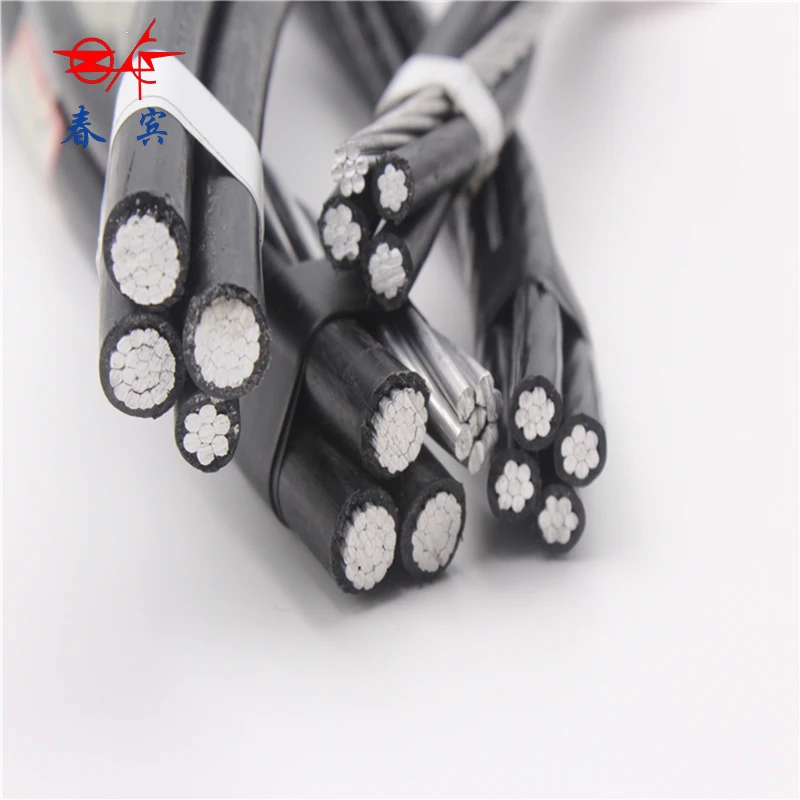

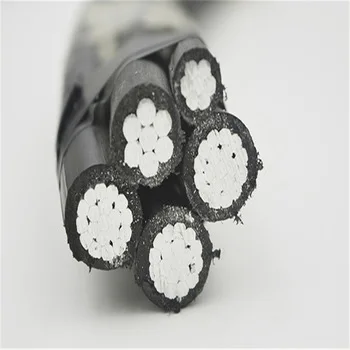

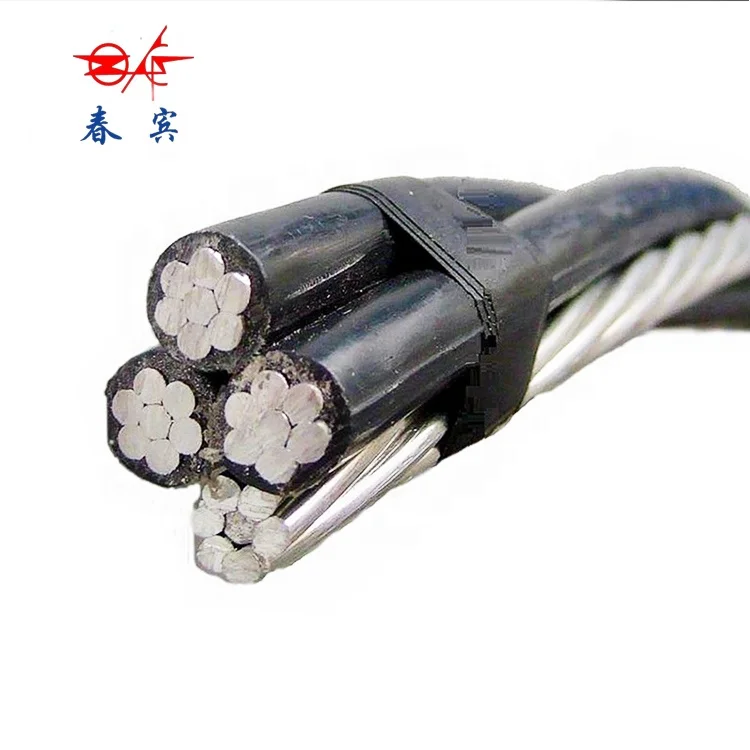

PVC/XLPE Insulation ABC Cable
Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed
75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.
service drop cable meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
B-231 Aluminum Conductors, Concentric-Lay-Stranded.
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire
Conductors are concentrically stranded, compressed 1350 H-19 aluminum. Insulated with either polyethylene or cross-linked polyethylene(XLPE). Neutral messengers are concentrically stranded 6201, AAC, or ACSR.
Product Application
Aerial bundle cable: Cluster overhead lines are mostly manufactured in accordance with French standards, of course, they can also be manufactured in accordance with national standards. Now they are mainly used abroad.
The cable is used in electric transmission and distribution system operating at rated voltage of 0.6/1,1.8/3, 3.6/6, 6/10, 8.7/10, 8.7/15, 12/20, 21/35, 26/35kV.
High-voltage transmission is generally carried out underground in cities with insulated cables, and is often transmitted in the field by overhead lines carried by towers.
To supply 120 volt aerialservice fortemporary service at construction sites, as a Service Drop (power pole to service entrance), as asecondary cable (poleto pole) or street ighting. Forservice at 600 vols or lower at a maximum conductor temperature of 75℃ for Polyethylene insulated cables or 90℃ for Cross-Linked XLPE insulation.
High Quality Material
Our Factory
The Chunbin Cable Group Co,. Ltd covers an area of 68,000 square meters, with a construction area of 18,000 square meters and fixed assets of 106.8 million RMB. We own advanced production equipment and perfect testing machine. Our company mainly produces mineral insulated cable, pv cable,overhead line cable, OPLC rail transit cable, optical fiber composite cable, medium and low voltage XLPE insulated power cable, PVC insulated power cable, aluminum alloy cable, fire resistant cable, flame retardant cable, control cable, overhead insulated cable, low-smoke halogen-free cable, rubber cable, mining cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated wire and cable, shielded monitoring line, protection More than 50 varieties, more than 1000 specifications, such as line, agricultural land embedding, anti-aging line, coaxial cable. At the same time, it can also produce British standard American standard and German standard wire and cable, and customize special type wire and cable for customers.
Packing & Delivery
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L1100*W1100*H10 100). If export to european countries, the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Delivery
We usually use 20fcl 40fcl and 40HQ.
The port is Qingdao port or Tianjin port.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Certifications
Our company strictly controls the quality of products. The products have passed the inspections of the national , provincial and municipal quality supervision departments for many years, and successfully passed the Chinese state. These certifications includes compulsory product certification, coal mine safety certification, national industrial product production license and ISO9001 international quality management system certification. It has obtained the national certificate of use of flame retardant products and is qualified as a foreign trade operator.
Related Cables
FAQ
Are you a factory or trade company ?
We are a professional cable manufacturer with 31 years experience. The factory is located in Luoyang, Henan province, China.
Whether these products quality assured ?
Most of cables are certificated. Also, we have strict QC, all products are tested before delivery. Quality is assured.
When I want customized products, how to do?
Contacting our customers survice, we have a professional R&D team and quality inspection team that can customize products according to customer's needs.
Can you send a sample for us to test?
If we have inventory, you can get 1-5meters sample for free, but freight cost need to be paid by your compony. If need a lot of samples , sample and freight cost have to be paid by your esteemed company. We will return the sample cost to you when we receiving your initial order.
If we want to purchase, how to pay ?
Generally we do T/T in 30% deposit before production, 70% balance against copy of B/L . Also payment terms are negotiable depending on customer's request.
When you arrange delivery after we place an order ?
Normally,we will arrange delivery in 7-15 days after order , and negotiation is allowed according to your quantity.
After I pay, what about shipping method?
Goods can be delivered by air, by express or by sea; International Express as FEDEX, UPS, DHL, TNT; You can choose the best way as you wish.
Contact Us
Name | Mike Liu |
Mail | mike@chunbincable.com |
Phone | +86 18624999185 |
Facebook | https://www.facebook.com/MikeLiu0818Cables/ |
Linkedin | https://www.linkedin.com/in/mike-liu-048b431b0/ |
Whatsapp | 008618624999185 |
Wechat | P413233 |
