Полуавтоматический сшиватель для картонных коробок/сшиватель гофрированного

Описание и отзывы

Трекер стоимости

Характеристики

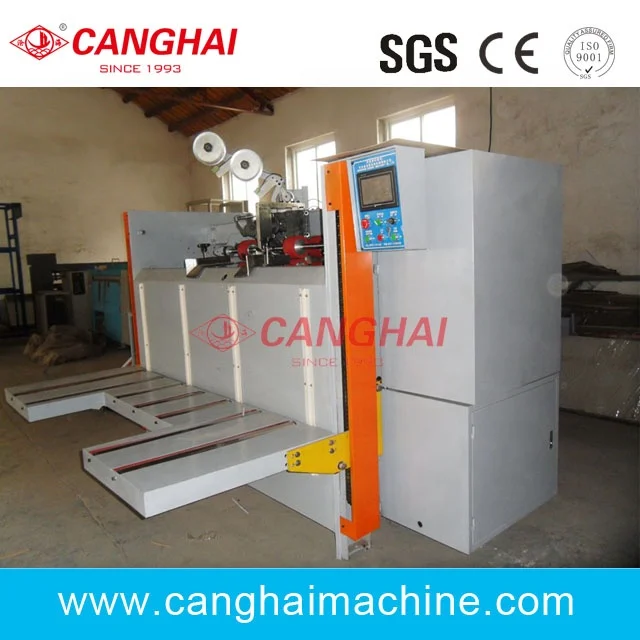

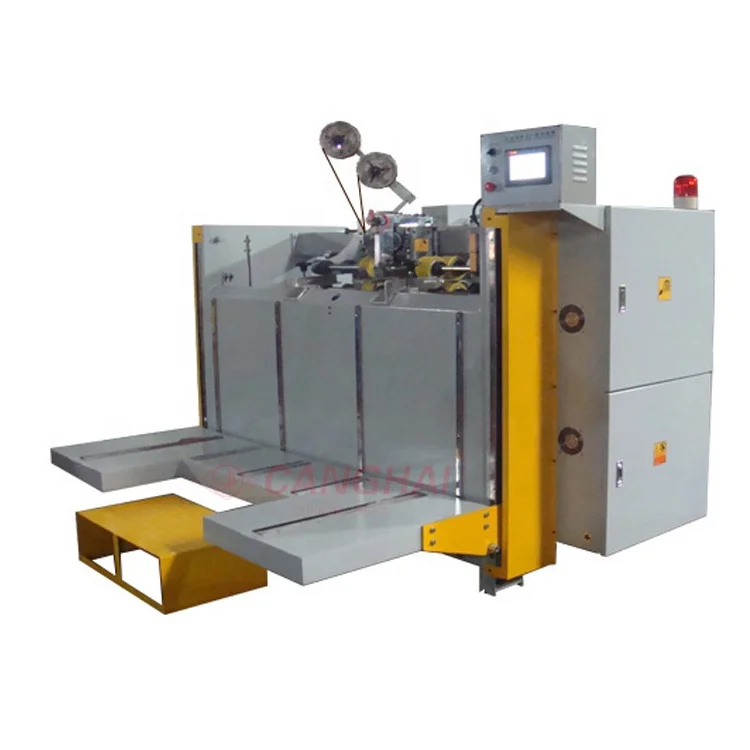

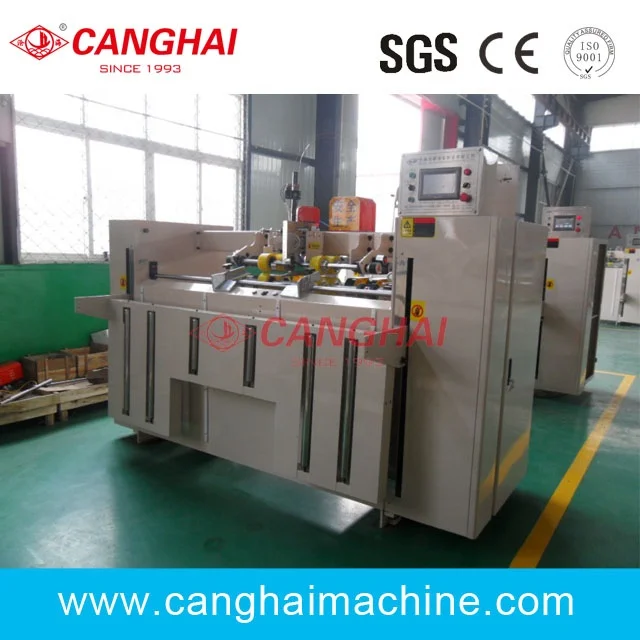

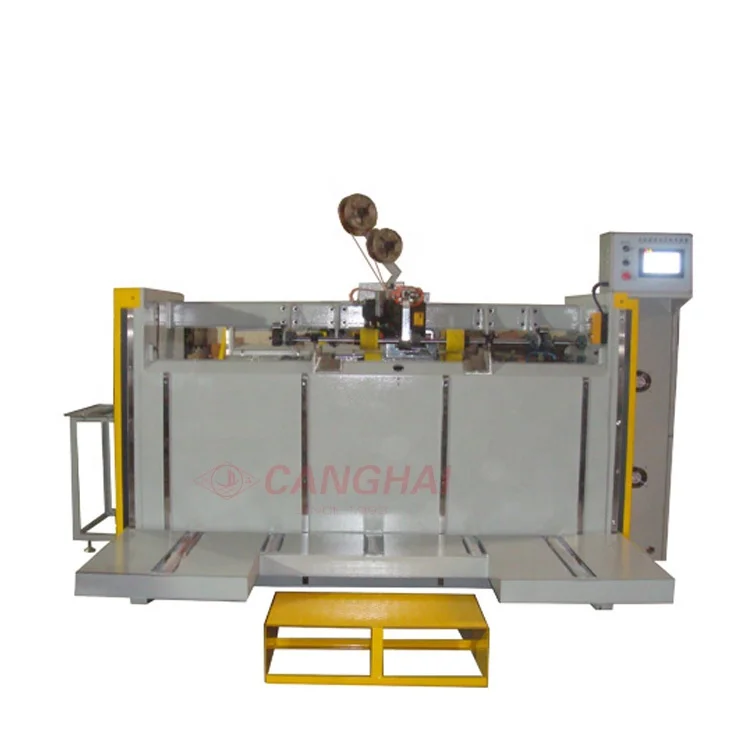

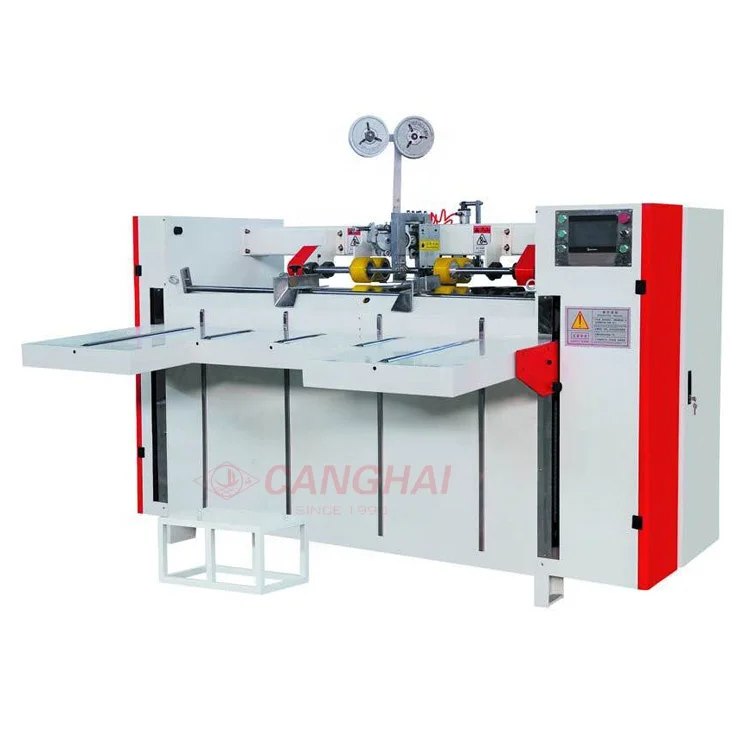

semi-automatic electric stapler machine

Model	QS-2000	Max.size	1515*2460mm
Speed	50nail/min	Min.size	400*606mm
Stitching distance	30-120mm	Motor	6HP
Stitching number	1-99 nail	Paper feeder height	900mm
Nail species	Single ,double,strong	Machine size	3000*2300*1800mm
Stitch wire	2.0*(0.65 to 0.75)nn	Machine weight	2000KGS





The main function and componets:

1.it nail a single nail,two nails,strengthen nails at one time.

2.One minute quick change size ,easy operation without experience

3.Feeder automatic counting .tied into bundles sent

4.Omron PLC control system

5.Chint contacts.

6.Taiwan electromagnetic clutch.

7.All switch control box using domestic brands

8.Stapled to the semi-finished products made of only two people placed in good operation.Simple operation,Reduced salary.

1.Automatic counting after the segment,the number of sheets can do a good job of setting the number of productions (1-99) sub-stack conveyor is not sent to client.

2.No cover box/ case can be covered nails

3.The use of touch-screen control ,nail away from the touch screen can be set directly facilitate the operation

4.Stud mining the entire set of all production of tool steel imported from Japan,computer gongs precision  machining

5.Bottom die,the blade made of tungsten steel imported from Japan (wear)



Advantages:

1.Nail from:30-120mm (can be adjusted)

2.No cover box/case can be covered nails

3.The use of touch-screen control ,nail away from the touch screen can be set directly facilitate the operation.
