Машина для изготовления армированных бетонных труб/труб используемая в штормовых дренажах водосточных

Concrete Pipe Making Machine Working Principle:

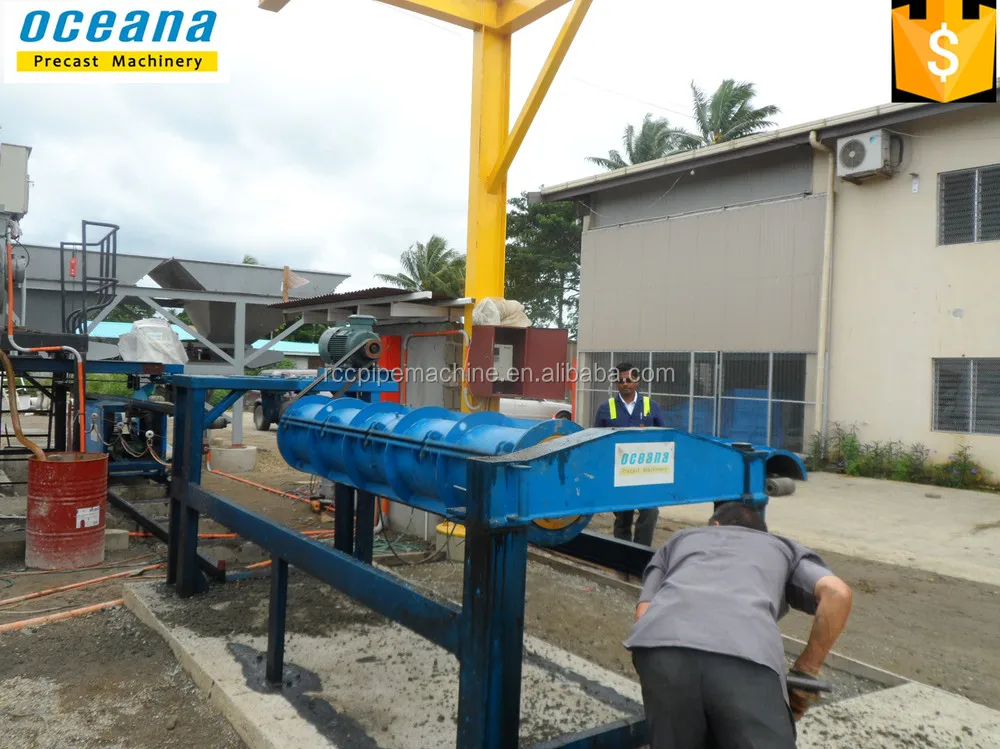

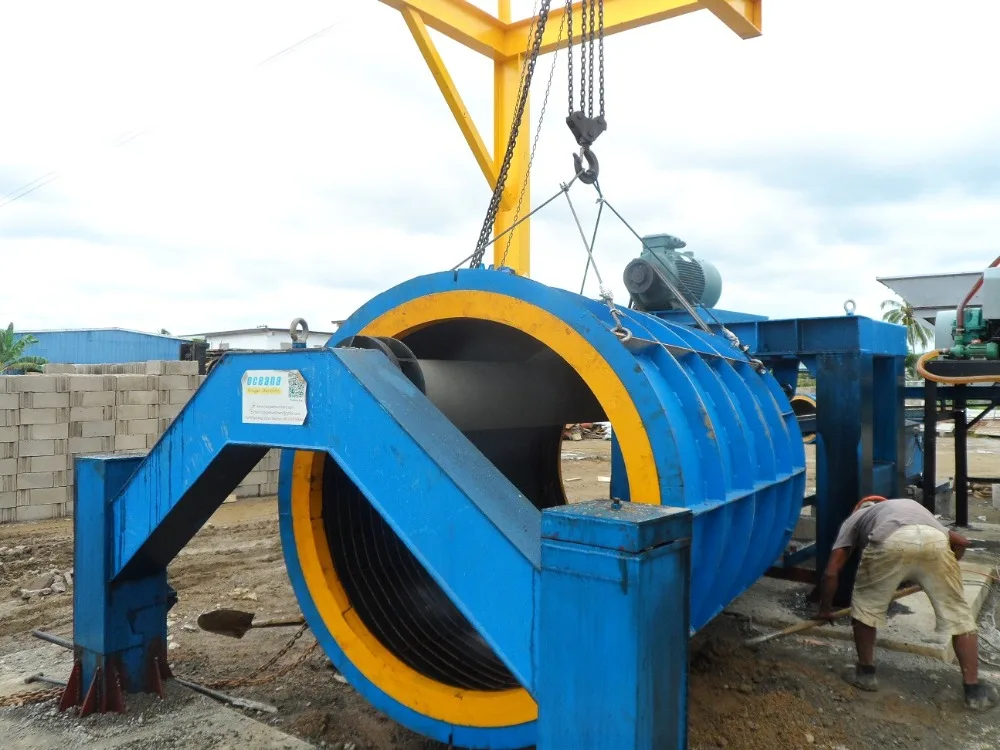

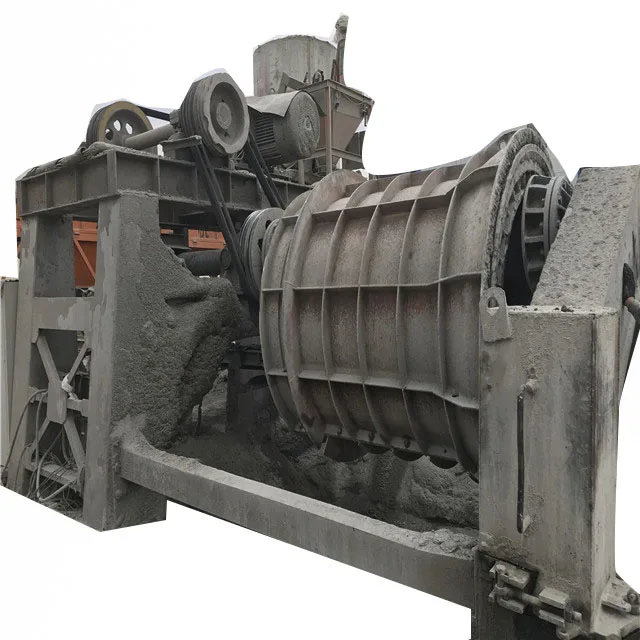

         This XG series Concrete pipe machine is with simple structure. The Suspended roller passes through the pipe mould. Driving by the motor, the transmission shaft will drive the roller rotating at the regulated speed. Because of the friction force between the roller and Stop Ring at the ends of mould, the pipe mould will be drove rotating at the same direction as the roller.

         By manual feeding concrete or conveying machine, the concrete mixture into the mould will be adhere to the inner wall of mould, and become solid, intensity at major function of the roller compressing force and Centrifugal force, and form the standard quality pipe.

Concrete Pipe Making Machine Features:

1: Wide Production Range: Inner Diameter form 200-2500mm, length 1-4meter;

2: Different Pipe end joint: Flat end; Male& Female end; Spigot& Socket end;

3: High efficiency, short production time, every pipe needs several minutes;

 With hard dry casting concrete, high intensity, and better strength;

4: No polluted slurry discharge, environment friendly, also lower noising;

5: Our CO2 Arc Welding, and Plasma Cutting machine promise higher quality.
