Формовочная машина для производства круглых плоских овальных
- Категория: Duct Making Machine >>>
- Поставщик: Eternoo,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.94 $* | 0.33 $* |
| Aug-16-2025 | 0.38 $* | 0.30 $* |
| Jul-16-2025 | 0.42 $* | 0.9 $* |
| Jun-16-2025 | 0.45 $* | 0.52 $* |
| May-16-2025 | 0.42 $* | 0.93 $* |
| Apr-16-2025 | 0.60 $* | 0.72 $* |
| Mar-16-2025 | 0.74 $* | 0.4 $* |
| Feb-16-2025 | 0.11 $* | 0.82 $* |
| Jan-16-2025 | 0.9 $* | 0.9 $* |
Характеристики
Technicals
Machine working speed: 15m/min
power supply: 3PH, 380-420V, 50HZ
Major components:
Decoiler, shaping part,cutting grinding machine,control box,oil pump,hydraulic duct bulging system
Decoiler
(1) decoiler:3 tons
(2) inner diameter:350-450mm
(3) outer diameter:1200mm
Shaping Part
(1) rows of rollers:18 rows
(2) roller material:CGR15 ball bearing steel
(3) axle material:#45
(4) axle diameter:70mm
(5) side board thickness:14mm
(6) chassis:360Hfashioned iron
(7) motor power:11.5 kw
(8) driving method:chain
(9) raw material:0.3mm,0.35mm, 0.4 mm
(10) speed :15 m/min
(4) machine weight: 4.5 tons

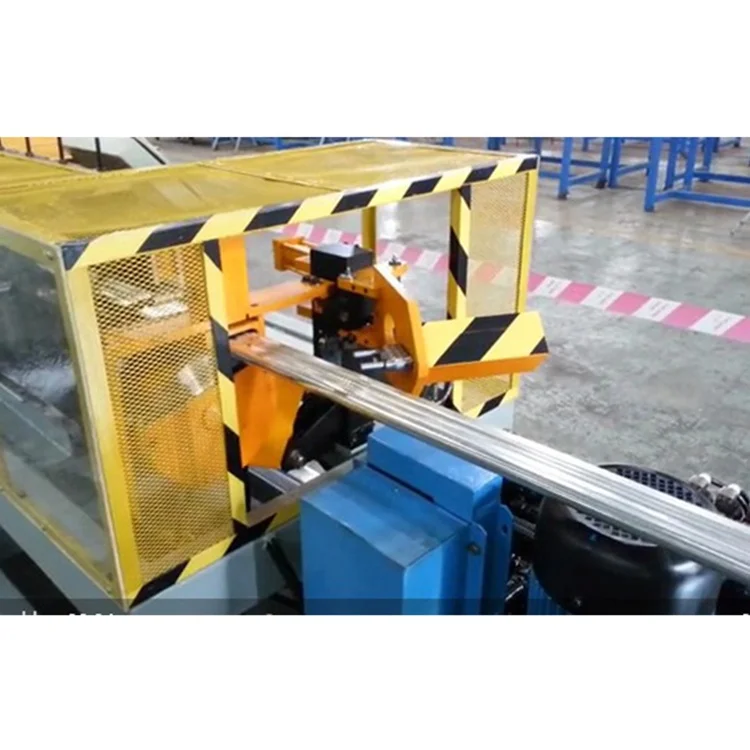

Cutting machine
(1) cutter material : CR12
(2) motor power:5.5 kw
(3) cutting method:flying saw
control system
Servo Tracking Controlling System, PLC

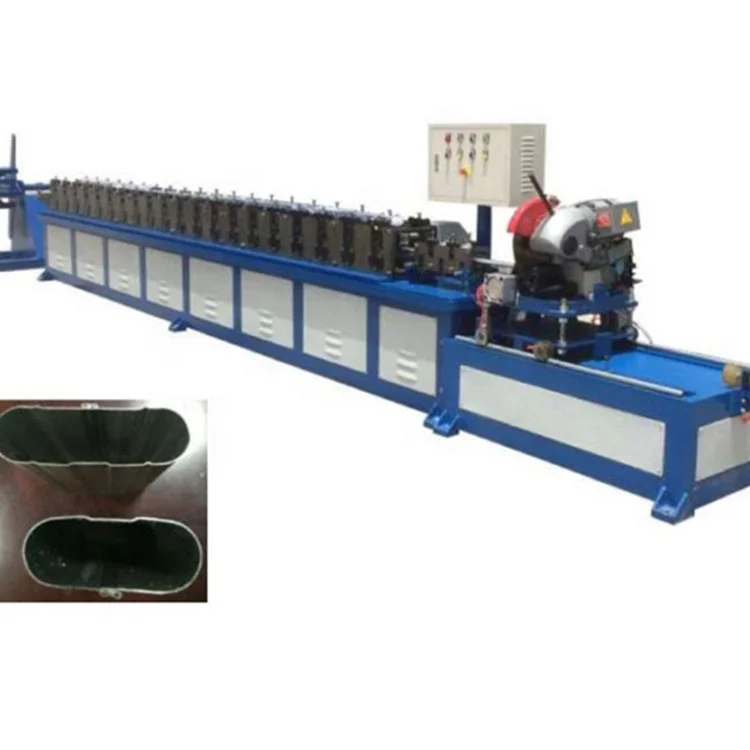

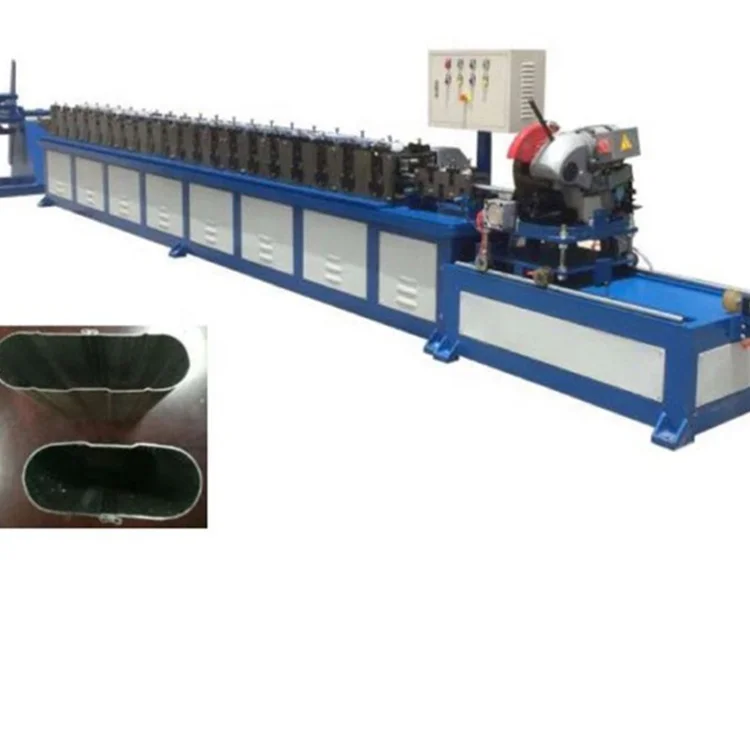

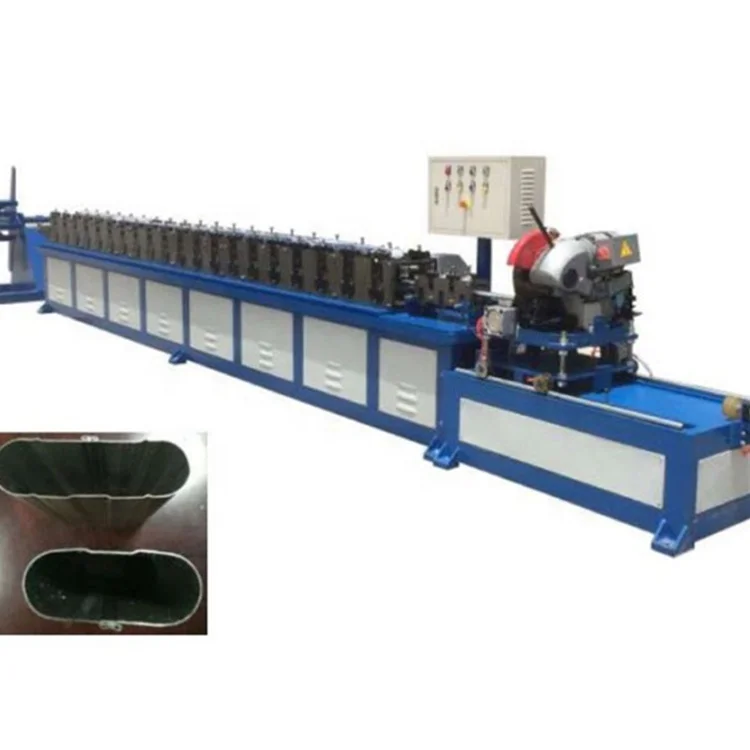

Product pictures

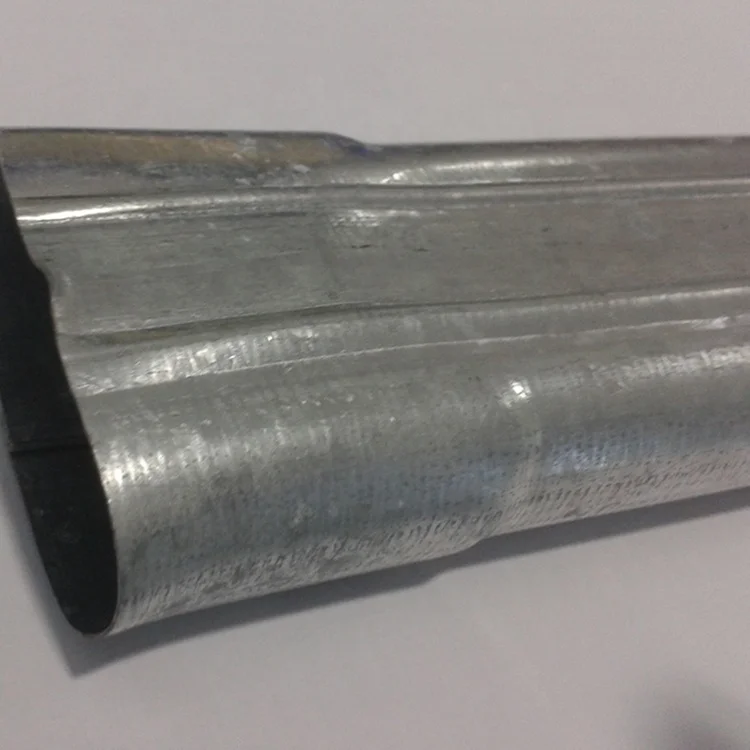

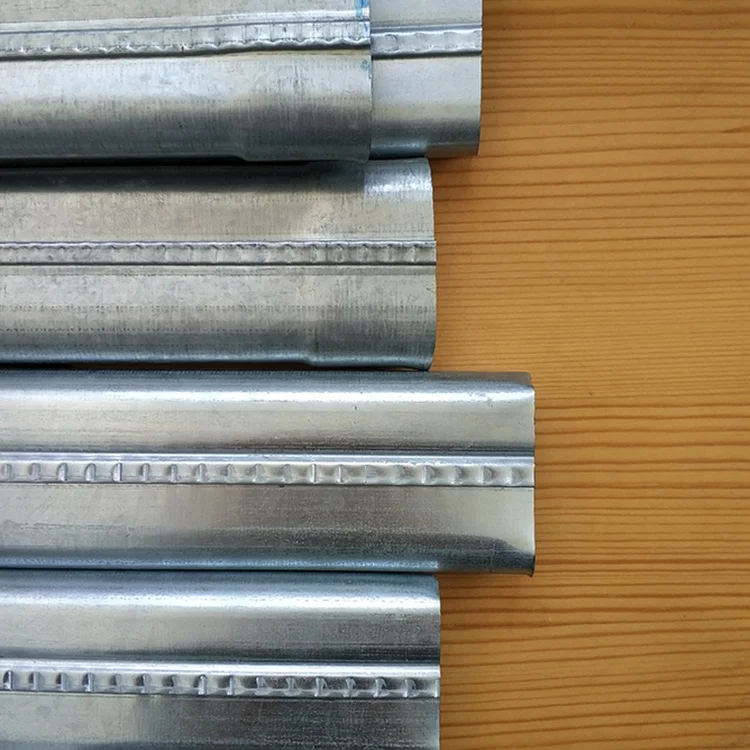

Prestressed/post tension Galvanized steel smooth Flat duct machine
Related Products
Company Information
ETERNOO MACHINERY CO., LTD is one professional and excellent Corporation engaged in designing and producing machinery and materials for the field of Prestressed Concrete Industry and Post Tensioning Industry in China, which is a manufacture and an international trading enterprise.
The company established in year 2008, under the guidance of reform and opening-up policy and with the help of government at all levels, with all of our staffs hardworking, has continuously developed at steady speed. At present, Our company has a total staff of 60, a workshop area of 2400m2, mechanical equipment manufacturing base at Zhengzhou. The company,with stable strength advantages in the brand, quality, technology, market, scale and benefit, has been making contribution to the local economic development.
Our Customers
Transport
FAQ
Q1: Is it easy to operate your machine?
A1: Yes, very easy. No need special training actually, we will send you operation videos, and you or your worker will clearly know how to operate and how to adjust the height.
Of course, if you feel necessary to be trained, customer could come to our factory, or we send technician to customer's country.
Q2: what is the power supply of machine?
A1: generally it is 380V, 3PH, 50HZ, but we could also make 400V/420V/440V/ 50HZ/60HZ, as customer requires.
Q3: what is the steel bar diameter your machine could deal with?
A3: 4mm, 5mm, 6mm, 7mm, 8mm etc. One machine work with one wire diameter.
Q4: what is the machine warrenty:
A4: 13 months after machine delivering from our factory. ( we give one month more for considering shipping time)
