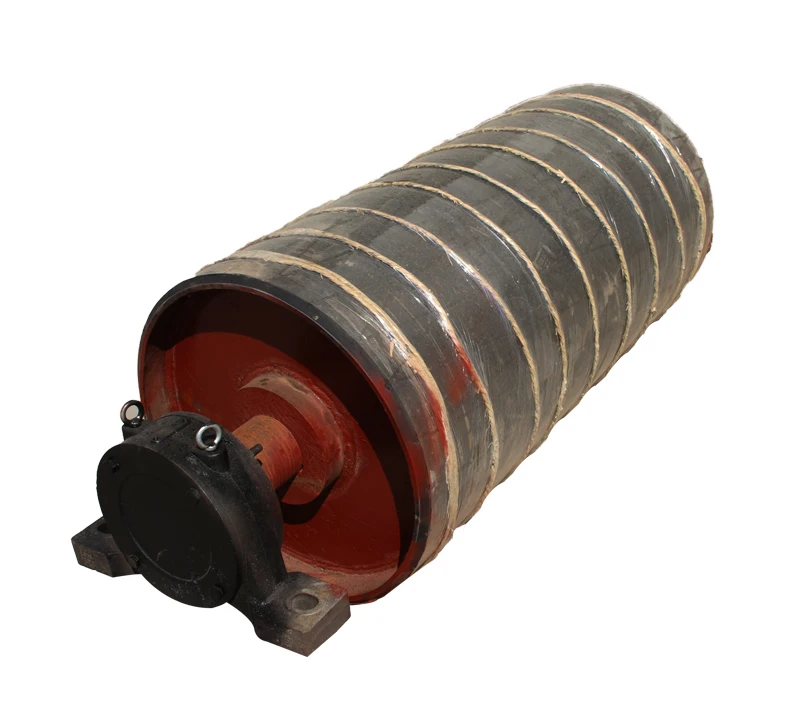

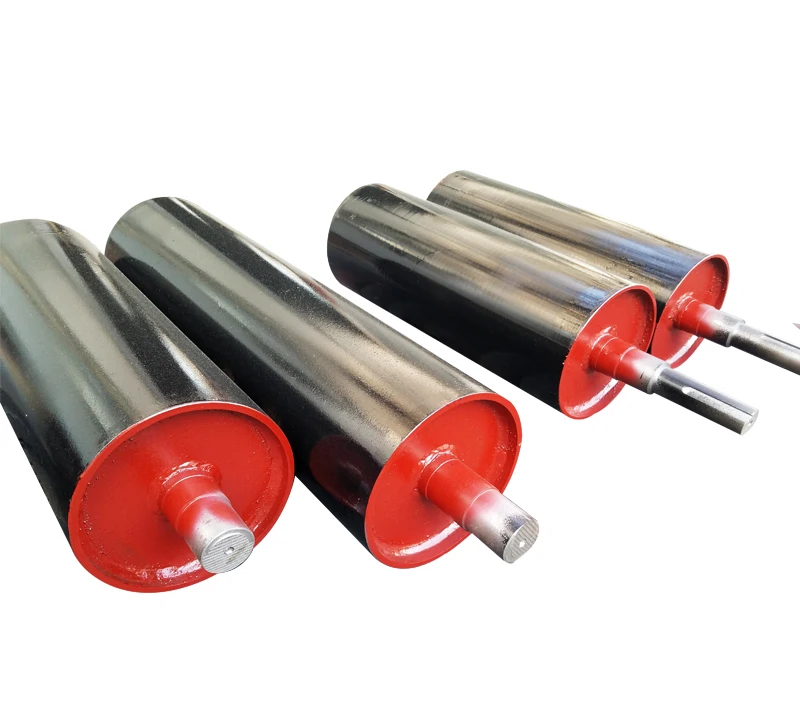

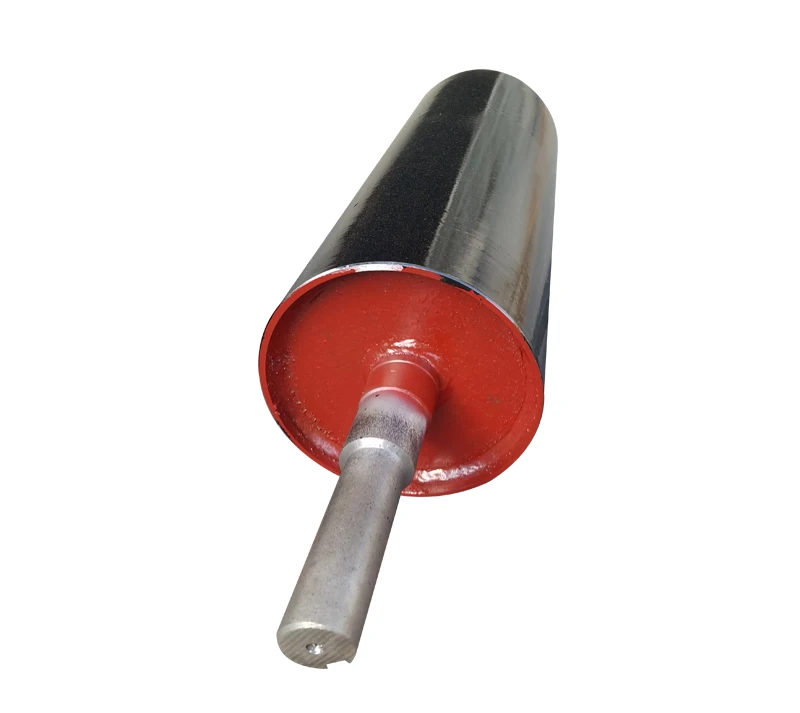

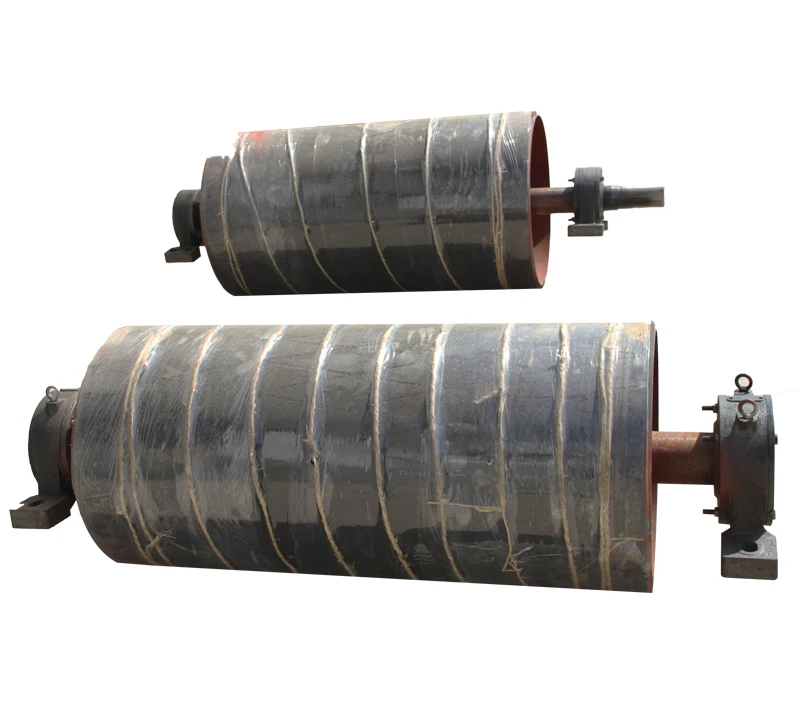

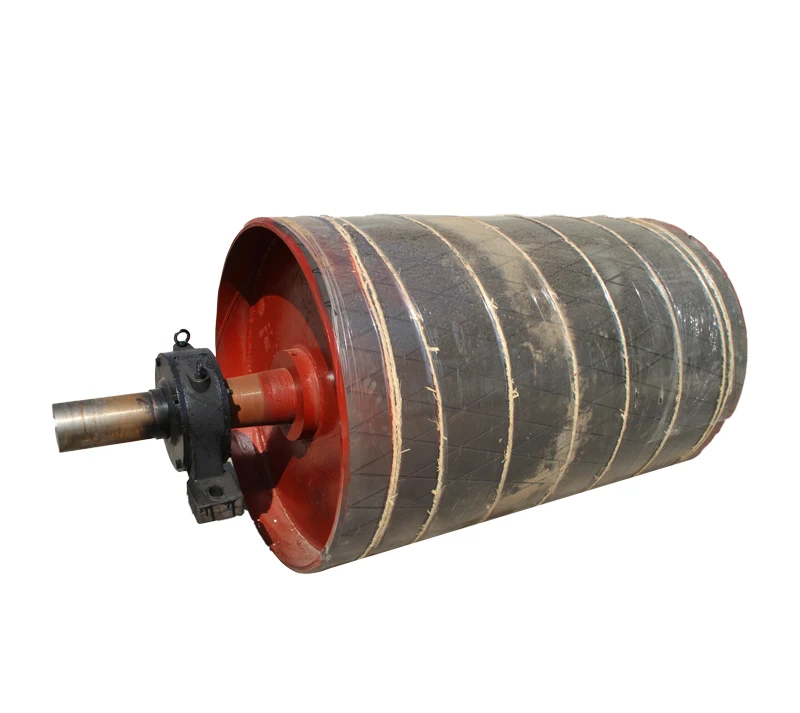

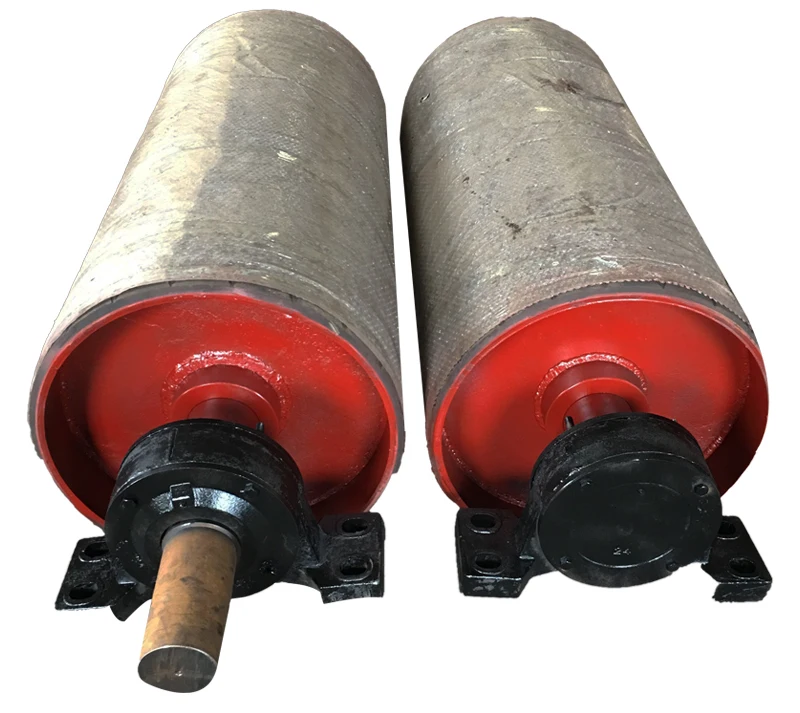

conveyor drum drive pulley roller





Structure and material:
(a) Shaft: Bright drawn steel to required bearing tolerance
(b) Shaft end: Both ends of tube are simultaneously machined and chamfered
(c) Bearing: Single and double row deep groove ball bearing 2RZ and 2Z with C3 clearance
(d) Seals: Grease retaining inner seal with multi-stage labyrinth and retention cap with outboard rubbing flinger seal
(e) Lubrication: Grease is lithium soap type grease with rust inhibitors
(f) Welding: Mixed gas shielded arc welding end
(g) Our roller saves on repair and maintenance costs of the conveyor belt due to the concentric design which decreases vibration



Advantage:
(1)Low friction coefficient, warterpoof, effective sealing system,
(2). High accurate steel pipes ensure the rollers with low vibration and noise.
(3) Multi-labyrinth seals achieve waterproof and dust proof.
(4). Adopt good bearing make sure the long lifetime, stable running and good quality.
(5). Stable running, good quality and attractive price.



Parameter for reference:



Parameter of conveyor drum pulley
Type	Belt width(mm)	Standard diameter(mm)	Length(mm)
Driving pulley, bend pulley	500	500	Length of pulley depends on the width of conveyo belt
	650	500~630
	800	630~1000
	1000	800~1150
	1200	800~1150
	1400	1000~1350
	1600	1150~1600
	1800	1150~1800
	2000	1350~2000
	2200	1600~2200
	2400	1800~2400

 we can produce according to the customers requirement.













  The certificates we have achieved:



Besides we can manufacture the conveyor rollers and conveyor idlers according to the buyers' requirements
